KE30L-KBFA (1976)
Toyota Corolla
(7408-7908)3KC

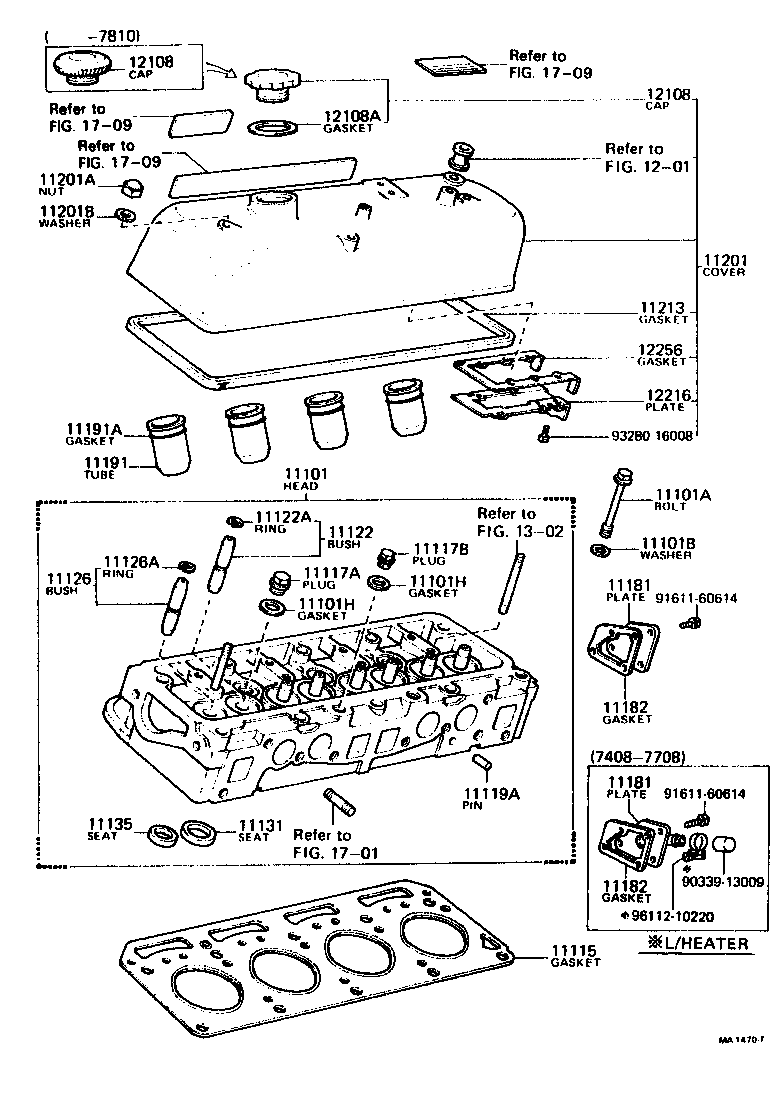

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-29205 |
3KC..KE3# |
1 | ||
| 11101-29207 |
3KC..KE30..USA CANADA SPEC. |
1 | ||
| 11101-29285 |
3KC..KE30..USA |
1 | ||
| 11101-29285 |
3KC..KE30..USA |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02020 |
3KC..KE3#,50 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
3KC..KE3#,50 |
10 | ||
| 90201-10005 |
3KC..KE3#,50 |
10 | ||
| 11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-15151 |
3KC..KE3#,50 OD=21,ID=15 |
2 | ||
| 90430-18152 |
3KC..KE3#,50 OD=25,ID=18 |
3 | ||
| 11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-15151 |
3KC..KE3#,50 OD=21,ID=15 |
2 | ||
| 90430-18152 |
3KC..KE3#,50 OD=25,ID=18 |
3 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-24012 |
3KC..KE3# |
1 | ||
| 11115-13010 |
3KC..KE30,50 |
1 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90341-18063 |
3KC..KE3#,50 |
3 | ||
| 11117B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90341-15045 |
3KC..KE3#,50 |
2 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-08120 |
3KC..KE3#,50 L=18,OD=8,L=18,OD=8 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-22020 |
3KC..KE3# O/S 0.05,O/S 0.05 |
4 | ||
| 11122-22020 |
3KC..KE3# STD,STD |
4 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
3KC..KE3#,50 |
4 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-22020 |
3KC..KE3# STD,STD |
4 | ||
| 11127-22020 |
3KC..KE3# O/S 0.05,O/S 0.05 |
4 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
3KC..KE3#,50 |
4 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-24010 |
3KC..KE3#,50 STD,STD |
4 | ||
| 11132-24010 |
3KC..KE3#,50 O/S 0.03,O/S 0.03 |
4 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-13010 |
3KC..KE3#,50 O/S 0.03,O/S 0.03 |
4 | ||
| 11136-24010 |
3KC..KE3#,50 O/S 0.03 |
4 | ||
| 11135-13010 |
3KC..KE3#,50 STD,STD |
4 | ||
| 11135-24012 |
3KC..KE3#,50 STD |
4 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-24010 |
3KC..KE3#,50 |
1 | ||
| 11181-24020 |
3KC..KE30,50 |
1 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-24010 |
3KC..KE3#,50 |
1 | ||
| 11181-24020 |
3KC..KE30,50 |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-24010 |
3KC..KE3#,50 |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-24010 |
3KC..KE3#,50 |
1 | ||
| 11191 - TUBE, SPARK PLUG | ||||
| 11191-22010 |
3KC..KE3#,50 |
4 | ||
| 11191A - GASKET(FOR SPARK PLUG TUBE) | ||||
| 90430-31141 |
3KC..KE3#,50 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-19015 |
3KC..KE30,50 |
1 | ||
| 11201-29106 |
3KC..KE3# |
1 | ||
| 11201-19026 |
3KC..KE30,50 |
1 | ||
| 11201-19025 |
3KC..KE30,50 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 94171-10800 |
3KC..KE3#,50 |
2 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-09007 |
3KC..KE30,50 |
2 | ||
| 90210-08017 |
3KC..KE3#,50 |
2 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-22010 |
3KC..KE3#,50 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12181-31020 |
3KC..KE3# |
1 | ||
| 12181-12904 |
3KC..KE30,50 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12181-31020 |
3KC..KE3# |
1 | ||
| 12181-12904 |
3KC..KE30,50 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
3KC..KE30,50 |
1 | ||
| 12216 - PLATE, VENTILATION BAFFLE | ||||
| 12216-22010 |
3KC..KE3#,50 |
1 | ||
| 12256 - GASKET, VENTILATION BAFFLE | ||||
| 12256-22010 |
3KC..KE3#,50 |
1 | ||
| Common parts | ||||
| 90339-13009 | ||||
| 91611-60614 | ||||
| 93280-16008 | ||||
| 96112-10220 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1302 | ||||
| 1701 | ||||
| 1709 | ||||
