KE30L-KBA (1976)
Toyota Corolla
(7408-7701)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-20040 |
KE30,50..DLX,SPL |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 90099-10084 |
KE30,50..DLX,SPL |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90097-00465 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-20020 |
KE30,50..DLX,SPL |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-12021 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-20050 |
KE30,50..DLX,SPL |
1 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-20050 |
KE30,50..DLX,SPL |
1 | ||
| 88324 - PLATE SUB-ASSY, COOLER COMPRESSOR VALVE | ||||
| 88305-12021 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88325 - CRANKCASE, COOLER COMPRESSOR | ||||
| 88325-20050 |
KE30,50..DLX,SPL |
1 | ||
| 88325B - PLUG, CYLINDER BLOCK OIL | ||||
| 88339-12020 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88326 - PLATE, COOLER COMPRESSOR BOTTOM | ||||
| 88331-12030 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 FOR LOWER |
1 | ||
| 88326-12020 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 FOR REAR |
1 | ||
| 88326 - PLATE, COOLER COMPRESSOR BOTTOM | ||||
| 88331-12030 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 FOR LOWER |
1 | ||
| 88326-12020 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 FOR REAR |
1 | ||
| 88328 - REED SUB-ASSY, COOLER COMPRESSOR VALVE | ||||
| 88307-12021 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-12020 |
KE30,50..DLX,SPL |
1 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88371-12021 |
KE30,50..DLX,SPL |
1 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88371-12021 |
KE30,50..DLX,SPL |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-20040 |
KE30,50..DLX,SPL |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90005 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88363 - ROD SUB-ASSY, COOLER COMPRESSOR CONNECTING | ||||
| 88302-20040 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88367-12020 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-12020 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-12020 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| Common parts | ||||
| 88371-12040 | ||||
| 90099-04253 | ||||
| 90099-04254 | ||||
| 90099-04276 | ||||
| 93220-16012 | ||||

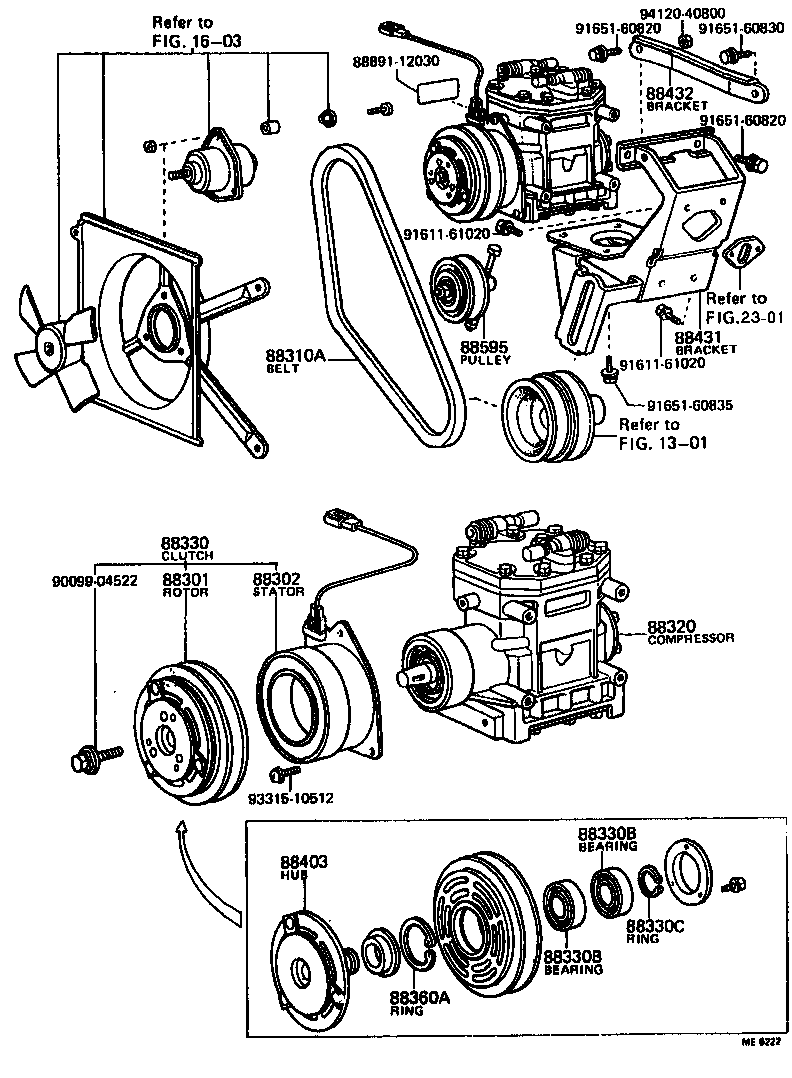

(7608-7908)KE3#,50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88401-14040 |
KE30;TE31..A40..SPL..USA;TE3#,51..(DLX,SR5)..USA FEDERAL SPEC. |
1 | ||
| 88401-20050 |
KE30,50..USA |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-12050 |
KE30;TE31..A40..SPL..USA;TE3#,51..(DLX,SR5)..USA FEDERAL SPEC. |
1 | ||
| 88411-20060 |
KE30,50..USA |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99332-00980 |
KE30..USA L=980 |
1 | ||
| 99522-10976 |
KE30,50..USA |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-20140 |
KE30,50..USA |
1 | ||
| 88320-20170 |
KE30..USA |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-20071 |
KE30,50..USA |
1 | ||
| 88410-14050 |
KE30;TE31..A40..SPL..USA;TE3#,51..(DLX,SR5)..USA FEDERAL SPEC. |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10083 |
KE30,TE3#,51..USA |
2 | ||
| 90099-10083 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10083 |
KE30,TE3#,51..USA |
2 | ||
| 90099-10083 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
2 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90096-90007 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 90096-90007 |
KE30,TE3#,51..USA |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90005 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-20031 |
KE30,TE3#,51..USA |
1 | ||
| 88403-12020 |
KE30,50..USA |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-12042 |
KE30,50..USA |
1 | ||
| 88431-12170 |
KE30..USA |
1 | ||
| 88432 - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88437-12043 |
KE30,50..USA |
1 | ||
| 88437-12140 |
KE30..USA |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-12030 |
KE30..USA |
1 | ||
| 88440-12030 |
KE30,50..USA |
1 | ||
| Common parts | ||||
| 88891-12030 | ||||
| 90099-04522 | ||||
| 91611-61020 | ||||
| 91651-60820 | ||||
| 91651-60830 | ||||
| 91651-60835 | ||||
| 93315-10512 | ||||
| 94120-40800 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1603 | ||||
| 2301 | ||||
(7701-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88316 - CRANKSHAFT, COOLER COMPRESSOR | ||||
| 88316-20040 |
KE30,50..DLX,SPL |
1 | ||
| 88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT | ||||
| 90099-10084 |
KE30,50..DLX,SPL |
1 | ||
| 88316B - RING, COMPRESSOR CRANKSHAFT REAR BEARING SNAP | ||||
| 90096-90004 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90097-00465 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-20140 |
KE30,50..USA |
1 | ||
| 88320-20170 |
KE30..USA |
1 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 04881-20020 |
KE30,50..DLX,SPL |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-12021 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-20050 |
KE30,50..DLX,SPL |
1 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-20050 |
KE30,50..DLX,SPL |
1 | ||
| 88324 - PLATE SUB-ASSY, COOLER COMPRESSOR VALVE | ||||
| 88305-12021 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88325 - CRANKCASE, COOLER COMPRESSOR | ||||
| 88325-20050 |
KE30,50..DLX,SPL |
1 | ||
| 88325B - PLUG, CYLINDER BLOCK OIL | ||||
| 88339-12020 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88326 - PLATE, COOLER COMPRESSOR BOTTOM | ||||
| 88331-12030 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 FOR LOWER |
1 | ||
| 88326-12020 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 FOR REAR |
1 | ||
| 88326 - PLATE, COOLER COMPRESSOR BOTTOM | ||||
| 88331-12030 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 FOR LOWER |
1 | ||
| 88326-12020 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 FOR REAR |
1 | ||
| 88328 - REED SUB-ASSY, COOLER COMPRESSOR VALVE | ||||
| 88307-12021 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-12020 |
KE30,50..DLX,SPL |
1 | ||
| 88329 - PISTON SUB-ASSY, COOLER COMPRESSOR | ||||
| 88301-12020 |
KE30,50..DLX,SPL |
1 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88371-12021 |
KE30,50..DLX,SPL |
1 | ||
| 88332 - VALVE, COOLER COMPRESSOR DISCHARGE SERVICE | ||||
| 88371-12021 |
KE30,50..DLX,SPL |
1 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-20040 |
KE30,50..DLX,SPL |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90005 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88363 - ROD SUB-ASSY, COOLER COMPRESSOR CONNECTING | ||||
| 88302-20040 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88363 - ROD SUB-ASSY, COOLER COMPRESSOR CONNECTING | ||||
| 88302-20040 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR | ||||
| 88367-12020 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
2 | ||
| 88374 - VALVE, COOLER COMPRESSOR SERVICE | ||||
| 88374-12020 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
2 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-12020 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-12020 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-12020 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 88375 - CAP, COOLER COMPRESSOR SERVICE VALVE | ||||
| 88375-12020 |
TE31;KE30,50,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| Common parts | ||||
| 90099-04254 | ||||
| 90099-04276 | ||||
| 90099-04277 | ||||
| 91112-70610 | ||||
