Toyota Corolla KE30 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
US
COROLLA
KE30L-KBA (1976)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

KE30L-KBA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979

Engine 3KC

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(7408-7908)TE3#,51 ; (7708-7908)KE30

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-12031	TE31;KE30,50,TE37,38,51..DLX,SPL,SR5	01/1977 - 06/1977	1
88460-12070	KE30,TE3#,51..USA	08/1978 - 08/1979	1
88460-12030	TE31;KE30,TE37,38,51..DLX,SPL,SR5	08/1976 - 01/1977	1
88460-12060	KE30,TE3#,51..USA	08/1977 - 08/1978	1
88460-12031	KE30,50..USA	06/1977 - 08/1977	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12020	TE31;KE30,50,TE37,38,51..DLX,SPL,SR5	08/1976 - 08/1977	1
88470-12021	KE30,TE3#,51..USA	08/1977 - 09/1978	1
88470-20070	KE30,TE3#,51..USA	09/1978 - 08/1979	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-12120	TE31;KE30,50,TE37,38,51..DLX,SPL,SR5	08/1976 - 08/1977	1
88472-12160	KE30,TE3#,51..USA	09/1978 - 08/1979	1
88472-12120	KE30,TE3#,51..USA	08/1977 - 09/1978	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88434-30010	TE31;KE30,50,TE37,38,51..DLX,SPL,SR5	08/1976 - 08/1977	3
88434-30010	KE30,TE3#,51..USA	08/1977 - 08/1979	2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12080	KE30..USA	08/1977 - 08/1979	1
88711-12080	KE30,50..USA	08/1976 - 08/1977	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12160	KE30..USA	08/1977 - 08/1979	1
88712-12160	KE30,50..USA	08/1976 - 08/1977	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-12042	TE31;KE30,50,TE37,38,51..DLX,SPL,SR5	01/1977 - 06/1977	1
88715-12041	TE31;KE30,TE37,38,51..DLX,SPL,SR5	08/1976 - 01/1977	1
88715-12042	KE30,50..USA	06/1977 - 08/1977	1
88715-12070	KE30..USA	08/1977 - 08/1979	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-12141	TE31;KE30,50,TE37,38,51..DLX,SPL,SR5	01/1977 - 06/1977	1
88716-12140	TE31;KE30,TE37,38,51..DLX,SPL,SR5	08/1976 - 01/1977	1
88716-12141	KE30,50..USA	06/1977 - 08/1977	1
88716-12300	KE30,TE3#,51..USA	08/1977 - 08/1979	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12261	KE30,TE3#,51..USA	08/1977 - 08/1979	1
88716-12220	KE30,50..USA	08/1976 - 08/1977	1
Common parts
88467-22010
88714-12010
88714-14020
88718-12081
88718-12100
88718-12130
90099-21010
90099-21011
90099-32073
93381-15010
93385-15016
93385-16012
93385-16020
93385-18016
93385-18030
93590-15014
94120-40600

(7608-7708)KE3#,50

Click highlighted areas on diagram

Part #	Description	Period	Qty

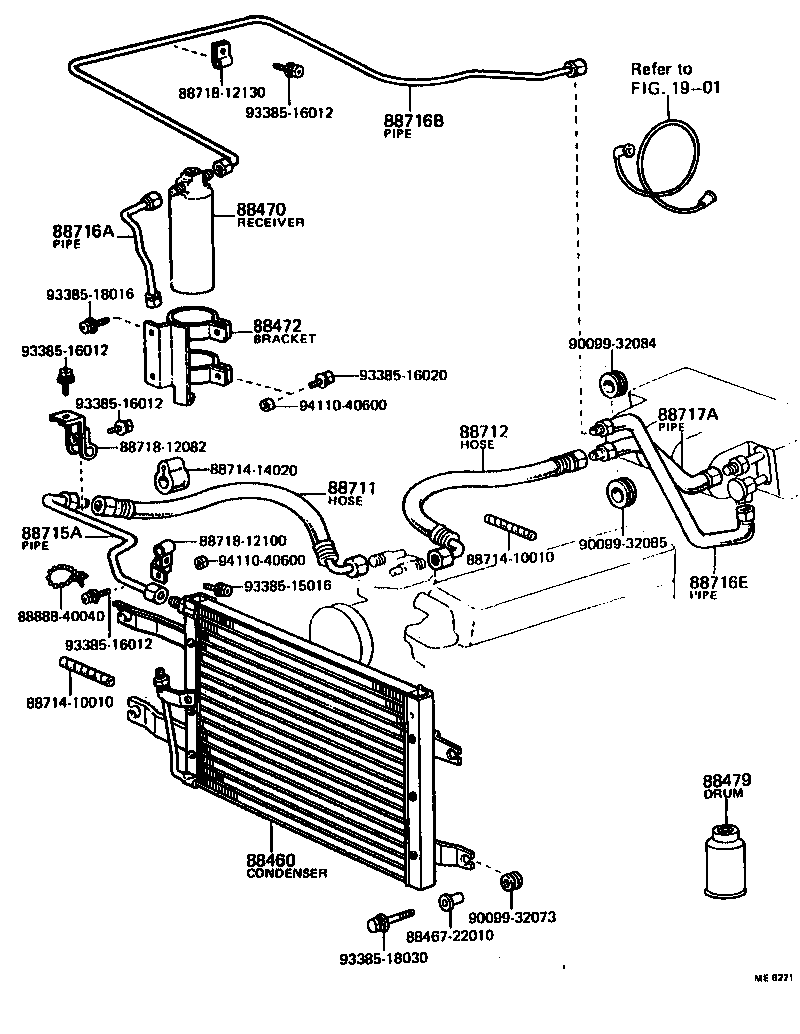

88460 - CONDENSER ASSY, COOLER
88460-12031	TE31;KE30,50,TE37,38,51..DLX,SPL,SR5	01/1977 - 06/1977	1
88460-12070	KE30,TE3#,51..USA	08/1978 - 08/1979	1
88460-12030	TE31;KE30,TE37,38,51..DLX,SPL,SR5	08/1976 - 01/1977	1
88460-12060	KE30,TE3#,51..USA	08/1977 - 08/1978	1
88460-12031	KE30,50..USA	06/1977 - 08/1977	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12020	TE31;KE30,50,TE37,38,51..DLX,SPL,SR5	08/1976 - 08/1977	1
88470-12021	KE30,TE3#,51..USA	08/1977 - 09/1978	1
88470-20070	KE30,TE3#,51..USA	09/1978 - 08/1979	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-12120	TE31;KE30,50,TE37,38,51..DLX,SPL,SR5	08/1976 - 08/1977	1
88472-12160	KE30,TE3#,51..USA	09/1978 - 08/1979	1
88472-12120	KE30,TE3#,51..USA	08/1977 - 09/1978	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88434-30010	TE31;KE30,50,TE37,38,51..DLX,SPL,SR5	08/1976 - 08/1977	3
88434-30010	KE30,TE3#,51..USA	08/1977 - 08/1979	2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12080	KE30..USA	08/1977 - 08/1979	1
88711-12080	KE30,50..USA	08/1976 - 08/1977	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-12160	KE30..USA	08/1977 - 08/1979	1
88712-12160	KE30,50..USA	08/1976 - 08/1977	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-12042	TE31;KE30,50,TE37,38,51..DLX,SPL,SR5	01/1977 - 06/1977	1
88715-12041	TE31;KE30,TE37,38,51..DLX,SPL,SR5	08/1976 - 01/1977	1
88715-12042	KE30,50..USA	06/1977 - 08/1977	1
88715-12070	KE30..USA	08/1977 - 08/1979	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-12141	TE31;KE30,50,TE37,38,51..DLX,SPL,SR5	01/1977 - 06/1977	1
88716-12140	TE31;KE30,TE37,38,51..DLX,SPL,SR5	08/1976 - 01/1977	1
88716-12141	KE30,50..USA	06/1977 - 08/1977	1
88716-12300	KE30,TE3#,51..USA	08/1977 - 08/1979	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-12180	KE30,50..USA	08/1976 - 08/1977	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-12261	KE30,TE3#,51..USA	08/1977 - 08/1979	1
88716-12220	KE30,50..USA	08/1976 - 08/1977	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-12080	KE30,50..DLX,SPL	08/1976 - 08/1979	1
Common parts
88467-22010
88714-10010
88714-14020
88718-12082
88718-12100
88718-12130
88888-40040
90099-32073
90099-32084
90099-32085
93385-15016
93385-16012
93385-16020
93385-18016
93385-18030
94110-40600
