KE30L-KBA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7708)KE3#,50 ; (7408-7908)TE3#,51

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87205 87205 87245A 87245A 87245A 87246A 87246A 87246A 87246E 87246E 87246E 87249A 87249A 87249A 8726112020 8726112030 87264 87264 87264 87264 8871414010 9033913009 9033913009 9046022073 9046022073 9046022073 9046024039 9046024039 9161140612 9161140812 9165140614 9331514010 9338516010 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01466

KE3#,TE3#

 1
87019C - GROMMET, HEATER HOSE
90480-01466

KE3#,TE3#

 1
87019C - GROMMET, HEATER HOSE
90480-01466

KE3#,TE3#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12261

KE30,50

 1
87245-12090

KE3#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12261

KE30,50

 1
87245-12090

KE3#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12261

KE30,50

 1
87245-12090

KE3#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12080

KE3#

 1
87245-12230

KE3#,50

 1
87245-12300

KE30,50

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12080

KE3#

 1
87245-12230

KE3#,50

 1
87245-12300

KE30,50

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12080

KE3#

 1
87245-12230

KE3#,50

 1
87245-12300

KE30,50

 1
87246E - HOSE, HEATER WATER, OUTLET E
99552-20050

KE3#

*H,L=50

 1
87245-12281

KE30,50

 1
87245-12282

KE30,50

 1
87246E - HOSE, HEATER WATER, OUTLET E
99552-20050

KE3#

*H,L=50

 1
87245-12281

KE30,50

 1
87245-12282

KE30,50

 1
87246E - HOSE, HEATER WATER, OUTLET E
99552-20050

KE3#

*H,L=50

 1
87245-12281

KE30,50

 1
87245-12282

KE30,50

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-12060

KE3#

 1
87248-12120

KE30,50

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-12060

KE3#

 1
87248-12120

KE30,50

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-12060

KE3#

 1
87248-12120

KE30,50

 1
87264 - BRACKET, HEATER WATER HOSE
87263-12030

KE3#

 1
87263-12120

KE30,50

HEATER OUTLET

 1
87263-12111

KE30,50

HEATER INLET

 1
87264 - BRACKET, HEATER WATER HOSE
87263-12030

KE3#

 1
87263-12120

KE30,50

HEATER OUTLET

 1
87263-12111

KE30,50

HEATER INLET

 1
87264 - BRACKET, HEATER WATER HOSE
87263-12030

KE3#

 1
87263-12120

KE30,50

HEATER OUTLET

 1
87263-12111

KE30,50

HEATER INLET

 1
87264 - BRACKET, HEATER WATER HOSE
87263-12030

KE3#

 1
87263-12120

KE30,50

HEATER OUTLET

 1
87263-12111

KE30,50

HEATER INLET

 1
Common parts
87261-12020
87261-12030
88714-14010
90339-13009
90460-22073
90460-24039
91611-40612
91611-40812
91651-40614
93315-14010
93385-16010
96112-10220
96112-10250

(7708-7908)KE30,50

Click highlighted areas on diagram

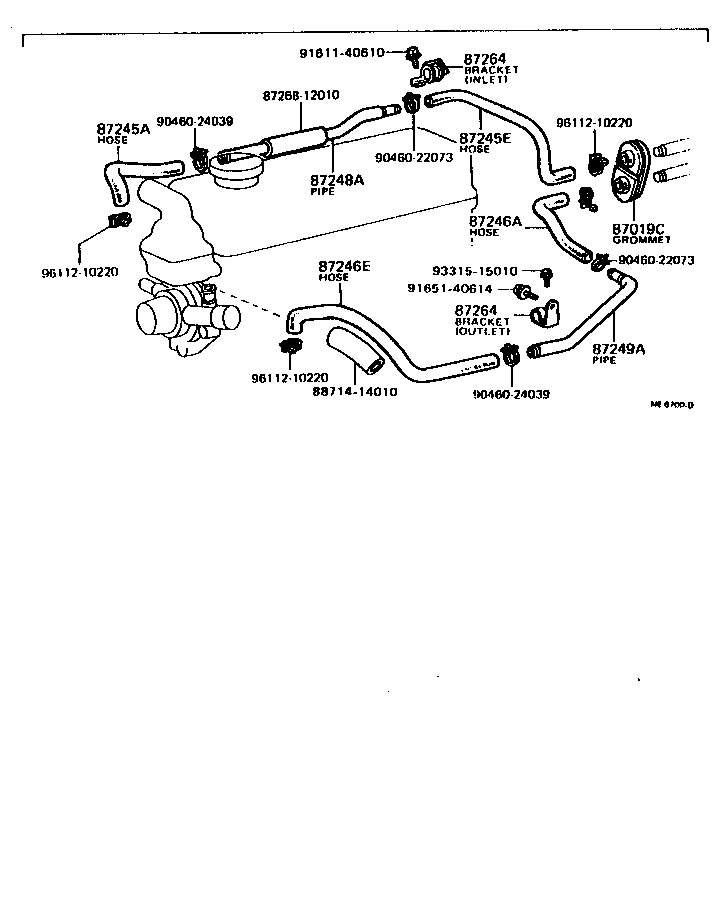

diagram 87019C 87245A 87245E 87246A 87246E 87248A 87249A 87264 87264 8726812010 8871414010 9011210220 9046022073 9046022073 9046024039 9046024039 9161140610 9165140614 9331515010 9611210220 9611210220
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01466

KE3#,TE3#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12261

KE30,50

 1
87245-12090

KE3#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-12271

KE30,50

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12080

KE3#

 1
87245-12230

KE3#,50

 1
87245-12300

KE30,50

 1
87246E - HOSE, HEATER WATER, OUTLET E
99552-20050

KE3#

*H,L=50

 1
87245-12281

KE30,50

 1
87245-12282

KE30,50

 1
87248A - PIPE, HEATER WATER INLET, A
87248-12101

KE30,50

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-12060

KE3#

 1
87248-12120

KE30,50

 1
87264 - BRACKET, HEATER WATER HOSE
87263-12030

KE3#

 1
87263-12120

KE30,50

HEATER OUTLET

 1
87263-12111

KE30,50

HEATER INLET

 1
87264 - BRACKET, HEATER WATER HOSE
87263-12030

KE3#

 1
87263-12120

KE30,50

HEATER OUTLET

 1
87263-12111

KE30,50

HEATER INLET

 1
Common parts
87268-12010
88714-14010
90112-10220
90460-22073
90460-24039
91611-40610
91651-40614
93315-15010
96112-10220
