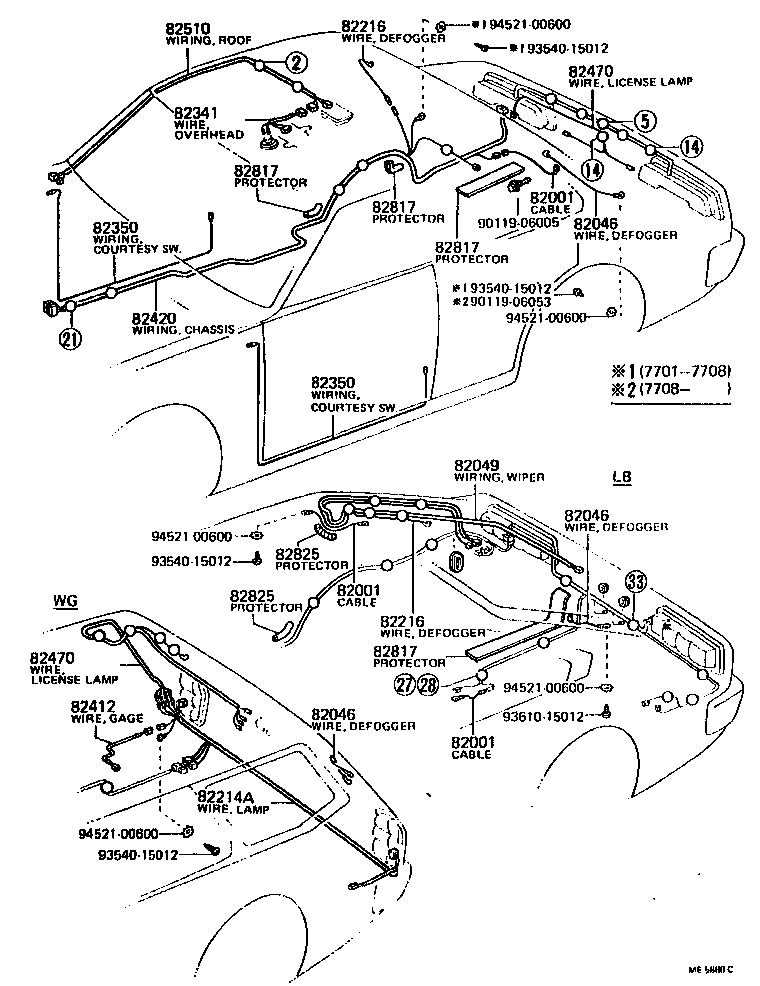

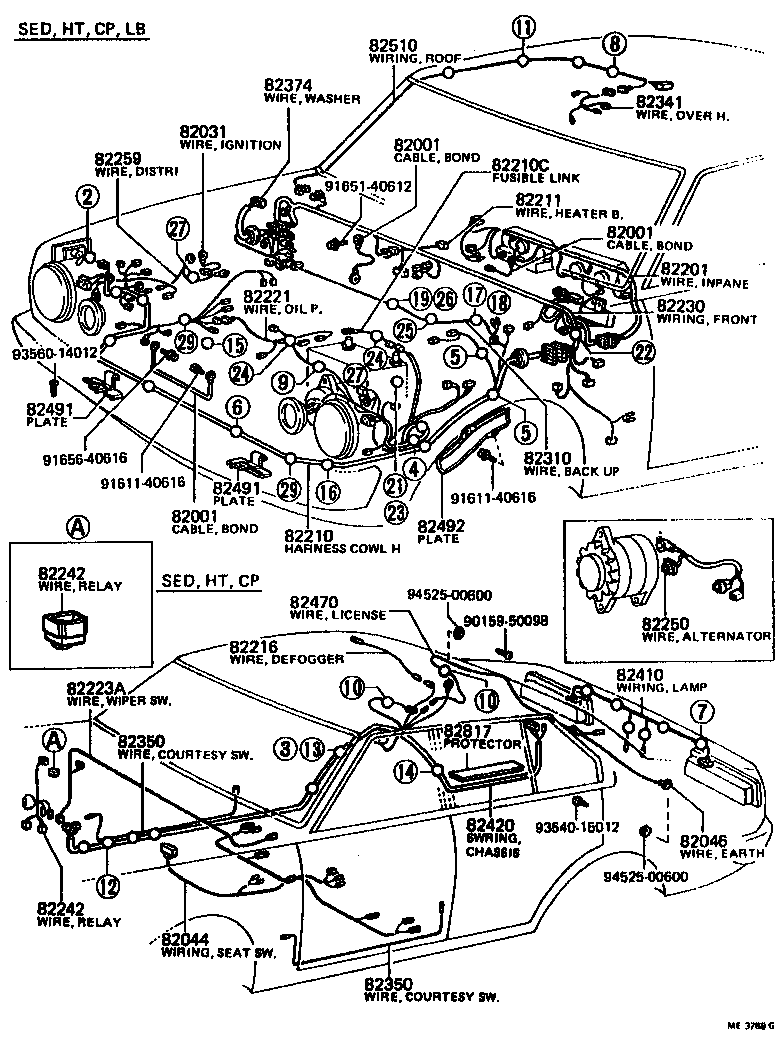

KE30L-KBA (1976)
Toyota Corolla
(7408-7701)KE3#,TE31,37,51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07093 |
KE3# ENGINE-APRON,L=340 |
1 | ||
| 82046-12100 |
KE30,TE31,37 REAR COMBI. EARTH |
1 | ||
| 90980-07090 |
KE3#,TE3# RADIO TUNER-BODY |
1 | ||
| 90980-07090 |
KE3#,TE3#..DLX,SPL,STD RADIO TUNER-BODY |
1 | ||
| 90980-07093 |
KE3#,50 ENGINE-APRON,L=340 |
1 | ||
| 90980-07090 |
KE30,TE31,38 RADIO TUNER-BODY |
1 | ||
| 90980-07058 |
KE3#,50 L=350 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07093 |
KE3# ENGINE-APRON,L=340 |
1 | ||
| 82046-12100 |
KE30,TE31,37 REAR COMBI. EARTH |
1 | ||
| 90980-07090 |
KE3#,TE3# RADIO TUNER-BODY |
1 | ||
| 90980-07090 |
KE3#,TE3#..DLX,SPL,STD RADIO TUNER-BODY |
1 | ||
| 90980-07093 |
KE3#,50 ENGINE-APRON,L=340 |
1 | ||
| 90980-07090 |
KE30,TE31,38 RADIO TUNER-BODY |
1 | ||
| 90980-07058 |
KE3#,50 L=350 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07093 |
KE3# ENGINE-APRON,L=340 |
1 | ||
| 82046-12100 |
KE30,TE31,37 REAR COMBI. EARTH |
1 | ||
| 90980-07090 |
KE3#,TE3# RADIO TUNER-BODY |
1 | ||
| 90980-07090 |
KE3#,TE3#..DLX,SPL,STD RADIO TUNER-BODY |
1 | ||
| 90980-07093 |
KE3#,50 ENGINE-APRON,L=340 |
1 | ||
| 90980-07090 |
KE30,TE31,38 RADIO TUNER-BODY |
1 | ||
| 90980-07058 |
KE3#,50 L=350 |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-12280 |
KE30..USA USA SPEC. |
1 | ||
| 82044 - WIRING SUB-ASSY, SEAT SWITCH | ||||
| 82541-12020 |
KE3#,TE3# CANADA SPEC. |
1 | ||
| 82541-12060 |
TE31;KE30,TE37,38,51..DLX,SPL,SR5 |
1 | ||
| 82541-12050 |
KE3# CANADA SPEC. |
1 | ||
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-12030 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| 82046-12031 |
KE30,TE31,37,51..CP,HT,SED |
1 | ||
| 82201 - WIRING SUB-ASSY, INSTRUMENT PANEL | ||||
| 82201-12360 |
KE3#,TE3#..DLX,SPL,STD |
1 | ||
| 82201-12361 |
KE30,TE31,38 |
1 | ||
| 82201-12360 |
KE30,TE31,38 |
1 | ||
| 82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1 | ||||
| 82210-12650 |
KE3# |
1 | ||
| 82270-12040 |
KE3# CANADA SPEC. |
1 | ||
| 82270-12030 |
KE30..USA |
1 | ||
| 82270-12270 |
KE3#,50 |
1 | ||
| 82270-12321 |
KE30..USA |
1 | ||
| 82270-12320 |
KE30..USA |
1 | ||
| 82270-12322 |
KE30..USA |
1 | ||
| 82270-12640 |
KE30..USA HEATER=HEAVY & ULTRA HEAVY |
1 | ||
| 82270-12641 |
KE30..USA HEATER=HEAVY & ULTRA HEAVY |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08021 |
KE3#,TE3#,51..DLX,SPL,STD |
1 | ||
| 90982-08052 |
KE3#,50,TE3#,51..DLX,SPL,STD |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-12040 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| 82216-12010 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| 82216-12040 |
KE30,TE31,37,51..CP,HT,SED |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-12190 |
KE3#,50 |
1 | ||
| 82221-12291 |
KE30,50..K40 |
1 | ||
| 82221-12290 |
KE30,50..K40 |
1 | ||
| 82230 - WIRING ASSY, FRONT SIDE | ||||
| 82230-12320 |
KE3#,50..DLX,STD;KE30..K40..2D..USA |
1 | ||
| 82230-12310 |
KE30..USA |
1 | ||
| 82230-12420 |
KE30..USA |
1 | ||
| 82230-12421 |
KE30..USA |
1 | ||
| 82250 - WIRING ASSY, TO GENERATOR | ||||
| 82261-12050 |
KE3# |
1 | ||
| 82261-12010 |
KE3# |
1 | ||
| 82259 - WIRE, DISTRIBUTOR | ||||
| 82259-12030 |
KE30..USA |
1 | ||
| 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH | ||||
| 82310-12130 |
KE3# |
1 | ||
| 82374 - WIRE, WASHER | ||||
| 82375-12031 |
KE3#,TE3#,51 |
1 | ||
| 82375-12020 |
KE3#,TE3# |
1 | ||
| 82410 - HARNESS ASSY, WIRING TO REAR LAMP | ||||
| 82410-12140 |
KE3#,TE31,37 |
1 | ||
| 82420 - WIRING ASSY, CHASSIS | ||||
| 82420-12110 |
KE3#,TE31,37 |
1 | ||
| 82420-12212 |
KE30,TE31,37,51..CP,HT,SED |
1 | ||
| 82420-12210 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| 82491 - PLATE, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82817-12080 |
KE3#,TE3#,51 RH. |
1 | ||
| 82829-12010 |
KE3#,TE3#,51 LH. |
1 | ||
| 82491 - PLATE, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82817-12080 |
KE3#,TE3#,51 RH. |
1 | ||
| 82829-12010 |
KE3#,TE3#,51 LH. |
1 | ||
| 82492 - PLATE, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 53797-12030 |
KE3#,TE3#,51 |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-12130 |
KE30,TE3# |
1 | ||
| 82510-12020 |
KE3#,50,TE3#,51 |
1 | ||
| 82510-12130 |
KE30,TE31 |
1 | ||
| 82510-12020 |
KE3#,TE3# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12110 |
KE30,50,TE3#,51 L=450 |
1 | ||
| 82817-12140 |
KE30,TE3#,51 CALIFORNIA SPEC. |
1 | ||
| 82817-12090 |
KE3#,TE31,37 |
1 | ||

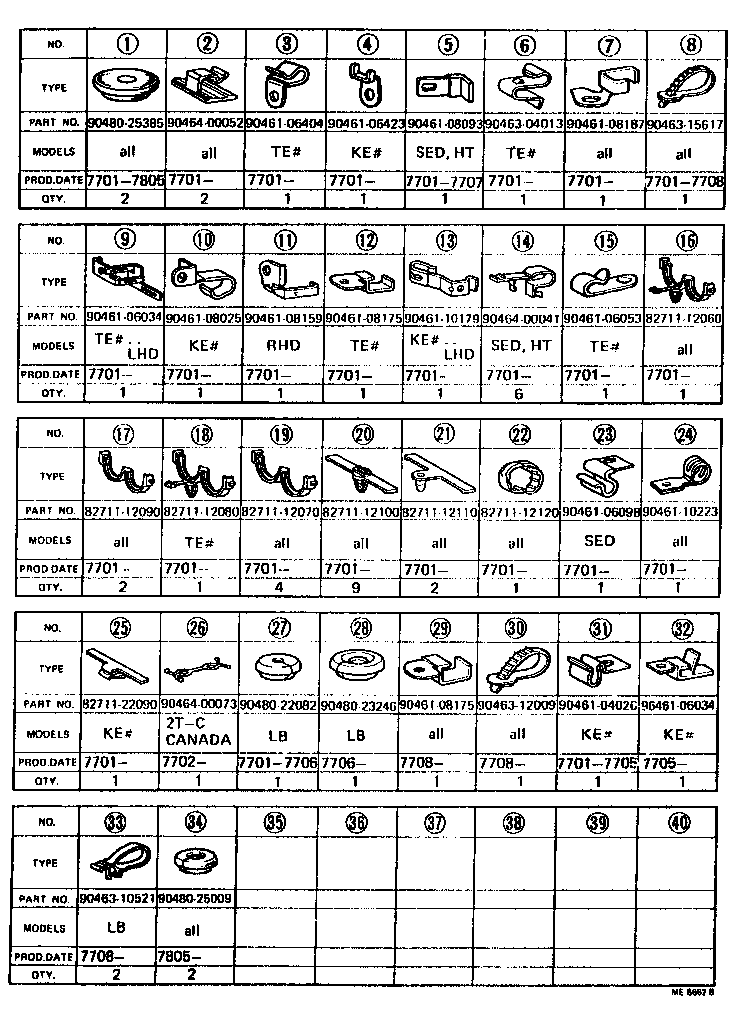

| Common parts | ||||
| 90159-50098 | ||||
| 91611-40616 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 93540-15012 | ||||
| 93560-14012 | ||||
| 94525-00600 | ||||
(7408-7701)KE3#,TE31,37,51
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

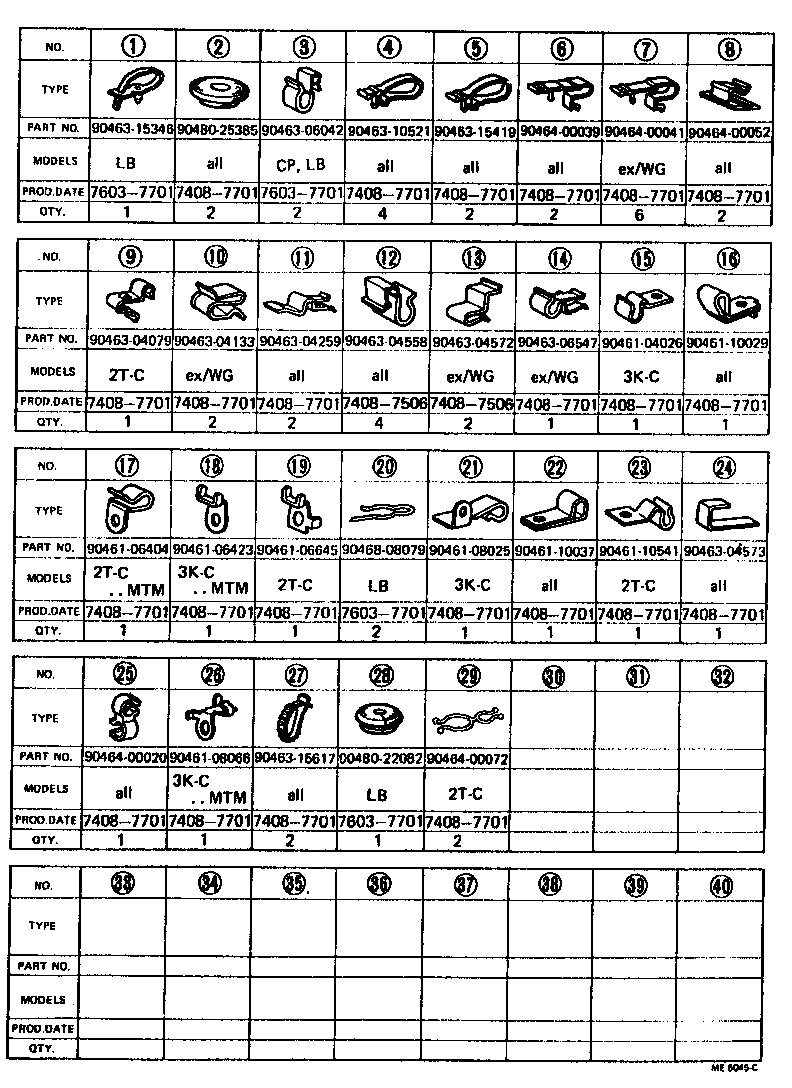

| Common parts | ||||
| 90461-04026 | ||||
| 90461-06404 | ||||
| 90461-06423 | ||||
| 90461-06645 | ||||
| 90461-08025 | ||||
| 90461-08066 | ||||
| 90461-10029 | ||||
| 90461-10037 | ||||
| 90461-10541 | ||||
| 90463-04079 | ||||
| 90463-04133 | ||||
| 90463-04259 | ||||
| 90463-04558 | ||||
| 90463-04572 | ||||
| 90463-04573 | ||||
| 90463-06042 | ||||
| 90463-06547 | ||||
| 90463-10521 | ||||
| 90463-15346 | ||||
| 90463-15419 | ||||
| 90463-15617 | ||||
| 90464-00020 | ||||
| 90464-00039 | ||||
| 90464-00041 | ||||
| 90464-00052 | ||||
| 90464-00072 | ||||
| 90468-08079 | ||||
| 90480-22082 | ||||
| 90480-25385 | ||||

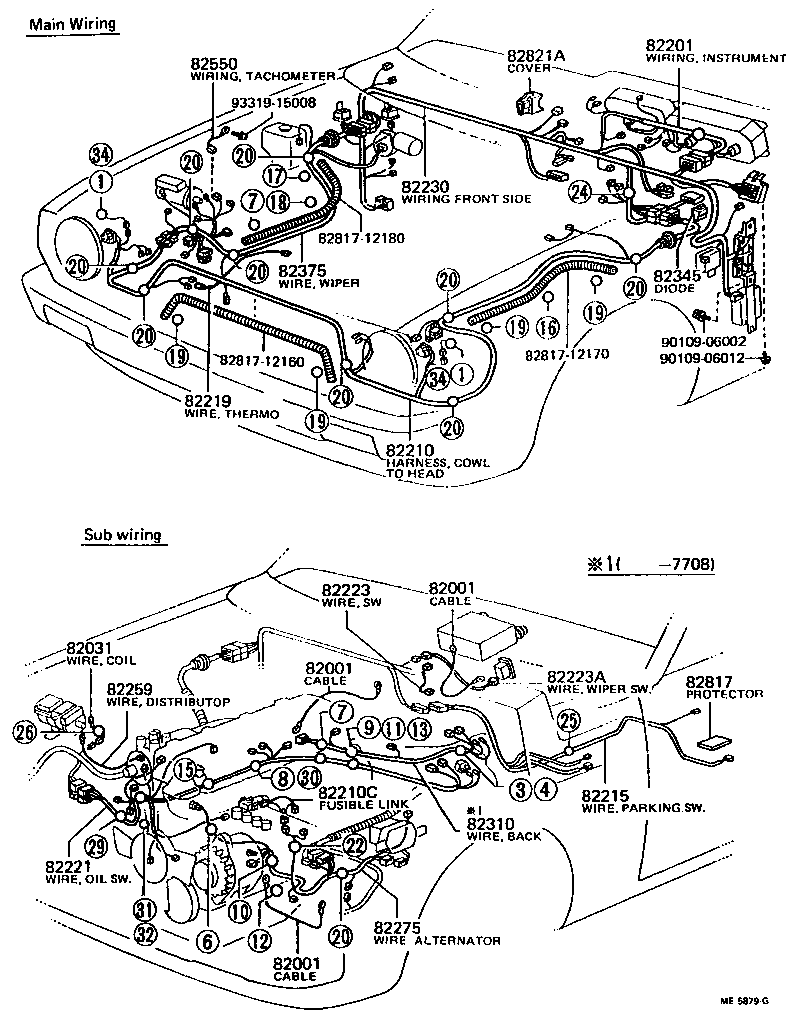

(7701-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07093 |
KE3# ENGINE-APRON,L=340 |
1 | ||
| 82046-12100 |
KE30,TE31,37 REAR COMBI. EARTH |
1 | ||
| 90980-07090 |
KE3#,TE3# RADIO TUNER-BODY |
1 | ||
| 90980-07090 |
KE3#,TE3#..DLX,SPL,STD RADIO TUNER-BODY |
1 | ||
| 90980-07093 |
KE3#,50 ENGINE-APRON,L=340 |
1 | ||
| 90980-07090 |
KE30,TE31,38 RADIO TUNER-BODY |
1 | ||
| 90980-07058 |
KE3#,50 L=350 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07093 |
KE3# ENGINE-APRON,L=340 |
1 | ||
| 82046-12100 |
KE30,TE31,37 REAR COMBI. EARTH |
1 | ||
| 90980-07090 |
KE3#,TE3# RADIO TUNER-BODY |
1 | ||
| 90980-07090 |
KE3#,TE3#..DLX,SPL,STD RADIO TUNER-BODY |
1 | ||
| 90980-07093 |
KE3#,50 ENGINE-APRON,L=340 |
1 | ||
| 90980-07090 |
KE30,TE31,38 RADIO TUNER-BODY |
1 | ||
| 90980-07058 |
KE3#,50 L=350 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07093 |
KE3# ENGINE-APRON,L=340 |
1 | ||
| 82046-12100 |
KE30,TE31,37 REAR COMBI. EARTH |
1 | ||
| 90980-07090 |
KE3#,TE3# RADIO TUNER-BODY |
1 | ||
| 90980-07090 |
KE3#,TE3#..DLX,SPL,STD RADIO TUNER-BODY |
1 | ||
| 90980-07093 |
KE3#,50 ENGINE-APRON,L=340 |
1 | ||
| 90980-07090 |
KE30,TE31,38 RADIO TUNER-BODY |
1 | ||
| 90980-07058 |
KE3#,50 L=350 |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-12280 |
KE30..USA USA SPEC. |
1 | ||
| 82201 - WIRING SUB-ASSY, INSTRUMENT PANEL | ||||
| 82201-12360 |
KE3#,TE3#..DLX,SPL,STD |
1 | ||
| 82201-12361 |
KE30,TE31,38 |
1 | ||
| 82201-12360 |
KE30,TE31,38 |
1 | ||
| 82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1 | ||||
| 82210-12650 |
KE3# |
1 | ||
| 82270-12040 |
KE3# CANADA SPEC. |
1 | ||
| 82270-12030 |
KE30..USA |
1 | ||
| 82270-12270 |
KE3#,50 |
1 | ||
| 82270-12321 |
KE30..USA |
1 | ||
| 82270-12320 |
KE30..USA |
1 | ||
| 82270-12322 |
KE30..USA |
1 | ||
| 82270-12640 |
KE30..USA HEATER=HEAVY & ULTRA HEAVY |
1 | ||
| 82270-12641 |
KE30..USA HEATER=HEAVY & ULTRA HEAVY |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08021 |
KE3#,TE3#,51..DLX,SPL,STD |
1 | ||
| 90982-08052 |
KE3#,50,TE3#,51..DLX,SPL,STD |
1 | ||
| 82215 - WIRE, PARKING BRAKE LAMP SWITCH | ||||
| 82215-12080 |
KE3#,50,TE3#,51 |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-12190 |
KE3#,50 |
1 | ||
| 82221-12291 |
KE30,50..K40 |
1 | ||
| 82221-12290 |
KE30,50..K40 |
1 | ||
| 82230 - WIRING ASSY, FRONT SIDE | ||||
| 82230-12320 |
KE3#,50..DLX,STD;KE30..K40..2D..USA |
1 | ||
| 82230-12310 |
KE30..USA |
1 | ||
| 82230-12420 |
KE30..USA |
1 | ||
| 82230-12421 |
KE30..USA |
1 | ||
| 82259 - WIRE, DISTRIBUTOR | ||||
| 82259-12030 |
KE30..USA |
1 | ||
| 82275 - WIRE, ALTERNATOR | ||||
| 82261-12160 |
KE30..USA |
1 | ||
| 82261-12140 |
KE30..USA |
1 | ||
| 82261-12100 |
KE3#,50 CANADA SPEC. |
1 | ||
| 82261-12150 |
KE30..USA |
1 | ||
| 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH | ||||
| 82310-12130 |
KE3# |
1 | ||
| 82345 - DIODE | ||||
| 82345-12010 |
KE30,TE3#,51 |
1 | ||
| 82375 - WIRE, WIPER SWITCH | ||||
| 82375-12090 |
KE30..USA |
1 | ||
| 82375-12190 |
KE30..USA |
1 | ||
| 82550 - WIRING ASSY, TACHOMETER | ||||
| 82550-12010 |
KE3#,50,TE3#,51 L/RADIO |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12110 |
KE30,50,TE3#,51 L=450 |
1 | ||
| 82817-12140 |
KE30,TE3#,51 CALIFORNIA SPEC. |
1 | ||
| 82817-12090 |
KE3#,TE31,37 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12120 |
KE30,50,TE3#,51 |
3 | ||
| Common parts | ||||
| 82817-12160 | ||||
| 82817-12170 | ||||
| 82817-12180 | ||||
| 90109-06002 | ||||
| 90109-06012 | ||||
| 93319-15008 | ||||
(7701-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07093 |
KE3# ENGINE-APRON,L=340 |
1 | ||
| 82046-12100 |
KE30,TE31,37 REAR COMBI. EARTH |
1 | ||
| 90980-07090 |
KE3#,TE3# RADIO TUNER-BODY |
1 | ||
| 90980-07090 |
KE3#,TE3#..DLX,SPL,STD RADIO TUNER-BODY |
1 | ||
| 90980-07093 |
KE3#,50 ENGINE-APRON,L=340 |
1 | ||
| 90980-07090 |
KE30,TE31,38 RADIO TUNER-BODY |
1 | ||
| 90980-07058 |
KE3#,50 L=350 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07093 |
KE3# ENGINE-APRON,L=340 |
1 | ||
| 82046-12100 |
KE30,TE31,37 REAR COMBI. EARTH |
1 | ||
| 90980-07090 |
KE3#,TE3# RADIO TUNER-BODY |
1 | ||
| 90980-07090 |
KE3#,TE3#..DLX,SPL,STD RADIO TUNER-BODY |
1 | ||
| 90980-07093 |
KE3#,50 ENGINE-APRON,L=340 |
1 | ||
| 90980-07090 |
KE30,TE31,38 RADIO TUNER-BODY |
1 | ||
| 90980-07058 |
KE3#,50 L=350 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07093 |
KE3# ENGINE-APRON,L=340 |
1 | ||
| 82046-12100 |
KE30,TE31,37 REAR COMBI. EARTH |
1 | ||
| 90980-07090 |
KE3#,TE3# RADIO TUNER-BODY |
1 | ||
| 90980-07090 |
KE3#,TE3#..DLX,SPL,STD RADIO TUNER-BODY |
1 | ||
| 90980-07093 |
KE3#,50 ENGINE-APRON,L=340 |
1 | ||
| 90980-07090 |
KE30,TE31,38 RADIO TUNER-BODY |
1 | ||
| 90980-07058 |
KE3#,50 L=350 |
1 | ||
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-12030 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| 82046-12031 |
KE30,TE31,37,51..CP,HT,SED |
1 | ||
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-12030 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| 82046-12031 |
KE30,TE31,37,51..CP,HT,SED |
1 | ||
| 82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH | ||||
| 82046-12030 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| 82046-12031 |
KE30,TE31,37,51..CP,HT,SED |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-12040 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| 82216-12010 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| 82216-12040 |
KE30,TE31,37,51..CP,HT,SED |
1 | ||
| 82216 - WIRE, REAR WINDOW DEFOGGER | ||||
| 82216-12040 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| 82216-12010 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| 82216-12040 |
KE30,TE31,37,51..CP,HT,SED |
1 | ||
| 82420 - WIRING ASSY, CHASSIS | ||||
| 82420-12110 |
KE3#,TE31,37 |
1 | ||
| 82420-12212 |
KE30,TE31,37,51..CP,HT,SED |
1 | ||
| 82420-12210 |
KE3#,TE31,37,51..CP,HT,SED |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-12130 |
KE30,TE3# |
1 | ||
| 82510-12020 |
KE3#,50,TE3#,51 |
1 | ||
| 82510-12130 |
KE30,TE31 |
1 | ||
| 82510-12020 |
KE3#,TE3# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12110 |
KE30,50,TE3#,51 L=450 |
1 | ||
| 82817-12140 |
KE30,TE3#,51 CALIFORNIA SPEC. |
1 | ||
| 82817-12090 |
KE3#,TE31,37 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12110 |
KE30,50,TE3#,51 L=450 |
1 | ||
| 82817-12140 |
KE30,TE3#,51 CALIFORNIA SPEC. |
1 | ||
| 82817-12090 |
KE3#,TE31,37 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12110 |
KE30,50,TE3#,51 L=450 |
1 | ||
| 82817-12140 |
KE30,TE3#,51 CALIFORNIA SPEC. |
1 | ||
| 82817-12090 |
KE3#,TE31,37 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12110 |
KE30,50,TE3#,51 L=450 |
1 | ||
| 82817-12140 |
KE30,TE3#,51 CALIFORNIA SPEC. |
1 | ||
| 82817-12090 |
KE3#,TE31,37 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 93540-15012 | ||||
| 93610-15012 | ||||
| 94521-00600 | ||||
(7701-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12060 | ||||
| 82711-12070 | ||||
| 82711-12100 | ||||
| 82711-12110 | ||||
| 82711-22090 | ||||
| 90461-04026 | ||||
| 90461-06034 | ||||
| 90461-06053 | ||||
| 90461-06098 | ||||
| 90461-06404 | ||||
| 90461-06423 | ||||
| 90461-08025 | ||||
| 90461-08093 | ||||
| 90461-08159 | ||||
| 90461-08175 | ||||
| 90461-08187 | ||||
| 90461-10179 | ||||
| 90461-10223 | ||||
| 90463-04013 | ||||
| 90463-10521 | ||||
| 90463-12009 | ||||
| 90463-15617 | ||||
| 90464-00041 | ||||
| 90464-00052 | ||||
| 90464-00073 | ||||
| 90480-22082 | ||||
| 90480-23246 | ||||
| 90480-25009 | ||||
| 90480-25385 | ||||
| 92711-12080 | ||||
| 92711-12090 | ||||
| 92711-12120 | ||||
| 96461-06034 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
