KE30L-KBA (1976)
Toyota Corolla
Production
Aug 1976
-
Aug 1979
Engine
3KC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7908)KE30,50,TE31,51..2D

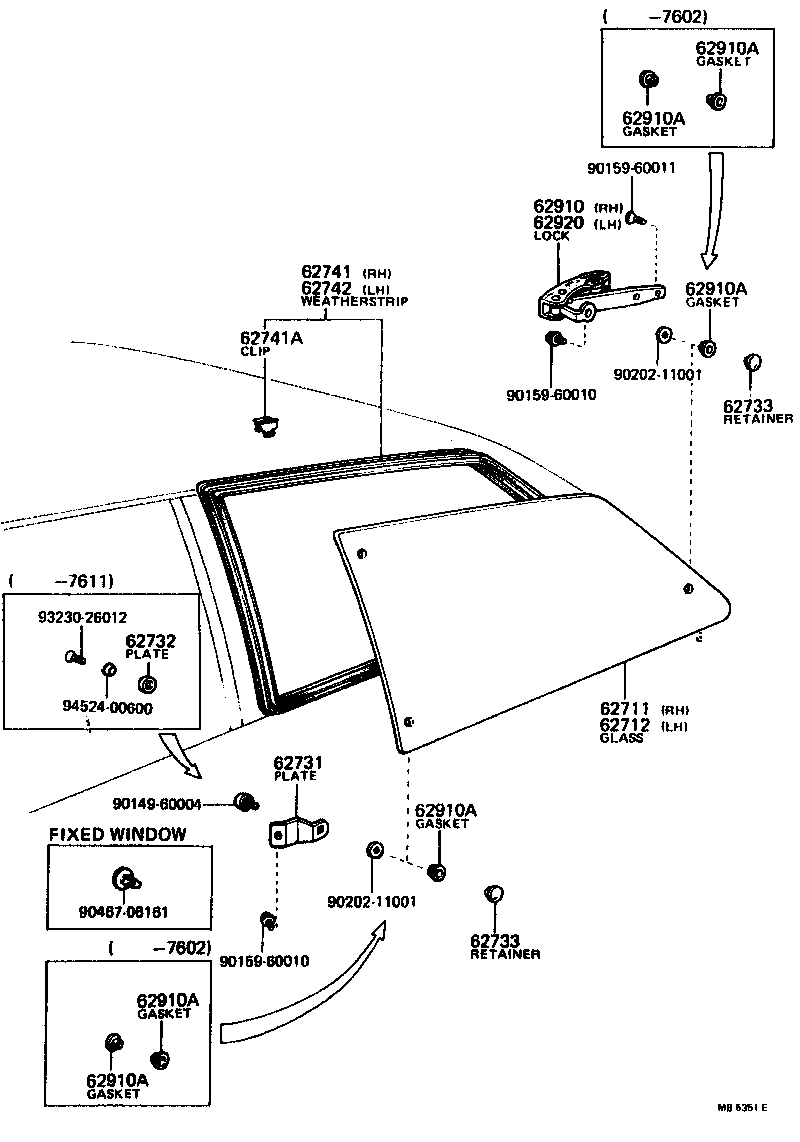

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62711 - GLASS, QUARTER WINDOW, RH | ||||
| 62711-12220 |
KE30,TE31..2D..SPL TP.T=4.0, FIXED WINDOW |
1 | ||
| 62711-12131 |
KE30,TE31..2D..SPL TP.T=4.0 |
1 | ||
| 62712 - GLASS, QUARTER WINDOW, LH | ||||
| 62712-12220 |
KE30,TE31..2D..SPL TP.T=4.0, FIXED WINDOW |
1 | ||
| 62712-12131 |
KE30,TE31..2D..SPL TP.T=4.0 |
1 | ||
| 62731 - PLATE, QUARTER OR SIDE WINDOW HINGE | ||||
| 62731-12040 |
KE30,TE31..2D |
4 | ||
| 62731-12062 |
KE30,TE31..2D |
4 | ||
| 62732 - PLATE, QUARTER OR SIDE WINDOW HINGE FINISH | ||||
| 62732-12010 |
KE30,TE31,38..2D |
4 | ||
| 62733 - RETAINER, QUARTER OR SIDE WINDOW HINGE | ||||
| 62733-12010 |
KE30,TE31,38..2D |
6 | ||
| 62733 - RETAINER, QUARTER OR SIDE WINDOW HINGE | ||||
| 62733-12010 |
KE30,TE31,38..2D |
6 | ||
| 62741 - WEATHERSTRIP, QUARTER WINDOW, RH | ||||
| 62741-12050 |
KE30,TE31..2D |
1 | ||
| 62741-12080 |
KE30,TE31..2D..SPL FIXED WINDOW |
1 | ||
| 62741A - CLIP, QUARTER WINDOW WEATHERSTRIP | ||||
| 62759-12010 |
KE30,50,TE31,38,51..2D |
10 | ||
| 62742 - WEATHERSTRIP, QUARTER WINDOW, LH | ||||
| 62742-12080 |
KE30,TE31..2D..SPL FIXED WINDOW |
1 | ||
| 62742-12050 |
KE30,TE31..2D |
1 | ||
| 62910 - LOCK ASSY, QUARTER OR SIDE WINDOW, RH | ||||
| 62910-12040 |
KE30,TE31..2D |
1 | ||
| 62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE) | ||||
| 62734-12010 |
KE30,TE31,38..2D |
12 | ||
| 62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE) | ||||
| 62734-12010 |
KE30,TE31,38..2D |
12 | ||
| 62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE) | ||||
| 62734-12010 |
KE30,TE31,38..2D |
12 | ||
| 62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE) | ||||
| 62734-12010 |
KE30,TE31,38..2D |
12 | ||
| 62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE) | ||||
| 62734-12010 |
KE30,TE31,38..2D |
12 | ||
| 62910A - GASKET(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE) | ||||
| 62734-12010 |
KE30,TE31,38..2D |
12 | ||
| 62920 - LOCK ASSY, QUARTER WINDOW, LH | ||||
| 62920-12010 |
KE30,TE31..2D |
1 | ||
| Common parts | ||||
| 90149-60004 | ||||
| 90159-60010 | ||||
| 90159-60011 | ||||
| 90202-11001 | ||||
| 90467-06161 | ||||
| 93230-26012 | ||||
| 94524-00600 | ||||
