KE30L-KBA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7608-7908)SPL

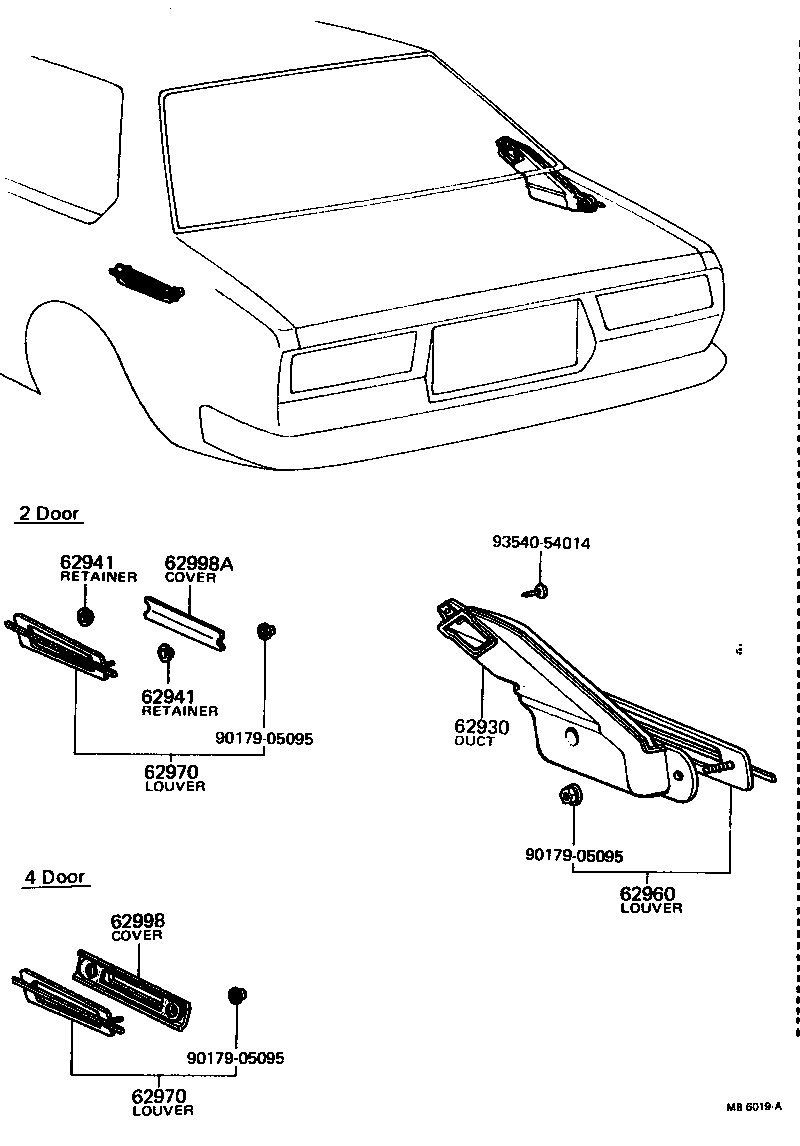

Click highlighted areas on diagram

diagram 62930 62941 62941 62960 62970 62970 62998 62998A 9017905095 9017905095 9017905095 9354054014
Part # Description Qty Price
62930 - DUCT ASSY, ROOF SIDE VENT, RH
62930-12010

KE30,TE31

 1
62941 - RETAINER, ROOF SIDE VENT DUCT, RH
62941-12070

KE30,TE31..2D..SPL

 2
62941 - RETAINER, ROOF SIDE VENT DUCT, RH
62941-12070

KE30,TE31..2D..SPL

 2
62960 - LOUVER ASSY, ROOF SIDE VENT, RH
62905-19025

KE30,TE31

 1
62905-19195

KE30,TE31..SPL

 1
62905-19075

KE30,TE31..SPL

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62906-19025

KE30,TE31

 1
62906-19175

KE30,TE31..SPL

 1
62906-19075

KE30,TE31..SPL

 1
62970 - LOUVER ASSY, ROOF SIDE VENT, LH
62906-19025

KE30,TE31

 1
62906-19175

KE30,TE31..SPL

 1
62906-19075

KE30,TE31..SPL

 1
62998A - COVER, QUARTER VENT HOLE
62998-12021

KE30,TE31..2D..SPL

 1
62998-12020

KE30,TE31..2D..SPL

 1
Common parts
90179-05095
93540-54014
