Toyota Corolla KE30 MAT & CARPET

KE30L-KBA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979

Engine 3KC

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

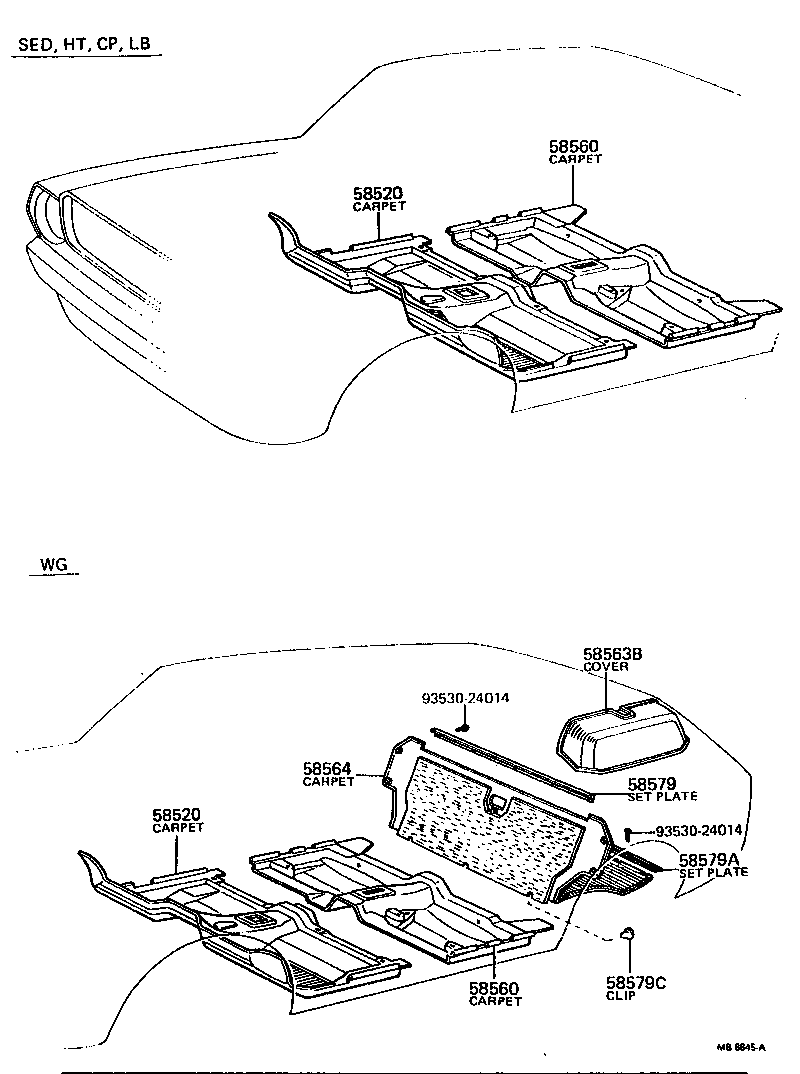

(7701-7908)

Click highlighted areas on diagram

Part #	Description	Period	Qty
58520 - CARPET ASSY, FRONT FLOOR
58510-1238206	KE3#,TE3#..MTM..(DLX,SPL,STD) BROWN,BROWN	08/1976 - 01/1977	1
58510-1238201	KE3#,TE3#..MTM..(DLX,SPL,STD) BLACK,BLACK	08/1976 - 01/1977	1
58510-1242006	KE3#,TE3#..MTM..(DLX,SPL,STD) L.BROWN,BROWN	01/1977 - 08/1979	1
58510-1242006	KE30..K40..2D..USA CANADA SPEC.,BROWN,BROWN	10/1978 - 08/1979	1
58510-1242014	KE30..K40..2D..USA CANADA SPEC.,BLUE,BLUE	10/1978 - 08/1979	1
58510-1242001	KE3#,TE3#..MTM..(DLX,SPL,STD) BLACK,BLACK	01/1977 - 08/1979	1
58510-1242014	KE30,TE31,38..MTM BLUE,BLUE	05/1978 - 08/1979	1
58510-1242001	KE30..K40..2D..USA CANADA SPEC.,BLACK,BLACK	10/1978 - 08/1979	1
58520 - CARPET ASSY, FRONT FLOOR
58510-1238206	KE3#,TE3#..MTM..(DLX,SPL,STD) BROWN,BROWN	08/1976 - 01/1977	1
58510-1238201	KE3#,TE3#..MTM..(DLX,SPL,STD) BLACK,BLACK	08/1976 - 01/1977	1
58510-1242006	KE3#,TE3#..MTM..(DLX,SPL,STD) L.BROWN,BROWN	01/1977 - 08/1979	1
58510-1242006	KE30..K40..2D..USA CANADA SPEC.,BROWN,BROWN	10/1978 - 08/1979	1
58510-1242014	KE30..K40..2D..USA CANADA SPEC.,BLUE,BLUE	10/1978 - 08/1979	1
58510-1242001	KE3#,TE3#..MTM..(DLX,SPL,STD) BLACK,BLACK	01/1977 - 08/1979	1
58510-1242014	KE30,TE31,38..MTM BLUE,BLUE	05/1978 - 08/1979	1
58510-1242001	KE30..K40..2D..USA CANADA SPEC.,BLACK,BLACK	10/1978 - 08/1979	1
58560 - CARPET ASSY, FLOOR, REAR
58540-1232006	KE3#,50,TE31,37,51..2D L.BROWN,BROWN	01/1977 - 05/1978	1
58540-1232001	KE3#,50,TE31,37,51..2D BLACK,BLACK	01/1977 - 05/1978	1
58540-1239106	KE30,50,TE31,37,51..2D L.BROWN,BROWN	05/1978 - 08/1979	1
58540-1239104	KE30..K40..2D..USA CANADA SPEC.,BLUE,BLUE	10/1978 - 08/1979	1
58540-1239106	KE30..K40..2D..USA CANADA SPEC.,LIGHT BROWN,BROWN	10/1978 - 08/1979	1
58540-1239101	KE30,50,TE31,37,51..2D BLACK,BLACK	05/1978 - 08/1979	1
58540-1239101	KE30..K40..2D..USA CANADA SPEC.,BLACK,BLACK	10/1978 - 08/1979	1
58540-1239104	KE30,50,TE31,37,51..2D BLUE,BLUE	05/1978 - 08/1979	1
58560 - CARPET ASSY, FLOOR, REAR
58540-1232006	KE3#,50,TE31,37,51..2D L.BROWN,BROWN	01/1977 - 05/1978	1
58540-1232001	KE3#,50,TE31,37,51..2D BLACK,BLACK	01/1977 - 05/1978	1
58540-1239106	KE30,50,TE31,37,51..2D L.BROWN,BROWN	05/1978 - 08/1979	1
58540-1239104	KE30..K40..2D..USA CANADA SPEC.,BLUE,BLUE	10/1978 - 08/1979	1
58540-1239106	KE30..K40..2D..USA CANADA SPEC.,LIGHT BROWN,BROWN	10/1978 - 08/1979	1
58540-1239101	KE30,50,TE31,37,51..2D BLACK,BLACK	05/1978 - 08/1979	1
58540-1239101	KE30..K40..2D..USA CANADA SPEC.,BLACK,BLACK	10/1978 - 08/1979	1
58540-1239104	KE30,50,TE31,37,51..2D BLUE,BLUE	05/1978 - 08/1979	1
Common parts
93530-24014

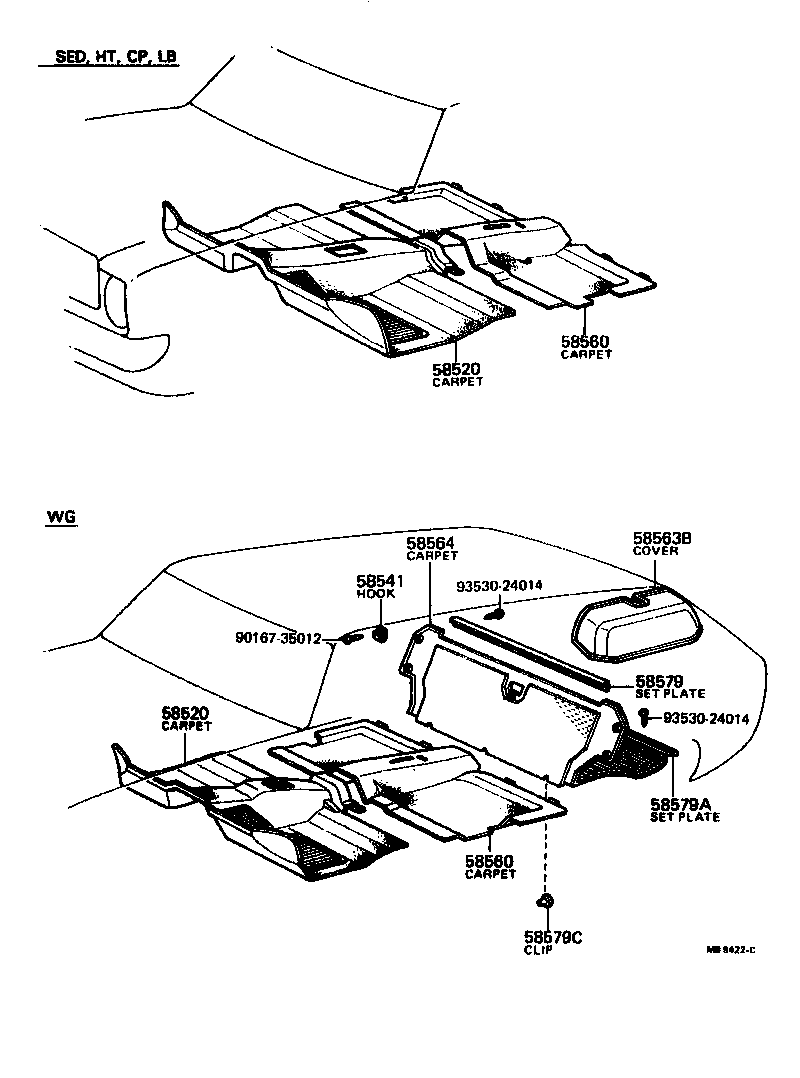

(7408-7701)

Click highlighted areas on diagram

Part #	Description	Period	Qty
58520 - CARPET ASSY, FRONT FLOOR
58510-1238206	KE3#,TE3#..MTM..(DLX,SPL,STD) BROWN,BROWN	08/1976 - 01/1977	1
58510-1238201	KE3#,TE3#..MTM..(DLX,SPL,STD) BLACK,BLACK	08/1976 - 01/1977	1
58510-1242006	KE3#,TE3#..MTM..(DLX,SPL,STD) L.BROWN,BROWN	01/1977 - 08/1979	1
58510-1242006	KE30..K40..2D..USA CANADA SPEC.,BROWN,BROWN	10/1978 - 08/1979	1
58510-1242014	KE30..K40..2D..USA CANADA SPEC.,BLUE,BLUE	10/1978 - 08/1979	1
58510-1242001	KE3#,TE3#..MTM..(DLX,SPL,STD) BLACK,BLACK	01/1977 - 08/1979	1
58510-1242014	KE30,TE31,38..MTM BLUE,BLUE	05/1978 - 08/1979	1
58510-1242001	KE30..K40..2D..USA CANADA SPEC.,BLACK,BLACK	10/1978 - 08/1979	1
58520 - CARPET ASSY, FRONT FLOOR
58510-1238206	KE3#,TE3#..MTM..(DLX,SPL,STD) BROWN,BROWN	08/1976 - 01/1977	1
58510-1238201	KE3#,TE3#..MTM..(DLX,SPL,STD) BLACK,BLACK	08/1976 - 01/1977	1
58510-1242006	KE3#,TE3#..MTM..(DLX,SPL,STD) L.BROWN,BROWN	01/1977 - 08/1979	1
58510-1242006	KE30..K40..2D..USA CANADA SPEC.,BROWN,BROWN	10/1978 - 08/1979	1
58510-1242014	KE30..K40..2D..USA CANADA SPEC.,BLUE,BLUE	10/1978 - 08/1979	1
58510-1242001	KE3#,TE3#..MTM..(DLX,SPL,STD) BLACK,BLACK	01/1977 - 08/1979	1
58510-1242014	KE30,TE31,38..MTM BLUE,BLUE	05/1978 - 08/1979	1
58510-1242001	KE30..K40..2D..USA CANADA SPEC.,BLACK,BLACK	10/1978 - 08/1979	1
58560 - CARPET ASSY, FLOOR, REAR
58540-1232006	KE3#,50,TE31,37,51..2D L.BROWN,BROWN	01/1977 - 05/1978	1
58540-1232001	KE3#,50,TE31,37,51..2D BLACK,BLACK	01/1977 - 05/1978	1
58540-1239106	KE30,50,TE31,37,51..2D L.BROWN,BROWN	05/1978 - 08/1979	1
58540-1239104	KE30..K40..2D..USA CANADA SPEC.,BLUE,BLUE	10/1978 - 08/1979	1
58540-1239106	KE30..K40..2D..USA CANADA SPEC.,LIGHT BROWN,BROWN	10/1978 - 08/1979	1
58540-1239101	KE30,50,TE31,37,51..2D BLACK,BLACK	05/1978 - 08/1979	1
58540-1239101	KE30..K40..2D..USA CANADA SPEC.,BLACK,BLACK	10/1978 - 08/1979	1
58540-1239104	KE30,50,TE31,37,51..2D BLUE,BLUE	05/1978 - 08/1979	1
58560 - CARPET ASSY, FLOOR, REAR
58540-1232006	KE3#,50,TE31,37,51..2D L.BROWN,BROWN	01/1977 - 05/1978	1
58540-1232001	KE3#,50,TE31,37,51..2D BLACK,BLACK	01/1977 - 05/1978	1
58540-1239106	KE30,50,TE31,37,51..2D L.BROWN,BROWN	05/1978 - 08/1979	1
58540-1239104	KE30..K40..2D..USA CANADA SPEC.,BLUE,BLUE	10/1978 - 08/1979	1
58540-1239106	KE30..K40..2D..USA CANADA SPEC.,LIGHT BROWN,BROWN	10/1978 - 08/1979	1
58540-1239101	KE30,50,TE31,37,51..2D BLACK,BLACK	05/1978 - 08/1979	1
58540-1239101	KE30..K40..2D..USA CANADA SPEC.,BLACK,BLACK	10/1978 - 08/1979	1
58540-1239104	KE30,50,TE31,37,51..2D BLUE,BLUE	05/1978 - 08/1979	1
Common parts
90167-35012
93530-24014
