KE30L-KBA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7608-7908)KE30..SPL

Click highlighted areas on diagram

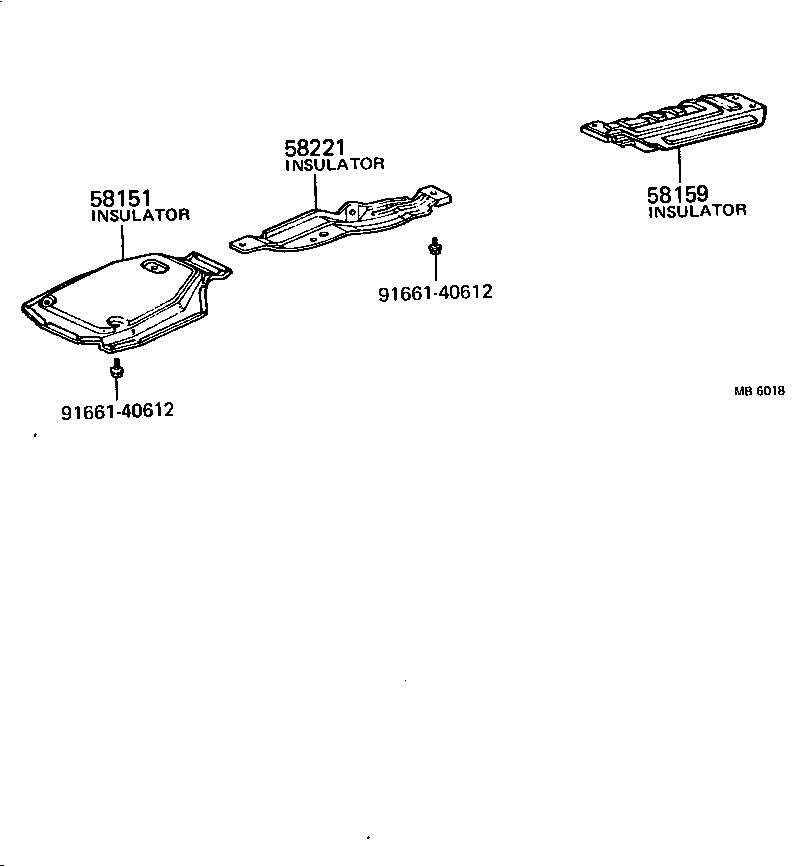

diagram 58151 58159 58221 9166140612 9166140612
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58041-12030

KE30..USA

USA SPEC.

 1
58041-12050

KE30..USA

USA SPEC.

 1
58041-12050

KE30..USA

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58031-12060

KE30..USA

USA SPEC.

 1
58031-12060

KE30..USA

 1
58221 - INSULATOR, CENTER FLOOR HEAT, NO.1
58221-12040

KE30..USA

USA SPEC.

 1
58221-12041

KE30..USA

 1
58221-12041

KE30..SPL

USA SPEC.

 1
Common parts
91661-40612
