KE30L-KBA (1976)
Toyota Corolla

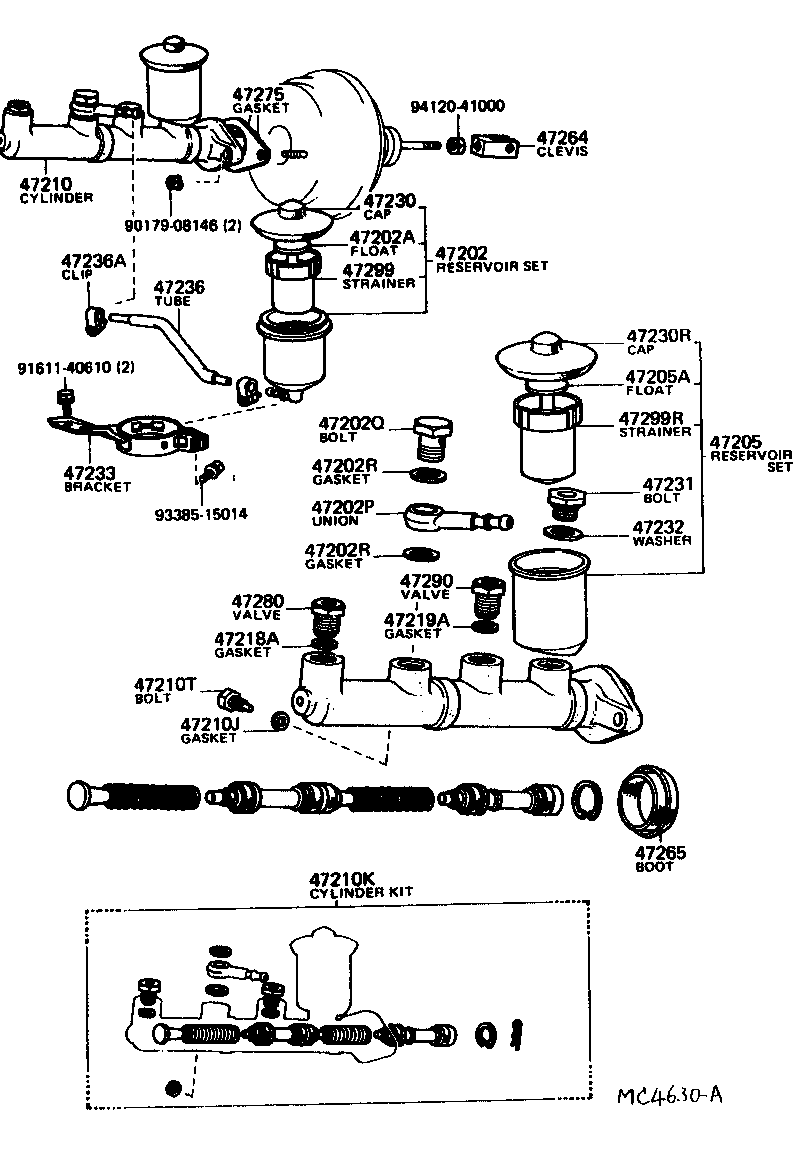

(7408-7701)KE3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-12010 |
KE3# |
1 | ||
| 47220-12011 |
KE3#,50 |
1 | ||
| 47202A - FLOAT, MASTER CYLINDER RESERVOIR | ||||
| 31426-20010 |
KE3#,50,TE3#,51 |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-10173 |
KE3#,50 |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16078 |
KE3#,50 |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
KE3#,50 |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
KE3#,50 |
2 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-20120 |
KE3# |
1 | ||
| 47202-20121 |
KE3#,50 |
1 | ||
| 47205A - FLOAT, BRAKE MASTER CYLINDER RESERVOIR(FOR REAR SIDE) | ||||
| 31426-20010 |
KE3#,50,TE3#,51 |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-12210 |
KE30..USA |
1 | ||
| 47201-12091 |
KE30..K40..2D..USA CANADA SPEC. |
1 | ||
| 47201-12090 |
KE30..K40..2D..USA CANADA SPEC. |
1 | ||
| 47201-12181 |
KE30..USA |
1 | ||
| 47201-12181 |
KE30..USA |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-12210 |
KE30..USA |
1 | ||
| 47201-12091 |
KE30..K40..2D..USA CANADA SPEC. |
1 | ||
| 47201-12090 |
KE30..K40..2D..USA CANADA SPEC. |
1 | ||
| 47201-12181 |
KE30..USA |
1 | ||
| 47201-12181 |
KE30..USA |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
KE3#,50,TE3#,51 |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-12040 |
KE3# |
1 | ||
| 04493-12041 |
KE3#,50 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
KE30,50,TE3#,51 |
1 | ||
| 90109-06011 |
KE3#,50,TE3#,51 |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-20010 |
KE3#,TE3# |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-09253 |
KE3#,50,TE3#,51 |
1 | ||
| 90430-16242 |
KE3#,TE3#,51 |
1 | ||
| 47219 - PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE) | ||||
| 47218-20010 |
KE3#,TE3# |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
KE3#,50,TE3#,51 |
1 | ||
| 90430-16242 |
KE3#,TE3#,51 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20030 |
KE3#,50,TE3#,51 |
1 | ||
| 47230-12020 |
KE3# |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 47230-12030 |
KE3# |
1 | ||
| 47230-20040 |
KE3#,50,TE3#,51 |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
KE3#,50 |
1 | ||
| 47232 - WASHER, BRAKE RESERVOIR SET BOLT | ||||
| 47232-30010 |
KE3#,50 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-12040 |
KE3#,50 |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47236-12020 |
KE3#,50 |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90460-16069 |
KE3#,50 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12040 |
KE3#,50,TE3#,51 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
KE3#,50,TE3#,51 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-14010 |
KE3# |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-20020 |
KE3#,TE3#,51 |
1 | ||
| 47280-30030 |
KE3#,50 |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47280-30030 |
KE3#,50 |
1 | ||
| 47280-20020 |
KE3#,TE3#,51 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20010 |
KE3#,50,TE3#,51 |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-20020 |
KE3#,50,TE3#,51 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91611-40610 | ||||
| 93385-15014 | ||||
| 94120-41000 | ||||

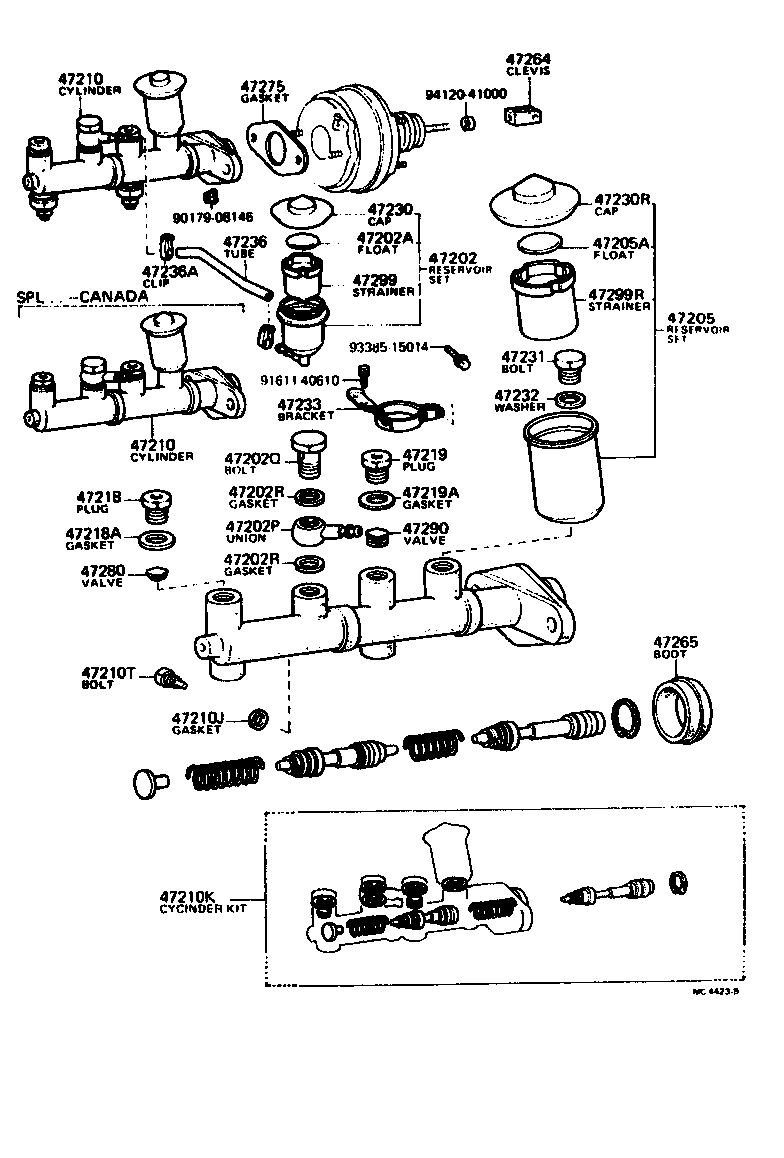

(7701-7708)KE30..USA ; (7708-7908)KE30..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-12010 |
KE3# |
1 | ||
| 47220-12011 |
KE3#,50 |
1 | ||
| 47202A - FLOAT, MASTER CYLINDER RESERVOIR | ||||
| 31426-20010 |
KE3#,50,TE3#,51 |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-10173 |
KE3#,50 |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16078 |
KE3#,50 |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
KE3#,50 |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16242 |
KE3#,50 |
2 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-20120 |
KE3# |
1 | ||
| 47202-20121 |
KE3#,50 |
1 | ||
| 47205A - FLOAT, BRAKE MASTER CYLINDER RESERVOIR(FOR REAR SIDE) | ||||
| 31426-20010 |
KE3#,50,TE3#,51 |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-12210 |
KE30..USA |
1 | ||
| 47201-12091 |
KE30..K40..2D..USA CANADA SPEC. |
1 | ||
| 47201-12090 |
KE30..K40..2D..USA CANADA SPEC. |
1 | ||
| 47201-12181 |
KE30..USA |
1 | ||
| 47201-12181 |
KE30..USA |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
KE3#,50,TE3#,51 |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-12040 |
KE3# |
1 | ||
| 04493-12041 |
KE3#,50 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
KE30,50,TE3#,51 |
1 | ||
| 90109-06011 |
KE3#,50,TE3#,51 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-09253 |
KE3#,50,TE3#,51 |
1 | ||
| 90430-16242 |
KE3#,TE3#,51 |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
KE3#,50,TE3#,51 |
1 | ||
| 90430-16242 |
KE3#,TE3#,51 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20030 |
KE3#,50,TE3#,51 |
1 | ||
| 47230-12020 |
KE3# |
1 | ||
| 47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE) | ||||
| 47230-12030 |
KE3# |
1 | ||
| 47230-20040 |
KE3#,50,TE3#,51 |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
KE3#,50 |
1 | ||
| 47232 - WASHER, BRAKE RESERVOIR SET BOLT | ||||
| 47232-30010 |
KE3#,50 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-12040 |
KE3#,50 |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47236-12020 |
KE3#,50 |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90460-16069 |
KE3#,50 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12040 |
KE3#,50,TE3#,51 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
KE3#,50,TE3#,51 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-14010 |
KE3# |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-20020 |
KE3#,TE3#,51 |
1 | ||
| 47280-30030 |
KE3#,50 |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47280-30030 |
KE3#,50 |
1 | ||
| 47280-20020 |
KE3#,TE3#,51 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-20010 |
KE3#,50,TE3#,51 |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-20020 |
KE3#,50,TE3#,51 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91611-40610 | ||||
| 93385-15014 | ||||
| 94120-41000 | ||||
