KE30L-KBA (1976)
Toyota Corolla
Production
Aug 1976
-
Aug 1979
Engine
3KC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7408-7908)K40

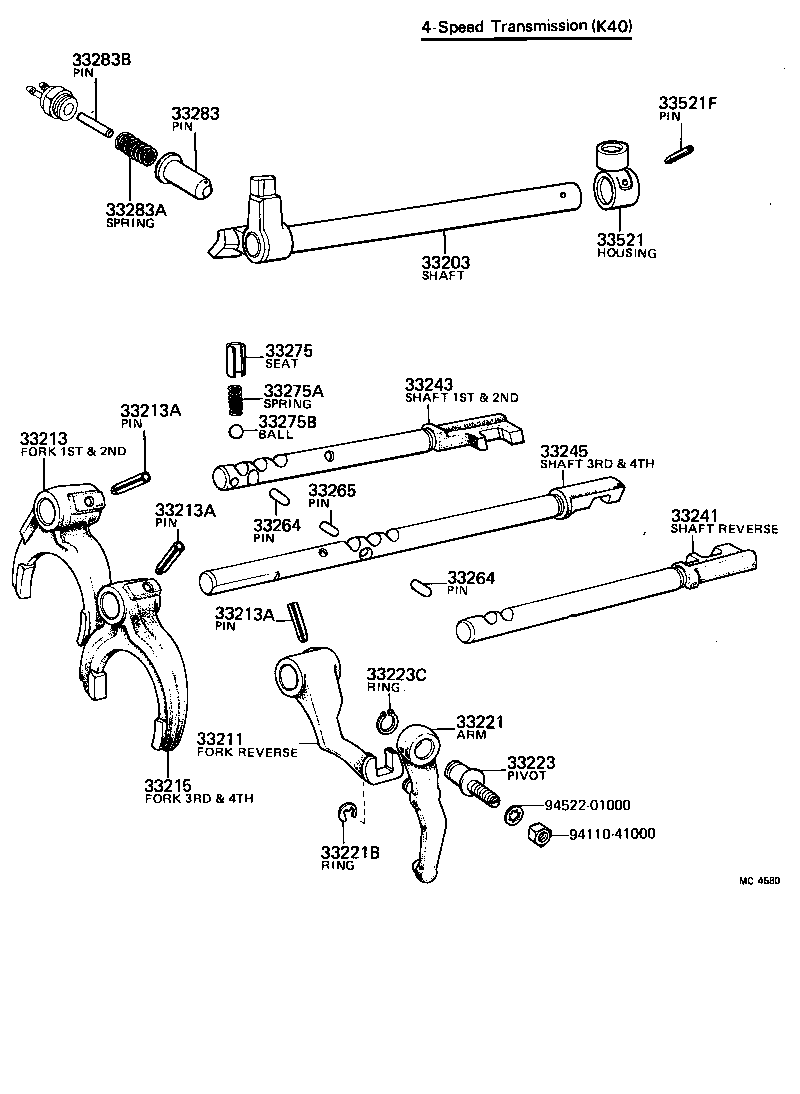

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33203-12030 |
KE3#,50..K40 |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-12010 |
KE3#,50..K40 |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33213-12010 |
KE3#,50 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
KE3#,50,TE3#,51..MTM |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
KE3#,50,TE3#,51..MTM |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
KE3#,50,TE3#,51..MTM |
3 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33215-12011 |
KE3#,50 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-12010 |
KE3#,50 |
1 | ||
| 33221B - RING, E(FOR REVERSE SHIFT ARM) | ||||
| 96160-00800 |
KE3#,50..K40 |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-12010 |
KE3#,50 |
1 | ||
| 33223C - RING, SHAFT SNAP(FOR SHIFT ARM PIVOT) | ||||
| 96150-01300 |
KE3#,50 |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-12030 |
KE3#,50..K40 |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33243-12030 |
KE3#,50..K40 |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33245-12030 |
KE3#,50..K40 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-05197 |
KE3#,50 L=9.9,OD=5 |
2 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90250-05197 |
KE3#,50 L=9.9,OD=5 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05197 |
KE3#,50 L=9.9,OD=5 |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12010 |
KE3#,50,TE3#,51..MTM |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16031 |
KE30,50 |
3 | ||
| 90501-16288 |
KE3#,50 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KE3#,50,TE3#,51..MTM |
3 | ||
| 33283 - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-12020 |
KE3#,50..K40 |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 90501-16553 |
KE3#,50..K40 |
1 | ||
| 33283B - PIN, STRAIGHT (FOR REVERSE RESTRICT PIN) | ||||
| 90250-05182 |
KE3#,50..K40 |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-12040 |
KE3#,50..K40 |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 90254-05001 |
KE3#,50 |
1 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 94522-01000 | ||||
