KE30L-KBA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)K40

Click highlighted areas on diagram

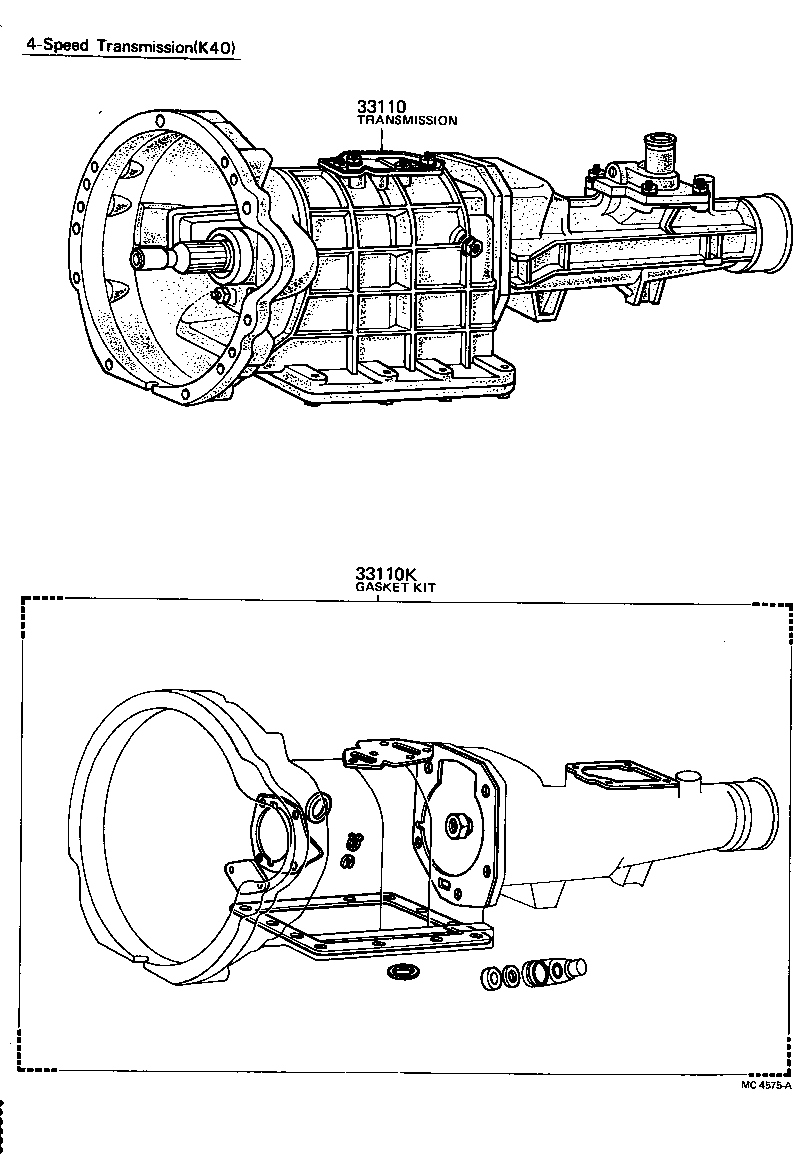

diagram 33110 33110K
Part # Description Qty Price
33110 - TRANSMISSION ASSY, MANUAL
33030-12031

KE30,50..K40

SMG.=6

 1
33020-12120

KE3#

SMG.R=19:5

 1
33030-12020

KE30..K40..2D..USA

SMG.=5,CANADA SPEC.

 1
33110K - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-12050

KE3#,50..K40

 1
04331-12051

KE30,50..K40

 1
