KE30L-KBA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)KE3#,50

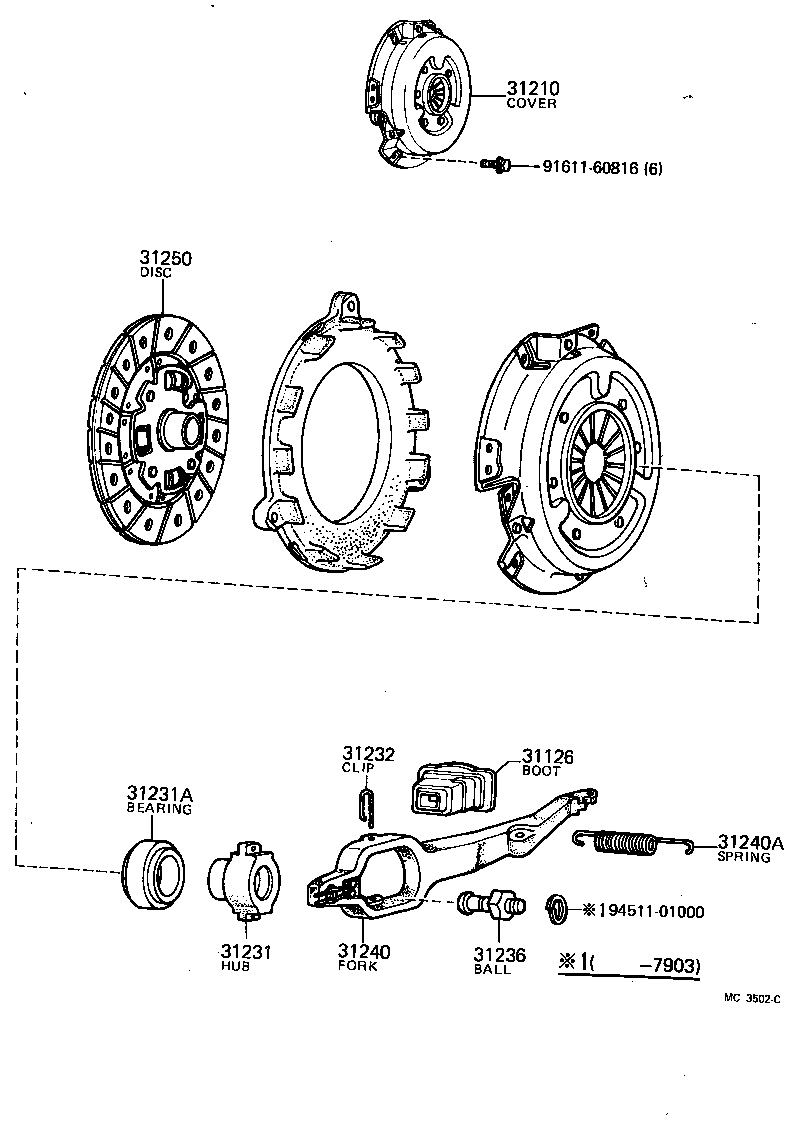

Click highlighted areas on diagram

diagram 31126 31210 31231 31231A 31232 31236 31240 31240A 31250 9161160816 9451101000
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-12020

KE3#,50..K40

 1
31210 - COVER ASSY, CLUTCH
31210-12040

KE3#,50

 1
31210-12041

KE30,50

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-12031

KE30,50

 1
31231-12030

KE3#,50

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-33080

KE3#,50

 1
90363-33002

KE30,50

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-12010

KE3#,50

 2
31236 - BALL, RELEASE FORK
31236-30030

KE3#,50

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-12010

KE3#,50..K40

 1
31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)
90506-14139

KE3#,50

 1
31250 - DISC ASSY, CLUTCH
31250-12021

KE3#,50

 1
Common parts
91611-60816
94511-01000
