KE30L-KBA (1976)
Toyota Corolla
Production
Aug 1976
-
Aug 1979
Engine
3KC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7608-7908)3KC..KE30..SPL

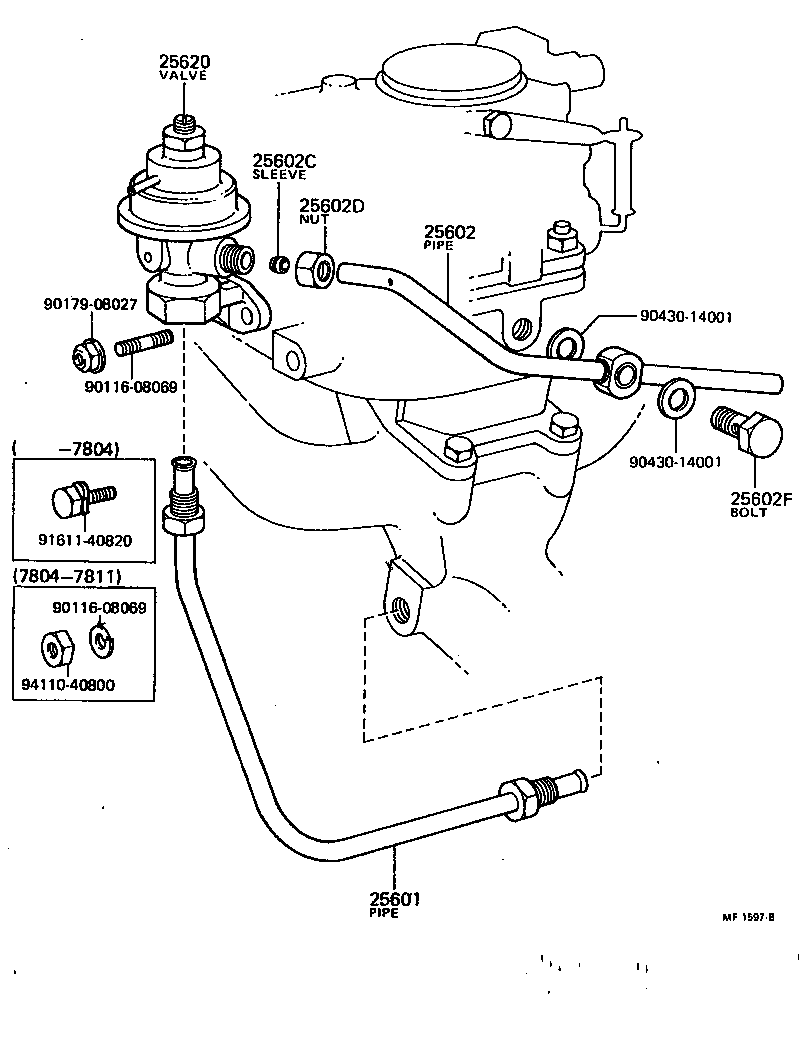

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25601 - PIPE SUB-ASSY, EGR, NO.1 | ||||
| 25601-24020 |
3KC..KE30..USA |
1 | ||
| 25601-24021 |
3KC..KE30..USA |
1 | ||
| 25601-24020 |
3KC..KE30..USA |
1 | ||
| 25602 - PIPE SUB-ASSY, EGR, NO.2 | ||||
| 25602-24021 |
3KC..KE30..USA |
1 | ||
| 25602-24020 |
3KC..KE30..USA |
1 | ||
| 25602-24020 |
3KC..KE30..USA |
1 | ||
| 25602C - SLEEVE, BALL(FOR EGR PIPE, NO.2) | ||||
| 90410-10001 |
3KC..KE30..USA |
1 | ||
| 90410-10001 |
3KC..KE30..USA |
1 | ||
| 25602D - NUT, UNION(FOR EGR PIPE, NO.2) | ||||
| 90402-18002 |
3KC..KE30..USA |
1 | ||
| 90402-18002 |
3KC..KE30..USA |
1 | ||
| 25602F - UNION(FOR EGR PIPE, NO.2) | ||||
| 90401-14002 |
3KC..KE30..USA |
1 | ||
| 90401-14002 |
3KC..KE30..USA |
1 | ||
| 25620 - VALVE ASSY, EGR | ||||
| 25620-24020 |
3KC..KE30..USA |
1 | ||
| 25620-24020 |
3KC..KE30..USA |
1 | ||
| 25620-24040 |
3KC..KE30..USA |
1 | ||
| 25620-24020 |
3KC..KE30..USA |
1 | ||
| Common parts | ||||
| 90116-08069 | ||||
| 90179-08027 | ||||
| 90430-14001 | ||||
| 91611-40820 | ||||
| 94110-40800 | ||||
