KE30L-KBA (1976)
Toyota Corolla
Production
Aug 1976
-
Aug 1979
Engine
3KC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7608-7908)3KC..KE30..SPL

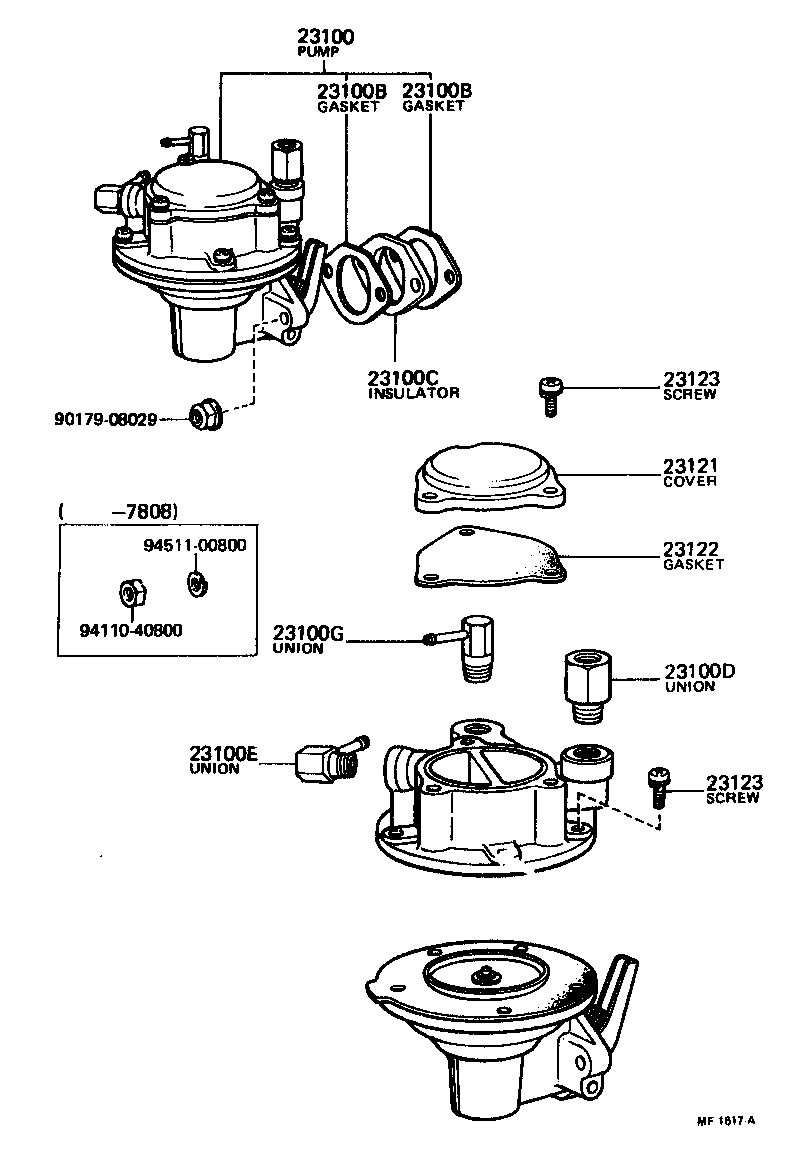

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-29085 |
3KC..KE30..USA CANADA SPEC. |
1 | ||
| 23100-29205 |
3KC..KE30..USA |
1 | ||
| 23100-29205 |
3KC..KE30..USA |
1 | ||
| 23100-29206 |
3KC..KE30..USA |
1 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05006 |
3KC..KE3# |
2 | ||
| 23100B - GASKET, FUEL PUMP | ||||
| 90923-05006 |
3KC..KE3# |
2 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 90923-06003 |
3KC..KE3# |
1 | ||
| 23100D - UNION, NIPPLE(FOR FUEL OUTLET) | ||||
| 23116-24010 |
3KC..KE3#,50 |
1 | ||
| 23100E - UNION, NIPPLE(FOR FUEL INLET) | ||||
| 23116-31040 |
3KC..KE30..USA |
1 | ||
| 23116-24070 |
3KC..KE30..USA |
1 | ||
| 90404-51244 |
3KC..KE30..USA CANADA SPEC. |
1 | ||
| 23116-31040 |
3KC..KE30..USA |
1 | ||
| 23100G - UNION, NIPPLE(FOR FUEL RETURN HOSE) | ||||
| 23116-24070 |
3KC..KE30..USA |
1 | ||
| 23116-24071 |
3KC..KE30..USA |
1 | ||
| 23116-24070 |
3KC..KE30..USA |
1 | ||
| 23121 - COVER, FUEL PUMP | ||||
| 23121-24040 |
3KC..KE30..USA |
1 | ||
| 23121-24010 |
3KC..KE30..USA CANADA SPEC. |
1 | ||
| 23121-24040 |
3KC..KE30..USA |
1 | ||
| 23122 - GASKET, FUEL PUMP COVER | ||||
| 23122-24040 |
3KC..KE30..USA |
1 | ||
| 23122-24010 |
3KC..KE30..USA CANADA SPEC |
1 | ||
| 23122-24040 |
3KC..KE30..USA |
1 | ||
| 23123 - SCREW, COVER SET, NO.1 | ||||
| 93319-15014 |
3KC..KE30..USA |
8 | ||
| 23123-33011 |
3KC..KE30..USA CANADA SPEC. |
8 | ||
| 93319-15014 |
3KC..KE30..USA |
8 | ||
| 23123 - SCREW, COVER SET, NO.1 | ||||
| 93319-15014 |
3KC..KE30..USA |
8 | ||
| 23123-33011 |
3KC..KE30..USA CANADA SPEC. |
8 | ||
| 93319-15014 |
3KC..KE30..USA |
8 | ||
| Common parts | ||||
| 90179-08029 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
