KE30L-KBA (1976)
Toyota Corolla

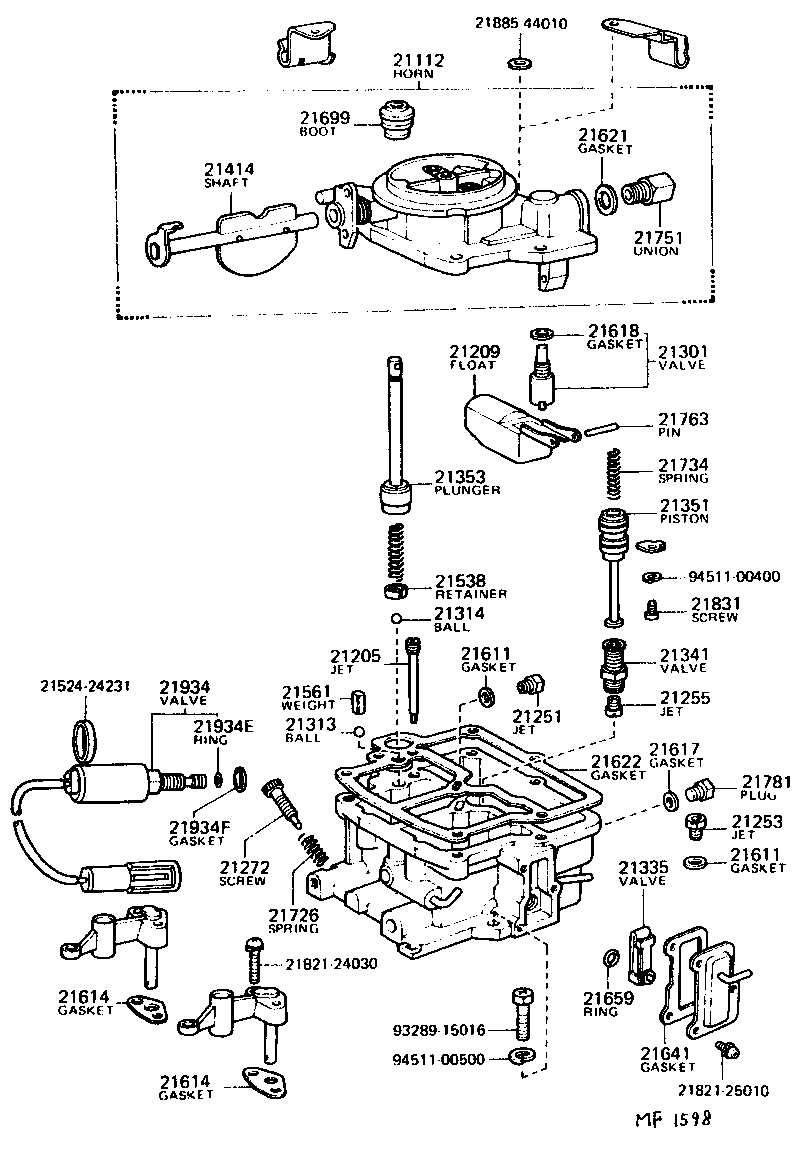

(7608-7908)3KC..KE30..SPL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21112 - HORN, AIR | ||||
| 21012-24010 |
3KC..KE30..USA CANADA SPEC |
1 | ||
| 21112-24442 |
3KC..KE30..USA |
1 | ||
| 21112-24443 |
3KC..KE30..USA |
1 | ||
| 21012-24440 |
3KC..KE30..USA |
1 | ||
| 21112-24480 |
3KC..KE30..USA |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 90999-44147 |
3KC..KE3# ID=0.47 |
1 | ||
| 90999-44147 |
3KC..KE30..USA CANADA SPEC. |
1 | ||
| 21205-24480 |
3KC..KE30..USA |
1 | ||
| 90999-44149 |
3KC..KE30..USA |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-24010 |
3KC..KE3#,50 |
1 | ||
| 21209-24480 |
3KC..KE30..USA |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 90999-41100 |
3KC..KE30..USA CANADA SPEC. |
1 | ||
| 90999-41114 |
3KC..KE30..USA ID=1.14 |
1 | ||
| 90999-41114 |
3KC..KE30..USA ID=1.14 |
1 | ||
| 90999-41115 |
3KC..KE30..USA ID=1.15 |
1 | ||
| 90999-41115 |
3KC..KE30..USA ID=1.15 |
1 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42141 |
3KC..KE30..USA ID=1.41 CANADA SPEC. |
1 | ||
| 90999-42153 |
3KC..KE30..USA ID=1.53 |
1 | ||
| 90999-42153 |
3KC..KE30..USA ID=1.53 |
1 | ||
| 21255 - JET, POWER | ||||
| 90999-43075 |
3KC..KE30..USA ID=0.75 |
1 | ||
| 90999-43075 |
3KC..KE30..USA ID=0.75 |
1 | ||
| 21255-34030 |
3KC..KE3# ID=0.8 |
1 | ||
| 90999-43090 |
3KC..KE30..SPL ID=0.9 CANADA SPEC. |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21273-24230 |
3KC..KE3#,50 |
1 | ||
| 21273-24480 |
3KC..KE30..USA |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-24360 |
3KC..KE30..USA |
1 | ||
| 21301-24360 |
3KC..KE30..USA |
1 | ||
| 21301-24500 |
3KC..KE30..USA |
1 | ||
| 21301-24030 |
3KC..KE30..USA CANADA SPEC. |
1 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-11020 |
3KC..KE3#,50 |
1 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-60010 |
3KC..KE3# |
1 | ||
| 21314-60010 |
3KC..KE3#,50 |
1 | ||
| 21335 - VALVE, THERMOSTATIC | ||||
| 21335-25010 |
3KC..KE3#,50 |
1 | ||
| 21335-25010 |
3KC..KE30,50 |
1 | ||
| 21341 - VALVE, POWER | ||||
| 21304-30010 |
3KC..KE3#,50 |
1 | ||
| 21351 - PISTON, POWER | ||||
| 21351-33080 |
3KC..KE3#,50 |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-24010 |
3KC..KE3#,50 |
1 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21054-24010 |
3KC..KE3#,50 |
1 | ||
| 21054-24010 |
3KC..KE30..USA CANADA SPEC. |
1 | ||
| 21054-24440 |
3KC..KE30..USA |
1 | ||
| 21054-24440 |
3KC..KE30..USA |
1 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
3KC..KE3#,50 |
1 | ||
| 21561 - WEIGHT, PUMP DISCHARGE | ||||
| 21561-22010 |
3KC..KE3#,50 |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
3KC..KE3#,50 |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
3KC..KE3#,50 |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-22010 |
3KC..KE3#,50 |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-22010 |
3KC..KE3#,50 |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
3KC..KE3#,50 |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-24030 |
3KC..KE3#,50 |
1 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
3KC..KE30,50 |
2 | ||
| 21633-24030 |
3KC..KE3#,50 FOR FUEL INLET |
2 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-24011 |
3KC..KE3#,50 |
1 | ||
| 21622-24440 |
3KC..KE30,50 |
1 | ||
| 21641 - GASKET(FOR THERMOSTATIC VALVE COVER) | ||||
| 21641-23010 |
3KC..KE3#,50 |
1 | ||
| 21659 - RING, O(FOR THERMOSTATIC VALVE) | ||||
| 21641-24030 |
3KC..KE30,50 |
1 | ||
| 21641-24030 |
3KC..KE3#,50 |
1 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-21061 |
3KC..KE3#,50 |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21864-24230 |
3KC..KE3#,50 |
1 | ||
| 21864-24010 |
3KC..KE30..USA |
1 | ||
| 21734 - SPRING, POWER PISTON | ||||
| 21734-24440 |
3KC..KE30..USA |
1 | ||
| 21734-24440 |
3KC..KE30..USA |
1 | ||
| 21734-24010 |
3KC..KE30..USA CANADA SPEC. |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21751-24032 |
3KC..KE3#,50 |
1 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-38010 |
3KC..KE30..USA |
1 | ||
| 21763-29270 |
3KC..KE30..USA CANADA SPEC |
1 | ||
| 21763-38010 |
3KC..KE30..USA |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-30020 |
3KC..KE3#,50 |
2 | ||
| 21831 - SCREW, POWER PISTON STOP | ||||
| 21842-33010 |
3KC..KE3#,50 |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-24460 |
3KC..KE30..USA CANADA SPEC. |
1 | ||
| 21062-24440 |
3KC..KE30..USA |
1 | ||
| 21062-12030 |
3KC..KE3# |
1 | ||
| 21062-24480 |
3KC..KE30..USA |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
3KC..KE3#,50 |
2 | ||
| 21934F - GASKET | ||||
| 21617-10010 |
3KC..KE3#,50 |
2 | ||
| Common parts | ||||
| 21524-24231 | ||||
| 21821-24030 | ||||
| 21821-25010 | ||||
| 21885-44010 | ||||
| 93289-15016 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||

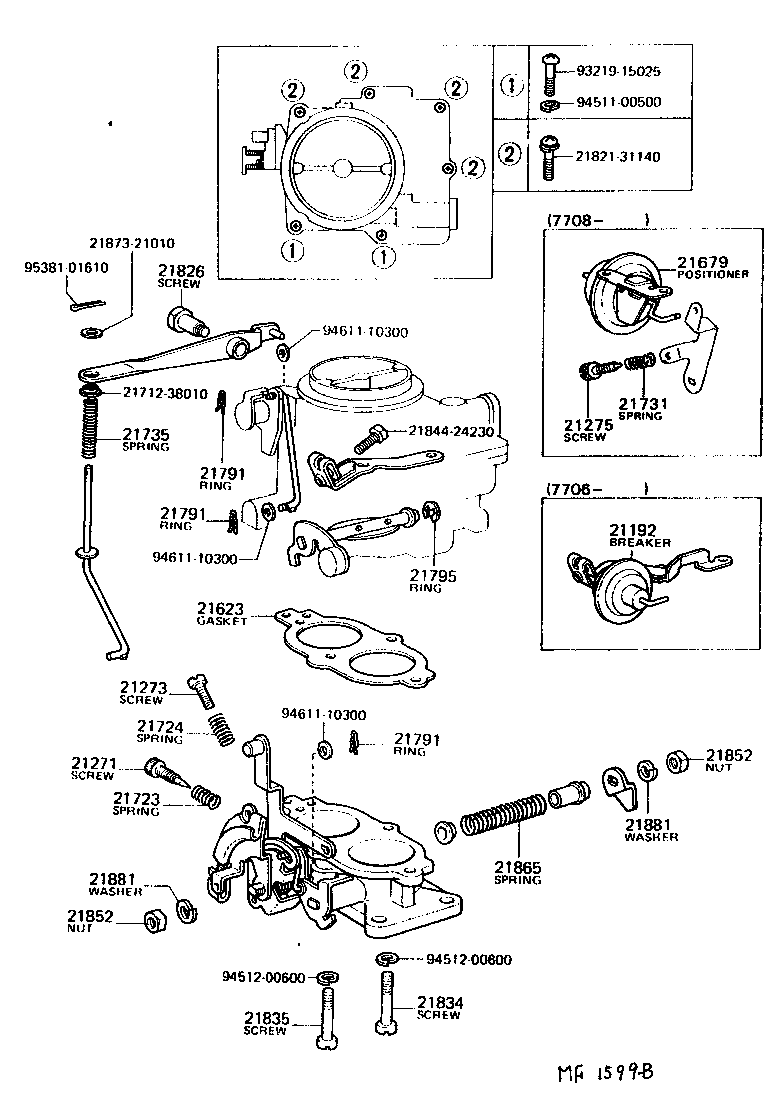

(7608-7908)3KC..KE30..SPL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21192 - BREAKER | ||||
| 21192-24440 |
3KC..KE30..USA |
1 | ||
| 21192-24440 |
3KC..KE30..USA |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-24011 |
3KC..KE3# |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21273-50010 |
3KC..KE3#,50 |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21842-24230 |
3KC..KE3# |
1 | ||
| 21275-24480 |
3KC..KE30..USA |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-24300 |
3KC..KE3#,50 |
1 | ||
| 21679 - POSITIONER | ||||
| 21679-24011 |
3KC..KE3# |
1 | ||
| 21679-24480 |
3KC..KE30..USA |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21723-21030 |
3KC..KE3#,50 |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21726-40010 |
3KC..KE3#,50 |
1 | ||
| 21726-40010 |
3KC..KE30,50 |
1 | ||
| 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING | ||||
| 21723-21030 |
3KC..KE3# |
1 | ||
| 21723-38010 |
3KC..KE30..USA |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-22010 |
3KC..KE3#,50 |
1 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
3KC..KE3#,50 |
9 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
3KC..KE3#,50 |
9 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-60010 |
3KC..KE3#,50 |
9 | ||
| 21795 - RING, RETAINER, NO.2(FOR HIGH SPEED SHAFT) | ||||
| 21795-30010 |
3KC..KE3#,50 |
1 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31012 |
3KC..KE3#,50 |
1 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21834-31010 |
3KC..KE3#,50 |
1 | ||
| 21835 - SCREW, SET, NO.3(FOR CARBURETOR BODY SET) | ||||
| 21835-40010 |
3KC..KE3# |
1 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
3KC..KE3#,50 |
2 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
3KC..KE3#,50 |
2 | ||
| 21865 - SPRING | ||||
| 21756-24300 |
3KC..KE3#,50 |
1 | ||
| 21756-24480 |
3KC..KE30..USA |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
3KC..KE3#,50 |
2 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
3KC..KE3#,50 |
2 | ||
| Common parts | ||||
| 21712-38010 | ||||
| 21821-31140 | ||||
| 21844-24230 | ||||
| 21873-21010 | ||||
| 93219-15025 | ||||
| 94511-00500 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 95381-01610 | ||||
