KE30L-KBA (1976)
Toyota Corolla
Production
Aug 1976
-
Aug 1979
Engine
3KC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7608-7908)3KC..KE30..SPL

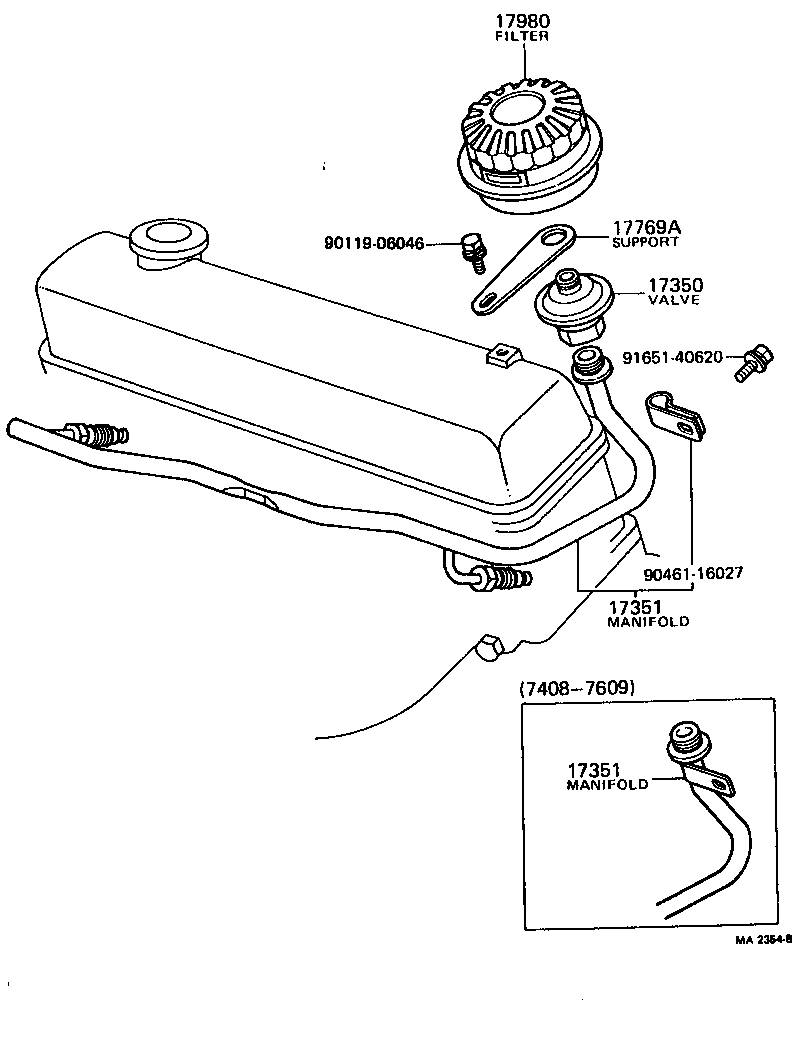

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17350 - VALVE ASSY, REED | ||||
| 17350-24010 |
3KC..KE30..USA |
2 | ||
| 17350-24010 |
3KC..KE30..USA |
1 | ||
| 17351 - MANIFOLD, AIR INJECTION | ||||
| 17351-24050 |
3KC..KE30..USA |
1 | ||
| 17351-24050 |
3KC..KE30..USA |
1 | ||
| 17351 - MANIFOLD, AIR INJECTION | ||||
| 17351-24050 |
3KC..KE30..USA |
1 | ||
| 17351-24050 |
3KC..KE30..USA |
1 | ||
| 17769A - SUPPORT, AIR CLEANER(FOR AIR SUCTION SYSTEM) | ||||
| 17769-24010 |
3KC..KE30..USA |
1 | ||
| 17769-24010 |
3KC..KE30..USA |
1 | ||
| 17980 - FILTER ASSY, AIR SUCTION | ||||
| 17980-24010 |
3KC..KE30..USA |
1 | ||
| 17980-24010 |
3KC..KE30..USA |
1 | ||
| Common parts | ||||
| 90119-06046 | ||||
| 90461-16027 | ||||
| 91651-40620 | ||||
