KE30L-KBA (1976)
Toyota Corolla
Production
Aug 1976
-
Aug 1979
Engine
3KC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7804-7908)3KC..KE30..USA

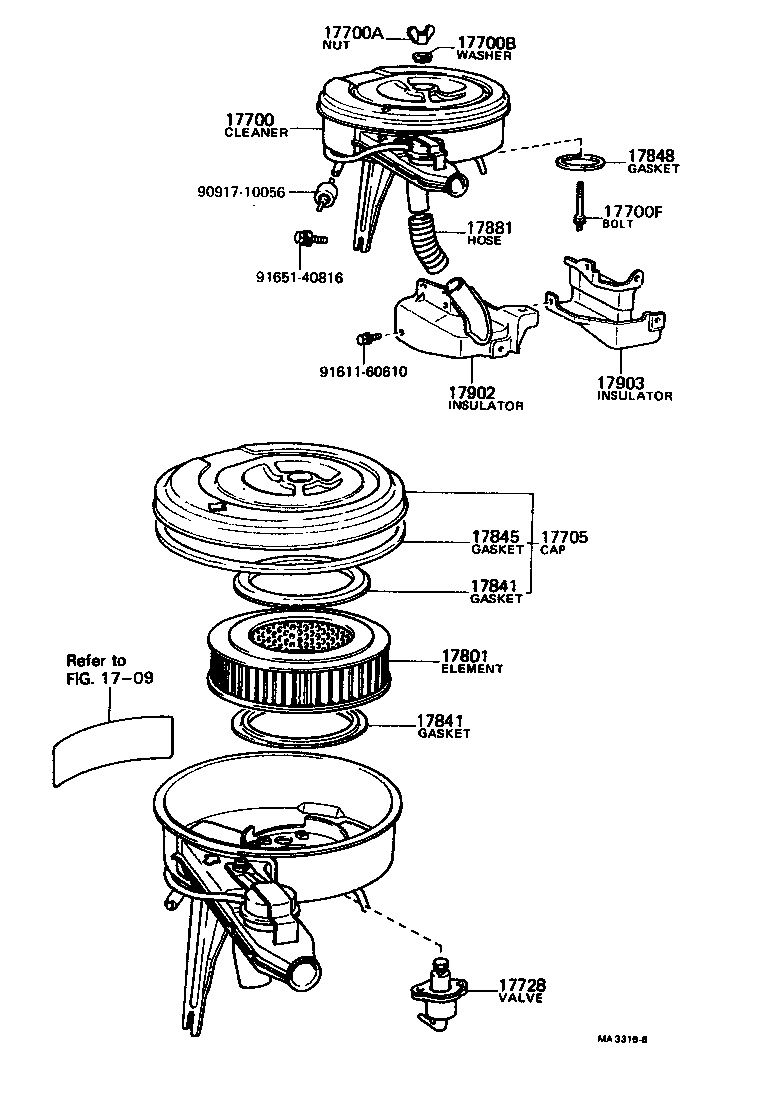

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-24470 |
3KC..KE3#,50 CANADA SPEC |
1 | ||
| 17700-24490 |
3KC..KE30..USA |
1 | ||
| 17700-24201 |
3KC..KE3# |
1 | ||
| 17700-24540 |
3KC..KE30..USA |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 94271-00600 |
3KC..KE3#,50 |
1 | ||
| 94271-00600 |
3KC..KE30,50 |
1 | ||
| 17700B - WASHER, SEAL(FOR AIR CLEANER) | ||||
| 90210-06023 |
3KC..KE30,50 |
1 | ||
| 90210-06023 |
3KC..KE3#,50 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06131 |
3KC..KE3#,50 L=102,S=12&30 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-24270 |
3KC..KE30..USA |
1 | ||
| 17705-24170 |
3KC..KE3#,50 |
1 | ||
| 17705-24270 |
3KC..KE30,50 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-24020 |
3KC..KE30..USA |
1 | ||
| 17728-24030 |
3KC..KE30..USA |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-24010 |
3KC..KE3#,50 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-24020 |
3KC..KE3#,50 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-24020 |
3KC..KE3#,50 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-24010 |
3KC..KE3#,50 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63187 |
3KC..KE3#,50 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-13010 |
3KC..KE30,50 |
1 | ||
| 17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1 | ||||
| 17167-24020 |
3KC..KE30,50 |
1 | ||
| 17903 - INLET SUB-ASSY, HOT AIR INTAKE, NO.2 | ||||
| 17168-24010 |
3KC..KE30,50 |
1 | ||
| Common parts | ||||
| 90917-10056 | ||||
| 91611-60610 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 1709 | ||||
