KE30L-KBA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)3KC

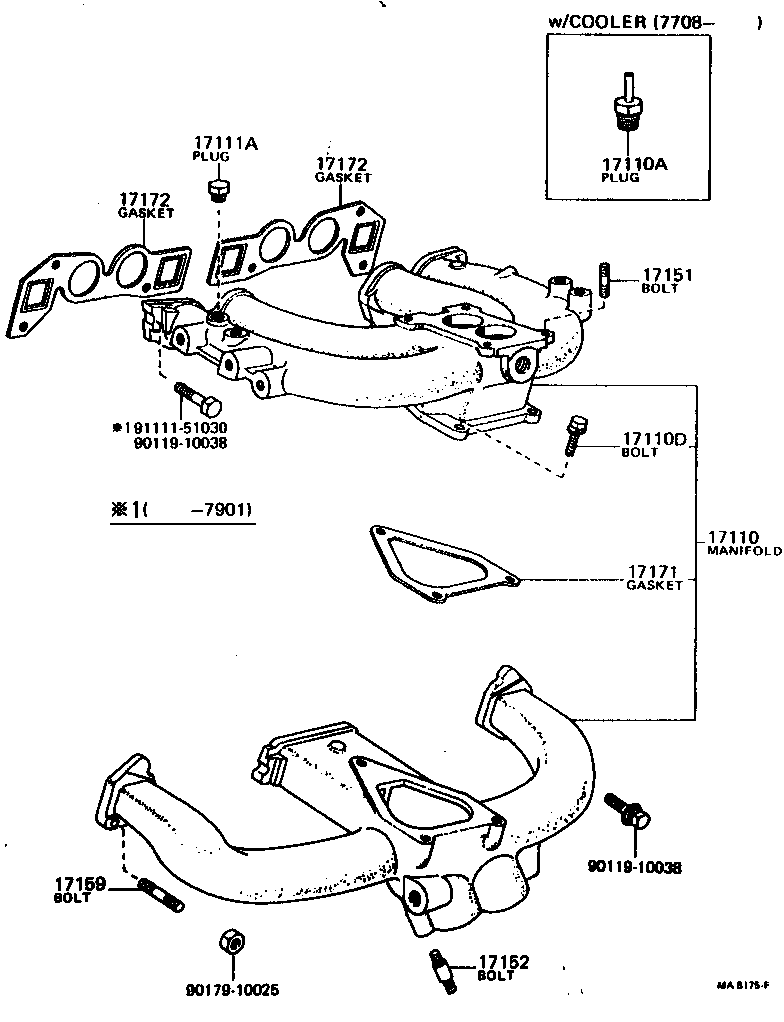

Click highlighted areas on diagram

diagram 17110 17110A 17110D 17111A 17151 17152 17159 17171 17172 17172 9011910038 9011910038 9017910025 9111151030
Part # Description Qty Price
17110 - MANIFOLD ASSY
17110-24040

3KC..KE3#

 1
17110-24080

3KC..KE30..USA

 1
17110-24042

3KC..KE30..USA

CANADA SPEC.

 1
17110-24080

3KC..KE30..USA

 1
17110A - UNION, VACUUM HOSE
90404-51093

3KC..KE30..USA

W/COOLER

 1
17110D - BOLT(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
91611-40820

3KC..KE3#,50

 3
91611-60822

3KC..KE30,50

 3
17111A - PLUG, NO.1
90345-51005

3KC..KE3#,50

 2
90345-51025

3KC..KE30,50

 2
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08010

3KC..KE3#

L=39,S=13&13

 8
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10042

3KC..KE3#

L=37,S=20&13

 3
90116-10017

3KC..KE3#,50

L=41,S=14&21

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-41028

3KC..KE3#,50

 2
90116-10021

3KC..KE3#,50

 2
17171 - GASKET, INTAKE TO EXHAUST MANIFOLD
17171-24010

3KC..KE3#,50

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-24010

3KC..KE3#

 2
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-24010

3KC..KE3#

 2
Common parts
90119-10038
90179-10025
91111-51030
