KE30L-KBA (1976)
Toyota Corolla

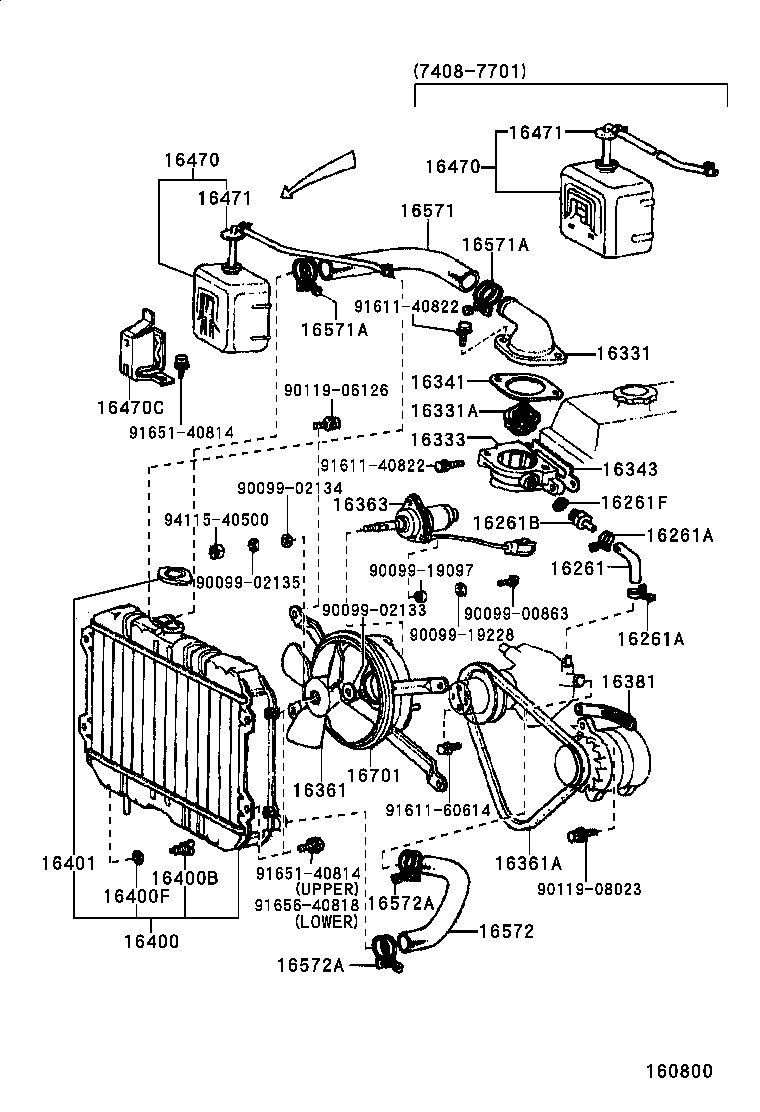

(7608-7708)3KC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-22011 |
3KC..KE3#,50 |
1 | ||
| 16261-13010 |
3KC..KE30,50 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10220 |
3KC..KE3#,50 |
2 | ||
| 90460-15001 |
3KC..KE30,50 |
2 | ||
| 96112-10140 |
3KC..KE30,50 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10220 |
3KC..KE3#,50 |
2 | ||
| 90460-15001 |
3KC..KE30,50 |
2 | ||
| 96112-10140 |
3KC..KE30,50 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-16162 |
3KC..KE3#,50 |
1 | ||
| 16261F - GASKET(FOR WATER BY-PASS HOSE) | ||||
| 90430-16044 |
3KC..KE3# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-22031 |
3KC..KE30,50 |
1 | ||
| 16331-22030 |
3KC..KE3#,50 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03035 |
3KC..KE3# WAX 82-95,KUZEH |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-24050 |
3KC..KE30,50 |
1 | ||
| 16333-24040 |
3KC..KE30..USA |
1 | ||
| 16333-24051 |
3KC..KE30..USA |
1 | ||
| 16333-24011 |
3KC..KE30..USA CANADA SPEC. |
1 | ||
| 16333-24060 |
3KC..KE30..USA HIGH ALTITUDE SPEC. |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-13010 |
3KC..KE30,50 |
1 | ||
| 16341-22010 |
3KC..KE3#,50 |
1 | ||
| 16341-13011 |
3KC..KE30,50 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-22010 |
3KC..KE3#,50 |
1 | ||
| 16343-22010 |
3KC..KE3# |
1 | ||
| 16361 - FAN | ||||
| 16361-24030 |
3KC..KE3# 4 BLADES |
1 | ||
| 16361-24060 |
3KC..KE30..USA 4 BLADES,W/COOLER |
1 | ||
| 16361-14010 |
3KC..KE30,50 4 BLADES |
1 | ||
| 16361-24050 |
3KC..KE3#,50 4 BLADES |
1 | ||
| 16361-24060 |
3KC..KE30..USA 4 BLADES,W/COOLER |
1 | ||
| 16361-13030 |
3KC..KE30..USA 4 BLADES,W/COOLER |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99521-10843 |
3KC..KE3#,50 L=843 |
1 | ||
| 99321-00840 |
3KC..KE30,50 L=840 |
1 | ||
| 99521-10860 |
3KC..KE30..USA L=860,W/COOLER |
1 | ||
| 99521-10839 |
3KC..KE30,50 L=839 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-24011 |
3KC..KE3#,50 |
1 | ||
| 16363-24020 |
3KC..KE30..USA W/COOLER |
1 | ||
| 16363-24022 |
3KC..KE30..USA W/COOLER |
1 | ||
| 16363-24021 |
3KC..KE30..USA W/COOLER |
1 | ||
| 16363-13020 |
3KC..KE30..USA W/COOLER |
1 | ||
| 16363-24013 |
3KC..KE30,50 |
1 | ||
| 16363-24010 |
3KC..KE3# |
1 | ||
| 16363-24012 |
3KC..KE30,50 |
1 | ||
| 16363-24021 |
3KC..KE30..USA W/COOLER |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-24011 |
3KC..KE3#,50 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-24140 |
3KC..KE3# |
1 | ||
| 16400-24210 |
3KC..KE3#,50 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
3KC..KE3#,50 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
3KC..KE3#,50 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
3KC..KE30,50 |
1 | ||
| 16401-36010 |
3KC..KE3#,50 |
1 | ||
| 16401-36011 |
3KC..KE30,50 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-24032 |
3KC..KE3#,50 |
1 | ||
| 16470-24031 |
3KC..KE3# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-24032 |
3KC..KE3#,50 |
1 | ||
| 16470-24031 |
3KC..KE3# |
1 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-24011 |
3KC..KE3# |
1 | ||
| 16611-24014 |
3KC..KE3#,50 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-24020 |
3KC..KE3# |
1 | ||
| 16471-24032 |
3KC..KE3#,50 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-24020 |
3KC..KE3# |
1 | ||
| 16471-24032 |
3KC..KE3#,50 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 90916-01136 |
3KC..KE3#,50 |
1 | ||
| 90916-01156 |
3KC..KE30,50 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
3KC..KE30,50 FOR WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
3KC..KE3#,50 |
2 | ||
| 96111-10430 |
3KC..KE3#,50 |
2 | ||
| 96111-10430 |
3KC..KE30,50 FOR RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
3KC..KE30,50 FOR WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
3KC..KE3#,50 |
2 | ||
| 96111-10430 |
3KC..KE3#,50 |
2 | ||
| 96111-10430 |
3KC..KE30,50 FOR RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-13030 |
3KC..KE30,50 |
1 | ||
| 90916-01135 |
3KC..KE3#,50 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
3KC..KE3#,50 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
3KC..KE3#,50 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-24092 |
3KC..KE30,50 |
1 | ||
| 16711-24091 |
3KC..KE3#,50 |
1 | ||
| 16712-24030 |
3KC..KE3# LOWER |
1 | ||
| 16711-13041 |
3KC..KE30..USA W/COOLER |
1 | ||
| 16711-24040 |
3KC..KE3# UPPER |
1 | ||
| 16711-24100 |
3KC..KE30..USA W/COOLER |
1 | ||
| 16711-24090 |
3KC..KE3#,50 |
1 | ||
| 16711-24101 |
3KC..KE30..USA W/COOLER |
1 | ||
| 16711-24100 |
3KC..KE30..USA W/COOLER |
1 | ||
| Common parts | ||||
| 90099-00863 | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-19097 | ||||
| 90099-19228 | ||||
| 90119-06126 | ||||
| 90119-08023 | ||||
| 91611-40822 | ||||
| 91611-60614 | ||||
| 91651-40814 | ||||
| 91656-40818 | ||||
| 94115-40500 | ||||

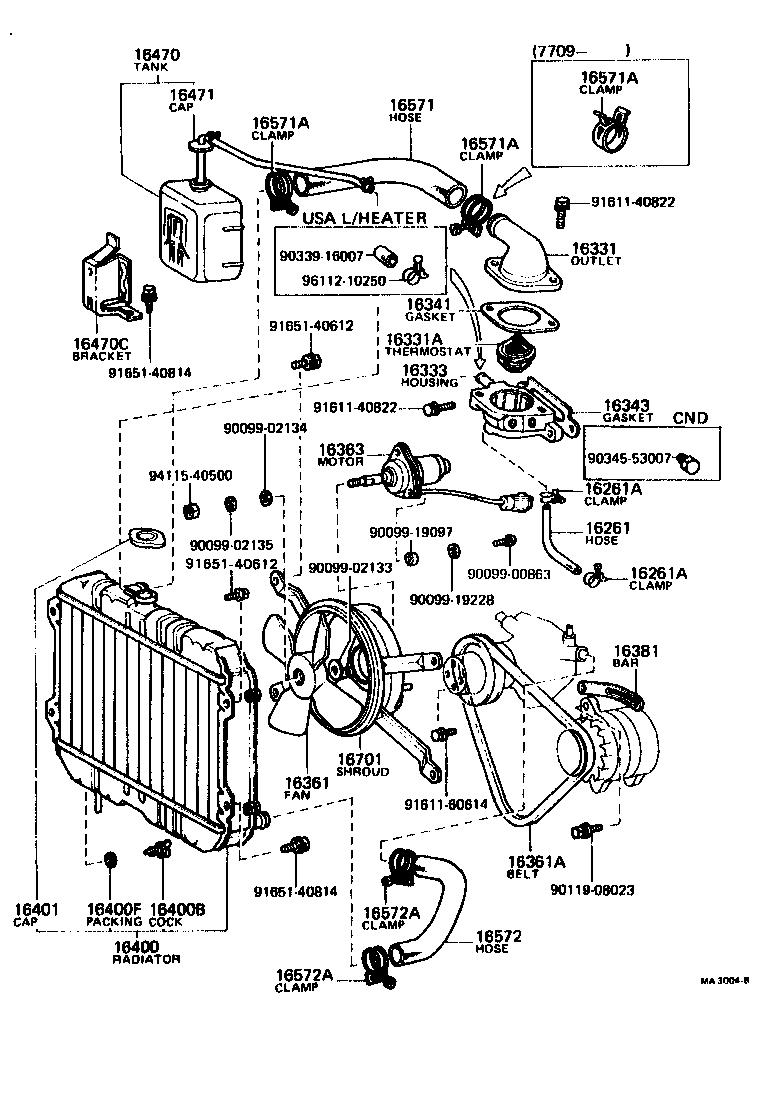

(7708-7908)3KC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-22011 |
3KC..KE3#,50 |
1 | ||
| 16261-13010 |
3KC..KE30,50 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10220 |
3KC..KE3#,50 |
2 | ||
| 90460-15001 |
3KC..KE30,50 |
2 | ||
| 96112-10140 |
3KC..KE30,50 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10220 |
3KC..KE3#,50 |
2 | ||
| 90460-15001 |
3KC..KE30,50 |
2 | ||
| 96112-10140 |
3KC..KE30,50 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-22031 |
3KC..KE30,50 |
1 | ||
| 16331-22030 |
3KC..KE3#,50 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03035 |
3KC..KE3# WAX 82-95,KUZEH |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-24050 |
3KC..KE30,50 |
1 | ||
| 16333-24040 |
3KC..KE30..USA |
1 | ||
| 16333-24051 |
3KC..KE30..USA |
1 | ||
| 16333-24011 |
3KC..KE30..USA CANADA SPEC. |
1 | ||
| 16333-24060 |
3KC..KE30..USA HIGH ALTITUDE SPEC. |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-13010 |
3KC..KE30,50 |
1 | ||
| 16341-22010 |
3KC..KE3#,50 |
1 | ||
| 16341-13011 |
3KC..KE30,50 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-22010 |
3KC..KE3#,50 |
1 | ||
| 16343-22010 |
3KC..KE3# |
1 | ||
| 16361 - FAN | ||||
| 16361-24030 |
3KC..KE3# 4 BLADES |
1 | ||
| 16361-24060 |
3KC..KE30..USA 4 BLADES,W/COOLER |
1 | ||
| 16361-14010 |
3KC..KE30,50 4 BLADES |
1 | ||
| 16361-24050 |
3KC..KE3#,50 4 BLADES |
1 | ||
| 16361-24060 |
3KC..KE30..USA 4 BLADES,W/COOLER |
1 | ||
| 16361-13030 |
3KC..KE30..USA 4 BLADES,W/COOLER |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99521-10843 |
3KC..KE3#,50 L=843 |
1 | ||
| 99321-00840 |
3KC..KE30,50 L=840 |
1 | ||
| 99521-10860 |
3KC..KE30..USA L=860,W/COOLER |
1 | ||
| 99521-10839 |
3KC..KE30,50 L=839 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-24011 |
3KC..KE3#,50 |
1 | ||
| 16363-24020 |
3KC..KE30..USA W/COOLER |
1 | ||
| 16363-24022 |
3KC..KE30..USA W/COOLER |
1 | ||
| 16363-24021 |
3KC..KE30..USA W/COOLER |
1 | ||
| 16363-13020 |
3KC..KE30..USA W/COOLER |
1 | ||
| 16363-24013 |
3KC..KE30,50 |
1 | ||
| 16363-24010 |
3KC..KE3# |
1 | ||
| 16363-24012 |
3KC..KE30,50 |
1 | ||
| 16363-24021 |
3KC..KE30..USA W/COOLER |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-24011 |
3KC..KE3#,50 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-24140 |
3KC..KE3# |
1 | ||
| 16400-24210 |
3KC..KE3#,50 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
3KC..KE3#,50 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
3KC..KE3#,50 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
3KC..KE30,50 |
1 | ||
| 16401-36010 |
3KC..KE3#,50 |
1 | ||
| 16401-36011 |
3KC..KE30,50 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-24032 |
3KC..KE3#,50 |
1 | ||
| 16470-24031 |
3KC..KE3# |
1 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-24011 |
3KC..KE3# |
1 | ||
| 16611-24014 |
3KC..KE3#,50 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-24020 |
3KC..KE3# |
1 | ||
| 16471-24032 |
3KC..KE3#,50 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 90916-01136 |
3KC..KE3#,50 |
1 | ||
| 90916-01156 |
3KC..KE30,50 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
3KC..KE30,50 FOR WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
3KC..KE3#,50 |
2 | ||
| 96111-10430 |
3KC..KE3#,50 |
2 | ||
| 96111-10430 |
3KC..KE30,50 FOR RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
3KC..KE30,50 FOR WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
3KC..KE3#,50 |
2 | ||
| 96111-10430 |
3KC..KE3#,50 |
2 | ||
| 96111-10430 |
3KC..KE30,50 FOR RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
3KC..KE30,50 FOR WATER OUTLET SIDE |
1 | ||
| 96111-10430 |
3KC..KE3#,50 |
2 | ||
| 96111-10430 |
3KC..KE3#,50 |
2 | ||
| 96111-10430 |
3KC..KE30,50 FOR RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-13030 |
3KC..KE30,50 |
1 | ||
| 90916-01135 |
3KC..KE3#,50 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
3KC..KE3#,50 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-47036 |
3KC..KE3#,50 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-24092 |
3KC..KE30,50 |
1 | ||
| 16711-24091 |
3KC..KE3#,50 |
1 | ||
| 16712-24030 |
3KC..KE3# LOWER |
1 | ||
| 16711-13041 |
3KC..KE30..USA W/COOLER |
1 | ||
| 16711-24040 |
3KC..KE3# UPPER |
1 | ||
| 16711-24100 |
3KC..KE30..USA W/COOLER |
1 | ||
| 16711-24090 |
3KC..KE3#,50 |
1 | ||
| 16711-24101 |
3KC..KE30..USA W/COOLER |
1 | ||
| 16711-24100 |
3KC..KE30..USA W/COOLER |
1 | ||
| Common parts | ||||
| 90099-00863 | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-19097 | ||||
| 90099-19228 | ||||
| 90119-08023 | ||||
| 90339-16007 | ||||
| 90345-53007 | ||||
| 91611-40822 | ||||
| 91611-60614 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 94115-40500 | ||||
| 96112-10250 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
