KE30L-KBA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)3KC

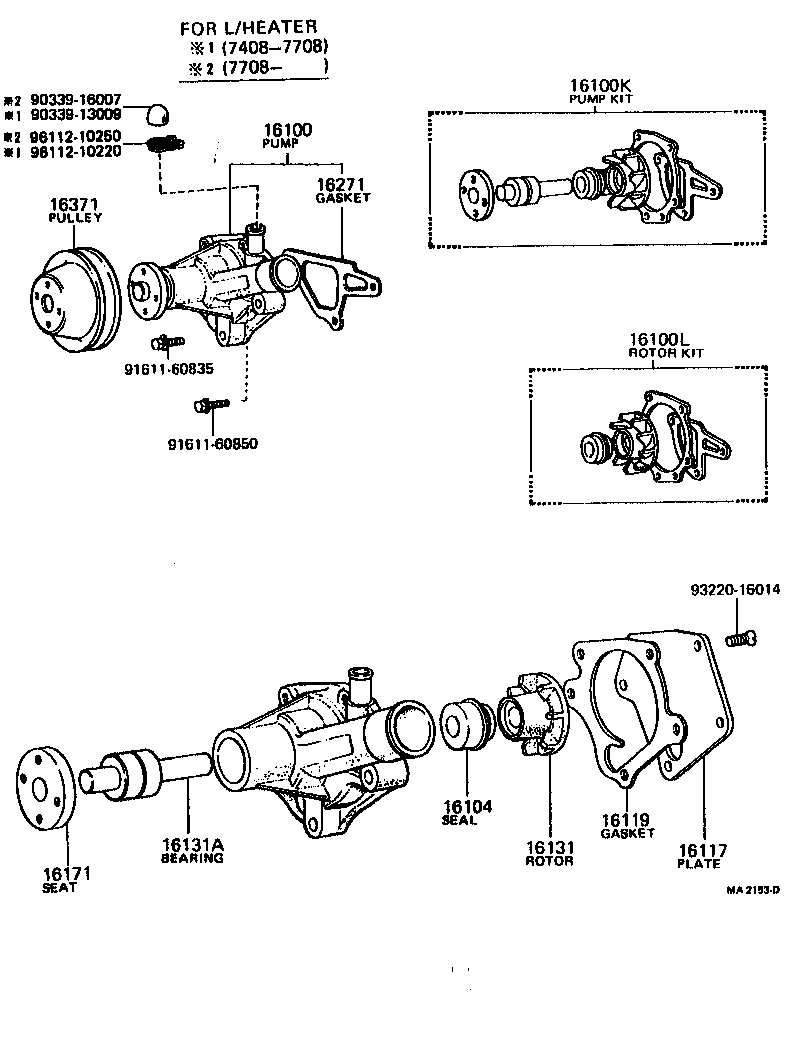

Click highlighted areas on diagram

diagram 16100 16100K 16100L 16104 16117 16119 16131 16131A 16171 16271 16371 9033913009 9033916007 9161160835 9161160850 9322016014 9611210220 9611210250
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-29046

3KC..KE3#,50

 1
16100-29045

3KC..KE3#,50

 1
16100-19015

3KC..KE30,50

 1
16100K - PUMP KIT, WATER
04161-24010

3KC..KE3#

 1
04161-13010

3KC..KE3#,50

 1
16100L - ROTOR KIT, WATER PUMP
04162-22011

3KC..KE3#

 1
04162-13010

3KC..KE3#,50

 1
16104 - SEAL SET, WATER PUMP
16104-22010

3KC..KE3#

 1
16104-41111

3KC..KE30,50

 1
16117 - PLATE, WATER PUMP
16117-22011

3KC..KE3#,50

 1
16117-13010

3KC..KE3#,50

 1
16119 - GASKET, WATER PUMP BODY
16124-22010

3KC..KE3#,50

 1
16131 - ROTOR, WATER PUMP
16131-22011

3KC..KE3#

 1
16131-13010

3KC..KE3#,50

 1
16131A - BEARING, WATER PUMP
90369-30063

3KC..KE3#,50

 1
90369-30063

3KC..KE3#

 1
16171 - SEAT, WATER PUMP PULLEY
16171-24030

3KC..KE3#

 1
16271 - GASKET, WATER PUMP
16271-22010

3KC..KE3#,50

 1
16271-13020

3KC..KE30,50

 1
16371 - PULLEY, FAN
16371-24050

3KC..KE3#,50

 1
Common parts
90339-13009
90339-16007
91611-60835
91611-60850
93220-16014
96112-10220
96112-10250
