KE30L-KBA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)3KC

Click highlighted areas on diagram

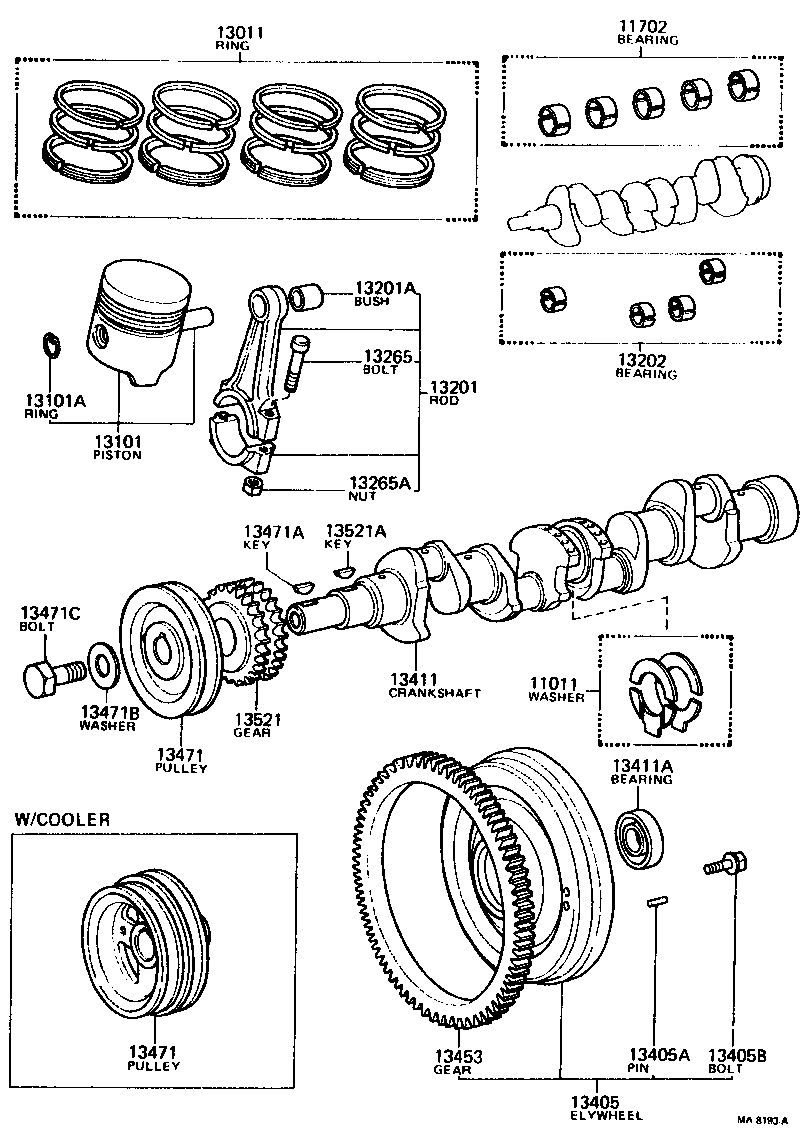

diagram 11011 11702 13011 13101 13101A 13201 13201A 13202 13265 13265A 13405 13405A 13405B 13411 13411A 13453 13471 13471 13471A 13471B 13471C 13521 13521A
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-22010

3KC..KE3#,50

STD

 1
11012-22010

3KC..KE3#,50

O/S 0.125

 1
11013-22010

3KC..KE3#,50

O/S 0.25

 1
11702 - BEARING SET, CRANKSHAFT
11706-22020

3KC..KE3#

U/S 0.75

 1
11702-22020

3KC..KE3#,50

STD

 1
11704-22020

3KC..KE3#,50

U/S 0.25,U/S 0.25

 1
11705-22020

3KC..KE3#,50

U/S 0.50

 1
11703-22020

3KC..KE3#,50

U/S 0.05

 1
13011 - RING SET, PISTON
13012-24010

3KC..KE3#

O/S 0.25

 1
13015-24010

3KC..KE3#

O/S 1.00

 1
13014-24010

3KC..KE3#

O/S 0.75

 1
13013-24010

3KC..KE3#

O/S 0.50

 1
13011-24010

3KC..KE3#

STD

 1
13101 - PISTON SUB-ASSY, W/PIN
13101-24010

3KC..KE3#

STD

 4
13102-24010

3KC..KE3#

O/S 0.25

 4
13105-24010

3KC..KE3#,50

O/S 1.00,O/S 1.00

 4
13103-24010

3KC..KE3#,50

O/S 0.50,O/S 0.50

 4
13104-24010

3KC..KE3#,50

O/S 0.75,O/S 0.75

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90521-21088

3KC..KE3#,50

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-22011

3KC..KE3#,50

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73070

3KC..KE3#,50

 4
13202 - BEARING SET, CONNECTING ROD
13204-22010

3KC..KE3#,50

U/S 0.25

 1
13204-13010

3KC..KE3#,50

U/S 0.25,U/S 0.25

 1
13206-13010

3KC..KE3#,50

U/S 0.75,U/S 0.75

 1
13202-13010

3KC..KE3#,50

STD,STD

 1
13203-13010

3KC..KE3#,50

U/S 0.05,U/S 0.05

 1
13206-22010

3KC..KE3#

U/S 0.75

 1
13203-22010

3KC..KE3#,50

U/S 0.05

 1
13202-22010

3KC..KE3#,50

STD

 1
13205-22010

3KC..KE3#,50

U/S 0.50

 1
13205-13010

3KC..KE3#,50

U/S 0.50,U/S 0.50

 1
13265 - BOLT, CONNECTING ROD
13265-29015

3KC..KE3#,50

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09195

3KC..KE3#,50

 8
13405 - FLYWHEEL SUB-ASSY
13405-29085

3KC..KE3#

N=106

 1
13405-19035

3KC..KE30,50

N=106

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08120

3KC..KE3#,50

L=18,OD=8,L=18,OD=8

 1
13405B - BOLT, FLYWHEEL SETTING
90913-01005

3KC..KE3#,50

 6
13411 - CRANKSHAFT
13411-24030

3KC..KE3#,50

 1
13411-24031

3KC..KE3#,50

 1
13411A - BEARING(FOR INPUT SHAFT FRONT)
97123-06001

3KC..KE3#,50

6001 ZZ C3

 1
13453 - GEAR, FLYWHEEL RING
13453-10010

3KC..KE3#,50

N=106

 1
13471 - PULLEY, CRANKSHAFT
13471-13010

3KC..KE3#,50

 1
13471-24040

3KC..KE3#,50

 1
13471-24050

3KC..KE30..USA

W/COOLER

 1
13471-24050

3KC..KE30..USA

W/COOLER

 1
13471 - PULLEY, CRANKSHAFT
13471-13010

3KC..KE3#,50

 1
13471-24040

3KC..KE3#,50

 1
13471-24050

3KC..KE30..USA

W/COOLER

 1
13471-24050

3KC..KE30..USA

W/COOLER

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

3KC..KE3#,50

 1
13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
90209-13059

3KC..KE3#,50

 1
90209-13003

3KC..KE30,50

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-12050

3KC..KE3#,50

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-22010

3KC..KE3#,50

N=18

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

3KC..KE3#,50

 1
