KE30L-KBA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)3KC

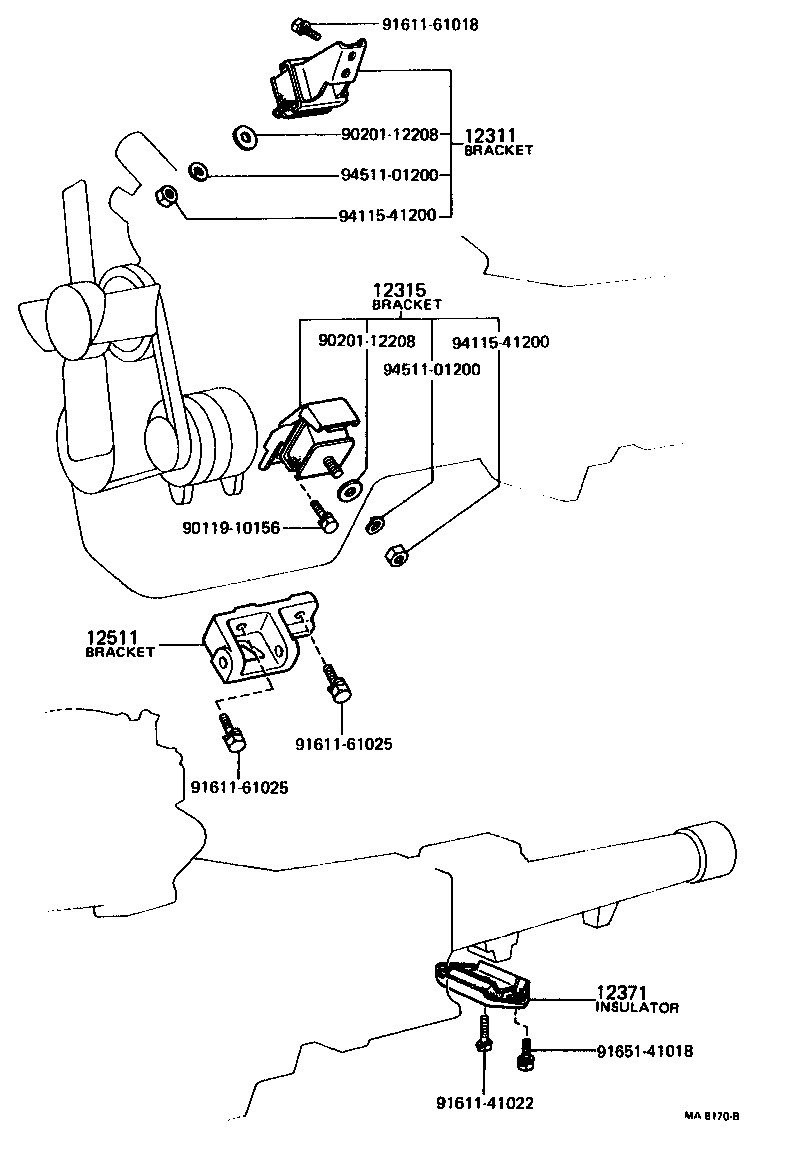

Click highlighted areas on diagram

diagram 12311 12315 12371 12511 9011910156 9020112208 9020112208 9161141022 9161161018 9161161025 9161161025 9165141018 9411541200 9411541200 9451101200 9451101200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-29046

3KC..KE30,50

 1
12301-29045

3KC..KE3#,50

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-29025

3KC..KE3#,50

 1
12302-19015

3KC..KE3#,50

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-24010

3KC..KE3#,50

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-24011

3KC..KE3#,50

 1
Common parts
90119-10156
90201-12208
91611-41022
91611-61018
91611-61025
91651-41018
94115-41200
94511-01200
