KE30L-KBA (1976)
Toyota Corolla
(7408-7908)3KC

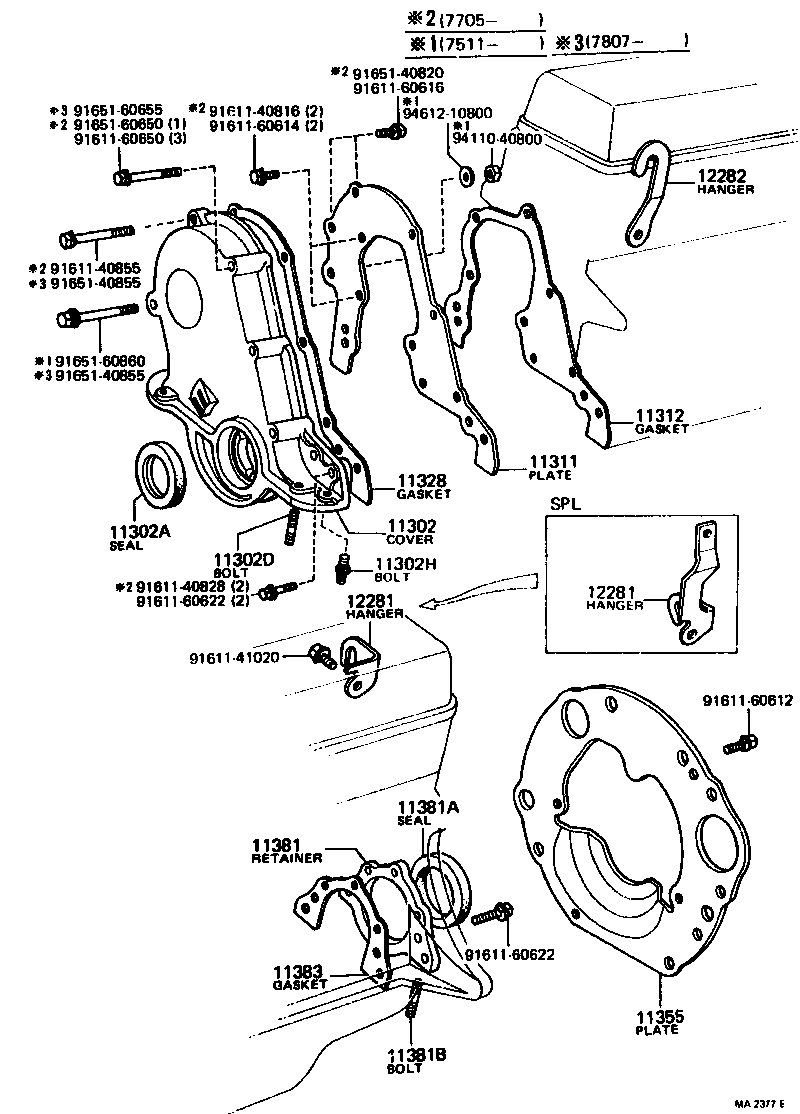

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-13010 |
3KC..KE3#,50 |
1 | ||
| 11321-22012 |
3KC..KE3# |
1 | ||
| 11321-13030 |
3KC..KE30,50 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-38024 |
3KC..KE3# TC 3 38.5 58 11 |
1 | ||
| 90311-38002 |
3KC..KE3#,50 HTC3 38.5 58 11 |
1 | ||
| 90311-38013 |
3KC..KE30,50 HTC 38.5 58 11 |
1 | ||
| 90311-38002 |
3KC..KE30,50 HTC3 38.5 58 11 |
1 | ||
| 11302D - BOLT, STUD(FOR TIMING GEAR COVER) | ||||
| 92132-60614 |
3KC..KE30,50 L=26,S=12&14 |
3 | ||
| 92132-40616 |
3KC..KE3#,50 L=28,S=10.5 |
3 | ||
| 90116-06012 |
3KC..KE30,50 L=23,S=7&7 |
3 | ||
| 11302H - BOLT, STUD(FOR TIMING GEAR COVER) | ||||
| 90116-06006 |
3KC..KE30,50 L=26.4,S=12&12 |
2 | ||
| 11311 - PLATE, FRONT END | ||||
| 11311-22010 |
3KC..KE3# |
1 | ||
| 11311-13010 |
3KC..KE3#,50 |
1 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| 11312-22010 |
3KC..KE3#,50 |
1 | ||
| 11312-13010 |
3KC..KE3#,50 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-22010 |
3KC..KE3# |
1 | ||
| 11328-13010 |
3KC..KE3#,50 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-13010 |
3KC..KE30,50 |
1 | ||
| 11355-24030 |
3KC..KE3#,50 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-13010 |
3KC..KE3#,50 |
1 | ||
| 11381-24010 |
3KC..KE3#,50 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-70001 |
3KC..KE3#,50 TC 70 92 12 |
1 | ||
| 90311-70120 |
3KC..KE3#,50 TC 70 92 12 |
1 | ||
| 11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER) | ||||
| 90116-06035 |
3KC..KE3#,50 L=23,S=12&9 |
2 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-22010 |
3KC..KE3#,50 |
1 | ||
| 11383-13010 |
3KC..KE3#,50 |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-24020 |
3KC..KE30..USA |
1 | ||
| 12281-13010 |
3KC..KE30..USA CANADA SPEC. |
1 | ||
| 12281-24011 |
3KC..KE30..USA CANADA SPEC. |
1 | ||
| 12281-24020 |
3KC..KE30..USA |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-24020 |
3KC..KE30..USA |
1 | ||
| 12281-13010 |
3KC..KE30..USA CANADA SPEC. |
1 | ||
| 12281-24011 |
3KC..KE30..USA CANADA SPEC. |
1 | ||
| 12281-24020 |
3KC..KE30..USA |
1 | ||
| 12282 - HANGER, ENGINE, NO.2 | ||||
| 12282-22011 |
3KC..KE3# |
1 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 91611-40828 | ||||
| 91611-40855 | ||||
| 91611-41020 | ||||
| 91611-60612 | ||||
| 91611-60614 | ||||
| 91611-60616 | ||||
| 91611-60622 | ||||
| 91611-60650 | ||||
| 91651-40820 | ||||
| 91651-40855 | ||||
| 91651-60650 | ||||
| 91651-60655 | ||||
| 91651-60860 | ||||
| 94110-40800 | ||||
| 94612-10800 | ||||
