KE30L-KBA (1976)

Toyota Corolla

Production Aug 1976 - Aug 1979
Engine 3KC
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7908)3KC

Click highlighted areas on diagram

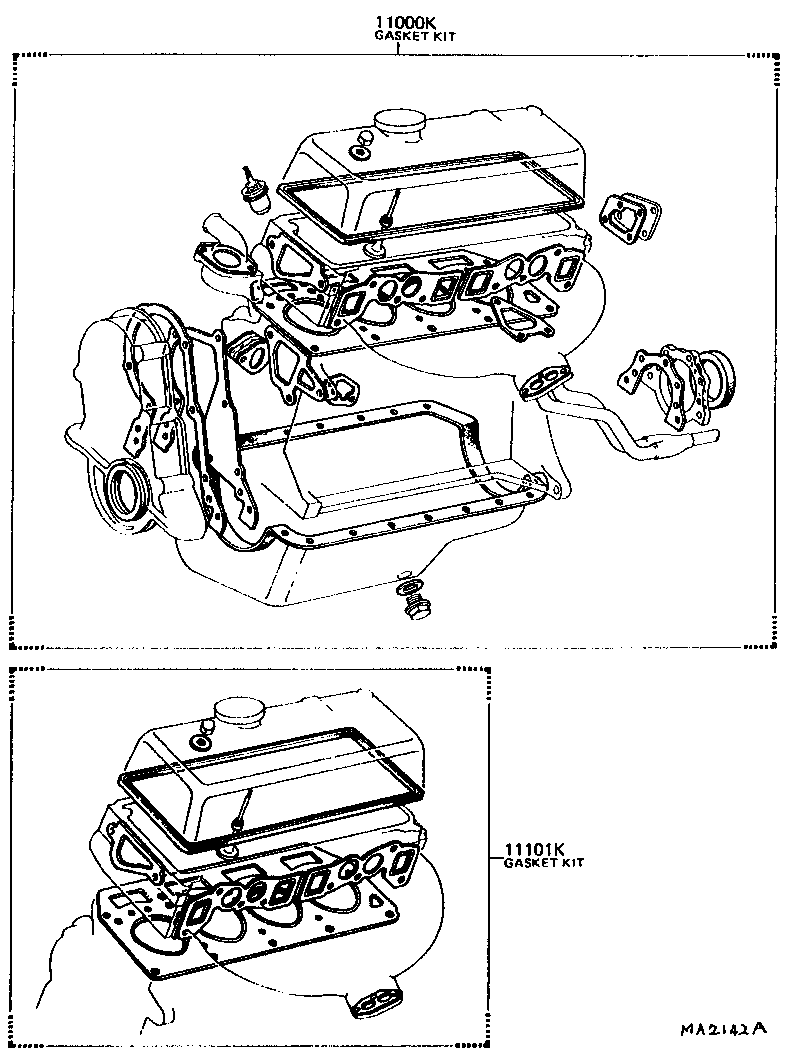

diagram 11000K 11101K
Part # Description Qty Price
11000K - GASKET KIT, ENGINE OVERHAUL
04111-24020

3KC..KE3#

 1
04111-24041

3KC..KE3#,50

 1
04111-24043

3KC..KE30,50

 1
04111-24042

3KC..KE3#,50

 1
04111-24044

3KC..KE30,50

 1
11101K - GASKET KIT, ENGINE VALVE GRIND
04112-24020

3KC..KE3#

 1
04112-24042

3KC..KE30,50

 1
04112-24041

3KC..KE3#,50

 1
