ZZE134L-DHPNKK (2002)
Toyota Corolla/Matrix (Nap)
Production
Jan 2002
-
Jul 2006
Engine
1ZZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0201- )ZZE132,133,134..NAP

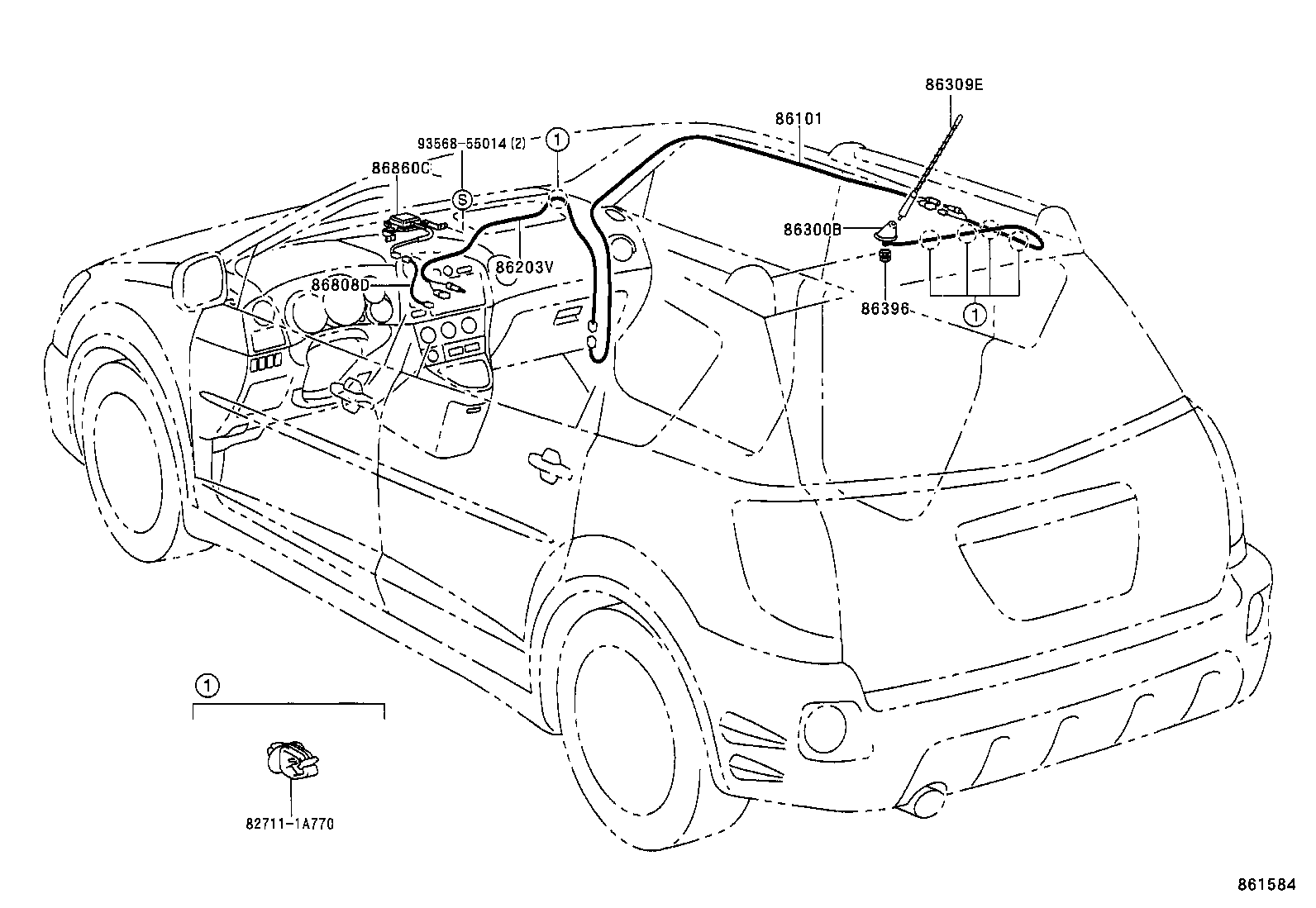

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-01050 |
ZZE133,134..NAP |
1 | ||
| 86101-01030 |
ZZE132,133,134..NAP |
1 | ||
| 86101-01030 |
ZZE132,133,134..NAP |
1 | ||
| 86203V - WIRE SUB ASSY, RADIO | ||||
| 86203-01020 |
ZZE133,134..NAP |
1 | ||
| 86203-01010 |
ZZE132,133,134..NAP |
1 | ||
| 86203-01010 |
ZZE132,133,134..NAP |
1 | ||
| 86300B - ANTENNA ASSY, AMPLIFIER, NO.1 | ||||
| 86300-02100 |
ZZE132,133,134..NAP |
1 | ||
| 86300-02100 |
ZZE132,133,134..NAP |
1 | ||
| 86300-01080 |
ZZE133,134..NAP |
1 | ||
| 86309E - POLE SUB-ASSY, ROOF ANTENNA | ||||
| 86309-02050 |
ZZE132,133,134..NAP |
1 | ||
| 86309-02050 |
ZZE133,134..NAP |
1 | ||
| 86309-02050 |
ZZE132,133,134..NAP |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-02030 |
ZZE132,133,134..NAP |
1 | ||
| 86396-02030 |
ZZE132,133,134..NAP |
1 | ||
| 86396-02030 |
ZZE133,134..NAP |
1 | ||
| Common parts | ||||
| 82711-1A770 | ||||
| 93568-55014 | ||||
