ZZE134L-DHPNKK (2002)
Toyota Corolla/Matrix (Nap)

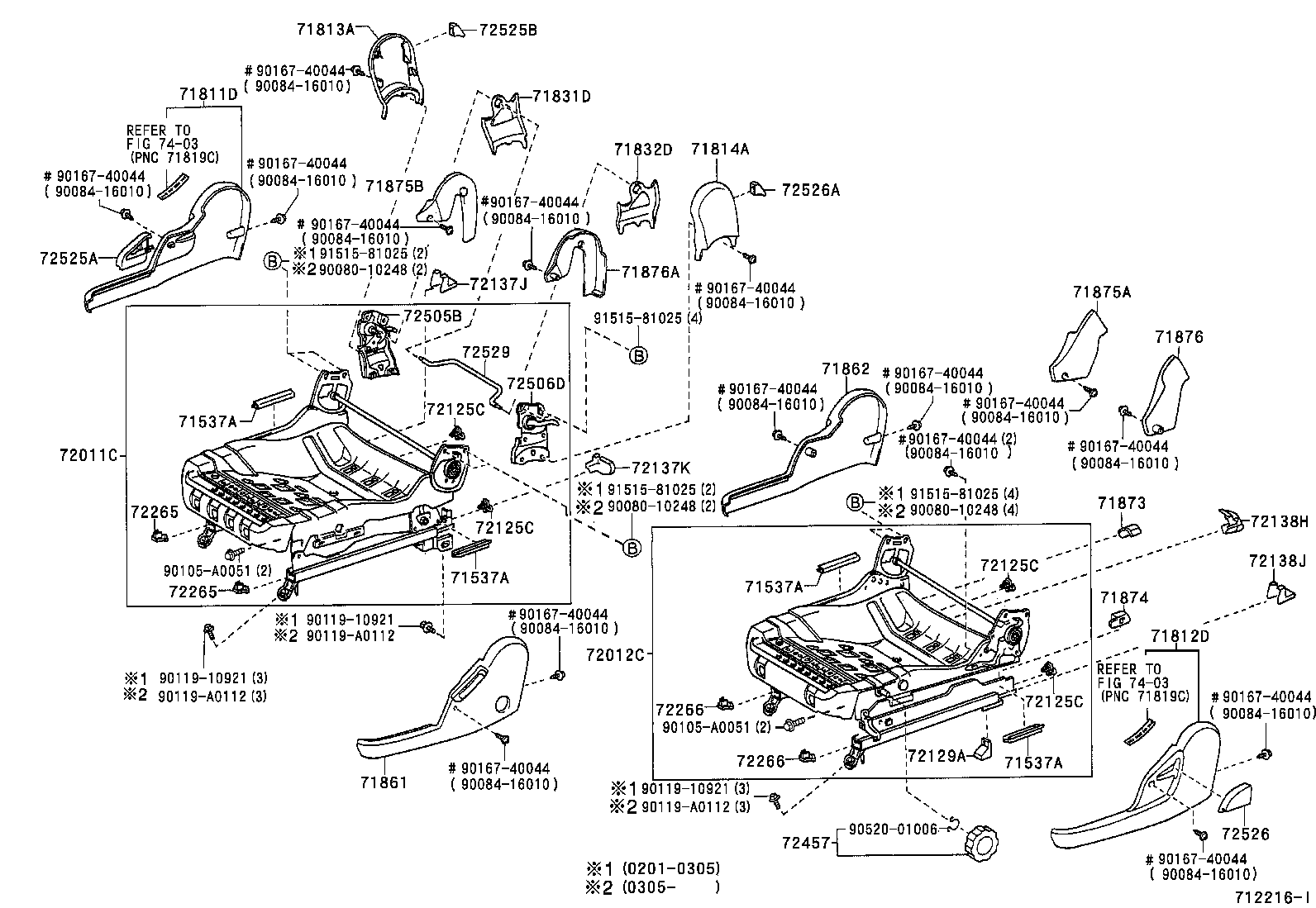

ILLUST NO. 2 OF 2(0201-0405)ZZE132,133,134..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-33010 |
ZZE132,134..NAP;ZZE133..NAP..6F (J),INNER |
1 | ||
| 71537-12030 |
ZZE132,134..NAP;ZZE133..NAP..6F (J) |
1 | ||
| 71537-AA020 |
ZZE132,133,134..NAP (L) |
2 | ||
| 71537-26010 |
ZZE132,133,134..NAP (J) |
2 | ||
| 71537-02010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L),INNER |
1 | ||
| 71537-01010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-33010 |
ZZE132,134..NAP;ZZE133..NAP..6F (J),INNER |
1 | ||
| 71537-12030 |
ZZE132,134..NAP;ZZE133..NAP..6F (J) |
1 | ||
| 71537-AA020 |
ZZE132,133,134..NAP (L) |
2 | ||
| 71537-26010 |
ZZE132,133,134..NAP (J) |
2 | ||
| 71537-02010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L),INNER |
1 | ||
| 71537-01010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-33010 |
ZZE132,134..NAP;ZZE133..NAP..6F (J),INNER |
1 | ||
| 71537-12030 |
ZZE132,134..NAP;ZZE133..NAP..6F (J) |
1 | ||
| 71537-AA020 |
ZZE132,133,134..NAP (L) |
2 | ||
| 71537-26010 |
ZZE132,133,134..NAP (J) |
2 | ||
| 71537-02010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L),INNER |
1 | ||
| 71537-01010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-33010 |
ZZE132,134..NAP;ZZE133..NAP..6F (J),INNER |
1 | ||
| 71537-12030 |
ZZE132,134..NAP;ZZE133..NAP..6F (J) |
1 | ||
| 71537-AA020 |
ZZE132,133,134..NAP (L) |
2 | ||
| 71537-26010 |
ZZE132,133,134..NAP (J) |
2 | ||
| 71537-02010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L),INNER |
1 | ||
| 71537-01010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-01090B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71811-01060B0 |
ZZE132,134..NAP;ZZE133..NAP..6F W(SIDE AIR BAG),DK.GRAY,TRIM13,14 |
1 | ||
| 71811-01070B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-01050B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DK.GRAY,TRIM13,14 |
1 | ||
| 71812-01060B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),DK.GRAY,TRIM13,14 |
1 | ||
| 71812-01080B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71813-AD010B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-AD010B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71814-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-AD010B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71831-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71832-AD010B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-01090B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71861-01050B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-01090B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71862-01050B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DK.GRAY,TRIM13,14 |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-01020B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DK.GRAY,TRIM13,14 |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-01020B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DK.GRAY,TRIM13,14 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA020B1 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71875-AA050B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA050B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71875-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA050B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71876-AA020B1 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA050B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71876-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-01010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-01010 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR |
1 | ||
| 72125C - COVER, SEAT TRACK LOCK PLATE, NO.1 | ||||
| 72125-AA010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
4 | ||
| 72125C - COVER, SEAT TRACK LOCK PLATE, NO.1 | ||||
| 72125-AA010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
4 | ||
| 72125C - COVER, SEAT TRACK LOCK PLATE, NO.1 | ||||
| 72125-AA010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
4 | ||
| 72125C - COVER, SEAT TRACK LOCK PLATE, NO.1 | ||||
| 72125-AA010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
4 | ||
| 72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 | ||||
| 72129-AA010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-01030 |
ZZE132,133,134..NAP |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72157-01010 |
ZZE133,134..NAP |
1 | ||
| 72157-01010 |
ZZE132,133,134..NAP |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-01010 |
ZZE132,133,134..NAP |
1 | ||
| 72158-01010 |
ZZE133,134..NAP |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-01030 |
ZZE132,133,134..NAP |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-AA010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-AA010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-AA010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
2 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-AA010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
2 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-18010S1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DK.GRAY,TRIM13,14 |
1 | ||
| 72505B - LOCK SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 72505-AD010 |
ZZE132,133,134..NAP |
1 | ||
| 72505-13010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 72506D - LOCK SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 72506-13020 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 72506-AD010 |
ZZE132,133,134..NAP |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47020B1 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 72525-AA040B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-01030B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 72525-01030B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47020B1 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 72526-AA030B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-01040B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 72525-01040B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 72529 - ROD, FRONT SEAT BACK LOCK HANDLE | ||||
| 72529-AD010 |
ZZE132,133,134..NAP |
1 | ||
| 72529-13010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| Common parts | ||||
| 90080-10248 | ||||
| 90084-16010 | ||||
| 90105-A0051 | ||||
| 90119-10921 | ||||
| 90119-A0112 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 91515-81025 | ||||
| Linked diagrams | ||||
| 7403 | ||||

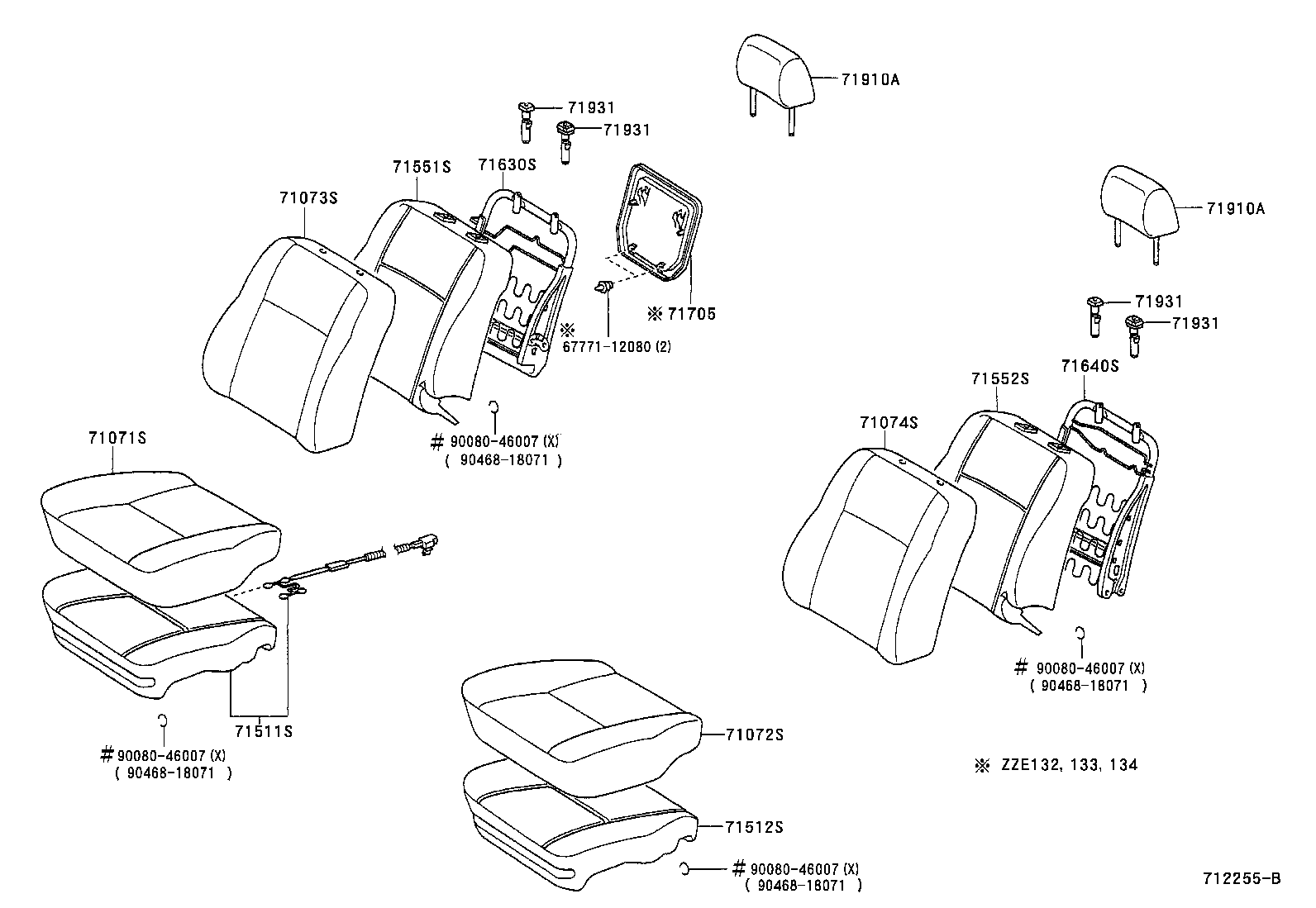

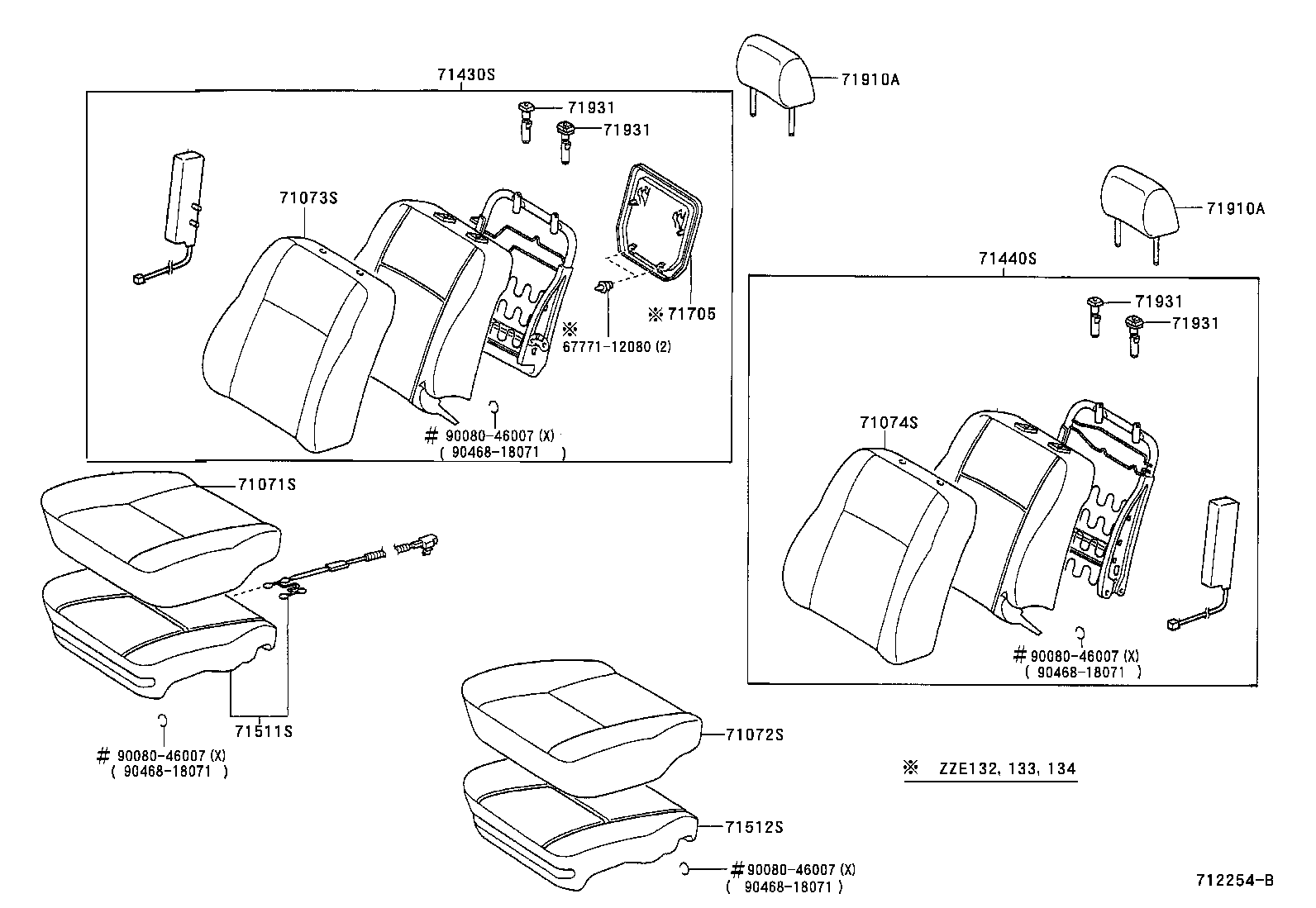

ILLUST NO. 1 OF 2(0201-0405)NAP
SIDE AIR BAG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-01170B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DARK GRAY,TRIM14 |
1 | ||
| 71071-01170B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR MEDIUM GRAY,TRIM13 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-01080B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR MEDIUM GRAY,TRIM13 |
1 | ||
| 71072-01080B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DARK GRAY,TRIM14 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-01150B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),DARK GRAY,TRIM14 |
1 | ||
| 71073-01130B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR MEDIUM GRAY,TRIM13 |
1 | ||
| 71073-01150B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),MEDIUM GRAY,TRIM13 |
1 | ||
| 71073-01130B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DARK GRAY,TRIM14 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-01120B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DARK GRAY,TRIM14 |
1 | ||
| 71074-01100B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),MEDIUM GRAY,TRIM13 |
1 | ||
| 71073-01120B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR MEDIUM GRAY,TRIM13 |
1 | ||
| 71074-01100B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),DARK GRAY,TRIM14 |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-01140B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),STONE-LIGHT GRAY,TRIM13 |
1 | ||
| 71430-01140B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),DARK GRAY,TRIM14 |
1 | ||
| 71430-01120B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR ***,STONE-LIGHT GRAY,TRIM13 |
1 | ||
| 71430-01120B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR ***,DARK GRAY,TRIM14 |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-01100B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),STONE-LIGHT GRAY,TRIM13 |
1 | ||
| 71430-01130B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR ***,STONE-LIGHT GRAY,TRIM13 |
1 | ||
| 71440-01100B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),DARK GRAY,TRIM14 |
1 | ||
| 71430-01130B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR ***,DARK GRAY,TRIM14 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-01010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 71511-01060 |
ZZE132,133,134..NAP |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-02150 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 71512-02010 |
ZZE132,133,134..NAP |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71771-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71771-01010B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-01131B1 |
ZZE132,134..NAP;ZZE133..NAP..6F MEDIUM GRAY,TRIM13 |
2 | ||
| 71910-01131B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DARK GRAY,TRIM14 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-01131B1 |
ZZE132,134..NAP;ZZE133..NAP..6F MEDIUM GRAY,TRIM13 |
2 | ||
| 71910-01131B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DARK GRAY,TRIM14 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02080B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W/O(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,133,134..NAP W(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931-02080B1 |
ZZE132,133,134..NAP W/O(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02080B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W/O(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,133,134..NAP W(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931-02080B1 |
ZZE132,133,134..NAP W/O(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02080B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W/O(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,133,134..NAP W(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931-02080B1 |
ZZE132,133,134..NAP W/O(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02080B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W/O(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,133,134..NAP W(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931-02080B1 |
ZZE132,133,134..NAP W/O(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| Common parts | ||||
| 67771-12080 | ||||
| 90080-46007 | ||||
| 90468-18071 | ||||

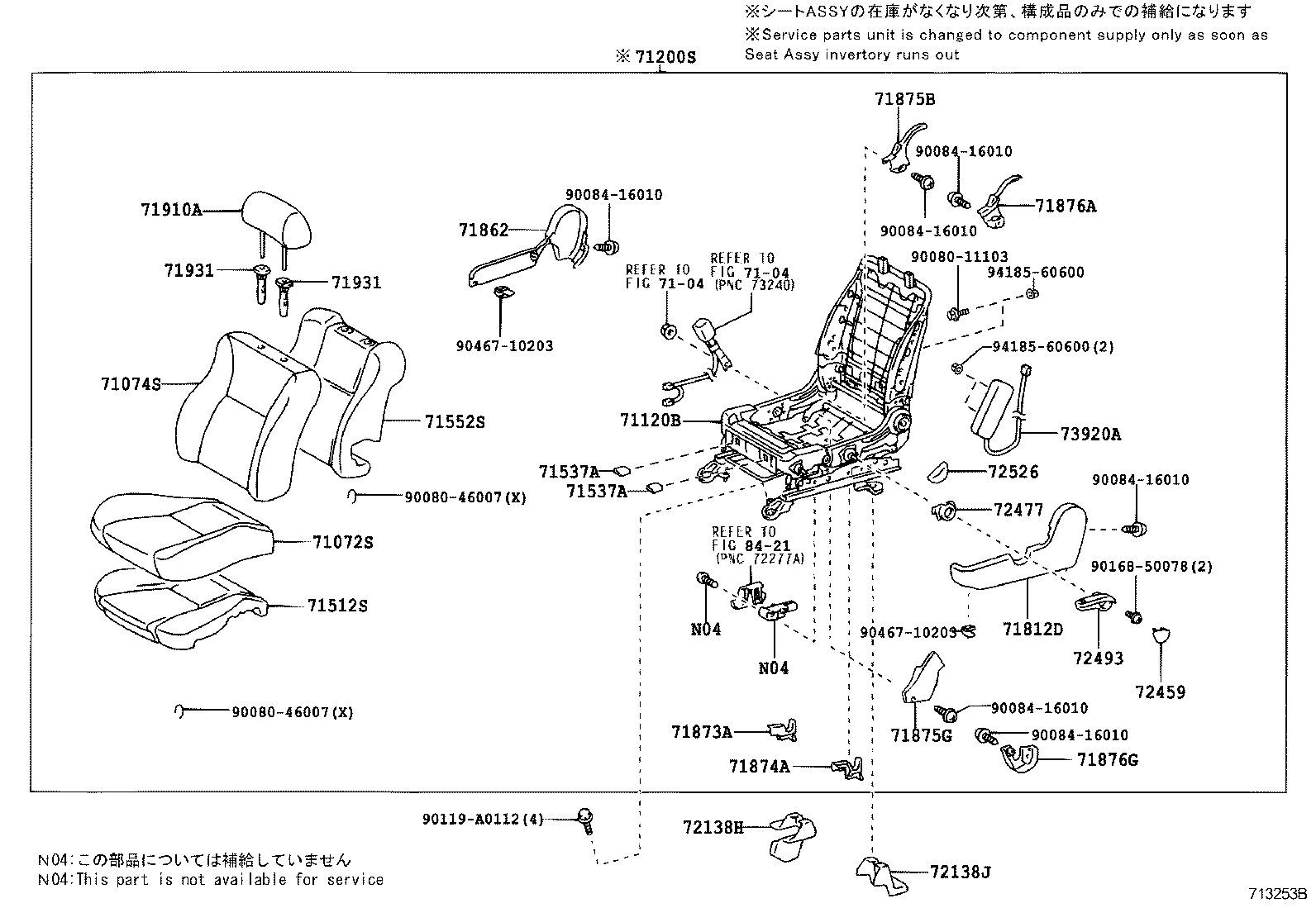

ILLUST NO. 1 OF 2(0201-0405)NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-01170B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DARK GRAY,TRIM14 |
1 | ||
| 71071-01170B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR MEDIUM GRAY,TRIM13 |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-01080B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR MEDIUM GRAY,TRIM13 |
1 | ||
| 71072-01080B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DARK GRAY,TRIM14 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-01150B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),DARK GRAY,TRIM14 |
1 | ||
| 71073-01130B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR MEDIUM GRAY,TRIM13 |
1 | ||
| 71073-01150B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),MEDIUM GRAY,TRIM13 |
1 | ||
| 71073-01130B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DARK GRAY,TRIM14 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-01120B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DARK GRAY,TRIM14 |
1 | ||
| 71074-01100B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),MEDIUM GRAY,TRIM13 |
1 | ||
| 71073-01120B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR MEDIUM GRAY,TRIM13 |
1 | ||
| 71074-01100B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),DARK GRAY,TRIM14 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-01010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 71511-01060 |
ZZE132,133,134..NAP |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-02150 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 71512-02010 |
ZZE132,133,134..NAP |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-01070 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-02210 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-01050 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-02110 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71771-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71771-01010B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-01131B1 |
ZZE132,134..NAP;ZZE133..NAP..6F MEDIUM GRAY,TRIM13 |
2 | ||
| 71910-01131B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DARK GRAY,TRIM14 |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-01131B1 |
ZZE132,134..NAP;ZZE133..NAP..6F MEDIUM GRAY,TRIM13 |
2 | ||
| 71910-01131B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DARK GRAY,TRIM14 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02080B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W/O(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,133,134..NAP W(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931-02080B1 |
ZZE132,133,134..NAP W/O(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02080B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W/O(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,133,134..NAP W(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931-02080B1 |
ZZE132,133,134..NAP W/O(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02080B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W/O(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,133,134..NAP W(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931-02080B1 |
ZZE132,133,134..NAP W/O(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02080B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W/O(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,133,134..NAP W(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931-02080B1 |
ZZE132,133,134..NAP W/O(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| Common parts | ||||
| 67771-12080 | ||||
| 90080-46007 | ||||
| 90468-18071 | ||||

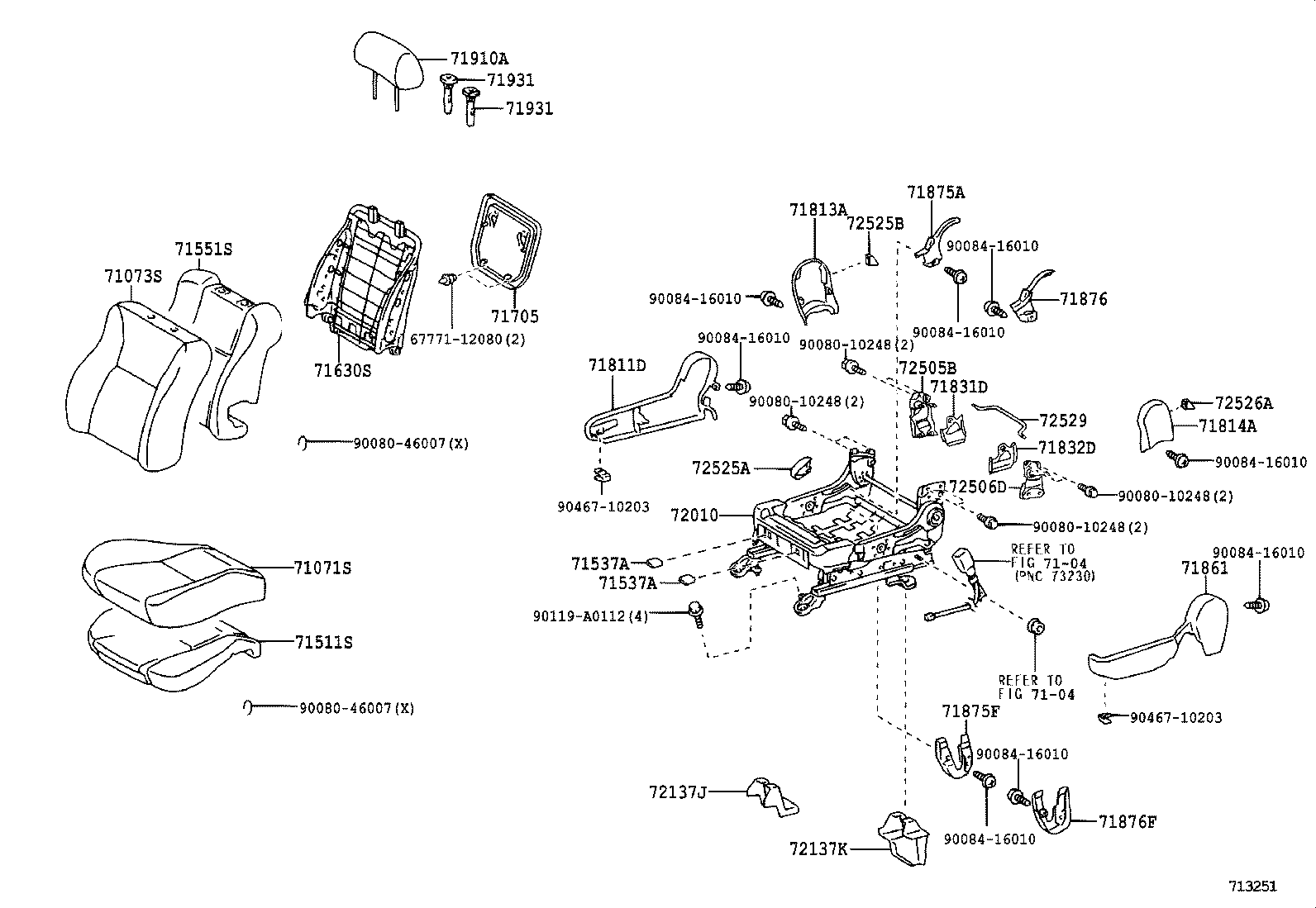

(0405- )ZZE132,133,134..NAP
PASSENGER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-01170B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DARK GRAY,TRIM14 |
1 | ||
| 71071-01170B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR MEDIUM GRAY,TRIM13 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-01150B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),DARK GRAY,TRIM14 |
1 | ||
| 71073-01130B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR MEDIUM GRAY,TRIM13 |
1 | ||
| 71073-01150B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),MEDIUM GRAY,TRIM13 |
1 | ||
| 71073-01130B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DARK GRAY,TRIM14 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-01010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 71511-01060 |
ZZE132,133,134..NAP |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-33010 |
ZZE132,134..NAP;ZZE133..NAP..6F (J),INNER |
1 | ||
| 71537-12030 |
ZZE132,134..NAP;ZZE133..NAP..6F (J) |
1 | ||
| 71537-AA020 |
ZZE132,133,134..NAP (L) |
2 | ||
| 71537-26010 |
ZZE132,133,134..NAP (J) |
2 | ||
| 71537-02010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L),INNER |
1 | ||
| 71537-01010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-33010 |
ZZE132,134..NAP;ZZE133..NAP..6F (J),INNER |
1 | ||
| 71537-12030 |
ZZE132,134..NAP;ZZE133..NAP..6F (J) |
1 | ||
| 71537-AA020 |
ZZE132,133,134..NAP (L) |
2 | ||
| 71537-26010 |
ZZE132,133,134..NAP (J) |
2 | ||
| 71537-02010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L),INNER |
1 | ||
| 71537-01010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-01070 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-01050 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71771-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71771-01010B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-01090B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71811-01060B0 |
ZZE132,134..NAP;ZZE133..NAP..6F W(SIDE AIR BAG),DK.GRAY,TRIM13,14 |
1 | ||
| 71811-01070B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71813-AD010B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-AD010B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71814-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-AD010B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71831-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71832-AD010B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-01090B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71861-01050B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA020B1 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71875-AA050B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-AD010B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA050B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71876-AA020B1 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-AD010B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-01131B1 |
ZZE132,134..NAP;ZZE133..NAP..6F MEDIUM GRAY,TRIM13 |
2 | ||
| 71910-01131B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DARK GRAY,TRIM14 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02080B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W/O(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,133,134..NAP W(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931-02080B1 |
ZZE132,133,134..NAP W/O(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02080B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W/O(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,133,134..NAP W(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931-02080B1 |
ZZE132,133,134..NAP W/O(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-02200 |
ZZE132,133,134..NAP |
1 | ||
| 72010-02201 |
ZZE132,133,134..NAP |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-01030 |
ZZE132,133,134..NAP |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72157-01010 |
ZZE133,134..NAP |
1 | ||
| 72157-01010 |
ZZE132,133,134..NAP |
1 | ||
| 72505B - LOCK SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 72505-AD010 |
ZZE132,133,134..NAP |
1 | ||
| 72505-13010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 72506D - LOCK SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 72506-13020 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 72506-AD010 |
ZZE132,133,134..NAP |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47020B1 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 72525-AA040B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-01030B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 72525-01030B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-01040B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 72525-01040B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 72529 - ROD, FRONT SEAT BACK LOCK HANDLE | ||||
| 72529-AD010 |
ZZE132,133,134..NAP |
1 | ||
| 72529-13010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| Common parts | ||||
| 67771-12080 | ||||
| 90080-10248 | ||||
| 90080-46007 | ||||
| 90084-16010 | ||||
| 90119-A0112 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 7104 | ||||

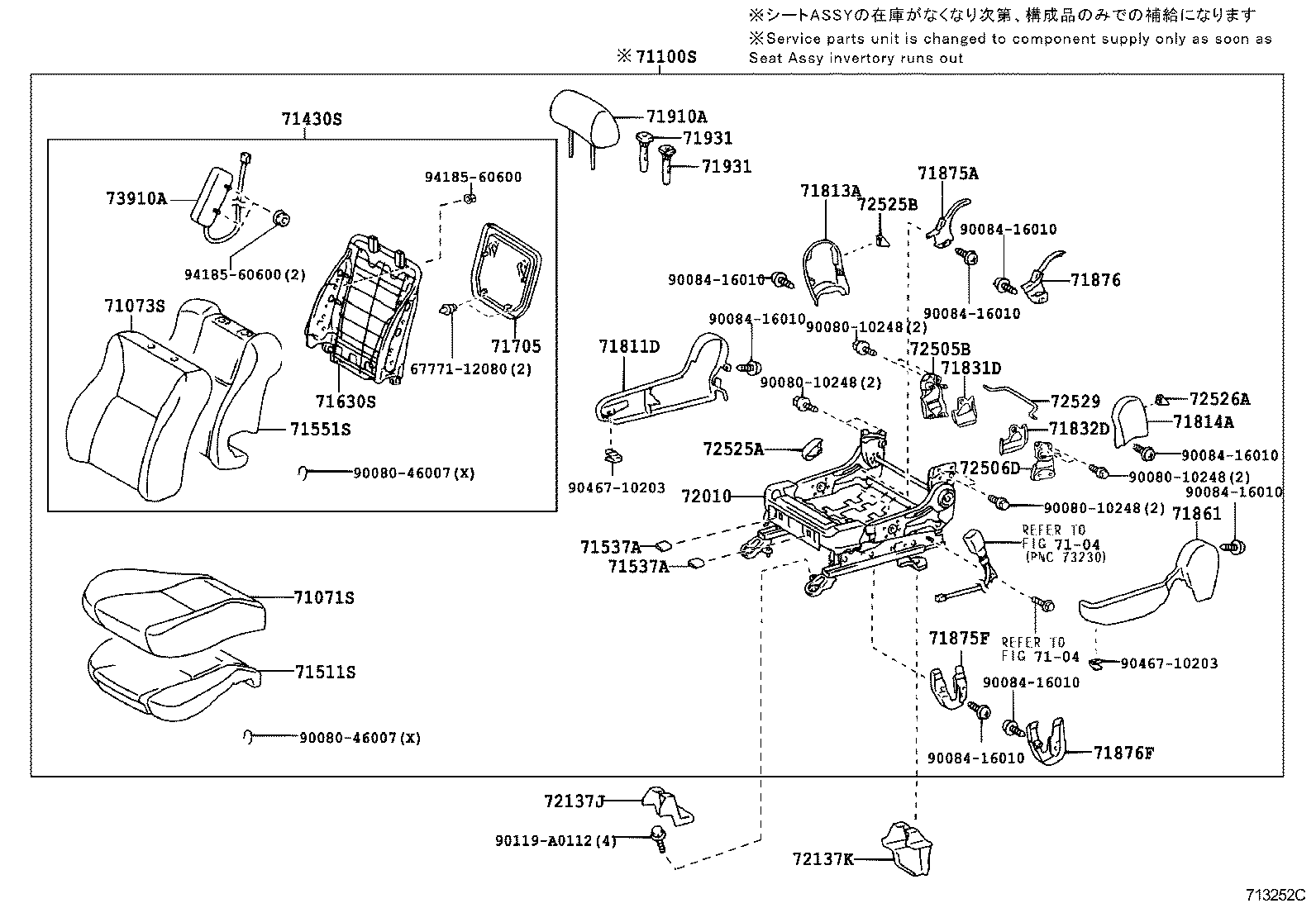

(0405- )ZZE132,133,134..NAP
PASSENGER SIDE-W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-01170B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DARK GRAY,TRIM14 |
1 | ||
| 71071-01170B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR MEDIUM GRAY,TRIM13 |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-01150B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),DARK GRAY,TRIM14 |
1 | ||
| 71073-01130B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR MEDIUM GRAY,TRIM13 |
1 | ||
| 71073-01150B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),MEDIUM GRAY,TRIM13 |
1 | ||
| 71073-01130B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DARK GRAY,TRIM14 |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-0Z240B0 |
ZZE132,133,134..NAP..(XR,XRS) STONE-LIGHT GRAY,TRIM13 |
1 | ||
| 71100-0Z240B1 |
ZZE132,133,134..NAP..(XR,XRS) MEDIUM GRAY,TRIM14 |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-01140B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),STONE-LIGHT GRAY,TRIM13 |
1 | ||
| 71430-01140B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),DARK GRAY,TRIM14 |
1 | ||
| 71430-01120B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR ***,STONE-LIGHT GRAY,TRIM13 |
1 | ||
| 71430-01120B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR ***,DARK GRAY,TRIM14 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-01010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 71511-01060 |
ZZE132,133,134..NAP |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-33010 |
ZZE132,134..NAP;ZZE133..NAP..6F (J),INNER |
1 | ||
| 71537-12030 |
ZZE132,134..NAP;ZZE133..NAP..6F (J) |
1 | ||
| 71537-AA020 |
ZZE132,133,134..NAP (L) |
2 | ||
| 71537-26010 |
ZZE132,133,134..NAP (J) |
2 | ||
| 71537-02010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L),INNER |
1 | ||
| 71537-01010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-33010 |
ZZE132,134..NAP;ZZE133..NAP..6F (J),INNER |
1 | ||
| 71537-12030 |
ZZE132,134..NAP;ZZE133..NAP..6F (J) |
1 | ||
| 71537-AA020 |
ZZE132,133,134..NAP (L) |
2 | ||
| 71537-26010 |
ZZE132,133,134..NAP (J) |
2 | ||
| 71537-02010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L),INNER |
1 | ||
| 71537-01010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-01070 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-01050 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71771-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71771-01010B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-01090B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71811-01060B0 |
ZZE132,134..NAP;ZZE133..NAP..6F W(SIDE AIR BAG),DK.GRAY,TRIM13,14 |
1 | ||
| 71811-01070B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71813-AD010B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-AD010B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71814-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-AD010B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71831-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71832-AD010B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-01090B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71861-01050B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA020B1 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71875-AA050B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-AD010B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA050B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71876-AA020B1 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-AD010B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-01131B1 |
ZZE132,134..NAP;ZZE133..NAP..6F MEDIUM GRAY,TRIM13 |
2 | ||
| 71910-01131B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DARK GRAY,TRIM14 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02080B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W/O(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,133,134..NAP W(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931-02080B1 |
ZZE132,133,134..NAP W/O(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02080B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W/O(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,133,134..NAP W(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931-02080B1 |
ZZE132,133,134..NAP W/O(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-02200 |
ZZE132,133,134..NAP |
1 | ||
| 72010-02201 |
ZZE132,133,134..NAP |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-01030 |
ZZE132,133,134..NAP |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72157-01010 |
ZZE133,134..NAP |
1 | ||
| 72157-01010 |
ZZE132,133,134..NAP |
1 | ||
| 72505B - LOCK SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 72505-AD010 |
ZZE132,133,134..NAP |
1 | ||
| 72505-13010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 72506D - LOCK SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 72506-13020 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 72506-AD010 |
ZZE132,133,134..NAP |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47020B1 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 72525-AA040B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-01030B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 72525-01030B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72525-01040B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 72525-01040B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 72529 - ROD, FRONT SEAT BACK LOCK HANDLE | ||||
| 72529-AD010 |
ZZE132,133,134..NAP |
1 | ||
| 72529-13010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| Common parts | ||||
| 67771-12080 | ||||
| 90080-10248 | ||||
| 90080-46007 | ||||
| 90084-16010 | ||||
| 90119-A0112 | ||||
| 90467-10203 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

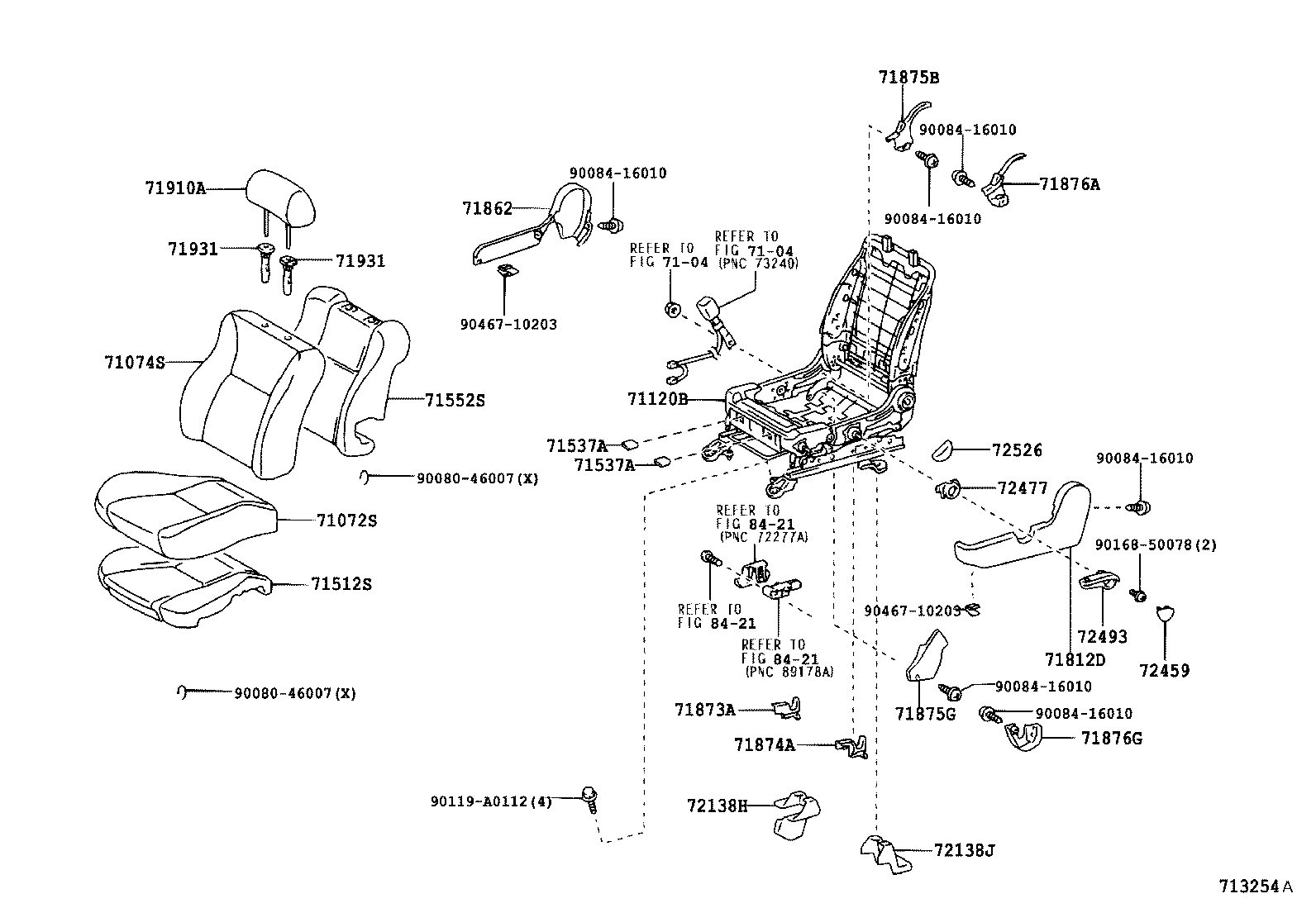

(0405- )ZZE132,133,134..NAP
DRIVER SIDE-W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-01080B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR MEDIUM GRAY,TRIM13 |
1 | ||
| 71072-01080B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DARK GRAY,TRIM14 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-01120B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DARK GRAY,TRIM14 |
1 | ||
| 71074-01100B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),MEDIUM GRAY,TRIM13 |
1 | ||
| 71073-01120B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR MEDIUM GRAY,TRIM13 |
1 | ||
| 71074-01100B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),DARK GRAY,TRIM14 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-02150 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 71512-02010 |
ZZE132,133,134..NAP |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-33010 |
ZZE132,134..NAP;ZZE133..NAP..6F (J),INNER |
1 | ||
| 71537-12030 |
ZZE132,134..NAP;ZZE133..NAP..6F (J) |
1 | ||
| 71537-AA020 |
ZZE132,133,134..NAP (L) |
2 | ||
| 71537-26010 |
ZZE132,133,134..NAP (J) |
2 | ||
| 71537-02010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L),INNER |
1 | ||
| 71537-01010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-33010 |
ZZE132,134..NAP;ZZE133..NAP..6F (J),INNER |
1 | ||
| 71537-12030 |
ZZE132,134..NAP;ZZE133..NAP..6F (J) |
1 | ||
| 71537-AA020 |
ZZE132,133,134..NAP (L) |
2 | ||
| 71537-26010 |
ZZE132,133,134..NAP (J) |
2 | ||
| 71537-02010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L),INNER |
1 | ||
| 71537-01010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-02210 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-01050B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DK.GRAY,TRIM13,14 |
1 | ||
| 71812-01060B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),DK.GRAY,TRIM13,14 |
1 | ||
| 71812-01080B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-01090B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71862-01050B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DK.GRAY,TRIM13,14 |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-21010C0 |
ZZE132,133,134..NAP BLACK,(J) |
1 | ||
| 71873-02020 |
ZZE132,133,134..NAP (L) |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-02020 |
ZZE132,133,134..NAP (L) |
1 | ||
| 71874-21010C0 |
ZZE132,133,134..NAP BLACK,(J) |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA050B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71875-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-AA060 |
ZZE132,133,134..NAP |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA050B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71876-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-AA060 |
ZZE132,133,134..NAP |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-01131B1 |
ZZE132,134..NAP;ZZE133..NAP..6F MEDIUM GRAY,TRIM13 |
2 | ||
| 71910-01131B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DARK GRAY,TRIM14 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02080B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W/O(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,133,134..NAP W(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931-02080B1 |
ZZE132,133,134..NAP W/O(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02080B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W/O(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,133,134..NAP W(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931-02080B1 |
ZZE132,133,134..NAP W/O(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-01010 |
ZZE132,133,134..NAP |
1 | ||
| 72158-01010 |
ZZE133,134..NAP |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-01030 |
ZZE132,133,134..NAP |
1 | ||
| 72459 - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-AA020B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14,(L) |
1 | ||
| 72459-60010B2 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14,(J) |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-33030C0 |
ZZE132,133,134..NAP BLACK,(J) |
1 | ||
| 72477-02010 |
ZZE132,133,134..NAP (L) |
1 | ||
| 72493 - HANDLE, VERTICAL ADJUSTING, NO.2 | ||||
| 72493-AA020B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14,(L) |
1 | ||
| 72494-33010B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14,(J) |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47020B1 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 72526-AA030B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| Common parts | ||||
| 90080-11103 | ||||
| 90080-46007 | ||||
| 90084-16010 | ||||
| 90119-A0112 | ||||
| 90168-50078 | ||||
| 90467-10203 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||
(0405- )ZZE132,133,134..NAP
DRIVER SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-01080B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR MEDIUM GRAY,TRIM13 |
1 | ||
| 71072-01080B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DARK GRAY,TRIM14 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-01120B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DARK GRAY,TRIM14 |
1 | ||
| 71074-01100B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),MEDIUM GRAY,TRIM13 |
1 | ||
| 71073-01120B1 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR MEDIUM GRAY,TRIM13 |
1 | ||
| 71074-01100B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),DARK GRAY,TRIM14 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-02150 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 71512-02010 |
ZZE132,133,134..NAP |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-33010 |
ZZE132,134..NAP;ZZE133..NAP..6F (J),INNER |
1 | ||
| 71537-12030 |
ZZE132,134..NAP;ZZE133..NAP..6F (J) |
1 | ||
| 71537-AA020 |
ZZE132,133,134..NAP (L) |
2 | ||
| 71537-26010 |
ZZE132,133,134..NAP (J) |
2 | ||
| 71537-02010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L),INNER |
1 | ||
| 71537-01010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-33010 |
ZZE132,134..NAP;ZZE133..NAP..6F (J),INNER |
1 | ||
| 71537-12030 |
ZZE132,134..NAP;ZZE133..NAP..6F (J) |
1 | ||
| 71537-AA020 |
ZZE132,133,134..NAP (L) |
2 | ||
| 71537-26010 |
ZZE132,133,134..NAP (J) |
2 | ||
| 71537-02010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L),INNER |
1 | ||
| 71537-01010 |
ZZE132,134..NAP;ZZE133..NAP..6F (L) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-02210 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-01050B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DK.GRAY,TRIM13,14 |
1 | ||
| 71812-01060B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR W(SIDE AIR BAG),DK.GRAY,TRIM13,14 |
1 | ||
| 71812-01080B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-01090B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71862-01050B0 |
ZZE133..NAP..6F;ZZE132,134..NAP..XR DK.GRAY,TRIM13,14 |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-21010C0 |
ZZE132,133,134..NAP BLACK,(J) |
1 | ||
| 71873-02020 |
ZZE132,133,134..NAP (L) |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-02020 |
ZZE132,133,134..NAP (L) |
1 | ||
| 71874-21010C0 |
ZZE132,133,134..NAP BLACK,(J) |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-AA050B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71875-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-AA060 |
ZZE132,133,134..NAP |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-AA050B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 71876-01010B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-AA060 |
ZZE132,133,134..NAP |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-01131B1 |
ZZE132,134..NAP;ZZE133..NAP..6F MEDIUM GRAY,TRIM13 |
2 | ||
| 71910-01131B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DARK GRAY,TRIM14 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02080B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W/O(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,133,134..NAP W(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931-02080B1 |
ZZE132,133,134..NAP W/O(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02080B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W/O(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,134..NAP;ZZE133..NAP..6F W(LOCK),DK.GRAY,TRIM13,14 |
2 | ||
| 71930-02090B1 |
ZZE132,133,134..NAP W(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 71931-02080B1 |
ZZE132,133,134..NAP W/O(LOCK),DK.GRAY,TRIM13,14 |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-01010 |
ZZE132,133,134..NAP |
1 | ||
| 72158-01010 |
ZZE133,134..NAP |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72137-01030 |
ZZE132,133,134..NAP |
1 | ||
| 72459 - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-AA020B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14,(L) |
1 | ||
| 72459-60010B2 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14,(J) |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-33030C0 |
ZZE132,133,134..NAP BLACK,(J) |
1 | ||
| 72477-02010 |
ZZE132,133,134..NAP (L) |
1 | ||
| 72493 - HANDLE, VERTICAL ADJUSTING, NO.2 | ||||
| 72493-AA020B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14,(L) |
1 | ||
| 72494-33010B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14,(J) |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47020B1 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 72526-AA030B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90084-16010 | ||||
| 90119-A0112 | ||||
| 90168-50078 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
