ZZE134L-DHPNKA (2002)

Toyota Corolla/Matrix (Nap)

Production Jan 2002 - Jul 2006
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0201- )NAP

Click highlighted areas on diagram

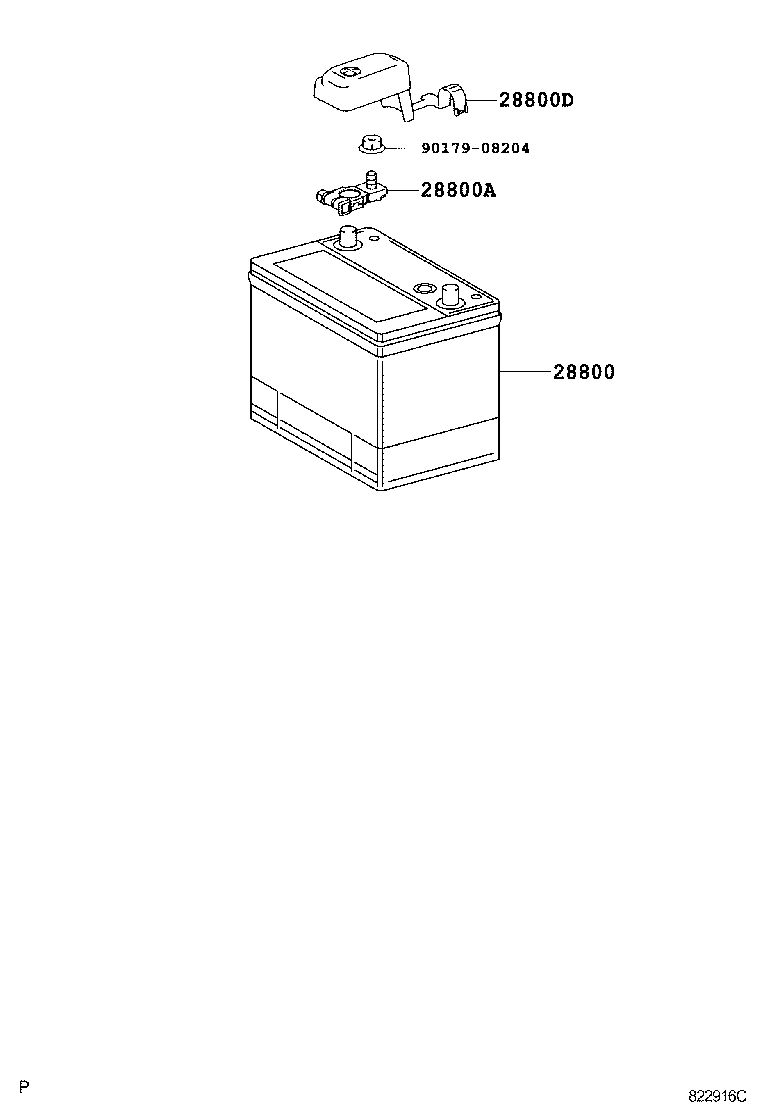

diagram 28800 28800A 28800D 9017908204
Part # Description Qty Price
28800 - BATTERY
28800-02010

1ZZFE,2ZZGE..ZZE132,133,134..NAP

55D23L

 1
28800-0C010

1ZZFE,2ZZGE..ZZE132,133,134..NAP

55D23L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05056

1ZZFE,2ZZGE..ZZE132,133,134..NAP

 1
90982-05056

1ZZFE,2ZZGE..ZZE133,134..NAP

 1
90982-05056

1ZZFE,2ZZGE..ZZE132,133,134..NAP

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12500

1ZZFE,2ZZGE..ZZE132,133,134..NAP

 1
82821-12500

1ZZFE,2ZZGE..ZZE132,133,134..NAP

 1
82821-12500

1ZZFE,2ZZGE..ZZE133,134..NAP

 1
Common parts
90179-08204
