ZZE134L-DHPNKA (2002)
Toyota Corolla/Matrix (Nap)

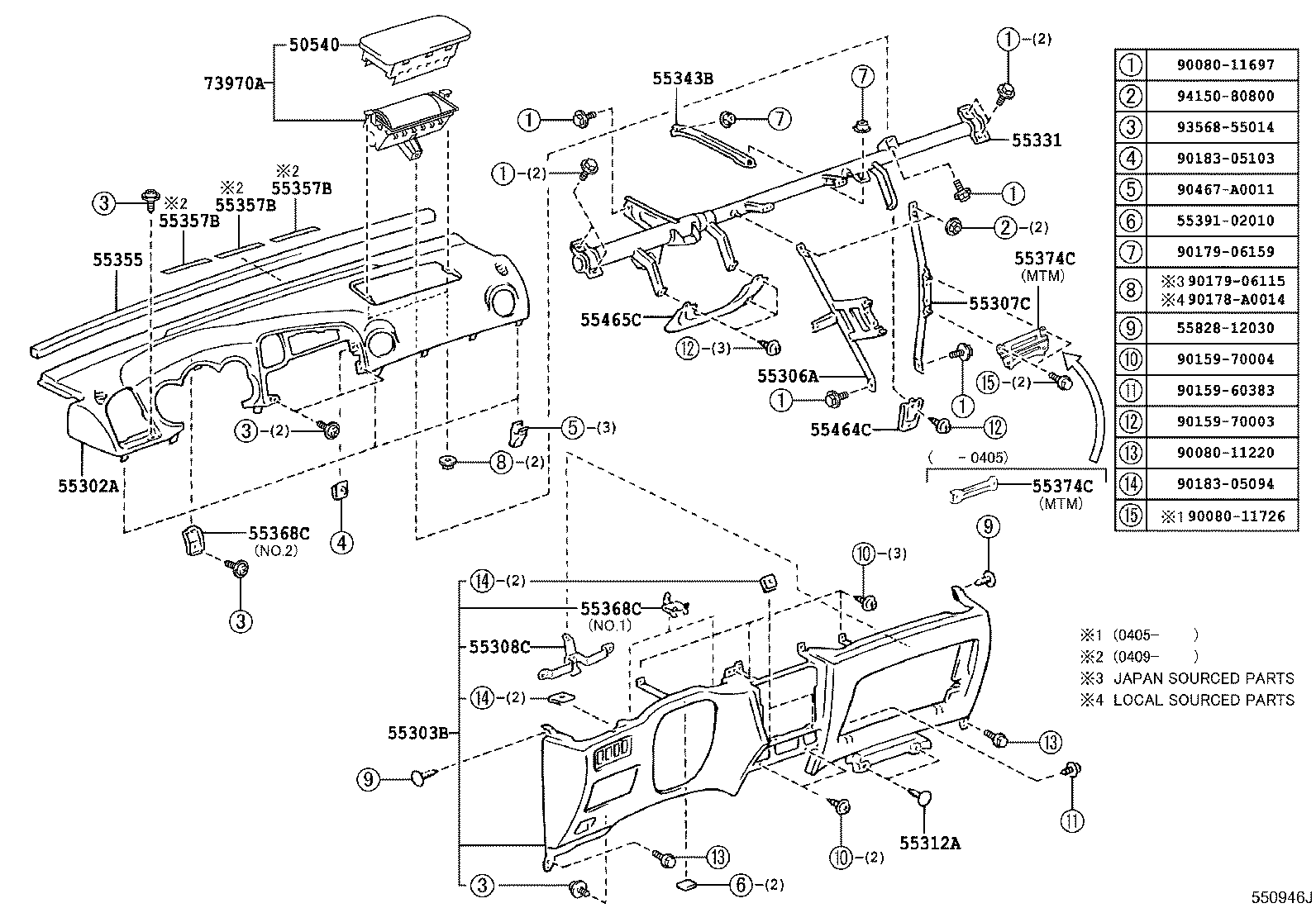

ILLUST NO. 1 OF 2(0201- )ZZE132,133,134..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 50540 - DO0R ASSY, AIR BAG PASSENGER | ||||
| 50540-01030B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55311-01050B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 55311-01050B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-01030B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 55303-01030B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-01030 |
ZZE132,133,134..NAP |
1 | ||
| 55306-01031 |
ZZE132,133,134..NAP |
1 | ||
| 55306-01031 |
ZZE133,134..NAP |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-01031 |
ZZE133,134..NAP |
1 | ||
| 55307-01031 |
ZZE132,133,134..NAP |
1 | ||
| 55307-01030 |
ZZE132,133,134..NAP |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-01021 |
ZZE132,133,134..NAP |
1 | ||
| 55308-01020 |
ZZE132,133,134..NAP |
1 | ||
| 55308-01021 |
ZZE133,134..NAP |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-06089C0 |
ZZE132,134..NAP;ZZE133..NAP..6F BLACK,TRIM13,14 |
2 | ||
| 90467-06089C0 |
ZZE132,133,134..NAP BLACK |
2 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-01040 |
ZZE132,133,134..NAP |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-01010 |
ZZE132,133,134..NAP |
1 | ||
| 55343-01010 |
ZZE133,134..NAP |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02060 |
ZZE133,134..NAP |
1 | ||
| 55355-02060 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-02040 |
ZZE133,134..NAP |
3 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-02040 |
ZZE133,134..NAP |
3 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-02040 |
ZZE133,134..NAP |
3 | ||
| 55368C - BRACKET, METER MOUNTING | ||||
| 55362-12050 |
ZZE132,134..NAP;ZZE133..NAP..6F NO.1 |
2 | ||
| 55368-02060 |
ZZE132,134..NAP;ZZE133..NAP..6F NO.2 |
1 | ||
| 55362-12050 |
ZZE133,134..NAP NO.1 |
2 | ||
| 55368-02060 |
ZZE133,134..NAP NO.2 |
1 | ||
| 55368C - BRACKET, METER MOUNTING | ||||
| 55362-12050 |
ZZE132,134..NAP;ZZE133..NAP..6F NO.1 |
2 | ||
| 55368-02060 |
ZZE132,134..NAP;ZZE133..NAP..6F NO.2 |
1 | ||
| 55362-12050 |
ZZE133,134..NAP NO.1 |
2 | ||
| 55368-02060 |
ZZE133,134..NAP NO.2 |
1 | ||
| 55464C - INSERT, INSTRUMENT PANEL LOWER PAD, RH | ||||
| 55464-02030 |
ZZE133,134..NAP |
1 | ||
| 55464-02030 |
ZZE132,133,134..NAP |
1 | ||
| 55465C - INSERT, INSTRUMENT PANEL LOWER PAD, LH | ||||
| 55465-02020 |
ZZE133,134..NAP |
1 | ||
| 55465-02020 |
ZZE132,133,134..NAP |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-01030B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 73970-01050B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| Common parts | ||||
| 55391-02010 | ||||
| 55828-12030 | ||||
| 90080-11220 | ||||
| 90080-11697 | ||||
| 90080-11726 | ||||
| 90159-60383 | ||||
| 90159-70003 | ||||
| 90159-70004 | ||||
| 90178-A0014 | ||||
| 90179-06115 | ||||
| 90179-06159 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-A0011 | ||||
| 93568-55014 | ||||
| 94150-80800 | ||||

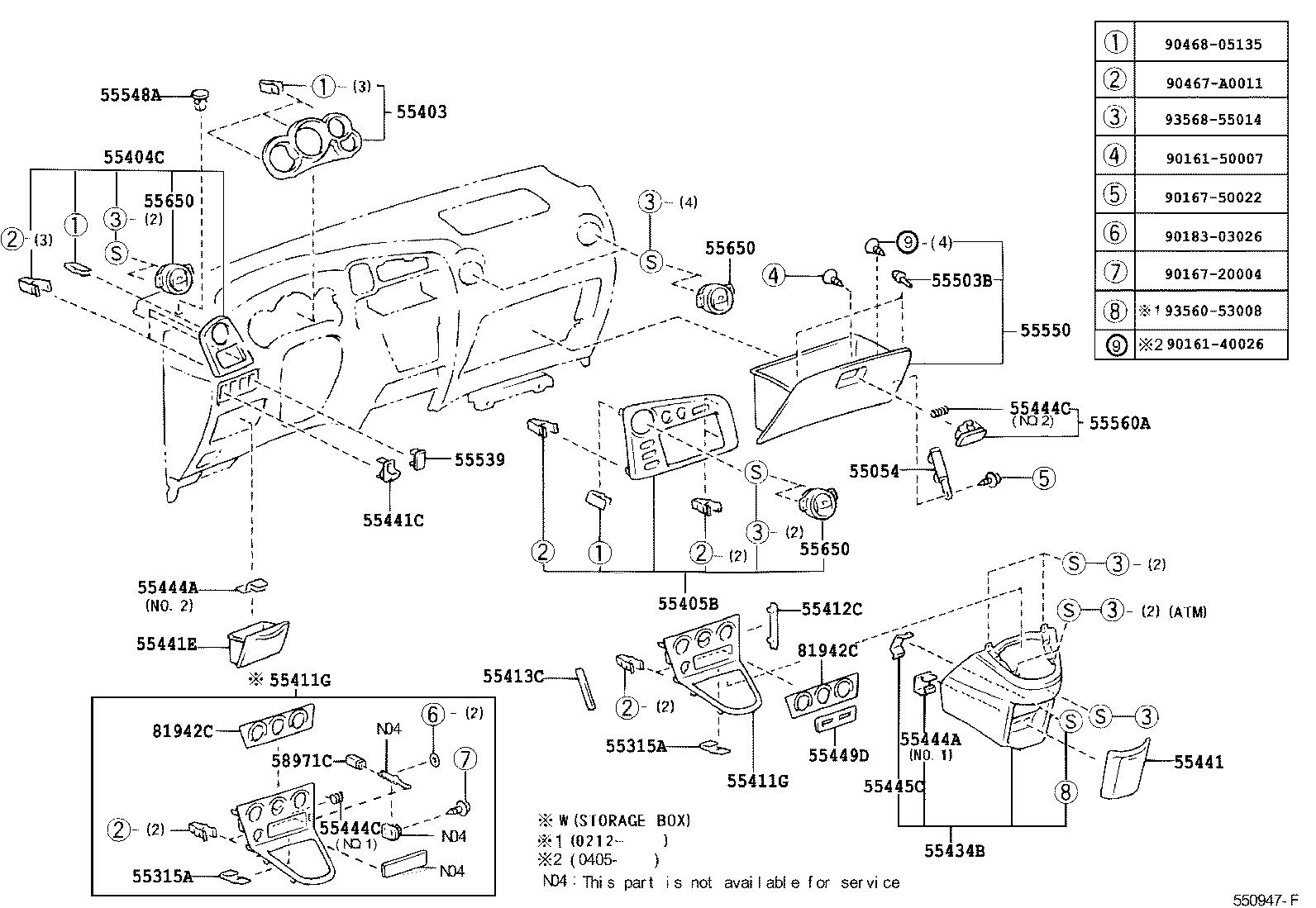

ILLUST NO. 2 OF 2(0201- )ZZE132,133,134..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-02020 |
ZZE132,133,134..NAP |
1 | ||
| 55054-02020 |
ZZE133,134..NAP |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-01040 |
ZZE133,134..NAP |
1 | ||
| 55315-01040 |
ZZE132,133,134..NAP |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-01040 |
ZZE133,134..NAP |
1 | ||
| 55315-01040 |
ZZE132,133,134..NAP |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-01010 |
ZZE133,134..NAP |
1 | ||
| 55403-01010 |
ZZE132,133,134..NAP |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-01030 |
ZZE132,133,134..NAP |
1 | ||
| 55404-01030 |
ZZE133,134..NAP |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-02050 |
ZZE133,134..NAP W(WOOFER) |
1 | ||
| 55405-01040 |
ZZE132,133,134..NAP |
1 | ||
| 55405-01040 |
ZZE132,133,134..NAP..USA |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55420-01010 |
ZZE132,133,134..NAP W(STORAGE BOX) |
1 | ||
| 55411-01060 |
ZZE132,133,134..NAP |
1 | ||
| 55420-01010 |
ZZE133,134..NAP W(STORAGE BOX) |
1 | ||
| 55411-01060 |
ZZE133,134..NAP |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55420-01010 |
ZZE132,133,134..NAP W(STORAGE BOX) |
1 | ||
| 55411-01060 |
ZZE132,133,134..NAP |
1 | ||
| 55420-01010 |
ZZE133,134..NAP W(STORAGE BOX) |
1 | ||
| 55411-01060 |
ZZE133,134..NAP |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-01050 |
ZZE132,133,134..NAP |
1 | ||
| 55412-01050 |
ZZE133,134..NAP |
1 | ||
| 55413C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.2 | ||||
| 55413-01010 |
ZZE133,134..NAP |
1 | ||
| 55413-01010 |
ZZE132,133,134..NAP |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-02062B0 |
ZZE132,133,134..NAP..USA DK.GRAY,TRIM13,14 |
1 | ||
| 55434-01072B0 |
ZZE132,133,134..NAP W(REAR HEATER DUCT),DK.GRAY,TRIM13,14 |
1 | ||
| 55434-02060B0 |
ZZE132,133,134..NAP..USA DK.GRAY,TRIM13,14 |
1 | ||
| 55434-01070B0 |
ZZE132,133,134..NAP W(REAR HEATER DUCT),DK.GRAY,TRIM13,14 |
1 | ||
| 55434-01071B0 |
ZZE132,134..NAP;ZZE133..NAP..6F W(REAR HEATER DUCT),DK.GRAY,TRIM13,14 |
1 | ||
| 55434-02061B0 |
ZZE132,134..NAP..USA;ZZE133..NAP..6F..USA DK.GRAY,TRIM13,14 |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-01020B0 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 55441-01021B0 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-20140B7 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 55441-02130B1 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 55441-02130B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 55441E - BOX, INSTRUMENT PANEL | ||||
| 55441-02070B1 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 55441-02070B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-12080 |
ZZE132,134..NAP;ZZE133..NAP..6F NO.2 |
1 | ||
| 55444-01020 |
ZZE133,134..NAP NO.1 |
1 | ||
| 55444-12080 |
ZZE133,134..NAP NO.2 |
1 | ||
| 55444-01020 |
ZZE132,134..NAP;ZZE133..NAP..6F NO.1 |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-12080 |
ZZE132,134..NAP;ZZE133..NAP..6F NO.2 |
1 | ||
| 55444-01020 |
ZZE133,134..NAP NO.1 |
1 | ||
| 55444-12080 |
ZZE133,134..NAP NO.2 |
1 | ||
| 55444-01020 |
ZZE132,134..NAP;ZZE133..NAP..6F NO.1 |
1 | ||
| 55444C - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-02030 |
ZZE133,134..NAP NO.2 |
1 | ||
| 55444-01030 |
ZZE132,134..NAP;ZZE133..NAP..6F NO.1 |
1 | ||
| 55444-01030 |
ZZE133,134..NAP NO.1 |
1 | ||
| 55444-02030 |
ZZE132,134..NAP;ZZE133..NAP..6F NO.2 |
1 | ||
| 55444C - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-02030 |
ZZE133,134..NAP NO.2 |
1 | ||
| 55444-01030 |
ZZE132,134..NAP;ZZE133..NAP..6F NO.1 |
1 | ||
| 55444-01030 |
ZZE133,134..NAP NO.1 |
1 | ||
| 55444-02030 |
ZZE132,134..NAP;ZZE133..NAP..6F NO.2 |
1 | ||
| 55445C - PLATE, INSTRUMENT PANEL BOX | ||||
| 55445-01011 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 55445-01011 |
ZZE133,134..NAP |
1 | ||
| 55445-01010 |
ZZE132,133,134..NAP |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-01040 |
ZZE132,133,134..NAP |
1 | ||
| 55449-01040 |
ZZE133,134..NAP |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90080-54038 |
ZZE132,133,134..NAP |
2 | ||
| 90080-54038 |
ZZE133,134..NAP |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-04040B3 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 55539-04040B3 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02090B1 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 55550-02090B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-02031B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 55560-02030B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 55560-02031B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-01020 |
ZZE132,133,134..NAP |
2 | ||
| 55650-01020 |
ZZE133,134..NAP |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-01020 |
ZZE132,133,134..NAP |
2 | ||
| 55650-01020 |
ZZE133,134..NAP |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-01020 |
ZZE132,133,134..NAP |
2 | ||
| 55650-01020 |
ZZE133,134..NAP |
2 | ||
| 58971C - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58971-47010 |
ZZE133,134..NAP |
1 | ||
| 58971-47010 |
ZZE132,133,134..NAP |
1 | ||
| 81942C - SHEET, HEATER CONTROL NAME | ||||
| 81942-01090 |
ZZE132,133,134..NAP |
1 | ||
| 81942-01090 |
ZZE133,134..NAP |
1 | ||
| 81942C - SHEET, HEATER CONTROL NAME | ||||
| 81942-01090 |
ZZE132,133,134..NAP |
1 | ||
| 81942-01090 |
ZZE133,134..NAP |
1 | ||
| Common parts | ||||
| 90161-40026 | ||||
| 90161-50007 | ||||
| 90167-20004 | ||||
| 90167-50022 | ||||
| 90183-03026 | ||||
| 90467-A0011 | ||||
| 90468-05135 | ||||
| 93560-53008 | ||||
| 93568-55014 | ||||
