ZZE134L-DHPDKK (2002)
Toyota Corolla/Matrix (Nap)

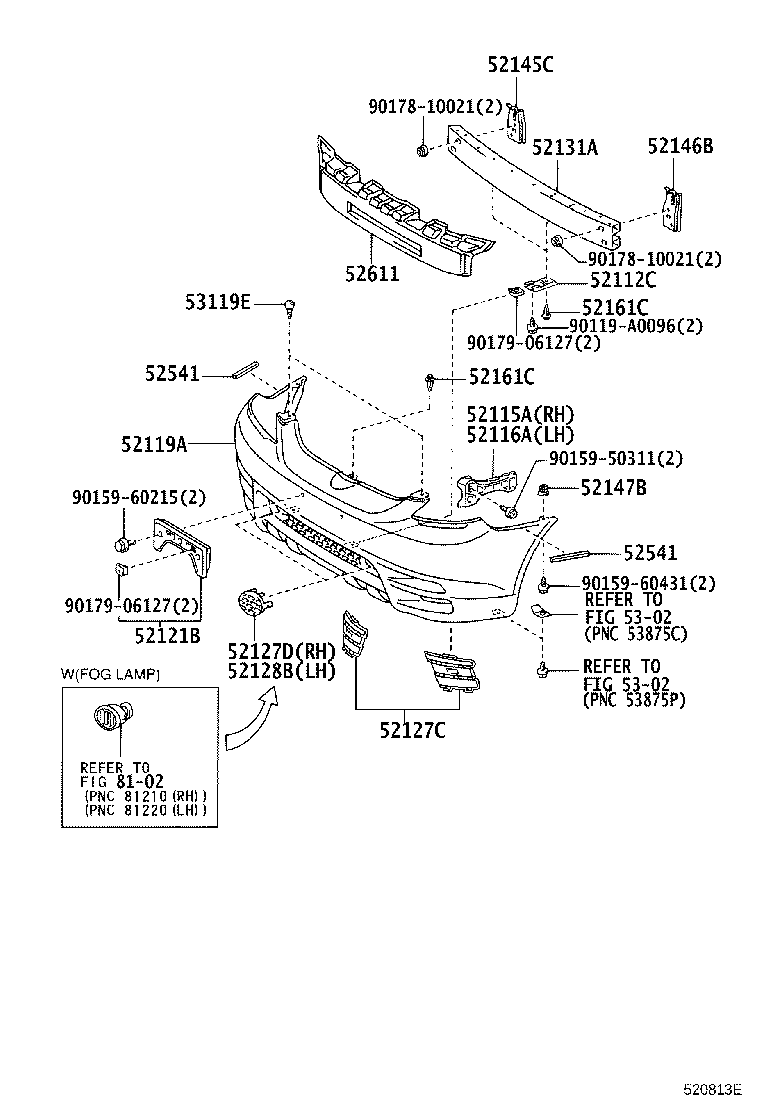

(0201-0405)ZZE132,133,134..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112C - EXTENSION, FRONT BUMPER | ||||
| 52112-02020 |
ZZE132,134..NAP;ZZE133..NAP..6F |
2 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-02070 |
ZZE133,134..NAP |
1 | ||
| 52115-02070 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-02070 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 52116-02070 |
ZZE133,134..NAP |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-02917 |
ZZE132,134..NAP PAINT REQ. |
1 | ||
| 52119-02953 |
ZZE132,134..NAP PAINT REQ. |
1 | ||
| 52121B - BRACKET, FRONT LICENCE PLATE MOUNTING | ||||
| 52121-02040 |
ZZE133,134..NAP |
1 | ||
| 52121-02030 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-09010 |
ZZE132,133,134..NAP |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-02090 |
ZZE132,133,134..NAP |
1 | ||
| 52127-02180 |
ZZE133,134..NAP |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-02210 |
ZZE133,134..NAP |
1 | ||
| 52128-02080 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52021-01030 |
ZZE132,134..NAP..CND;ZZE133..NAP..6F..CND |
1 | ||
| 52021-01030 |
ZZE133,134..NAP..CND |
1 | ||
| 52145C - BRACKET, FRONT BUMPER SIDE MOUNTING, RH | ||||
| 52145-02100 |
ZZE133,134..NAP |
1 | ||
| 52145-02100 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 52146B - BRACKET, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 52146-02090 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 52146-02090 |
ZZE133,134..NAP |
1 | ||
| 52147B - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-02030 |
ZZE132,134..NAP;ZZE133..NAP..6F |
2 | ||
| 52147-02030 |
ZZE133,134..NAP |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02020 |
ZZE132,134..NAP;ZZE133..NAP..6F |
3 | ||
| 52161-02020 |
ZZE134..NAP |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02020 |
ZZE132,134..NAP;ZZE133..NAP..6F |
3 | ||
| 52161-02020 |
ZZE134..NAP |
3 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-02020 |
ZZE133,134..NAP |
2 | ||
| 52541-02020 |
ZZE132,134..NAP;ZZE133..NAP..6F |
2 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-02020 |
ZZE133,134..NAP |
2 | ||
| 52541-02020 |
ZZE132,134..NAP;ZZE133..NAP..6F |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-02110 |
ZZE133,134..NAP |
1 | ||
| 52611-02090 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 53119E - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-02050 |
ZZE132,134..NAP;ZZE133..NAP..6F |
2 | ||
| 53119-12150 |
ZZE132,134..NAP;ZZE133..NAP..6F |
2 | ||
| 53119-02050 |
ZZE133,134..NAP |
2 | ||
| Common parts | ||||
| 90119-A0096 | ||||
| 90159-50311 | ||||
| 90159-60215 | ||||
| 90159-60431 | ||||
| 90178-10021 | ||||
| 90179-06127 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 8102 | ||||

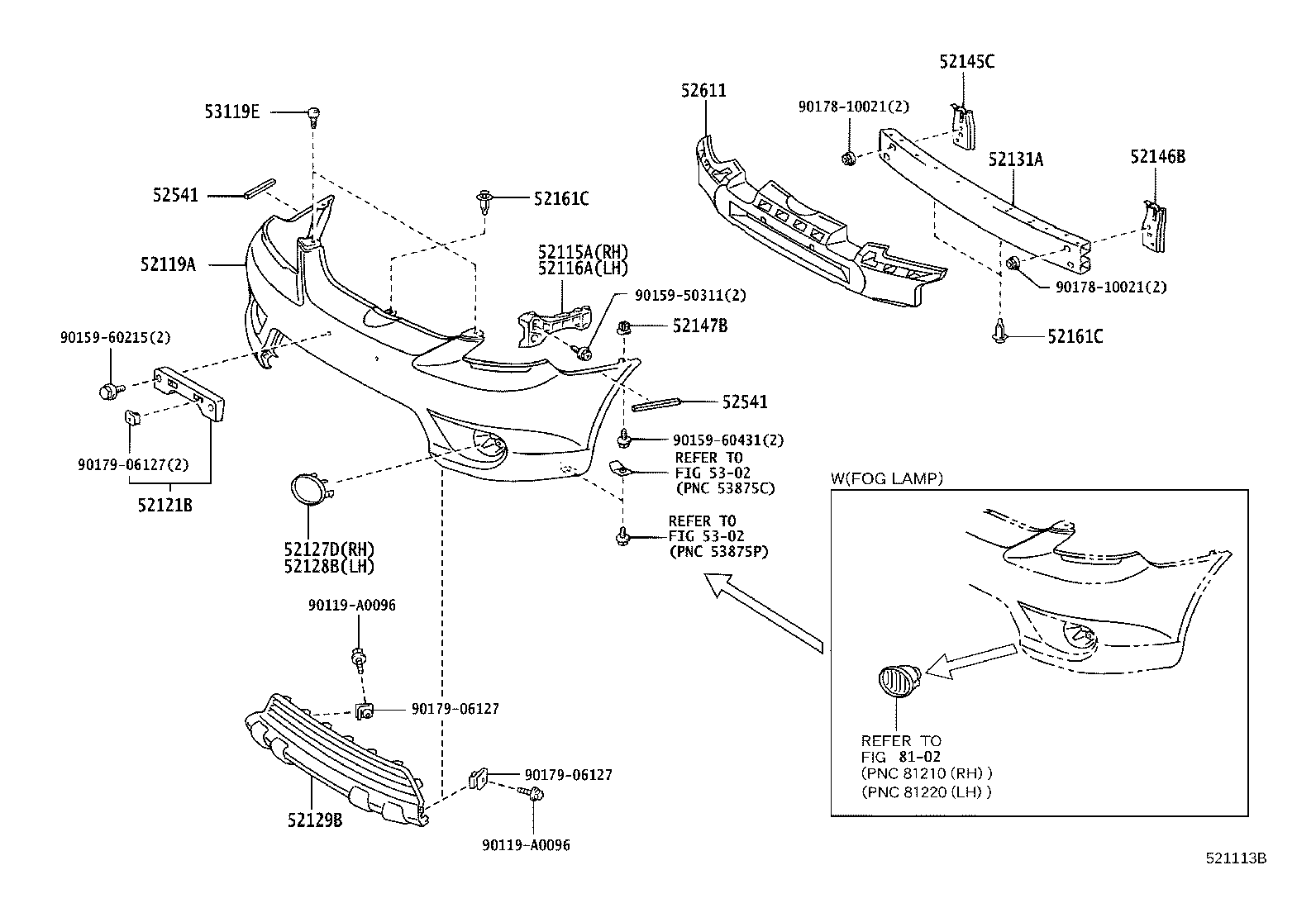

(0405- )ZZE132,133,134..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-02070 |
ZZE133,134..NAP |
1 | ||
| 52115-02070 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-02070 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 52116-02070 |
ZZE133,134..NAP |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-02917 |
ZZE132,134..NAP PAINT REQ. |
1 | ||
| 52119-02953 |
ZZE132,134..NAP PAINT REQ. |
1 | ||
| 52121B - BRACKET, FRONT LICENCE PLATE MOUNTING | ||||
| 52121-02040 |
ZZE133,134..NAP |
1 | ||
| 52121-02030 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-02090 |
ZZE132,133,134..NAP |
1 | ||
| 52127-02180 |
ZZE133,134..NAP |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-02210 |
ZZE133,134..NAP |
1 | ||
| 52128-02080 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52129-02030 |
ZZE134..NAP |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52021-01030 |
ZZE132,134..NAP..CND;ZZE133..NAP..6F..CND |
1 | ||
| 52021-01030 |
ZZE133,134..NAP..CND |
1 | ||
| 52145C - BRACKET, FRONT BUMPER SIDE MOUNTING, RH | ||||
| 52145-02100 |
ZZE133,134..NAP |
1 | ||
| 52145-02100 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 52146B - BRACKET, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 52146-02090 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 52146-02090 |
ZZE133,134..NAP |
1 | ||
| 52147B - BRACKET, FRONT BUMPER MOUNTING | ||||
| 52147-02030 |
ZZE132,134..NAP;ZZE133..NAP..6F |
2 | ||
| 52147-02030 |
ZZE133,134..NAP |
2 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02020 |
ZZE132,134..NAP;ZZE133..NAP..6F |
3 | ||
| 52161-02020 |
ZZE134..NAP |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-02020 |
ZZE132,134..NAP;ZZE133..NAP..6F |
3 | ||
| 52161-02020 |
ZZE134..NAP |
3 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-02020 |
ZZE133,134..NAP |
2 | ||
| 52541-02020 |
ZZE132,134..NAP;ZZE133..NAP..6F |
2 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-02020 |
ZZE133,134..NAP |
2 | ||
| 52541-02020 |
ZZE132,134..NAP;ZZE133..NAP..6F |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-02110 |
ZZE133,134..NAP |
1 | ||
| 52611-02090 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 53119E - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-02050 |
ZZE132,134..NAP;ZZE133..NAP..6F |
2 | ||
| 53119-12150 |
ZZE132,134..NAP;ZZE133..NAP..6F |
2 | ||
| 53119-02050 |
ZZE133,134..NAP |
2 | ||
| Common parts | ||||
| 90119-A0096 | ||||
| 90159-50311 | ||||
| 90159-60215 | ||||
| 90159-60431 | ||||
| 90178-10021 | ||||
| 90179-06127 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 8102 | ||||
