ZZE133L-DHPSFK (2002)

Toyota Corolla/Matrix (Nap)

Production Jan 2002 - May 2003
Engine 2ZZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

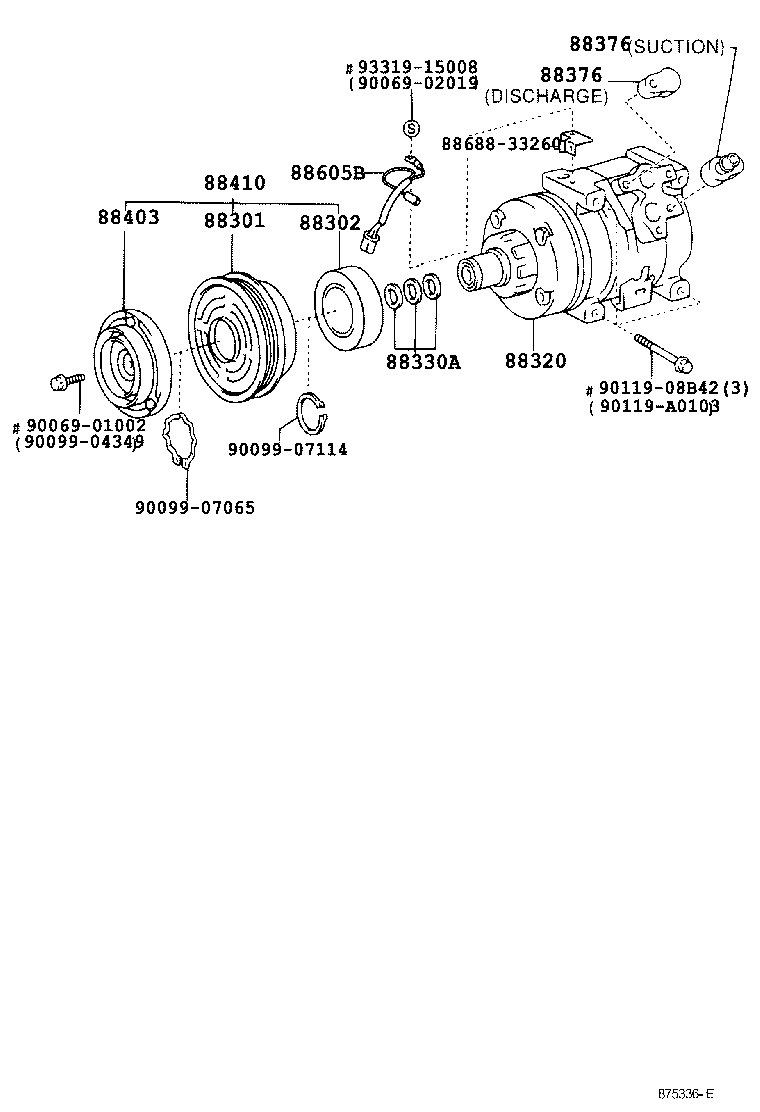

ILLUST NO. 1 OF 2(0201-0405)NAP

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88376 88376 88403 88410 88605B 8868833260 9006901002 9006902019 9009904349 9009907065 9009907114 9011908B42 90119A0103 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-02130

ZZE132,133,134..NAP

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-02050

ZZE132,133,134..NAP

 1
88320 - COMPRESSOR ASSY, COOLER
88320-02120

ZZE132,133,134..NAP

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

ZZE132,133,134..NAP

 1
88376 - CAP, BLIND
88376-14020

ZZE132,133,134..NAP

DISCHARGE SIDE

 1
88376-32020

ZZE132,133,134..NAP

SUCTION SIDE

 1
88376 - CAP, BLIND
88376-14020

ZZE132,133,134..NAP

DISCHARGE SIDE

 1
88376-32020

ZZE132,133,134..NAP

SUCTION SIDE

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-02050

ZZE132,133,134..NAP

 1
88410 - CLUTCH ASSY, MAGNET
88410-02130

ZZE132,133,134..NAP

DEALER OPTION

 1
88605B - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-35420

ZZE132,133,134..NAP

 1
Common parts
88688-33260
90069-01002
90069-02019
90099-04349
90099-07065
90099-07114
90119-08B42
90119-A0103
93319-15008

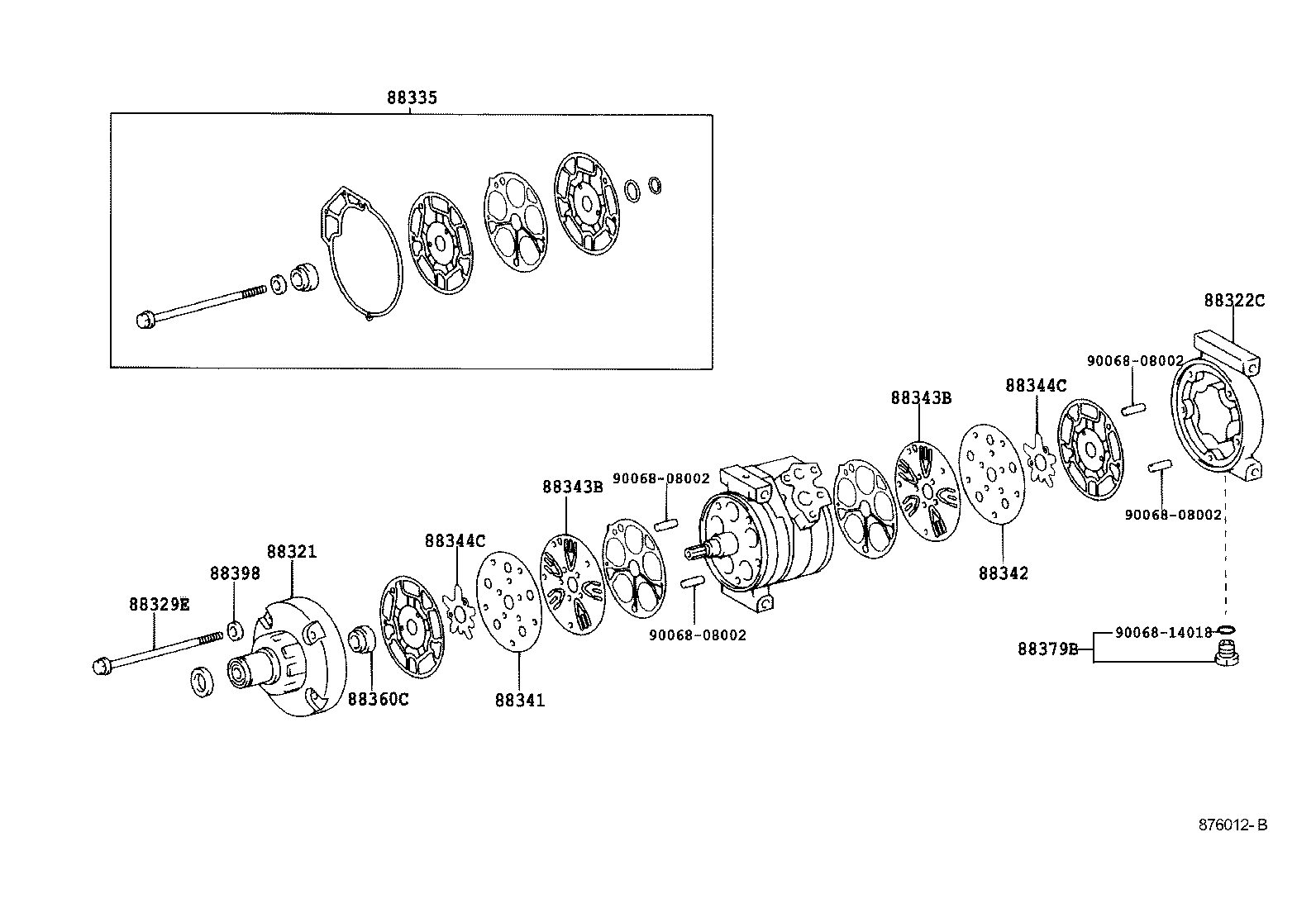

ILLUST NO. 2 OF 2(0201-0405)NAP

Click highlighted areas on diagram

diagram 88321 88322C 88329E 88335 88341 88342 88343B 88343B 88344C 88344C 88360C 88379B 88398 9006808002 9006808002 9006808002 9006808002 9006814018
Part # Description Qty Price
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-32020

ZZE132,133,134..NAP

 1
88329E - BOLT, COMPRESSOR, NO.1
88329-32010

ZZE132,133,134..NAP

 5
88335 - GASKET KIT, OVERHAUL
88335-32030

ZZE132,133,134..NAP

 1
88379B - VALVE, PRESSURE RELIEF
88379-32010

ZZE132,133,134..NAP

 1
88398 - PACKING, COMPRESSOR
88398-0C010

ZZE132,133,134..NAP

 5
Common parts
90068-08002
90068-14018
