ZZE133L-DHPSFK (2002)
Toyota Corolla/Matrix (Nap)
Production
Jan 2002
-
May 2003
Engine
2ZZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0201- )NAP

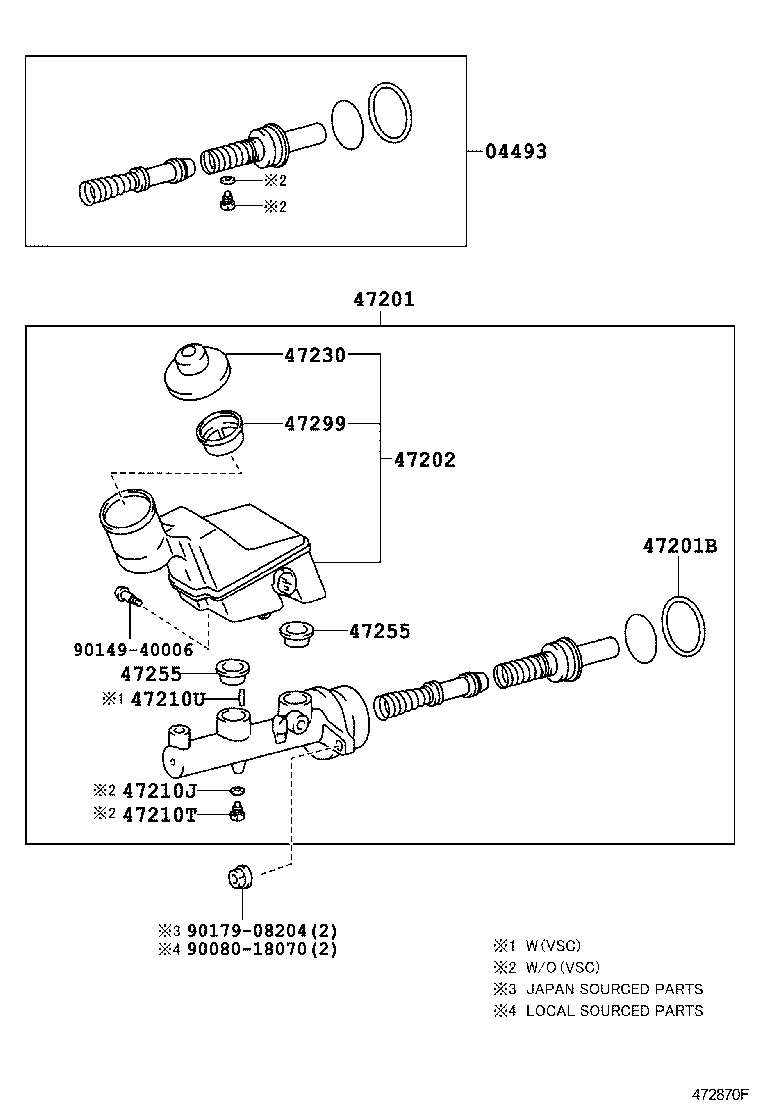

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-01020 |
ZZE133..NAP..4FC |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-02300 |
ZZE133..NAP..4FC W(ABS) |
1 | ||
| 47201B - RING, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-20059 |
ZZE133..NAP..4FC |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-02140 |
ZZE133..NAP..4FC |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90029-43001 |
ZZE133..NAP..4FC |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
ZZE133..NAP..4FC |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-01030 |
ZZE133..NAP..4FC |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-03010 |
ZZE133..NAP..4FC |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-03010 |
ZZE133..NAP..4FC |
2 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-25010 |
ZZE133..NAP..4FC |
1 | ||
| Common parts | ||||
| 90080-18070 | ||||
| 90149-40006 | ||||
| 90179-08204 | ||||
