ZZE133L-DHPSFA (2002)

Toyota Corolla/Matrix (Nap)

Production Jan 2002 - May 2003
Engine 2ZZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0201- )ZZE133..NAP..4FC

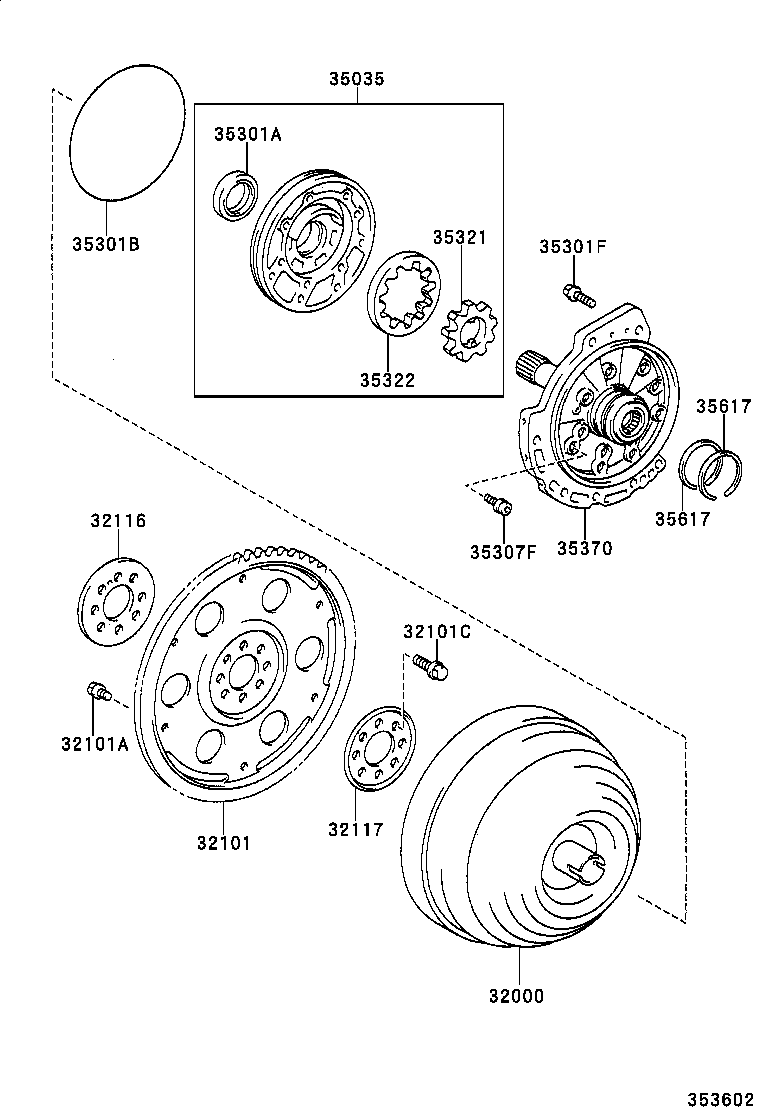

Click highlighted areas on diagram

U240E

diagram 32000 32101 32101A 32101C 32116 32117 35035 35301A 35301B 35301F 35307F 35321 35322 35370 35617 35617
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-20320

ZZE133..NAP..4FC

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-20120

ZZE133..NAP..4FC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-09001

ZZE133..NAP..4FC

*9-1.25PX12.4-7.3,GREEN

 1
90119-09025

ZZE133..NAP..4FC

*9-1.25PX12.4-8.4,YELLOW

 5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10048

ZZE132,133,134..NAP..4FC

*10-1.25PX18-13

 8
32116 - SPACER, DRIVE PLATE, FRONT
32116-20060

ZZE133..NAP..4FC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-20070

ZZE133..NAP..4FC

 1
35035 - BODY SUB-ASSY, FR OIL PUMP & GEAR
35035-21020

ZZE133..NAP..4FC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38083

ZZE133..NAP..4FC

 1
90311-38064

ZZE133..NAP..4FC

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99099

ZZE133..NAP..4FC

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08050

ZZE133..NAP..4FC

*8-1.25PX28-28

 7
35307F - BOLT (FOR STATOR SHAFT)
90148-60027

ZZE133..NAP..4FC

 11
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-21060

ZZE133..NAP..4FC

T=10.690-10.699

 1
35321-21090

ZZE133..NAP..4FC

T=10.721-10.730

 1
35321-21100

ZZE133..NAP..4FC

T=10.731-10.740

 1
35321-21070

ZZE133..NAP..4FC

T=10.700-10.709

 1
35321-21080

ZZE133..NAP..4FC

T=10.710-10.720

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-21060

ZZE133..NAP..4FC

T=10.690-10.699

 1
35322-21080

ZZE133..NAP..4FC

T=10.710-10.720

 1
35322-21100

ZZE133..NAP..4FC

T=10.731-10.740

 1
35322-21090

ZZE133..NAP..4FC

T=10.721-10.730

 1
35322-21070

ZZE133..NAP..4FC

T=10.700-10.709

 1
35370 - SHAFT ASSY, STATOR
35370-21030

ZZE133..NAP..4FC

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35613-21010

ZZE133..NAP..4FC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35613-21010

ZZE133..NAP..4FC

 2
