ZZE133L-DHFSFA (2002)

Toyota Corolla/Matrix (Nap)

Production Jan 2002 - Jul 2006
Engine 2ZZGE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0201- )NAP

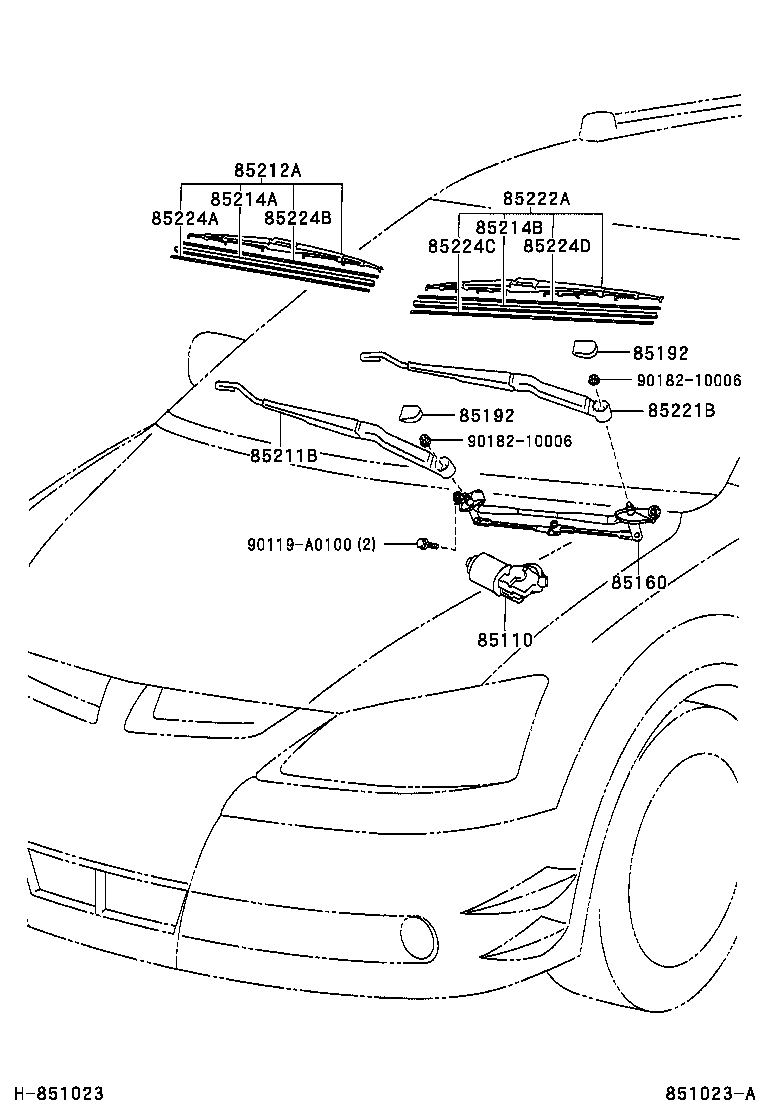

Click highlighted areas on diagram

diagram 85110 85160 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 85224A 85224B 85224C 85224D 90119A0100 9018210006 9018210006
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-02110

ZZE133,134..NAP

 1
85110-02110

ZZE132,133,134..NAP

 1
85110-02110

ZZE132,133,134..NAP

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-01020

ZZE132,133,134..NAP

 1
85150-01020

ZZE132,133,134..NAP

 1
85150-01020

ZZE133,134..NAP

 1
85192 - COVER, WINDSHIELD WIPER ARM
85292-AA010

ZZE132,133,134..NAP

 2
85292-AA010

ZZE133,134..NAP

 2
85292-AA010

ZZE132,133,134..NAP

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-AA010

ZZE132,133,134..NAP

 2
85292-AA010

ZZE133,134..NAP

 2
85292-AA010

ZZE132,133,134..NAP

 2
85211B - ARM, FRONT WIPER, RH
85211-01010

ZZE133,134..NAP

 1
85211-01010

ZZE132,133,134..NAP

 1
85211-01010

ZZE132,133,134..NAP

 1
85212A - BLADE, FR WIPER, RH
85212-02120

ZZE132,133,134..NAP

 1
85212-02121

ZZE132,133,134..NAP

 1
85212-02120

ZZE132,133,134..NAP

 1
85212-02120

ZZE132,133,134..NAP

 1
85214A - RUBBER, WIPER, RH
85214-02140

ZZE132,133,134..NAP

 1
85214-02141

ZZE132,133,134..NAP

 1
85214-02140

ZZE132,133,134..NAP

 1
85214-02140

ZZE132,133,134..NAP

 1
85214B - RUBBER, WIPER, LH
85214-01010

ZZE132,133,134..NAP

 1
85214-01010

ZZE132,133,134..NAP

 1
85214-01010

ZZE132,133,134..NAP

 1
85214-01011

ZZE132,133,134..NAP

 1
85221B - ARM, FRONT WIPER, LH
85221-01060

ZZE132,133,134..NAP

 1
85221-01060

ZZE133,134..NAP

 1
85221-01060

ZZE132,133,134..NAP

 1
85222A - BLADE, FR WIPER, LH
85222-01010

ZZE132,133,134..NAP

 1
85222-01010

ZZE132,133,134..NAP

 1
85222-01010

ZZE132,133,134..NAP

 1
85222-01011

ZZE132,133,134..NAP

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-08010

ZZE132,133,134..NAP

 1
85224-08010

ZZE132,133,134..NAP

 1
85224-08010

ZZE132,133,134..NAP

 1
85224-08010

ZZE132,133,134..NAP

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-08010

ZZE132,133,134..NAP

 1
85224-08010

ZZE132,133,134..NAP

 1
85224-08010

ZZE132,133,134..NAP

 1
85224-08010

ZZE132,133,134..NAP

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-AA040

ZZE132,133,134..NAP

 1
85224-AA040

ZZE132,133,134..NAP

 1
85224-AA040

ZZE132,133,134..NAP

 1
85224-AA040

ZZE132,133,134..NAP

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-AA040

ZZE132,133,134..NAP

 1
85224-AA040

ZZE132,133,134..NAP

 1
85224-AA040

ZZE132,133,134..NAP

 1
85224-AA040

ZZE132,133,134..NAP

 1
Common parts
90119-A0100
90182-10006
