ZZE132L-DHPNKK (2002)
Toyota Corolla/Matrix (Nap)
(0201- )ZZE132,133,134..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-02020 |
ZZE132,133,134..NAP |
1 | ||
| 85391-02020 |
ZZE132,133,134..NAP |
1 | ||
| 85391-12050 |
ZZE132,133,134..NAP |
1 | ||
| 85391-12050 |
ZZE132..NAP |
1 | ||
| 85310R - MOTOR ASSY, REAR WASHER | ||||
| 85340-08010 |
ZZE132,133,134..NAP |
1 | ||
| 85340-08010 |
ZZE132,133,134..NAP |
1 | ||
| 85340-08010 |
ZZE132,133,134..NAP |
1 | ||
| 85330-10280 |
ZZE133,134..NAP;ZZE132..NAP..CND |
1 | ||
| 85330S - BUSH, REAR WASHER JAR | ||||
| 90068-32002 |
ZZE132,133,134..NAP |
1 | ||
| 90068-32002 |
ZZE132,133,134..NAP |
1 | ||
| 90068-32002 |
ZZE132,133,134..NAP..CND |
1 | ||
| 90068-32002 |
ZZE132,133,134..NAP..CND |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-10260 |
ZZE132,133,134..NAP |
1 | ||
| 85375-10260 |
ZZE132,133,134..NAP |
1 | ||
| 85317-02300 |
ZZE132..NAP |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 85375-02260 |
ZZE132..NAP |
1 | ||
| 85349K - JOINT, REAR WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 85375-02260 |
ZZE132..NAP |
1 | ||
| 85349P - JOINT, REAR WASHER ELBOW, NO.3 | ||||
| 85375-02260 |
ZZE132..NAP |
1 | ||
| 85355-20200 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 85372D - GROMMET, REAR WASHER HOSE | ||||
| 85372-20040 |
ZZE132,133,134..NAP |
1 | ||
| 85372-20040 |
ZZE132..NAP |
1 | ||
| 85372-20040 |
ZZE132,133,134..NAP |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90068-33026 |
ZZE132,134..NAP;ZZE133..NAP..6F L=50 |
1 | ||
| 90068-33026 |
ZZE132..NAP L=50 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90068-59021 |
ZZE132..NAP L=1560 |
1 | ||
| 90068-59021 |
ZZE132,134..NAP;ZZE133..NAP..6F L=1560 |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90068-59022 |
ZZE132,134..NAP;ZZE133..NAP..6F L=3800 |
1 | ||
| 90068-59022 |
ZZE132..NAP L=3800 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33027 |
ZZE132,134..NAP;ZZE133..NAP..6F L=220 |
1 | ||
| 90068-33027 |
ZZE132..NAP L=220 |
1 | ||
| 85389C - PROTECTOR, WASHER | ||||
| 85389-12010 |
ZZE132..NAP |
1 | ||
| Common parts | ||||
| 82711-1E120 | ||||
| 82711-1E300 | ||||
| 82711-3A540 | ||||
| 85371-32030 | ||||
| 85379-16180 | ||||
| 90469-07011 | ||||

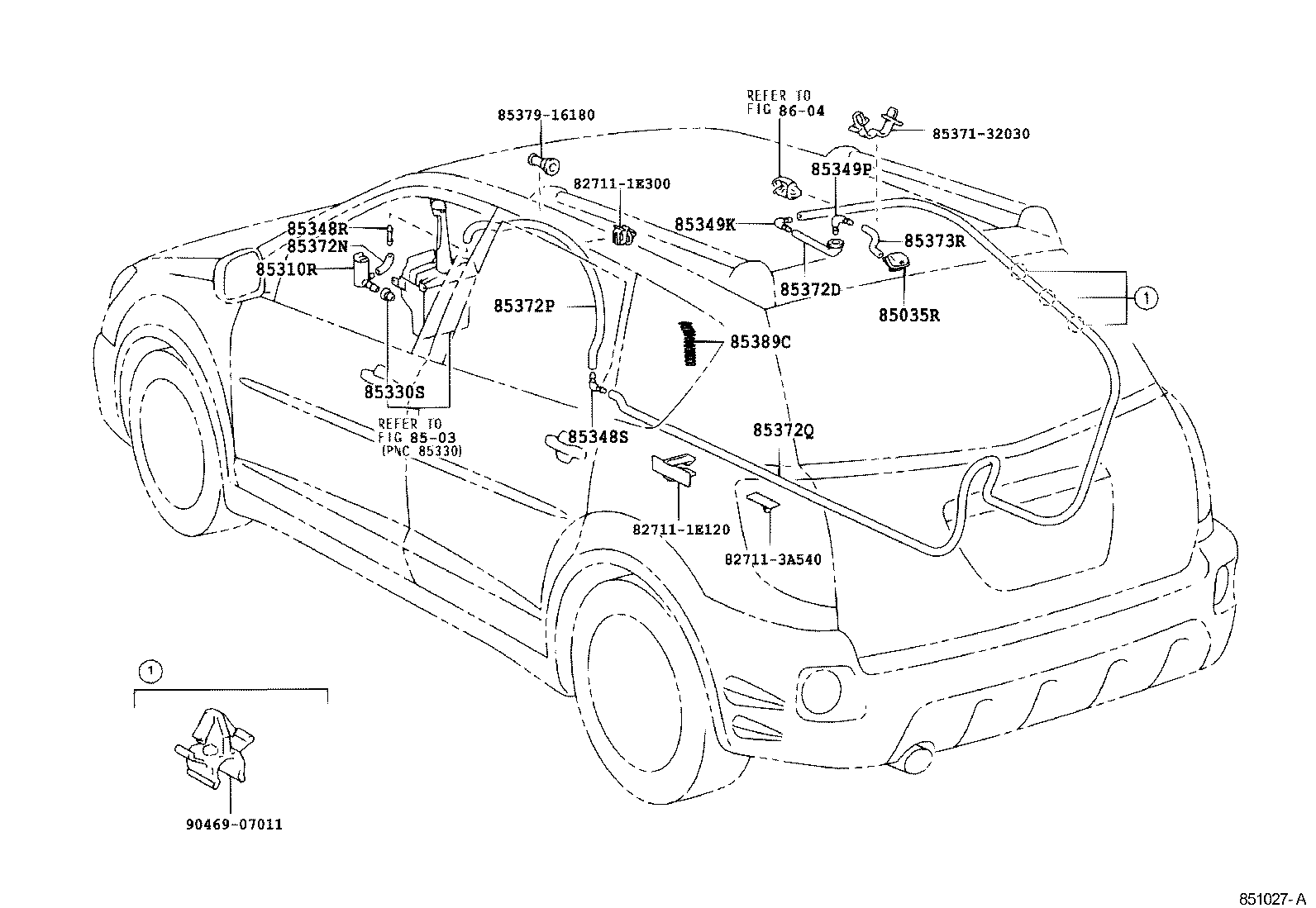

| Linked diagrams | ||||
| 8503 | ||||
| 8604 | ||||
