ZZE132L-DHPNKK (2002)

Toyota Corolla/Matrix (Nap)

Production Jan 2002 - Jan 2008
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0201- )ZZE132,133,134..NAP

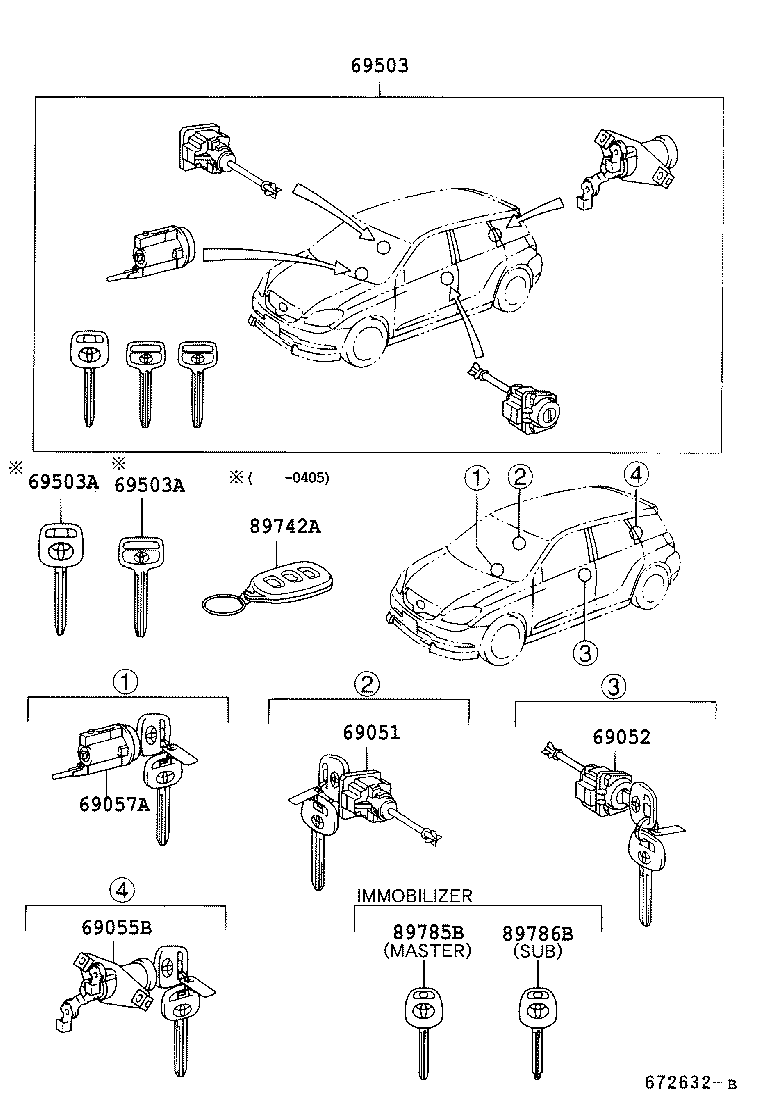

Click highlighted areas on diagram

diagram 69051 69052 69055B 69057A 69503 69503A 69503A 89742A 89785B 89786B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-01030

ZZE132..NAP

 1
69051-01030

ZZE132,133,134..NAP

 1
69051-01030

ZZE132,133,134..NAP

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-01030

ZZE132..NAP

 1
69052-01030

ZZE132,133,134..NAP

 1
69052-01030

ZZE132,133,134..NAP

 1
69055B - CYLINDER & KEY SET, BACK DOOR LOCK
69055-01080

ZZE132..NAP

 1
69055-01080

ZZE132,133,134..NAP

 1
69055-01080

ZZE132,133,134..NAP

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-02030

ZZE132,133,134..NAP

 1
69057-02140

ZZE132..NAP

 1
69057-02030

ZZE132,133,134..NAP

 1
69503 - CYLINDER SET, LOCK
69005-02090

ZZE132,133,134..NAP

 1
69005-02140

ZZE132..NAP

 1
69005-02090

ZZE132,133,134..NAP

 1
69503A - KEY, BLANK
90999-00199

ZZE132,133,134..NAP

MASTER KEY,W(*68)

 1
90999-00186

ZZE132,133,134..NAP

MASTER KEY

 2
90999-00186

ZZE132,133,134..NAP

MASTER KEY

 2
90999-00199

ZZE132,133,134..NAP

MASTER KEY,W(*68)

 1
69503A - KEY, BLANK
90999-00199

ZZE132,133,134..NAP

MASTER KEY,W(*68)

 1
90999-00186

ZZE132,133,134..NAP

MASTER KEY

 2
90999-00186

ZZE132,133,134..NAP

MASTER KEY

 2
90999-00199

ZZE132,133,134..NAP

MASTER KEY,W(*68)

 1
89742A - TRANSMITTER, DOOR CONTROL
89742-02010

ZZE132,133,134..NAP

 2
89742-02010

ZZE132..NAP

 2
89742-02010

ZZE132,133,134..NAP

 2
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-08020

ZZE132..NAP

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-08020

ZZE132..NAP

BLANK KEY

 1
