ZZE132L-DHPNKK (2002)
Toyota Corolla/Matrix (Nap)
(0201- )1ZZFE..NAP
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

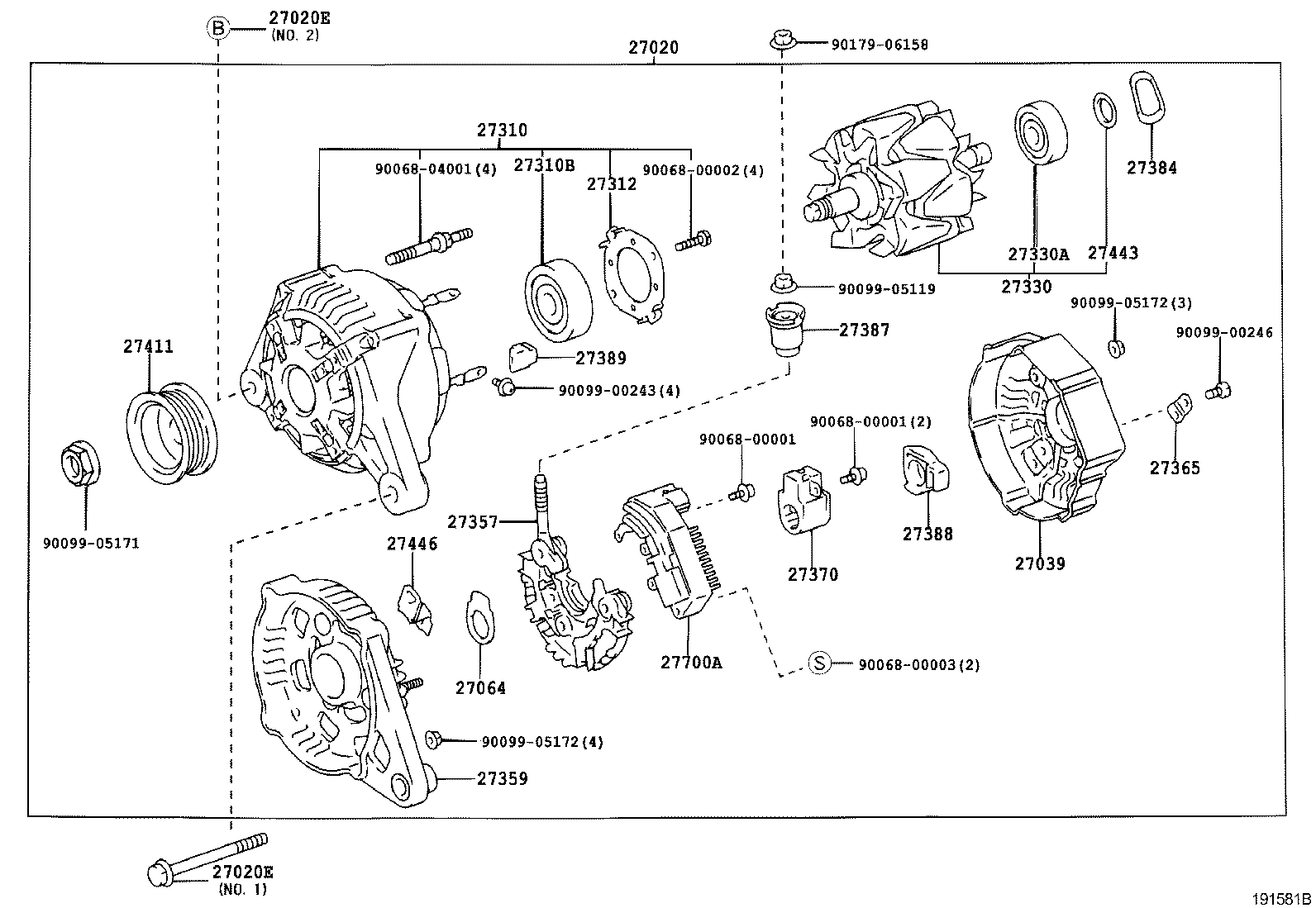

| 27020 - ALTERNATOR ASSY | ||||
| 27060-0D110 |
1ZZFE..ZZE132,134..NAP 12V 80A |
1 | ||
| 27060-0D110 |
1ZZFE..ZZE132,134..NAP 12V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
1ZZFE..ZZE132,134..NAP NO.1 |
1 | ||
| 91511-80830 |
1ZZFE..ZZE132,134..NAP NO.2 |
1 | ||
| 90105-10075 |
1ZZFE..ZZE132,134..NAP NO.1 |
1 | ||
| 91511-80830 |
1ZZFE..ZZE132,134..NAP NO.2 |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10075 |
1ZZFE..ZZE132,134..NAP NO.1 |
1 | ||
| 91511-80830 |
1ZZFE..ZZE132,134..NAP NO.2 |
1 | ||
| 90105-10075 |
1ZZFE..ZZE132,134..NAP NO.1 |
1 | ||
| 91511-80830 |
1ZZFE..ZZE132,134..NAP NO.2 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0H010 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27039-0H010 |
1ZZFE..ZZE132..NAP |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-0A020 |
1ZZFE..ZZE132..NAP |
1 | ||
| 27064-0A020 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-0D110 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27310-0D110 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10015 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 90068-10015 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0A020 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27312-0A020 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0H010 |
1ZZFE..ZZE132..NAP |
1 | ||
| 27330-0H010 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90068-10001 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 90068-10001 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-0H010 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27357-0H010 |
1ZZFE..ZZE132..NAP |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-0D010 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27359-0D010 |
1ZZFE..ZZE132..NAP |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27365-55080 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 27370-75060 |
1ZZFE..ZZE132..NAP |
1 | ||
| 27370-75060 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 27384 - WASHER | ||||
| 27384-0A020 |
1ZZFE..ZZE132..NAP |
1 | ||
| 27384-0A020 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
1ZZFE..ZZE132..NAP |
1 | ||
| 27387-42021 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27388-0A020 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-0A020 |
1ZZFE..ZZE132,134..NAP |
4 | ||
| 27389-42010 |
1ZZFE..ZZE132,134..NAP |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-0D010 |
1ZZFE..ZZE132..NAP |
1 | ||
| 27411-0D010 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-0A020 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27443-0A020 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-22040 |
1ZZFE..ZZE132..NAP |
1 | ||
| 27446-22040 |
1ZZFE..ZZE132,134..NAP |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-20050 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 27700-20050 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 27700-20050 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| Common parts | ||||
| 90068-00001 | ||||
| 90068-00002 | ||||
| 90068-00003 | ||||
| 90068-04001 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
