ZZE132L-DHPNKA (2002)
Toyota Corolla/Matrix (Nap)
(0201- )ZZE132,133,134..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64680 - CABLE ASSY, BACK DOOR LOCK CONTROL | ||||
| 64680-01010 |
ZZE132,133,134..NAP |
1 | ||
| 64680-01010 |
ZZE132..NAP |
1 | ||
| 64680 - CABLE ASSY, BACK DOOR LOCK CONTROL | ||||
| 64680-01010 |
ZZE132,133,134..NAP |
1 | ||
| 64680-01010 |
ZZE132..NAP |
1 | ||
| 68810C - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-02010 |
ZZE132,133,134..NAP |
1 | ||
| 68810-02010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68820-02010 |
ZZE132,133,134..NAP |
1 | ||
| 68820-02010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 68930 - STAY ASSY, BACK WINDOW, RH | ||||
| 68930-02020 |
ZZE132,133,134..NAP |
1 | ||
| 68930-02021 |
ZZE132,133,134..NAP |
1 | ||
| 68930-02010 |
ZZE132,133,134..NAP W(REAR WIPER) |
1 | ||
| 68930-02021 |
ZZE132,133,134..NAP |
1 | ||
| 68930-02011 |
ZZE132,133,134..NAP W(REAR WIPER) |
1 | ||
| 68930-02011 |
ZZE132,133,134..NAP W(REAR WIPER) |
1 | ||
| 68930-02012 |
ZZE132,133,134..NAP W(REAR WIPER) |
1 | ||
| 68930-02022 |
ZZE132,133,134..NAP |
1 | ||
| 68940 - STAY ASSY, BACK WINDOW, LH | ||||
| 68940-02011 |
ZZE132,133,134..NAP W(REAR WIPER) |
1 | ||
| 68940-02010 |
ZZE132,133,134..NAP W(REAR WIPER) |
1 | ||
| 68940-02021 |
ZZE132,133,134..NAP |
1 | ||
| 68940-02020 |
ZZE132,133,134..NAP |
1 | ||
| 68940-02011 |
ZZE132,133,134..NAP W(REAR WIPER) |
1 | ||
| 68940-02022 |
ZZE132,133,134..NAP |
1 | ||
| 68940-02021 |
ZZE132,133,134..NAP |
1 | ||
| 68940-02012 |
ZZE132,133,134..NAP W(REAR WIPER) |
1 | ||
| 68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH | ||||
| 68945-12040 |
ZZE132,133,134..NAP |
1 | ||
| 68945-12040 |
ZZE132..NAP |
1 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68946-12010 |
ZZE132,133,134..NAP |
1 | ||
| 68946-12010 |
ZZE132..NAP |
1 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-02050 |
ZZE132,133,134..NAP W(REAR WIPER) |
1 | ||
| 68950-02060 |
ZZE132,133,134..NAP |
1 | ||
| 68950-02150 |
ZZE132..NAP COLD SPEC & W(REAR WIPER) |
1 | ||
| 68950-02160 |
ZZE132..NAP COLD SPEC |
1 | ||
| 68950-02161 |
ZZE132..NAP |
1 | ||
| 68950-02060 |
ZZE132,133,134..NAP |
1 | ||
| 68950-02050 |
ZZE132,133,134..NAP W(REAR WIPER) |
1 | ||
| 68950-02150 |
ZZE132..NAP COLD SPEC & W(REAR WIPER) |
1 | ||
| 68950-02061 |
ZZE132,133,134..NAP |
1 | ||
| 68950-02151 |
ZZE132..NAP W(REAR WIPER) |
1 | ||
| 68950-02051 |
ZZE132,133,134..NAP W(REAR WIPER) |
1 | ||
| 68950-02160 |
ZZE132..NAP COLD SPEC |
1 | ||
| 68952 - RETAINER, BACK DOOR STAY | ||||
| 68952-32011 |
ZZE132,134..NAP;ZZE133..NAP..6F |
2 | ||
| 68952-32011 |
ZZE132,133,134..NAP |
2 | ||
| 68955C - BRACKET, BACK WINDOW STAY, UPPER RH | ||||
| 68955-12060 |
ZZE132,133,134..NAP |
1 | ||
| 68955-12060 |
ZZE132..NAP |
1 | ||
| 68956A - BRACKET, BACK WINDOW STAY, UPPER LH | ||||
| 68956-12030 |
ZZE132..NAP |
1 | ||
| 68956-12030 |
ZZE132,133,134..NAP |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-02051 |
ZZE132,133,134..NAP |
1 | ||
| 68960-02040 |
ZZE132,133,134..NAP W(REAR WIPER) |
1 | ||
| 68960-02050 |
ZZE132,133,134..NAP |
1 | ||
| 68960-02040 |
ZZE132,133,134..NAP W(REAR WIPER) |
1 | ||
| 68960-02150 |
ZZE132..NAP COLD SPEC |
1 | ||
| 68960-02140 |
ZZE132..NAP COLD SPEC & W(REAR WIPER) |
1 | ||
| 68960-02141 |
ZZE132..NAP W(REAR WIPER) |
1 | ||
| 68960-02050 |
ZZE132,133,134..NAP |
1 | ||
| 68960-02041 |
ZZE132,133,134..NAP W(REAR WIPER) |
1 | ||
| 68960-02150 |
ZZE132..NAP COLD SPEC |
1 | ||
| 68960-02151 |
ZZE132..NAP |
1 | ||
| 68960-02140 |
ZZE132..NAP COLD SPEC & W(REAR WIPER) |
1 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-20140 |
ZZE132..NAP |
2 | ||
| 68961-20140 |
ZZE132,133,134..NAP |
2 | ||
| 68961J - BOLT, BACK WINDOW STAY | ||||
| 68961-12060 |
ZZE132,134..NAP;ZZE133..NAP..6F |
2 | ||
| 68961-12060 |
ZZE132,133,134..NAP |
2 | ||
| 68971A - PACKING, BACK DOOR STAY, NO.1 | ||||
| 68971-32010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
2 | ||
| 68971-32010 |
ZZE132,133,134..NAP |
2 | ||
| 68972A - PACKING, BACK DOOR STAY, NO.2 | ||||
| 68972-32010 |
ZZE132,134..NAP;ZZE133..NAP..6F |
2 | ||
| 68972-32010 |
ZZE132,133,134..NAP |
2 | ||
| 69090 - HANDLE ASSY, BACK DOOR, OUTSIDE | ||||
| 69090-01010 |
ZZE132..NAP |
1 | ||
| 69090-01010 |
ZZE132,133,134..NAP |
1 | ||
| 69110A - LOCK ASSY, BACK DOOR W/MOTOR | ||||
| 69110-02010 |
ZZE132..NAP |
1 | ||
| 69110-02010 |
ZZE132,133,134..NAP |
1 | ||
| 69150 - ACTUATOR ASSY, BACK DOOR LOCK | ||||
| 69150-08010 |
ZZE132,133,134..NAP |
1 | ||
| 69150-08010 |
ZZE132..NAP |
1 | ||
| 69211C - HANDLE, BACK DOOR OUTSIDE | ||||
| 69023-13020 |
ZZE132..NAP |
1 | ||
| 69023-13020 |
ZZE132,133,134..NAP |
1 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-02020 |
ZZE132..NAP |
1 | ||
| 69350-02020 |
ZZE132,133,134..NAP |
1 | ||
| 69370E - LOCK ASSY, BACK WINDOW | ||||
| 69370-02010 |
ZZE132,133,134..NAP |
1 | ||
| 69370-02010 |
ZZE132..NAP |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69410-08020 |
ZZE132,133,134..NAP |
1 | ||
| 69410-08020 |
ZZE132..NAP |
1 | ||
| 69450D - STRIKER ASSY, BACK WINDOW LOCK | ||||
| 69450-01010 |
ZZE132..NAP |
1 | ||
| 69450-01010 |
ZZE132,133,134..NAP |
1 | ||
| Common parts | ||||
| 90080-10340 | ||||
| 90080-11207 | ||||
| 90080-14051 | ||||
| 90105-A0040 | ||||
| 90119-A0094 | ||||
| 90119-A0097 | ||||
| 90159-80014 | ||||
| 90179-08096 | ||||

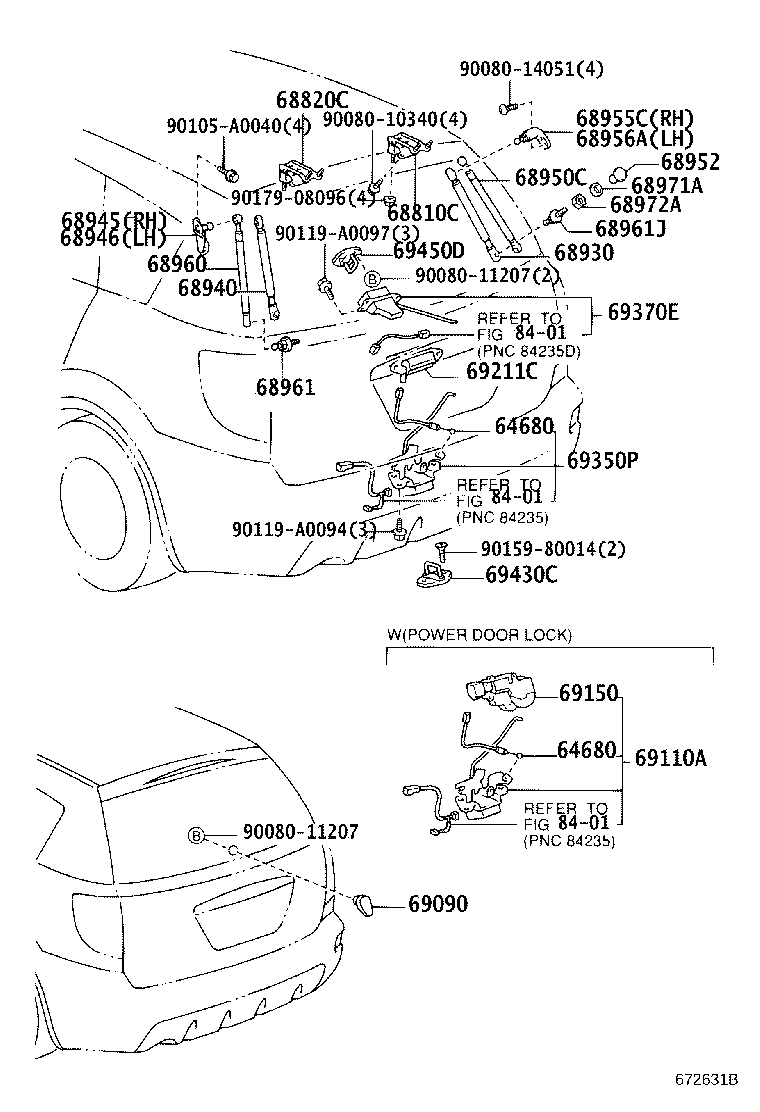

| Linked diagrams | ||||
| 8401 | ||||
