ZZE132L-DHPNKA (2002)
Toyota Corolla/Matrix (Nap)
(0201- )ZZE132,133,134..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-02050 |
ZZE132,133,134..NAP |
1 | ||
| 68750-02050 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-02050 |
ZZE132,133,134..NAP |
1 | ||
| 68760-02050 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-02050 |
ZZE132,133,134..NAP |
1 | ||
| 68770-02050 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-02050 |
ZZE132,133,134..NAP |
1 | ||
| 68780-02050 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR | ||||
| 69260-01020B5 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
2 | ||
| 69260-01020B5 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
2 | ||
| 69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE) | ||||
| 90080-52001 |
ZZE132,133,134..NAP |
2 | ||
| 90080-52001 |
ZZE132..NAP |
2 | ||
| 69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE | ||||
| 69268-12020 |
ZZE132,133,134..NAP |
2 | ||
| 69268-12020 |
ZZE132..NAP |
2 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-01040 |
ZZE132,133,134..NAP W(POWER WINDOW) |
1 | ||
| 69830-01070 |
ZZE132..NAP |
1 | ||
| 69803-01040 |
ZZE132..NAP W(POWER WINDOW) |
1 | ||
| 69830-01070 |
ZZE132,133,134..NAP |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-01040 |
ZZE132,133,134..NAP W(POWER WINDOW) |
1 | ||
| 69830-01070 |
ZZE132..NAP |
1 | ||
| 69803-01040 |
ZZE132..NAP W(POWER WINDOW) |
1 | ||
| 69830-01070 |
ZZE132,133,134..NAP |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-01040 |
ZZE132..NAP W(POWER WINDOW) |
1 | ||
| 69840-01070 |
ZZE132..NAP |
1 | ||
| 69840-01070 |
ZZE132,133,134..NAP |
1 | ||
| 69804-01040 |
ZZE132,133,134..NAP W(POWER WINDOW) |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-01040 |
ZZE132..NAP W(POWER WINDOW) |
1 | ||
| 69840-01070 |
ZZE132..NAP |
1 | ||
| 69840-01070 |
ZZE132,133,134..NAP |
1 | ||
| 69804-01040 |
ZZE132,133,134..NAP W(POWER WINDOW) |
1 | ||
| 85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH | ||||
| 85720-AA050 |
ZZE132..NAP |
1 | ||
| 85720-AA050 |
ZZE132,133,134..NAP |
1 | ||
| 85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH | ||||
| 85710-AA050 |
ZZE132,133,134..NAP |
1 | ||
| 85710-AA050 |
ZZE132..NAP |
1 | ||
| Common parts | ||||
| 90080-10090 | ||||
| 90080-10212 | ||||
| 90109-A0014 | ||||
| 90168-50040 | ||||
| 90179-08086 | ||||
| 90209-08014 | ||||

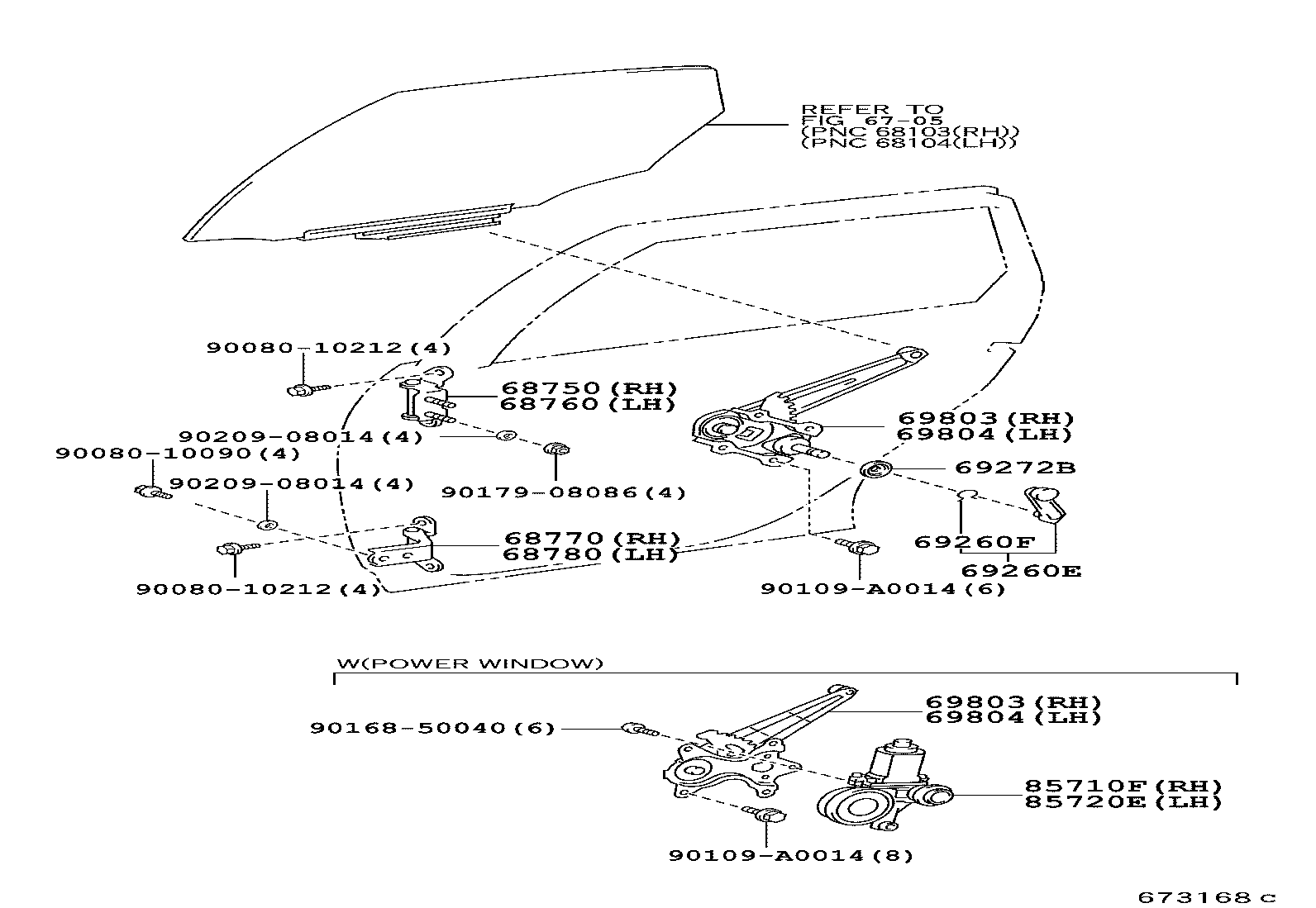

| Linked diagrams | ||||
| 6705 | ||||
