ZZE132L-DHPDKA (2002)
Toyota Corolla/Matrix (Nap)

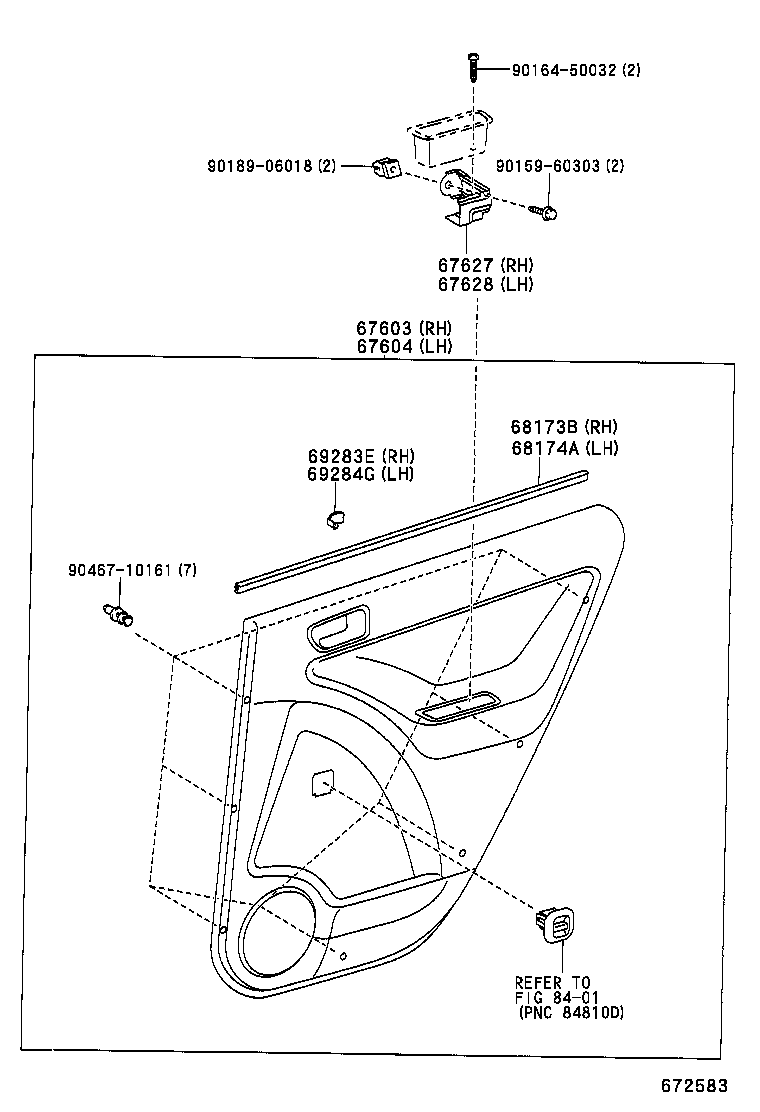

ILLUST NO. 1 OF 2(0201- )ZZE132,133,134..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-01220B1 |
ZZE132,134..NAP..STD DARK GRAY,TRIM13,14 |
1 | ||
| 67630-01231B0 |
ZZE132,134..NAP..STD W(POWER WINDOW),MED. GRAY,TRIM13,14 |
1 | ||
| 67630-01230B1 |
ZZE132,134..NAP..STD W(POWER WINDOW),DARK GRAY,TRIM13,14 |
1 | ||
| 67630-01221B0 |
ZZE132,134..NAP..STD MD. GRAY,TRIM13,14 |
1 | ||
| 67630-01330B0 |
ZZE132,134..NAP..STD STONE,TRIM13,14 |
1 | ||
| 67630-01340B0 |
ZZE132,134..NAP..STD W(POWER WINDOW),STONE,TRIM13,14 |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-01230B1 |
ZZE132,134..NAP..STD W(POWER WINDOW),DARK GRAY,TRIM13,14 |
1 | ||
| 67640-01220B1 |
ZZE132,134..NAP..STD DARK GRAY,TRIM13,14 |
1 | ||
| 67640-01221B0 |
ZZE132,134..NAP..STD MD. GRAY,TRIM13,14 |
1 | ||
| 67640-01231B0 |
ZZE132,134..NAP..STD W(POWER WINDOW),MED. GRAY,TRIM13,14 |
1 | ||
| 67640-01340B0 |
ZZE132,134..NAP..STD W(POWER WINDOW),STONE,TRIM13,14 |
1 | ||
| 67640-01330B0 |
ZZE132,134..NAP..STD STONE,TRIM13,14 |
1 | ||
| 67627 - BRACKET, REAR DOOR TRIM, RH | ||||
| 67625-01010 |
ZZE132..NAP |
1 | ||
| 67625-01010 |
ZZE132,133,134..NAP |
1 | ||
| 67625-01010 |
ZZE132,133,134..NAP |
1 | ||
| 67628 - BRACKET, REAR DOOR TRIM, LH | ||||
| 67625-01010 |
ZZE132,133,134..NAP |
1 | ||
| 67625-01010 |
ZZE132,133,134..NAP |
1 | ||
| 67625-01010 |
ZZE132..NAP |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-01040 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 68173-01040 |
ZZE132,133,134..NAP |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-01020 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 68174-01020 |
ZZE132,133,134..NAP |
1 | ||
| 69283E - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-02010B1 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 69283-02010B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| 69284G - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69283-02010B1 |
ZZE132,134..NAP;ZZE133..NAP..6F DK.GRAY,TRIM13,14 |
1 | ||
| 69283-02010B1 |
ZZE132,133,134..NAP DK.GRAY,TRIM13,14 |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90164-50032 | ||||
| 90189-06018 | ||||
| 90467-10161 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0201- )ZZE132,133,134..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-02210 |
ZZE132,133,134..NAP |
1 | ||
| 67003-02210 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-02210 |
ZZE132,133,134..NAP |
1 | ||
| 67004-02210 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-02090 |
ZZE132,133,134..NAP |
1 | ||
| 67113-02090 |
ZZE132..NAP |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-02090 |
ZZE132..NAP |
1 | ||
| 67114-02090 |
ZZE132,133,134..NAP |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-01050 |
ZZE132,133,134..NAP |
1 | ||
| 67407-01050 |
ZZE132..NAP |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-01050 |
ZZE132..NAP |
1 | ||
| 67408-01050 |
ZZE132,133,134..NAP |
1 | ||
| 67487B - SEAL, REAR DOOR DIVISION BAR, RH | ||||
| 67487-01030 |
ZZE132,133,134..NAP |
1 | ||
| 67487-01030 |
ZZE132..NAP |
1 | ||
| 67488B - SEAL, REAR DOOR DIVISION BAR, LH | ||||
| 67488-01030 |
ZZE132,133,134..NAP |
1 | ||
| 67488-01030 |
ZZE132..NAP |
1 | ||
| 67814C - PACKING, DOOR PROTECTOR | ||||
| 67817-47010 |
ZZE132,133,134..NAP |
2 | ||
| 67817-47010 |
ZZE132..NAP |
2 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12040 |
ZZE132,133,134..NAP |
1 | ||
| 67836-12040 |
ZZE132..NAP |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-12040 |
ZZE132,133,134..NAP |
1 | ||
| 67836-12040 |
ZZE132..NAP |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-01020 |
ZZE132,133,134..NAP |
1 | ||
| 67841-01020 |
ZZE132..NAP |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-01020 |
ZZE132..NAP |
1 | ||
| 67842-01020 |
ZZE132,133,134..NAP |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-02020 |
ZZE132,133,134..NAP |
17 | ||
| 67868-02020 |
ZZE132..NAP |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-02020 |
ZZE132..NAP |
17 | ||
| 67868-02020 |
ZZE132,133,134..NAP |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-01050 |
ZZE132,133,134..NAP |
1 | ||
| 67871-01050 |
ZZE132..NAP |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-01060 |
ZZE132,133,134..NAP |
1 | ||
| 67872-01060 |
ZZE132..NAP |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-02200 |
ZZE132..NAP *TT,T=3.1,GREEN |
1 | ||
| 68103-02150 |
ZZE132,133,134..NAP *TT,T=3.1,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-02150 |
ZZE132,133,134..NAP *TT,T=3.1,GREEN |
1 | ||
| 68104-02190 |
ZZE132..NAP *TT,T=3.1,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-01030 |
ZZE132,133,134..NAP |
1 | ||
| 68142-01050 |
ZZE132..NAP |
1 | ||
| 68142-01030 |
ZZE132,133,134..NAP |
1 | ||
| 68145D - CUSHION, REAR DOOR WINDOW | ||||
| 69759-02100 |
ZZE132,133,134..NAP |
4 | ||
| 69759-12110 |
ZZE132,133,134..NAP |
4 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-01040 |
ZZE132..NAP |
1 | ||
| 68152-01020 |
ZZE132,133,134..NAP |
1 | ||
| 68152-01020 |
ZZE132,133,134..NAP |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-02061 |
ZZE132,133,134..NAP |
1 | ||
| 68630-02060 |
ZZE132,133,134..NAP |
1 | ||
| 68630-02061 |
ZZE132..NAP |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-02061 |
ZZE132..NAP |
1 | ||
| 68640-02060 |
ZZE132,133,134..NAP |
1 | ||
| 68640-02061 |
ZZE132,133,134..NAP |
1 | ||
| Common parts | ||||
| 90084-10049 | ||||
| 90105-A0044 | ||||
| 90161-40014 | ||||
| 90167-50022 | ||||
| 90168-60028 | ||||
| 90541-09069 | ||||
