ZZE132L-DHMNKK (2002)

Toyota Corolla/Matrix (Nap)

Production Jan 2002 - Jan 2008
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

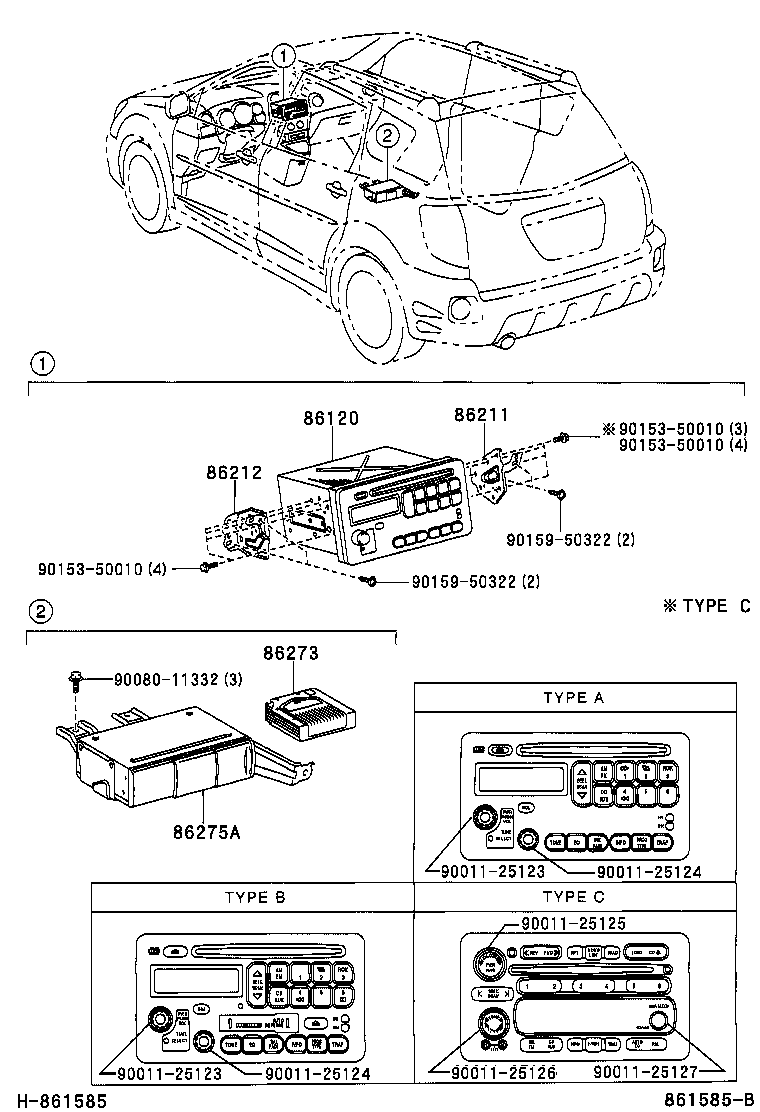

ILLUST NO. 1 OF 3(0201-0405)ZZE132,133,134..NAP

Click highlighted areas on diagram

diagram 86120 86211 86212 86273 86275A 9001125123 9001125123 9001125124 9001125124 9001125125 9001125126 9001125127 9008011332 9015350010 9015350010 9015350010 9015950322 9015950322
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-02330

ZZE132,133,134..NAP

DELCO,TYPE A:REFER TO ILLUSTRATION

 1
86120-02350

ZZE132,133,134..NAP

DELCO,TYPE C:REFER TO ILLUSTRATION

 1
86120-02340

ZZE132,133,134..NAP

DELCO,TYPE B:REFER TO ILLUSTRATION

 1
86120-02420

ZZE132..NAP

AMERICA MATSUSHITA,TYPE F:REFER TO ILLUSTRATION

 1
86120-02410

ZZE132..NAP

AMERICA MATSUSHITA,TYPE E:REFER TO ILLUSTRATION

 1
86120-02400

ZZE132..NAP

AMERICA MATSUSHITA,TYPE D:REFER TO ILLUSTRATION

 1
86211 - BRACKET, RADIO, NO.1
86211-01060

ZZE132,133,134..NAP

 1
86211-01060

ZZE132,133,134..NAP

 1
86211-02130

ZZE132..NAP

 1
86212 - BRACKET, RADIO, NO.2
86212-01060

ZZE132,133,134..NAP

 1
86212-02140

ZZE132..NAP

 1
86212-01060

ZZE132,133,134..NAP

 1
Common parts
90011-25123
90011-25124
90011-25125
90011-25126
90011-25127
90080-11332
90153-50010
90159-50322

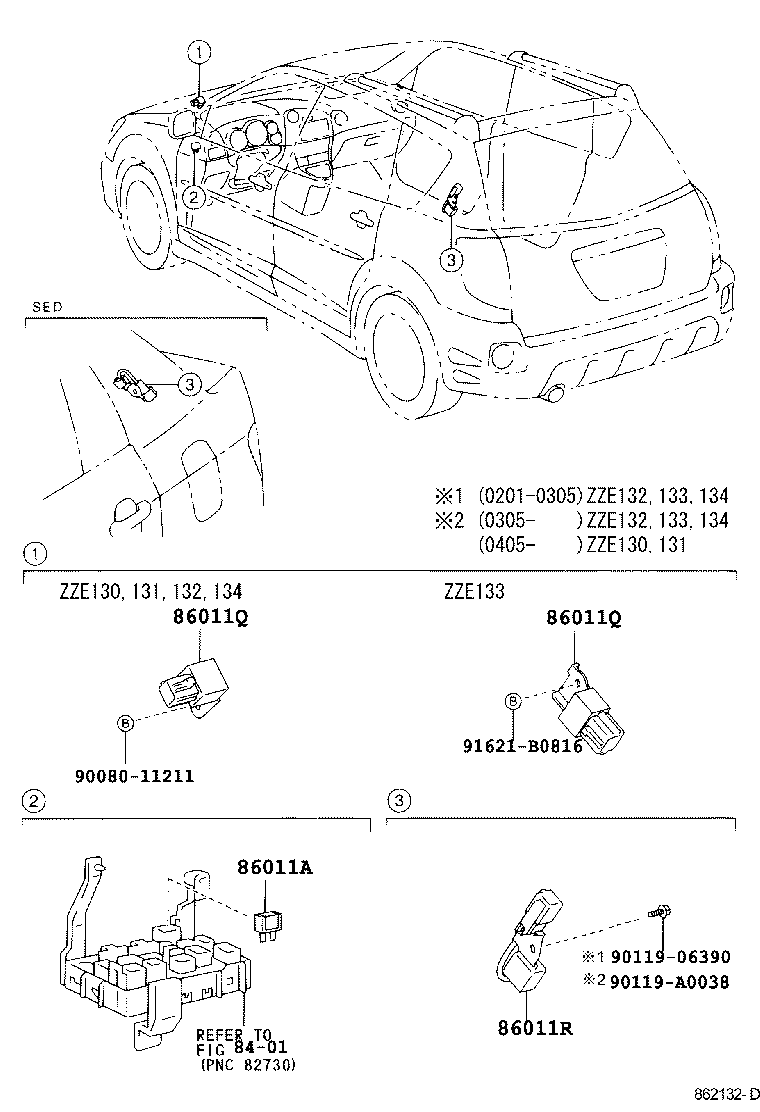

ILLUST NO. 3 OF 3(0201- )NAP

Click highlighted areas on diagram

CONDENSER

diagram 8401 86011A 86011Q 86011Q 86011R 9008011211 9011906390 90119A0038 91621B0816
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04066

ZZE132,133,134..NAP

 1
90980-04066

ZZE132,134..NAP;ZZE133..NAP..6F

 1
86011Q - CONDENSER, RADIO SETTING
90980-04154

ZZE132,134..NAP

 1
90980-04154

ZZE132..NAP

 1
86011Q - CONDENSER, RADIO SETTING
90980-04154

ZZE132,134..NAP

 1
90980-04154

ZZE132..NAP

 1
86011R - CONDENSER, RADIO SETTING
90980-04164

ZZE132,133,134..NAP

 1
90980-04164

ZZE132..NAP

 1
90980-04164

ZZE132,133,134..NAP

 1
Common parts
90080-11211
90119-06390
90119-A0038
91621-B0816
Linked diagrams
8401

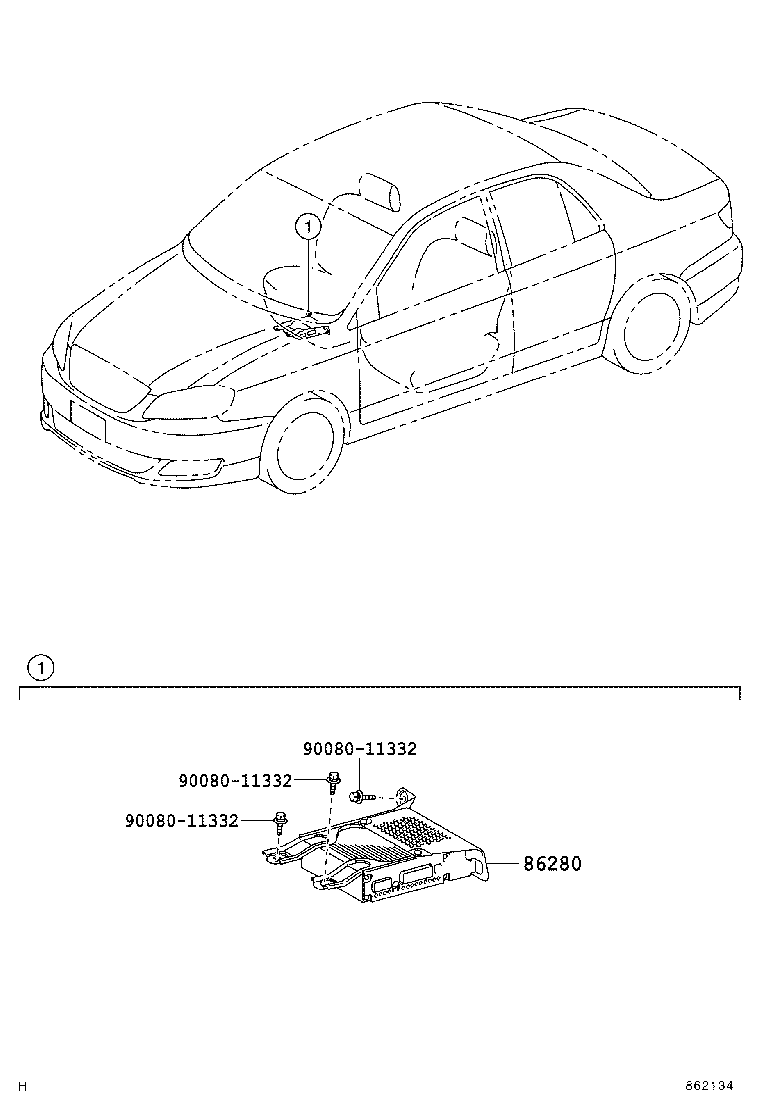

ILLUST NO. 2 OF 3(0405- )ZZE130,132,133,134..NAP..LE,S,STD,XR,XRS

Click highlighted areas on diagram

diagram 86280 9008011332 9008011332 9008011332
Part # Description Qty Price
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-02020

ZZE132..NAP

 1
Common parts
90080-11332

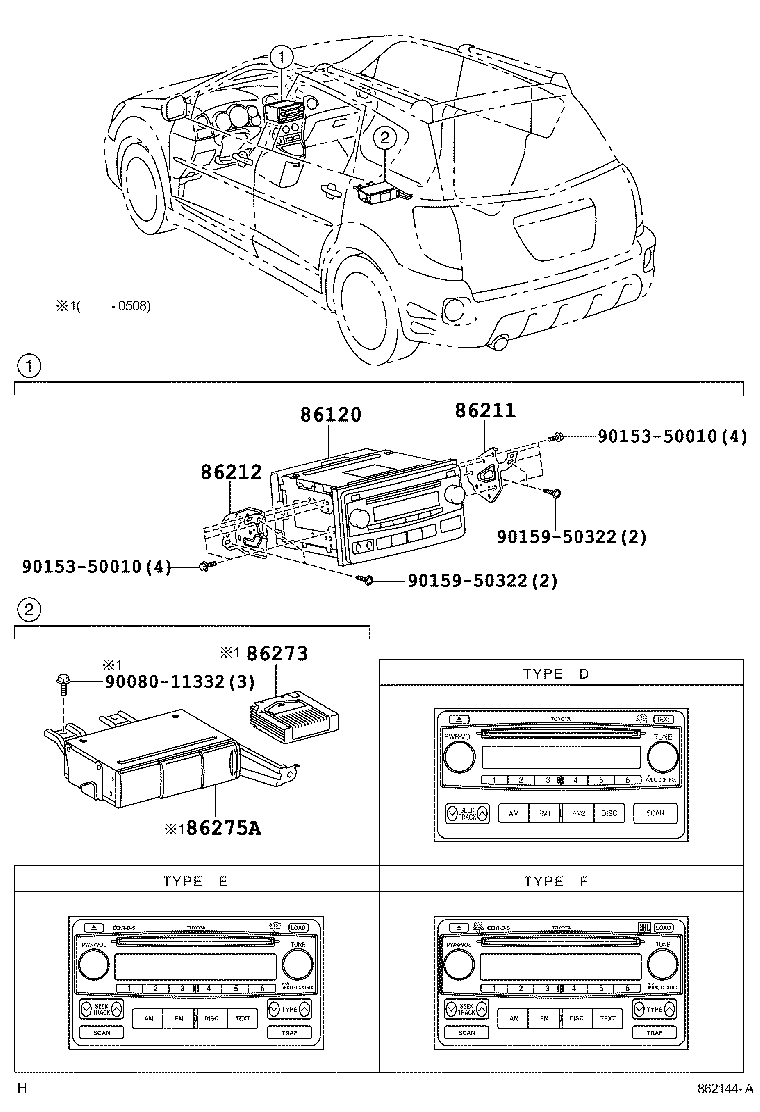

ILLUST NO. 1 OF 3(0405- )ZZE132,133,134..NAP

Click highlighted areas on diagram

diagram 86120 86211 86212 86273 86275A 9008011332 9015350010 9015350010 9015950322 9015950322
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-02330

ZZE132,133,134..NAP

DELCO,TYPE A:REFER TO ILLUSTRATION

 1
86120-02350

ZZE132,133,134..NAP

DELCO,TYPE C:REFER TO ILLUSTRATION

 1
86120-02340

ZZE132,133,134..NAP

DELCO,TYPE B:REFER TO ILLUSTRATION

 1
86120-02420

ZZE132..NAP

AMERICA MATSUSHITA,TYPE F:REFER TO ILLUSTRATION

 1
86120-02410

ZZE132..NAP

AMERICA MATSUSHITA,TYPE E:REFER TO ILLUSTRATION

 1
86120-02400

ZZE132..NAP

AMERICA MATSUSHITA,TYPE D:REFER TO ILLUSTRATION

 1
86211 - BRACKET, RADIO, NO.1
86211-01060

ZZE132,133,134..NAP

 1
86211-01060

ZZE132,133,134..NAP

 1
86211-02130

ZZE132..NAP

 1
86212 - BRACKET, RADIO, NO.2
86212-01060

ZZE132,133,134..NAP

 1
86212-02140

ZZE132..NAP

 1
86212-01060

ZZE132,133,134..NAP

 1
Common parts
90080-11332
90153-50010
90159-50322
