ZZE132L-DHMNKA (2002)
Toyota Corolla/Matrix (Nap)
Production
Jan 2002
-
Jan 2008
Engine
1ZZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0201- )NAP

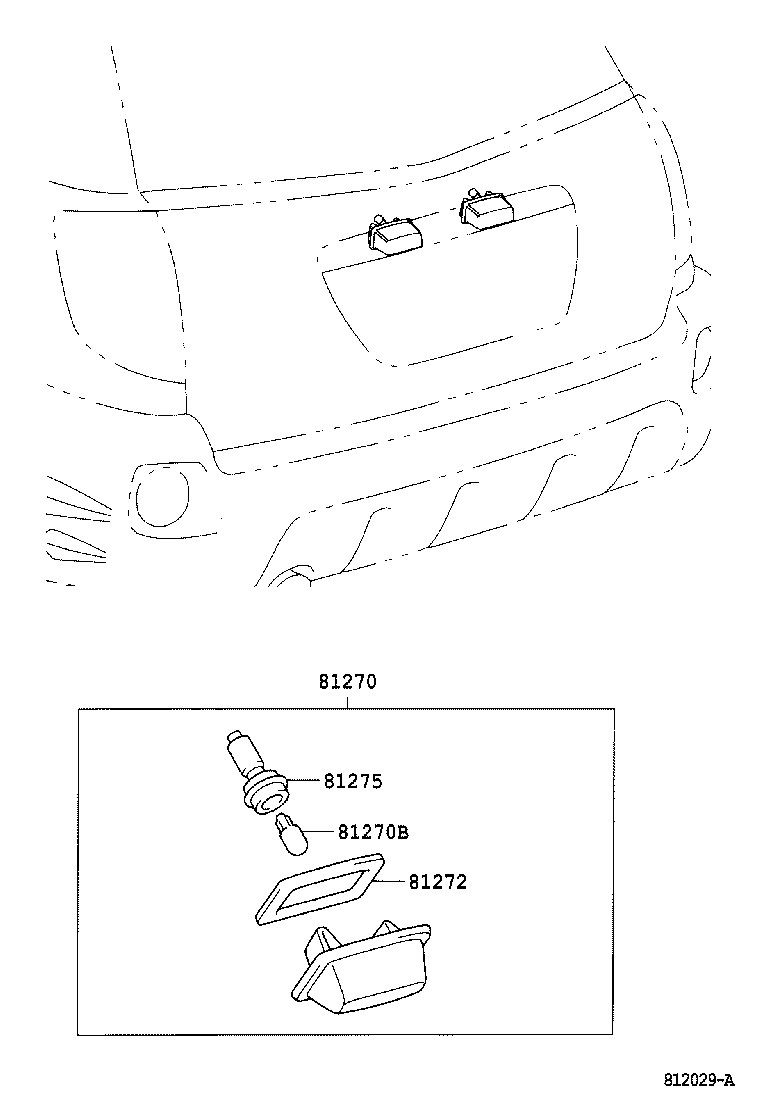

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-01070 |
ZZE132,133,134..NAP |
2 | ||
| 81270-01070 |
ZZE132,133,134..NAP |
2 | ||
| 81270-01070 |
ZZE132..NAP |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90084-98043 |
ZZE132,133,134..NAP 12V 5W |
2 | ||
| 90084-98043 |
ZZE132..NAP 12V 5W |
2 | ||
| 90084-98043 |
ZZE132,133,134..NAP 12V 5W |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-AC020 |
ZZE132,133,134..NAP |
2 | ||
| 81272-AC020 |
ZZE132..NAP |
2 | ||
| 81272-AC020 |
ZZE132,133,134..NAP |
2 | ||
| 81275 - SOCKET AND WIRE, LICENSE PLATE LAMP | ||||
| 81275-AA010 |
ZZE132,133,134..NAP |
2 | ||
| 81275-AA010 |
ZZE132,133,134..NAP |
2 | ||
| 81275-AA010 |
ZZE132..NAP |
2 | ||
