ZZE132L-DHMNKA (2002)
Toyota Corolla/Matrix (Nap)

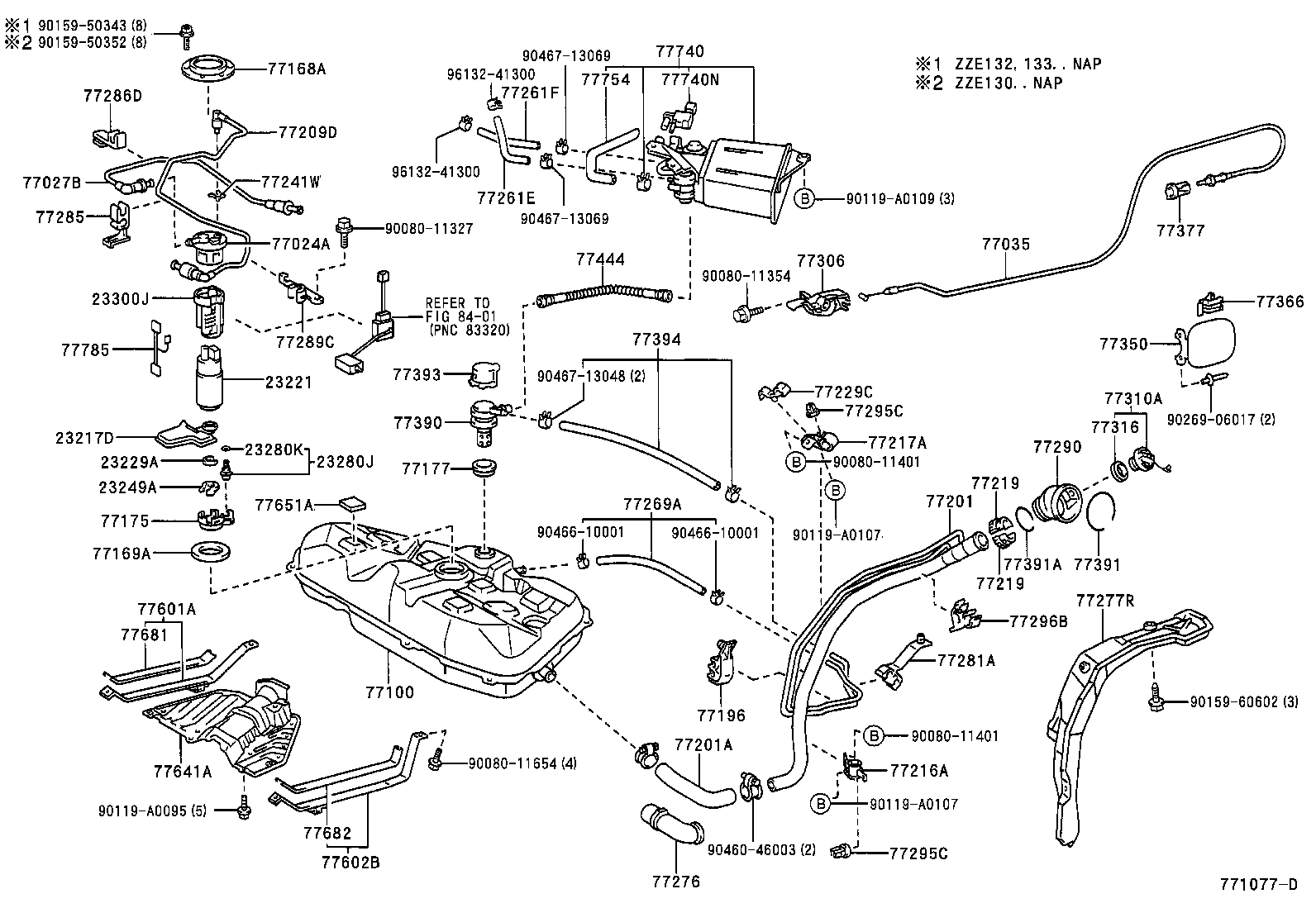

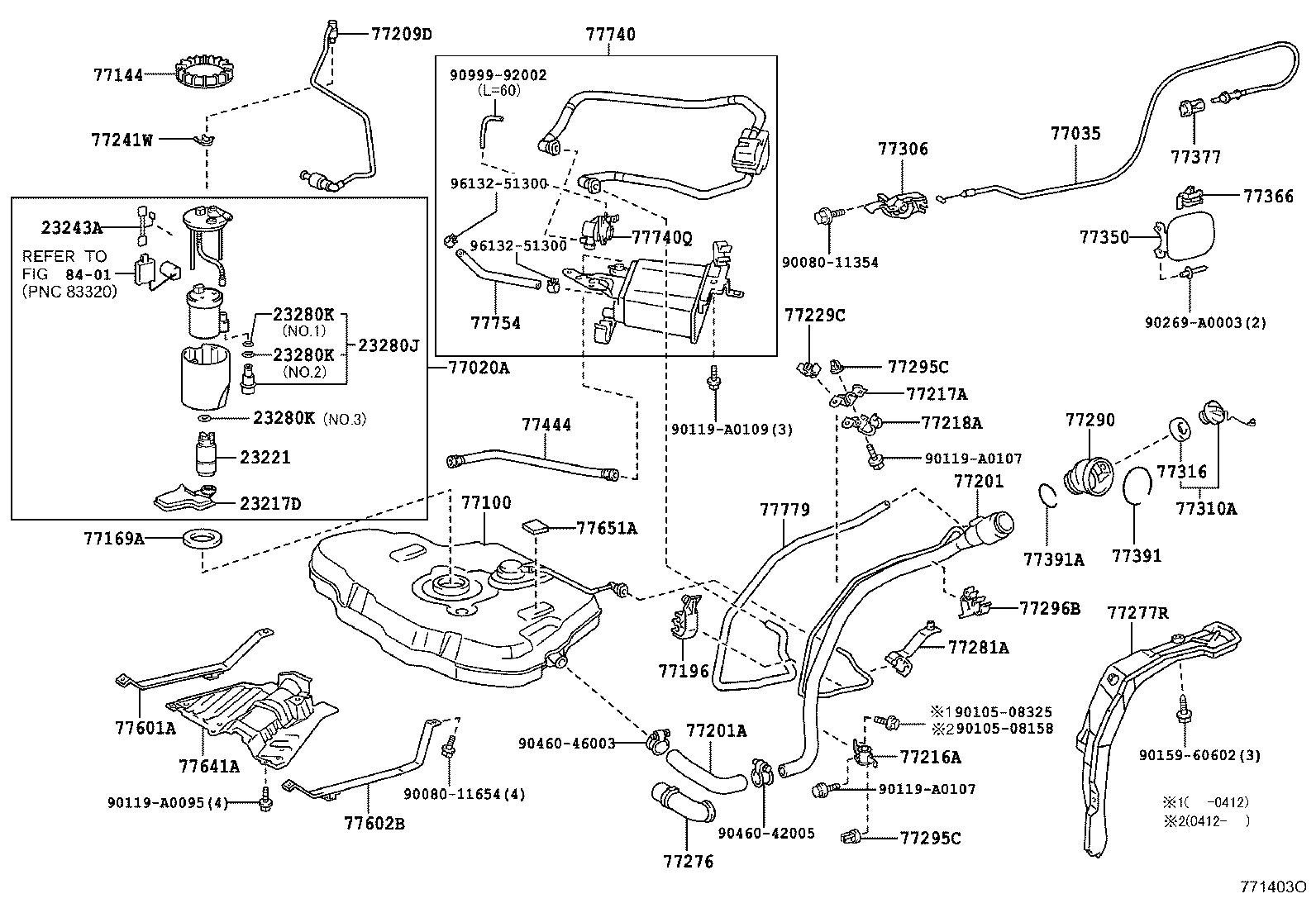

ILLUST NO. 1 OF 2(0201-0405)ZZE130,132,133..NAP
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-0D030 |
1ZZFE,2ZZGE..ZZE132,133..NAP |
1 | ||
| 23217-0D030 |
1ZZFE,2ZZGE..ZZE132,133..NAP |
1 | ||
| 23217-0D100 |
1ZZFE..ZZE132..NAP |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-0A030 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 23221-0D100 |
1ZZFE,2ZZGE..ZZE132,133..NAP |
1 | ||
| 23220-0D210 |
1ZZFE..ZZE132..NAP |
1 | ||
| 23221-0A030 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23219-03010 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 23219-03010 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-0A020 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 23249-0A020 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
1ZZFE,2ZZGE..ZZE132,133..NAP |
1 | ||
| 23280-22010 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 23280-22010 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 90301-04013 |
1ZZFE,2ZZGE..ZZE132,133..NAP NO.1 |
1 | ||
| 90301-15024 |
1ZZFE,2ZZGE..ZZE132,133..NAP NO.2 |
1 | ||
| 90301-07020 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-0A020 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 23300-0A020 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-02020 |
ZZE132,133..NAP |
1 | ||
| 77024-02020 |
ZZE132,133..NAP |
1 | ||
| 77027B - TUBE SUB-ASSY, FUEL EMISSION, NO.1 | ||||
| 77027-02040 |
ZZE132,133..NAP |
1 | ||
| 77027-02040 |
ZZE132,133..NAP |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-02100 |
ZZE132,133,134..NAP |
1 | ||
| 77035-02100 |
ZZE132,133,134..NAP |
1 | ||
| 77035-02100 |
ZZE132..NAP |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-02150 |
ZZE132,133..NAP |
1 | ||
| 77001-02150 |
ZZE132,133..NAP |
1 | ||
| 77001-01080 |
ZZE132..NAP |
1 | ||
| 77001-01060 |
ZZE132,133..NAP |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52010 |
ZZE132,133,134..NAP |
1 | ||
| 77168-52010 |
ZZE132,133,134..NAP |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-02020 |
ZZE132,133,134..NAP |
1 | ||
| 77169-02020 |
ZZE132,133,134..NAP |
1 | ||
| 77169-02050 |
ZZE132,133..NAP |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-02010 |
ZZE132,133,134..NAP |
1 | ||
| 77175-02010 |
ZZE132,133,134..NAP |
1 | ||
| 77177 - GASKET, CHECK VALVE | ||||
| 77177-33010 |
ZZE132,133..NAP |
1 | ||
| 77177-33010 |
ZZE132,133..NAP |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-02030 |
ZZE132..NAP |
1 | ||
| 77196-12030 |
ZZE132,133,134..NAP |
1 | ||
| 77196-12030 |
ZZE132,133,134..NAP |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-02180 |
ZZE132,133..NAP |
1 | ||
| 77201-02150 |
ZZE132,133..NAP |
1 | ||
| 77201-02080 |
ZZE132,133,134..NAP |
1 | ||
| 77201-02080 |
ZZE132,133,134..NAP |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77213-01020 |
ZZE132,133,134..NAP |
1 | ||
| 77213-01020 |
ZZE132,133,134..NAP |
1 | ||
| 77213-02060 |
ZZE132..NAP |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-02060 |
ZZE132,133..NAP |
1 | ||
| 77209-02080 |
ZZE132,133..NAP |
1 | ||
| 77209-02060 |
ZZE132,133..NAP |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-02070 |
ZZE132,133,134..NAP |
1 | ||
| 77216-02080 |
ZZE132..NAP |
1 | ||
| 77216-02070 |
ZZE132,133,134..NAP |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-02040 |
ZZE132,133,134..NAP |
1 | ||
| 77217-02050 |
ZZE132..NAP |
1 | ||
| 77217-02040 |
ZZE132,133,134..NAP |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-02020 |
ZZE132,133,134..NAP |
2 | ||
| 77219-02020 |
ZZE132,133,134..NAP |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-02020 |
ZZE132,133,134..NAP |
2 | ||
| 77219-02020 |
ZZE132,133,134..NAP |
2 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-06020 |
ZZE132,133,134..NAP |
1 | ||
| 77229-06020 |
ZZE132,133,134..NAP |
1 | ||
| 77229-02020 |
ZZE132..NAP |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-02010 |
ZZE132,133,134..NAP |
2 | ||
| 77241-02010 |
ZZE132,133..NAP |
1 | ||
| 77241-02010 |
ZZE132,133,134..NAP |
2 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-08020 |
ZZE132,133..NAP *H,L=170 |
1 | ||
| 95333-08020 |
ZZE132,133..NAP *H,L=170 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-08020 |
ZZE132,133..NAP *H,L=170 |
1 | ||
| 95333-08020 |
ZZE132,133..NAP *H,L=170 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-02020 |
ZZE132,133..NAP |
1 | ||
| 77269-02020 |
ZZE132,133..NAP |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-02010 |
ZZE132,133..NAP |
1 | ||
| 77276-02010 |
ZZE132,133..NAP |
1 | ||
| 77276-02020 |
ZZE132..NAP |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-02050 |
ZZE132,133,134..NAP |
1 | ||
| 77277-02050 |
ZZE132,133,134..NAP |
1 | ||
| 77277-02070 |
ZZE132..NAP |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-12080 |
ZZE132,133,134..NAP |
1 | ||
| 77281-12080 |
ZZE132,133,134..NAP |
1 | ||
| 77281-02050 |
ZZE132..NAP |
1 | ||
| 77285 - BRACKET, FUEL TUBE | ||||
| 77285-12080 |
ZZE132,133..NAP |
1 | ||
| 77285-12080 |
ZZE132,133..NAP |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-12070 |
ZZE132,133..NAP |
1 | ||
| 77286-12070 |
ZZE132,133..NAP |
1 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77289-12040 |
ZZE132,133,134..NAP |
1 | ||
| 77289-12040 |
ZZE132,133,134..NAP |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-02060 |
ZZE132,133,134..NAP |
1 | ||
| 77291-02060 |
ZZE132..NAP |
1 | ||
| 77291-02060 |
ZZE132,133,134..NAP |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
ZZE132..NAP |
2 | ||
| 77295-12070 |
ZZE132,133,134..NAP |
2 | ||
| 77295-12070 |
ZZE132,133,134..NAP |
2 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
ZZE132..NAP |
2 | ||
| 77295-12070 |
ZZE132,133,134..NAP |
2 | ||
| 77295-12070 |
ZZE132,133,134..NAP |
2 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-12040 |
ZZE132,133,134..NAP |
1 | ||
| 77296-12040 |
ZZE132,133,134..NAP |
1 | ||
| 77296-02010 |
ZZE132..NAP |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-02021 |
ZZE132,133,134..NAP |
1 | ||
| 77306-02021 |
ZZE132,133,134..NAP |
1 | ||
| 77306-02020 |
ZZE132,133,134..NAP |
1 | ||
| 77306-02021 |
ZZE132..NAP |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-08010 |
ZZE132,133,134..NAP |
1 | ||
| 77300-06040 |
ZZE132,133..NAP (L) |
1 | ||
| 77300-08010 |
ZZE132,133,134..NAP |
1 | ||
| 77300-33070 |
ZZE132,133..NAP |
1 | ||
| 77300-52040 |
ZZE132,133..NAP (J) |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-33042 |
ZZE132,133..NAP |
1 | ||
| 77316-06010 |
ZZE132,133,134..NAP |
1 | ||
| 77316-06010 |
ZZE132,133,134..NAP |
1 | ||
| 77316-06050 |
ZZE132,133..NAP (L) |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-02020 |
ZZE132,133,134..NAP |
1 | ||
| 77350-02021 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 77350-02021 |
ZZE132..NAP |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30070 |
ZZE132,133,134..NAP |
1 | ||
| 77360-30070 |
ZZE132..NAP |
1 | ||
| 77360-30070 |
ZZE132,133,134..NAP |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-02010 |
ZZE132,133,134..NAP |
1 | ||
| 77377-02010 |
ZZE132,133,134..NAP |
1 | ||
| 77377-02010 |
ZZE132..NAP |
1 | ||
| 77390 - VALVE ASSY, FUEL TANK INLET | ||||
| 77390-12030 |
ZZE132,133..NAP |
1 | ||
| 77390-12030 |
ZZE132,133..NAP |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12050 |
ZZE132,133,134..NAP |
1 | ||
| 77391-12050 |
ZZE132,133,134..NAP |
1 | ||
| 77391-02070 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 77391-02070 |
ZZE132..NAP |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-02040 |
ZZE132,133,134..NAP |
1 | ||
| 77391-02040 |
ZZE132,133,134..NAP |
1 | ||
| 77391-02040 |
ZZE132,133,134..NAP |
1 | ||
| 77393 - PROTECTOR, CHECK VALVE | ||||
| 77393-42010 |
ZZE132,133..NAP |
1 | ||
| 77393-42010 |
ZZE132,133..NAP |
1 | ||
| 77394 - HOSE, VALVE TO FUEL FILLER PIPE | ||||
| 77394-02020 |
ZZE132,133..NAP L=430 |
1 | ||
| 77394-02020 |
ZZE132,133..NAP L=430 |
1 | ||
| 77444 - HOSE, FUEL TANK VENT | ||||
| 77404-02020 |
ZZE132,133..NAP |
1 | ||
| 77404-02020 |
ZZE132,133..NAP |
1 | ||
| 77404-02051 |
ZZE132,133..NAP |
1 | ||
| 77404-02050 |
ZZE132,133..NAP |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-12250 |
ZZE132,133..NAP |
1 | ||
| 77601-12250 |
ZZE132,133..NAP |
1 | ||
| 77601-02070 |
ZZE132..NAP |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77612-02080 |
ZZE132..NAP |
1 | ||
| 77602-12210 |
ZZE132,133..NAP |
1 | ||
| 77602-12210 |
ZZE132,133..NAP |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-02030 |
ZZE132,133..NAP |
1 | ||
| 77641-02050 |
ZZE132..NAP |
1 | ||
| 77641-02030 |
ZZE132,133..NAP |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-02040 |
ZZE132,133..NAP |
7 | ||
| 77651-12080 |
ZZE132,133..NAP |
4 | ||
| 77651-02040 |
ZZE132,133..NAP |
7 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-34030 |
ZZE132,133..NAP |
1 | ||
| 77681-34030 |
ZZE132,133..NAP |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
ZZE132,133,134..NAP |
1 | ||
| 77681-32060 |
ZZE132,133,134..NAP |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-02121 |
ZZE132,133..NAP |
1 | ||
| 77740-02121 |
ZZE132,133..NAP |
1 | ||
| 77740-02130 |
ZZE132..NAP |
1 | ||
| 77740N - VALVE, VACUUM SWITCHING(FOR CHARCOAL CANISTER) | ||||
| 90080-91233 |
ZZE132,133,134..NAP |
1 | ||
| 90080-91233 |
ZZE132,133,134..NAP |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-02030 |
ZZE132,133..NAP |
1 | ||
| 77754-02030 |
ZZE132,133..NAP |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-06020 |
ZZE132,133,134..NAP |
1 | ||
| 77785-06020 |
ZZE132,133,134..NAP |
1 | ||
| Common parts | ||||
| 90080-11327 | ||||
| 90080-11354 | ||||
| 90080-11401 | ||||
| 90080-11654 | ||||
| 90119-A0095 | ||||
| 90119-A0107 | ||||
| 90119-A0109 | ||||
| 90159-50343 | ||||
| 90159-50352 | ||||
| 90159-60602 | ||||
| 90269-06017 | ||||
| 90460-46003 | ||||
| 90466-10001 | ||||
| 90467-13048 | ||||
| 90467-13069 | ||||
| 96132-41300 | ||||
| Linked diagrams | ||||
| 8401 | ||||

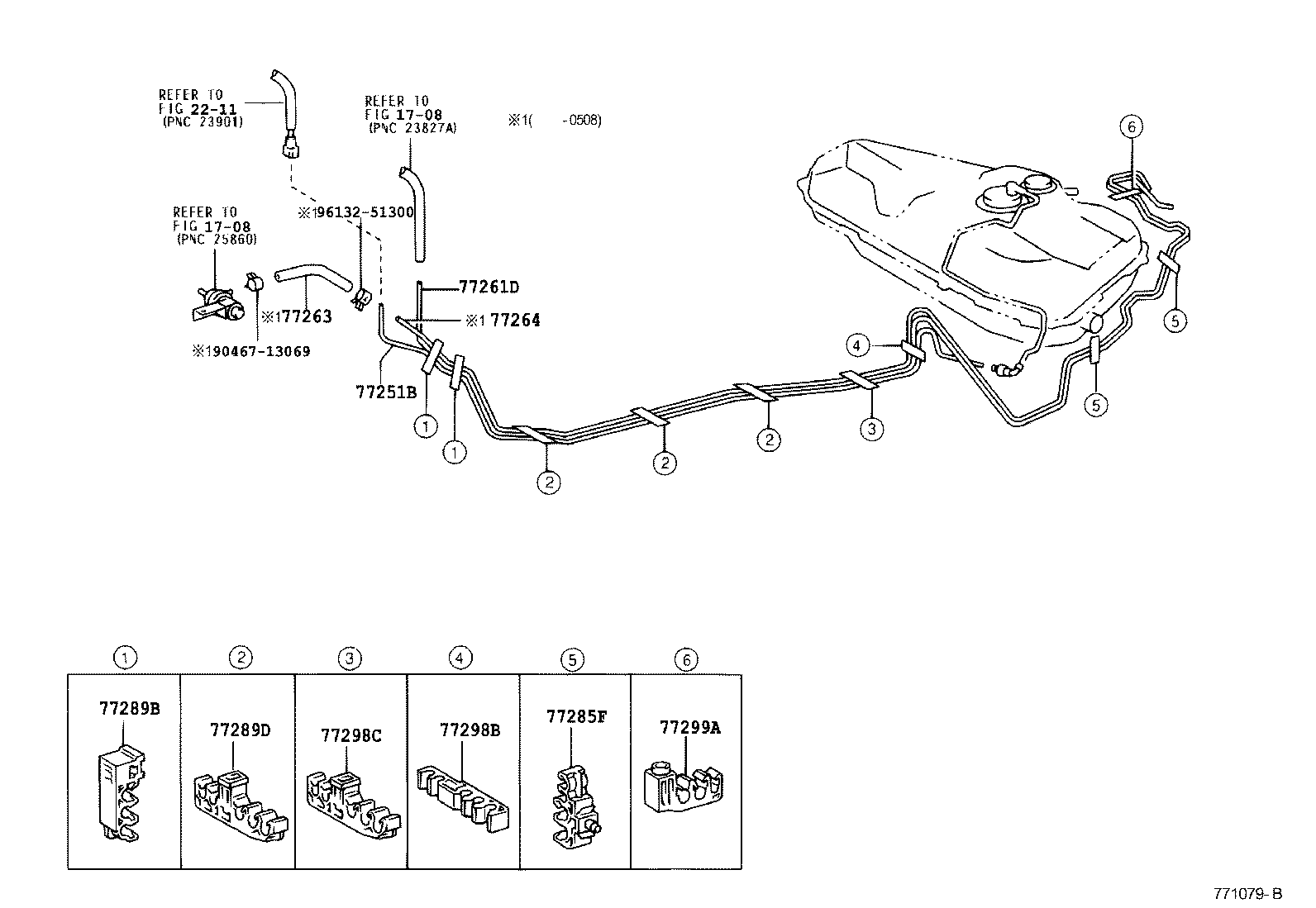

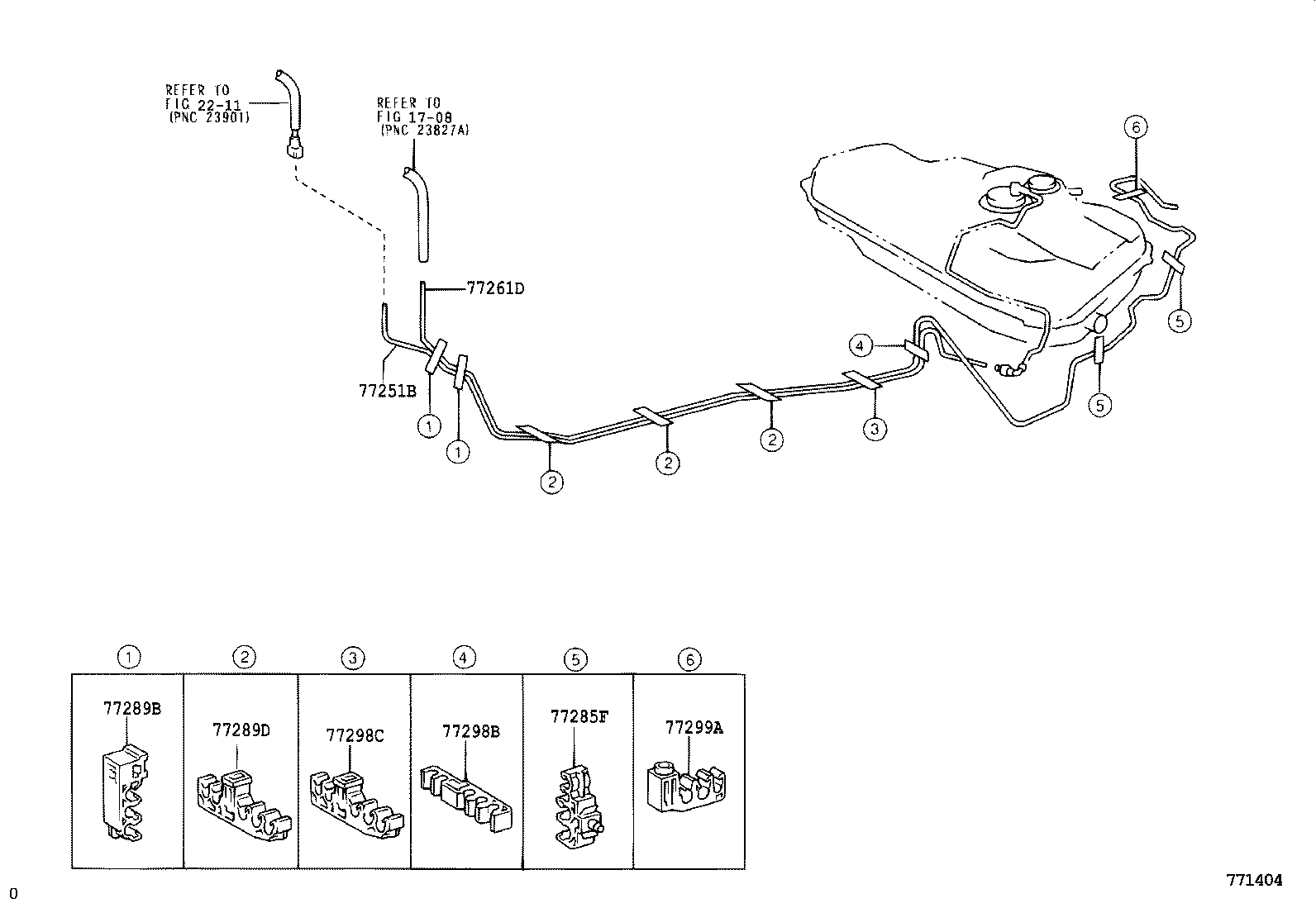

ILLUST NO. 2 OF 2(0201-0405)NAP ; (0405- )ZZE134..NAP
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-02220 |
ZZE132,133,134..NAP |
1 | ||
| 77251-02220 |
ZZE132,133,134..NAP |
1 | ||
| 77251-02220 |
ZZE132..NAP |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-02180 |
ZZE132,133..NAP |
1 | ||
| 77261-02180 |
ZZE132,133..NAP |
1 | ||
| 77261-02220 |
ZZE132..NAP |
1 | ||
| 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 | ||||
| 95333-08020 |
ZZE132,133,134..NAP |
1 | ||
| 95333-08020 |
ZZE132,133,134..NAP |
1 | ||
| 77264 - TUBE, CANISTER TO FRONT SIDE MEMBER | ||||
| 77264-02030 |
ZZE132,133..NAP |
1 | ||
| 77264-02030 |
ZZE132,133..NAP |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-02020 |
ZZE132,133,134..NAP |
2 | ||
| 77285-02020 |
ZZE132..NAP |
2 | ||
| 77285-02020 |
ZZE132,133,134..NAP |
2 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-02010 |
ZZE132,133,134..NAP |
2 | ||
| 77289-02010 |
ZZE132,133,134..NAP |
2 | ||
| 77289-02010 |
ZZE132..NAP |
2 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 77298-06040 |
ZZE132,133,134..NAP |
3 | ||
| 77298-06040 |
ZZE132,133,134..NAP |
3 | ||
| 77298-06040 |
ZZE132..NAP |
3 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-02010 |
ZZE132,133,134..NAP |
1 | ||
| 77298-02010 |
ZZE132,133,134..NAP |
1 | ||
| 77298-02010 |
ZZE132..NAP |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-02030 |
ZZE132,133,134..NAP |
1 | ||
| 77298-02030 |
ZZE132..NAP |
1 | ||
| 77298-02030 |
ZZE132,133,134..NAP |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-02020 |
ZZE132,133,134..NAP |
1 | ||
| 77299-02020 |
ZZE132..NAP |
1 | ||
| 77299-02020 |
ZZE132,133,134..NAP |
1 | ||
| Common parts | ||||
| 90467-13069 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 1 OF 2(0405- )ZZE130,131,132,133..NAP
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-0D030 |
1ZZFE,2ZZGE..ZZE132,133..NAP |
1 | ||
| 23217-0D030 |
1ZZFE,2ZZGE..ZZE132,133..NAP |
1 | ||
| 23217-0D100 |
1ZZFE..ZZE132..NAP |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-0A030 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 23221-0D100 |
1ZZFE,2ZZGE..ZZE132,133..NAP |
1 | ||
| 23220-0D210 |
1ZZFE..ZZE132..NAP |
1 | ||
| 23221-0A030 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 23243A - WIRE, FUEL PUMP MOTOR | ||||
| 23243-0D010 |
1ZZFE,2ZZGE..ZZE132,133..NAP |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
1ZZFE,2ZZGE..ZZE132,133..NAP |
1 | ||
| 23280-22010 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 23280-22010 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 90301-04013 |
1ZZFE,2ZZGE..ZZE132,133..NAP NO.1 |
1 | ||
| 90301-15024 |
1ZZFE,2ZZGE..ZZE132,133..NAP NO.2 |
1 | ||
| 90301-07020 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 90301-04013 |
1ZZFE,2ZZGE..ZZE132,133..NAP NO.1 |
1 | ||
| 90301-15024 |
1ZZFE,2ZZGE..ZZE132,133..NAP NO.2 |
1 | ||
| 90301-07020 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 90301-04013 |
1ZZFE,2ZZGE..ZZE132,133..NAP NO.1 |
1 | ||
| 90301-15024 |
1ZZFE,2ZZGE..ZZE132,133..NAP NO.2 |
1 | ||
| 90301-07020 |
1ZZFE,2ZZGE..ZZE132,133,134..NAP |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-02180 |
ZZE132,133..NAP |
1 | ||
| 77020-02181 |
ZZE132..NAP |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-02100 |
ZZE132,133,134..NAP |
1 | ||
| 77035-02100 |
ZZE132,133,134..NAP |
1 | ||
| 77035-02100 |
ZZE132..NAP |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-02150 |
ZZE132,133..NAP |
1 | ||
| 77001-02150 |
ZZE132,133..NAP |
1 | ||
| 77001-01080 |
ZZE132..NAP |
1 | ||
| 77001-01060 |
ZZE132,133..NAP |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-04010 |
ZZE132,133..NAP |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-02020 |
ZZE132,133,134..NAP |
1 | ||
| 77169-02020 |
ZZE132,133,134..NAP |
1 | ||
| 77169-02050 |
ZZE132,133..NAP |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-02030 |
ZZE132..NAP |
1 | ||
| 77196-12030 |
ZZE132,133,134..NAP |
1 | ||
| 77196-12030 |
ZZE132,133,134..NAP |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-02180 |
ZZE132,133..NAP |
1 | ||
| 77201-02150 |
ZZE132,133..NAP |
1 | ||
| 77201-02080 |
ZZE132,133,134..NAP |
1 | ||
| 77201-02080 |
ZZE132,133,134..NAP |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77213-01020 |
ZZE132,133,134..NAP |
1 | ||
| 77213-01020 |
ZZE132,133,134..NAP |
1 | ||
| 77213-02060 |
ZZE132..NAP |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-02060 |
ZZE132,133..NAP |
1 | ||
| 77209-02080 |
ZZE132,133..NAP |
1 | ||
| 77209-02060 |
ZZE132,133..NAP |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-02070 |
ZZE132,133,134..NAP |
1 | ||
| 77216-02080 |
ZZE132..NAP |
1 | ||
| 77216-02070 |
ZZE132,133,134..NAP |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-02040 |
ZZE132,133,134..NAP |
1 | ||
| 77217-02050 |
ZZE132..NAP |
1 | ||
| 77217-02040 |
ZZE132,133,134..NAP |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-02030 |
ZZE132..NAP |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-06020 |
ZZE132,133,134..NAP |
1 | ||
| 77229-06020 |
ZZE132,133,134..NAP |
1 | ||
| 77229-02020 |
ZZE132..NAP |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-02010 |
ZZE132,133,134..NAP |
2 | ||
| 77241-02010 |
ZZE132,133..NAP |
1 | ||
| 77241-02010 |
ZZE132,133,134..NAP |
2 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-02010 |
ZZE132,133..NAP |
1 | ||
| 77276-02010 |
ZZE132,133..NAP |
1 | ||
| 77276-02020 |
ZZE132..NAP |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-02050 |
ZZE132,133,134..NAP |
1 | ||
| 77277-02050 |
ZZE132,133,134..NAP |
1 | ||
| 77277-02070 |
ZZE132..NAP |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-12080 |
ZZE132,133,134..NAP |
1 | ||
| 77281-12080 |
ZZE132,133,134..NAP |
1 | ||
| 77281-02050 |
ZZE132..NAP |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-02060 |
ZZE132,133,134..NAP |
1 | ||
| 77291-02060 |
ZZE132..NAP |
1 | ||
| 77291-02060 |
ZZE132,133,134..NAP |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
ZZE132..NAP |
2 | ||
| 77295-12070 |
ZZE132,133,134..NAP |
2 | ||
| 77295-12070 |
ZZE132,133,134..NAP |
2 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
ZZE132..NAP |
2 | ||
| 77295-12070 |
ZZE132,133,134..NAP |
2 | ||
| 77295-12070 |
ZZE132,133,134..NAP |
2 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-12040 |
ZZE132,133,134..NAP |
1 | ||
| 77296-12040 |
ZZE132,133,134..NAP |
1 | ||
| 77296-02010 |
ZZE132..NAP |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-02021 |
ZZE132,133,134..NAP |
1 | ||
| 77306-02021 |
ZZE132,133,134..NAP |
1 | ||
| 77306-02020 |
ZZE132,133,134..NAP |
1 | ||
| 77306-02021 |
ZZE132..NAP |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-08010 |
ZZE132,133,134..NAP |
1 | ||
| 77300-06040 |
ZZE132,133..NAP (L) |
1 | ||
| 77300-08010 |
ZZE132,133,134..NAP |
1 | ||
| 77300-33070 |
ZZE132,133..NAP |
1 | ||
| 77300-52040 |
ZZE132,133..NAP (J) |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-33042 |
ZZE132,133..NAP |
1 | ||
| 77316-06010 |
ZZE132,133,134..NAP |
1 | ||
| 77316-06010 |
ZZE132,133,134..NAP |
1 | ||
| 77316-06050 |
ZZE132,133..NAP (L) |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-02020 |
ZZE132,133,134..NAP |
1 | ||
| 77350-02021 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 77350-02021 |
ZZE132..NAP |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30070 |
ZZE132,133,134..NAP |
1 | ||
| 77360-30070 |
ZZE132..NAP |
1 | ||
| 77360-30070 |
ZZE132,133,134..NAP |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-02010 |
ZZE132,133,134..NAP |
1 | ||
| 77377-02010 |
ZZE132,133,134..NAP |
1 | ||
| 77377-02010 |
ZZE132..NAP |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12050 |
ZZE132,133,134..NAP |
1 | ||
| 77391-12050 |
ZZE132,133,134..NAP |
1 | ||
| 77391-02070 |
ZZE132,134..NAP;ZZE133..NAP..6F |
1 | ||
| 77391-02070 |
ZZE132..NAP |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-02040 |
ZZE132,133,134..NAP |
1 | ||
| 77391-02040 |
ZZE132,133,134..NAP |
1 | ||
| 77391-02040 |
ZZE132,133,134..NAP |
1 | ||
| 77444 - HOSE, FUEL TANK VENT | ||||
| 77404-02020 |
ZZE132,133..NAP |
1 | ||
| 77404-02020 |
ZZE132,133..NAP |
1 | ||
| 77404-02051 |
ZZE132,133..NAP |
1 | ||
| 77404-02050 |
ZZE132,133..NAP |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-12250 |
ZZE132,133..NAP |
1 | ||
| 77601-12250 |
ZZE132,133..NAP |
1 | ||
| 77601-02070 |
ZZE132..NAP |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77612-02080 |
ZZE132..NAP |
1 | ||
| 77602-12210 |
ZZE132,133..NAP |
1 | ||
| 77602-12210 |
ZZE132,133..NAP |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-02030 |
ZZE132,133..NAP |
1 | ||
| 77641-02050 |
ZZE132..NAP |
1 | ||
| 77641-02030 |
ZZE132,133..NAP |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-02040 |
ZZE132,133..NAP |
7 | ||
| 77651-12080 |
ZZE132,133..NAP |
4 | ||
| 77651-02040 |
ZZE132,133..NAP |
7 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-02121 |
ZZE132,133..NAP |
1 | ||
| 77740-02121 |
ZZE132,133..NAP |
1 | ||
| 77740-02130 |
ZZE132..NAP |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-02030 |
ZZE132,133..NAP |
1 | ||
| 77754-02030 |
ZZE132,133..NAP |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-02010 |
ZZE132..NAP |
1 | ||
| Common parts | ||||
| 90080-11354 | ||||
| 90080-11654 | ||||
| 90105-08158 | ||||
| 90105-08325 | ||||
| 90119-A0095 | ||||
| 90119-A0107 | ||||
| 90119-A0109 | ||||
| 90159-60602 | ||||
| 90269-A0003 | ||||
| 90460-42005 | ||||
| 90460-46003 | ||||
| 90999-92002 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0405- )ZZE130,131,132,133..NAP
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-02220 |
ZZE132,133,134..NAP |
1 | ||
| 77251-02220 |
ZZE132,133,134..NAP |
1 | ||
| 77251-02220 |
ZZE132..NAP |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-02180 |
ZZE132,133..NAP |
1 | ||
| 77261-02180 |
ZZE132,133..NAP |
1 | ||
| 77261-02220 |
ZZE132..NAP |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-02020 |
ZZE132,133,134..NAP |
2 | ||
| 77285-02020 |
ZZE132..NAP |
2 | ||
| 77285-02020 |
ZZE132,133,134..NAP |
2 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-02010 |
ZZE132,133,134..NAP |
2 | ||
| 77289-02010 |
ZZE132,133,134..NAP |
2 | ||
| 77289-02010 |
ZZE132..NAP |
2 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 77298-06040 |
ZZE132,133,134..NAP |
3 | ||
| 77298-06040 |
ZZE132,133,134..NAP |
3 | ||
| 77298-06040 |
ZZE132..NAP |
3 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-02010 |
ZZE132,133,134..NAP |
1 | ||
| 77298-02010 |
ZZE132,133,134..NAP |
1 | ||
| 77298-02010 |
ZZE132..NAP |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-02030 |
ZZE132,133,134..NAP |
1 | ||
| 77298-02030 |
ZZE132..NAP |
1 | ||
| 77298-02030 |
ZZE132,133,134..NAP |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-02020 |
ZZE132,133,134..NAP |
1 | ||
| 77299-02020 |
ZZE132..NAP |
1 | ||
| 77299-02020 |
ZZE132,133,134..NAP |
1 | ||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
