ZZE132L-DHMDKA (2002)
Toyota Corolla/Matrix (Nap)
Production
Jan 2002
-
Jan 2008
Engine
1ZZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0201- )ZZE130,132,134..NAP

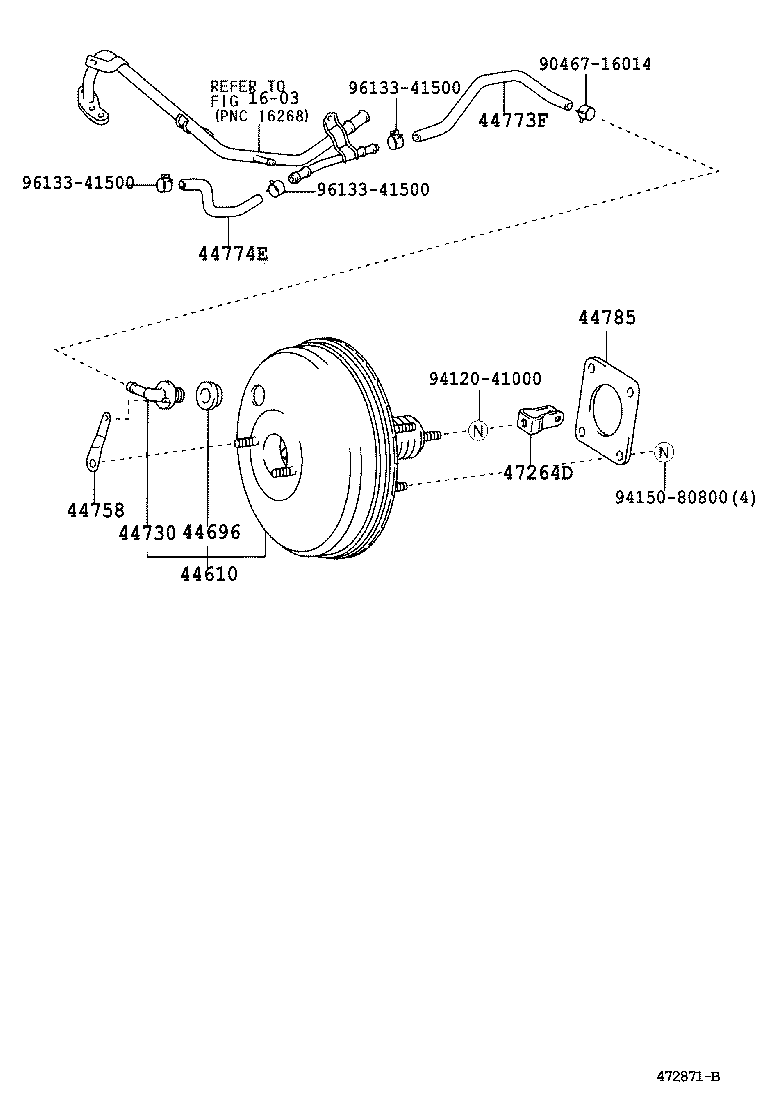

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-02210 |
ZZE132,133,134..NAP |
1 | ||
| 44610-02210 |
ZZE132,133,134..NAP |
1 | ||
| 44610-02210 |
ZZE132..NAP |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
ZZE132..NAP |
1 | ||
| 90480-24439 |
ZZE132,133,134..NAP |
1 | ||
| 90480-24439 |
ZZE132,133,134..NAP |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-12070 |
ZZE132..NAP |
1 | ||
| 44730-12070 |
ZZE132,133,134..NAP |
1 | ||
| 44730-12070 |
ZZE132,133,134..NAP |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-02050 |
ZZE132..NAP |
1 | ||
| 44758-02050 |
ZZE132,133,134..NAP |
1 | ||
| 44758-02050 |
ZZE132,133,134..NAP |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-12710 |
ZZE132,134..NAP |
1 | ||
| 44773-12710 |
ZZE132..NAP |
1 | ||
| 44774E - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-20310 |
ZZE132,134..NAP |
1 | ||
| 44774-20310 |
ZZE132..NAP |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-02010 |
ZZE132,133,134..NAP |
1 | ||
| 44785-02010 |
ZZE132,133,134..NAP |
1 | ||
| 44785-02010 |
ZZE132..NAP |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-12060 |
ZZE132,133,134..NAP |
1 | ||
| 47264-12060 |
ZZE132,133,134..NAP |
1 | ||
| 47264-12060 |
ZZE132..NAP |
1 | ||
| Common parts | ||||
| 90467-16014 | ||||
| 94120-41000 | ||||
| 94150-80800 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 1603 | ||||
