ZZE131L-DEFSFK (2004)

Toyota Corolla/Matrix (Nap)

Production May 2004 - Jul 2006
Engine 2ZZGE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0405- )ZZE130,131..NAP

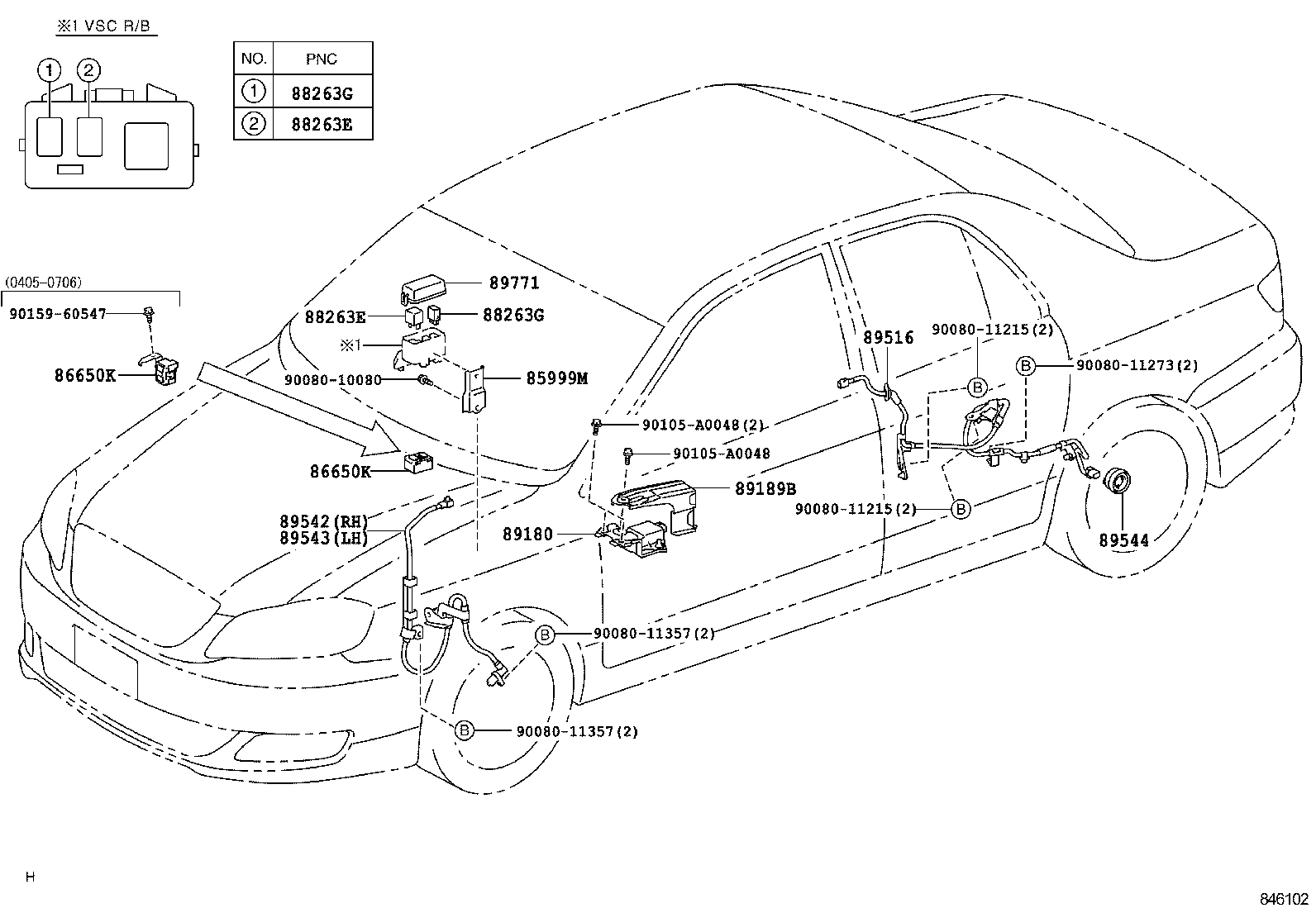

Click highlighted areas on diagram

diagram 85999M 86650K 86650K 88263E 88263E 88263G 88263G 89180 89189B 89516 89542 89543 89544 89771 9008010080 9008011215 9008011215 9008011273 9008011357 9008011357 90105A0048 90105A0048 9015960547
Part # Description Qty Price
89516 - WIRE, SKID CONTROL SENSOR
89516-12040

ZZE131..NAP

LH

 1
89516-12010

ZZE131..NAP

RH

 1
89542 - SENSOR, SPEED, FRONT RH
89542-02050

ZZE131..NAP

 1
89543 - SENSOR, SPEED, FRONT LH
89543-02050

ZZE131..NAP

 1
Common parts
90080-10080
90080-11215
90080-11273
90080-11357
90105-A0048
90159-60547
