ZZE131L-DEFSFK (2004)

Toyota Corolla/Matrix (Nap)

Production May 2004 - Jul 2006
Engine 2ZZGE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 7(0405- )ZZE130,131..NAP

Click highlighted areas on diagram

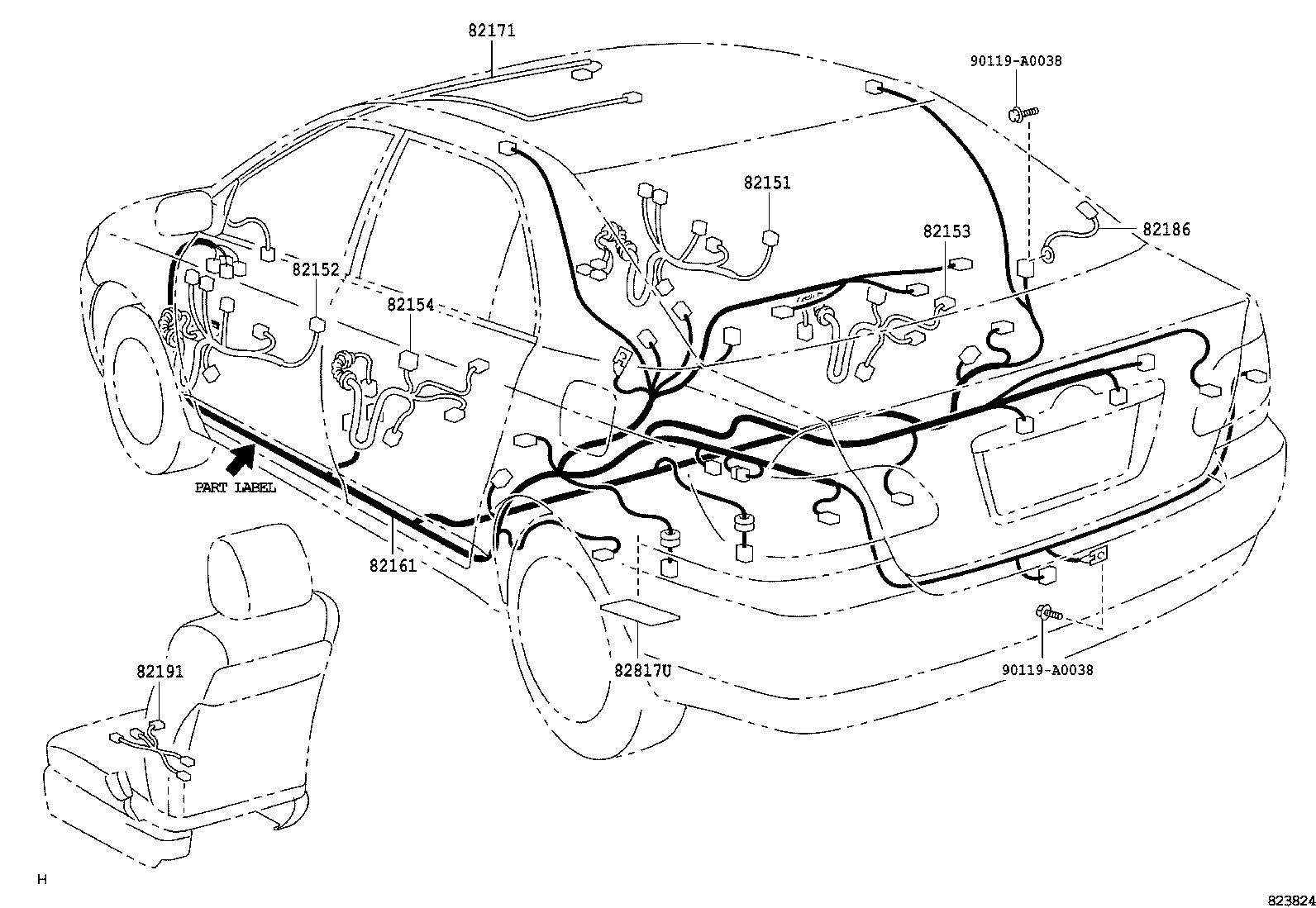

DOOR,FLOOR & ROOF

diagram 82151 82152 82153 82154 82161 82171 82186 82191 82817U 90119A0038 90119A0038
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-02A60

ZZE131..NAP

 1
82151-02A30

ZZE131..NAP

W(POWER WINDOW)

 1
82151-02A40

ZZE131..NAP

W(POWER WINDOW & 6 SPEAKER)

 1
82152 - WIRE, FRONT DOOR, LH
82152-02A20

ZZE131..NAP

W(POWER WINDOW)

 1
82152-02A30

ZZE131..NAP

W(POWER WINDOW & 6 SPEAKER)

 1
82152-02A50

ZZE131..NAP

 1
82153 - WIRE, REAR DOOR, NO.1
82153-02380

ZZE130..NAP;ZZE131..NAP..CND

W(POWER WINDOW)

 1
82153-02390

ZZE130..NAP;ZZE131..NAP..CND

 1
82154 - WIRE, REAR DOOR, NO.2
82153-02380

ZZE130..NAP;ZZE131..NAP..CND

W(POWER WINDOW)

 1
82153-02390

ZZE130..NAP;ZZE131..NAP..CND

 1
82161 - WIRE, FLOOR
82161-02C40

ZZE130,131..NAP

PART NUMBER LABEL=82161-02C40

 1
82161-02C30

ZZE130,131..NAP

PART NUMBER LABEL=82161-02C30

 1
82171 - WIRE, ROOF, NO.1
82171-02690

ZZE130,131..NAP..(LE,S)

W(DAY & NIGHT MIRROR)

 1
82171-02452

ZZE131..NAP

W(MOON ROOF)

 1
82171-02680

ZZE130,131..NAP..(LE,S)

W(EC MIRROR)

 1
82171-02700

ZZE130,131..NAP

 1
82171-02451

ZZE130,131..NAP

W(MOON ROOF)

 1
82171-02691

ZZE131..NAP

W(DAY & NIGHT MIRROR)

 1
82171-02701

ZZE131..NAP

 1
82171-02681

ZZE131..NAP

W(EC MIRROR)

 1
82186 - WIRE, REAR WINDOW, NO.1
82187-02110

ZZE131..NAP

 1
82817U - PROTECTOR, WIRING HARNESS, NO.16
82817-1A640

ZZE131..NAP

 1
Common parts
90119-A0038
