ZZE131L-DEFSFA (2004)
Toyota Corolla/Matrix (Nap)
Production
May 2004
-
Jul 2006
Engine
2ZZGE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0405- )NAP

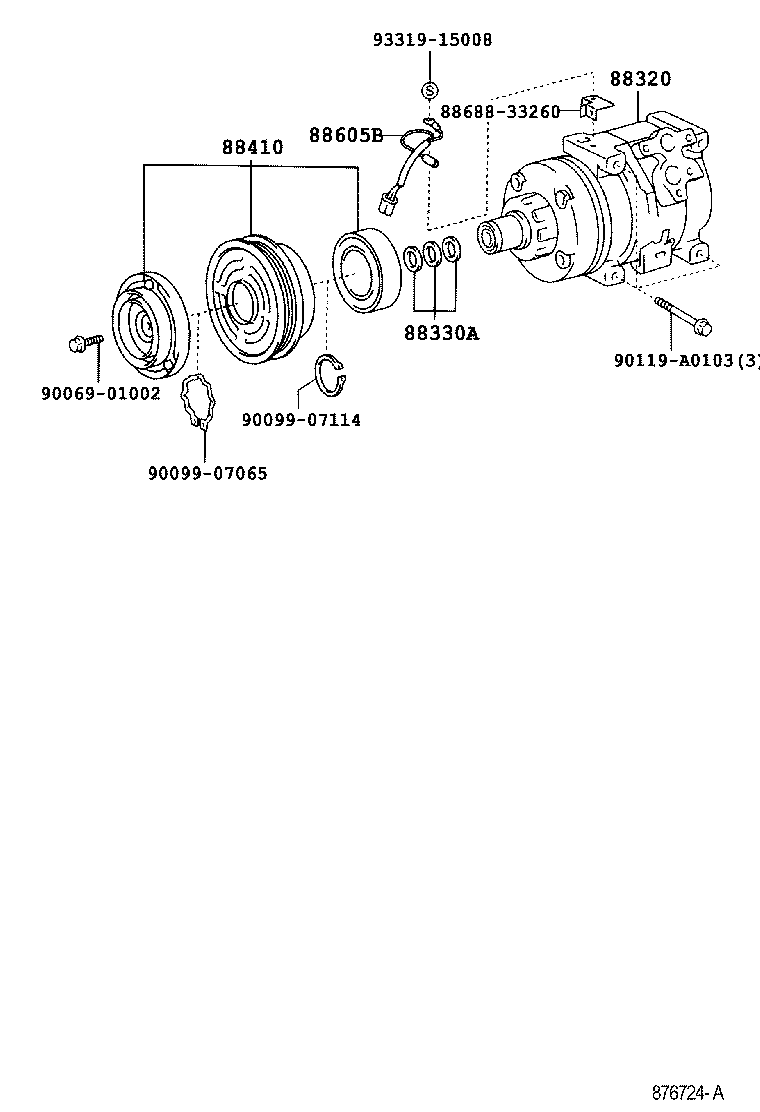

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-02120 |
ZZE131..NAP |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
ZZE131..NAP |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-02130 |
ZZE131..NAP |
1 | ||
| 88605B - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-35420 |
ZZE130,131..NAP |
1 | ||
| Common parts | ||||
| 88688-33260 | ||||
| 90069-01002 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-A0103 | ||||
| 93319-15008 | ||||
