ZZE131L-DEFSFA (2004)

Toyota Corolla/Matrix (Nap)

Production May 2004 - Jul 2006
Engine 2ZZGE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0405- )ZZE130,131..NAP

Click highlighted areas on diagram

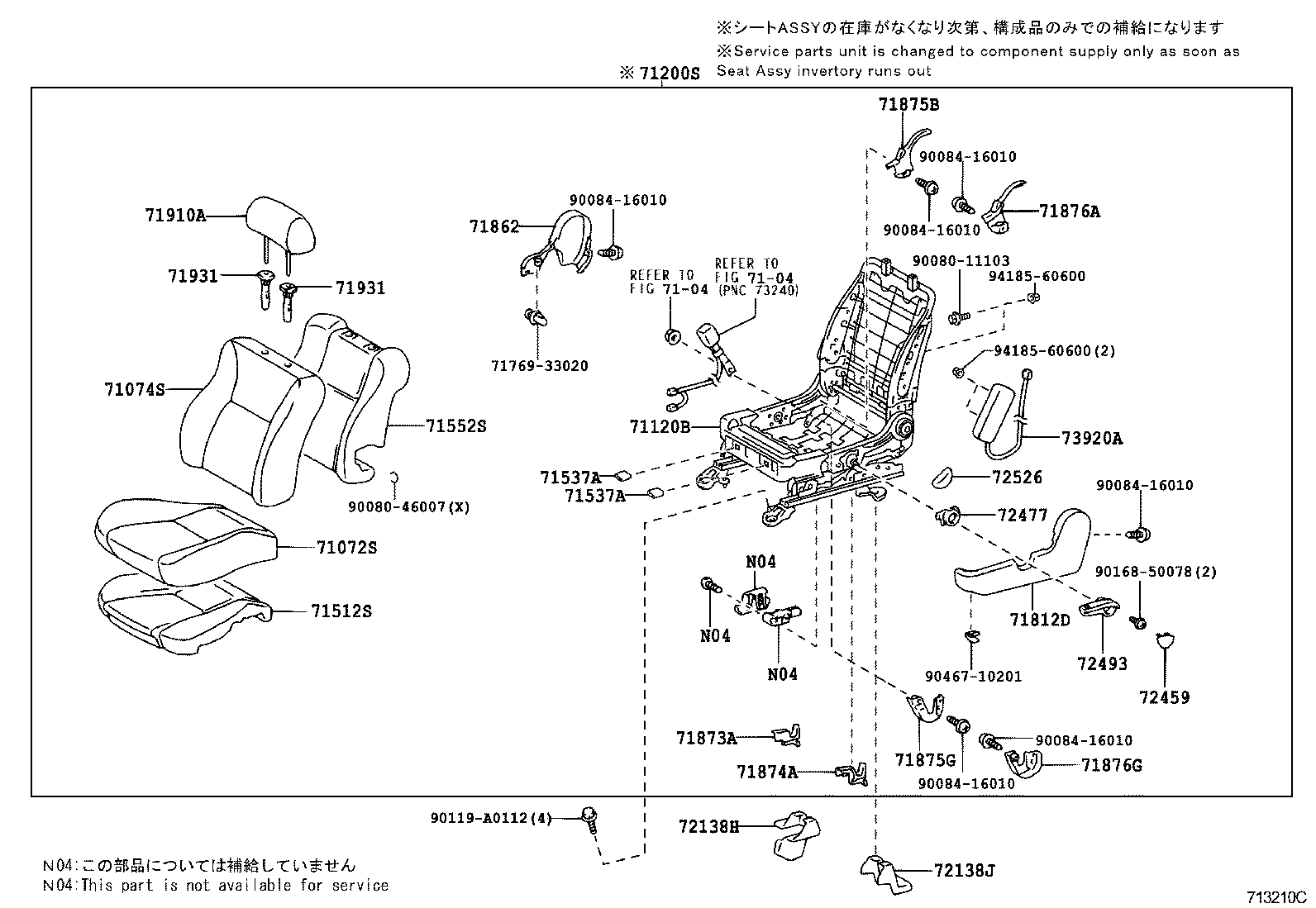

DRIVER SIDE-W(SIDE AIR BAG)

diagram 7104 7104 71072S 71074S 71120B 71200S 71512S 71537A 71537A 71552S 7176933020 71812D 71862 71873A 71874A 71875B 71875G 71876A 71876G 71910A 71931 71931 72138H 72138J 72459 72477 72493 72526 73920A 9008011103 9008046007 9008416010 9008416010 9008416010 9008416010 9008416010 9008416010 90119A0112 9016850078 9046710201 9418560600 9418560600
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-02670J0

ZZE131..NAP

DARK BLUE,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-0Z080J0

ZZE131..NAP

DARK BLUE,TRIM1#

 1
71074-02E90J0

ZZE131..NAP

W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#

 1
71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH
71120-02030

ZZE131..NAP

 1
71200S - SEAT ASSY, FRONT LH
71200-02L20B4

ZZE131..NAP

DK GRAY,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-02020

ZZE131..NAP

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-02370

ZZE131..NAP

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-01140B0

ZZE131..NAP

DARK GRAY,TRIM1#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02080B1

ZZE131..NAP

W/O(LOCK),DK.GRAY,TRIM1#

 1
71930-02090B1

ZZE131..NAP

W(LOCK),DK.GRAY,TRIM1#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02080B1

ZZE131..NAP

W/O(LOCK),DK.GRAY,TRIM1#

 1
71930-02090B1

ZZE131..NAP

W(LOCK),DK.GRAY,TRIM1#

 1
72138H - COVER, FRONT SEAT TRACK, LH REAR INNER
72158-02060

ZZE130,131..NAP

 1
72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER
72137-02080

ZZE130,131..NAP

 1
Common parts
71769-33020
90080-11103
90080-46007
90084-16010
90119-A0112
90168-50078
90467-10201
94185-60600
Linked diagrams
7104

(0405- )ZZE130,131..NAP

Click highlighted areas on diagram

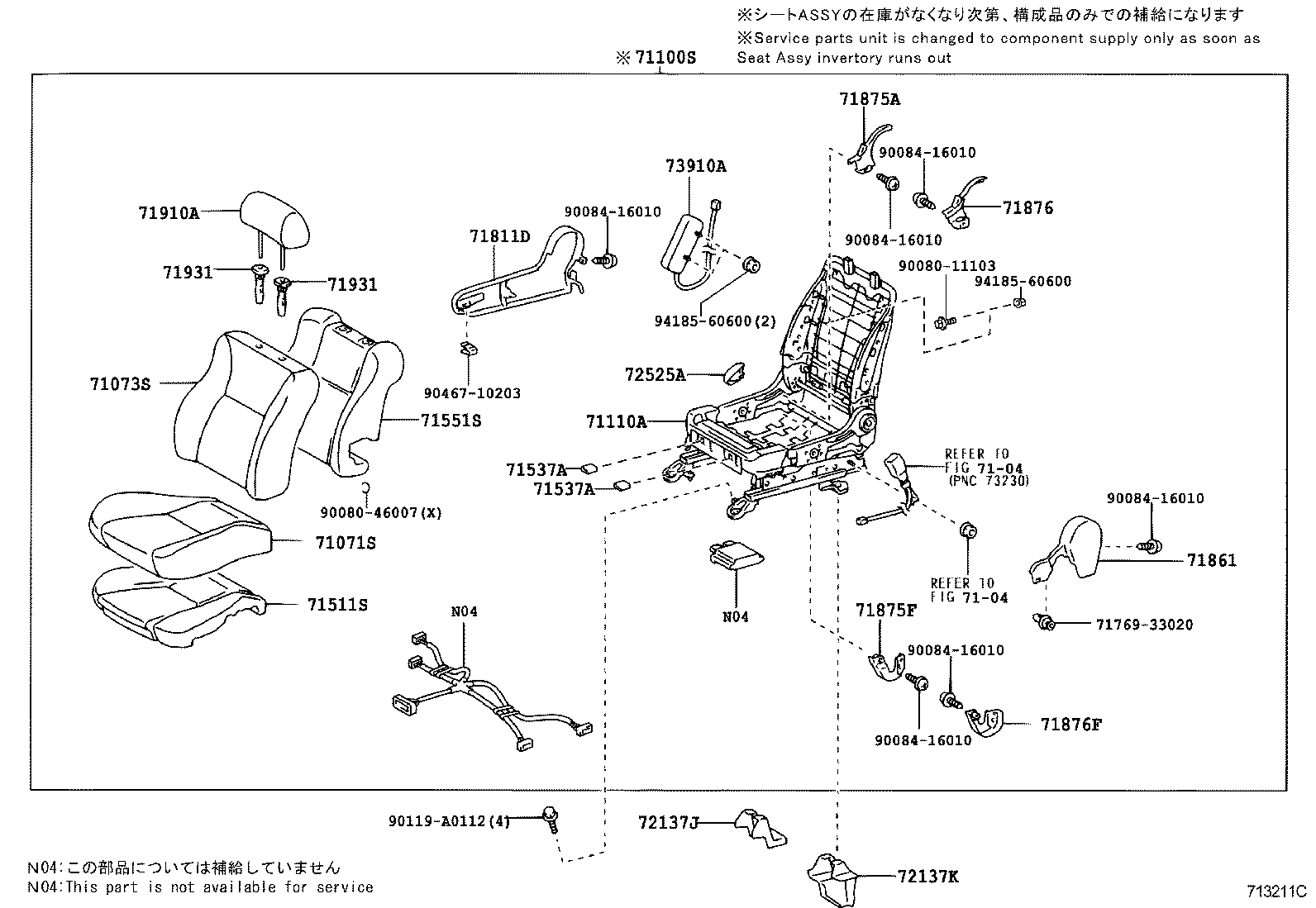

PASSENGER SIDE-W(SIDE AIR BAG)

diagram 7104 7104 71071S 71073S 71100S 71110A 71511S 71537A 71537A 71551S 7176933020 71811D 71861 71875A 71875F 71876 71876F 71910A 71931 71931 72137J 72137K 72525A 73910A 9008011103 9008046007 9008416010 9008416010 9008416010 9008416010 9008416010 9008416010 90119A0112 9046710203 9418560600 9418560600
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0Z060J0

ZZE131..NAP

DARK BLUE,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0Z090J0

ZZE131..NAP

W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#

 1
71073-0Z080J0

ZZE131..NAP

DARK BLUE,TRIM1#

 1
71100S - SEAT ASSY, FRONT RH
71100-02J81B1

ZZE131..NAP

DK GRAY,TRIM1#

 1
71100-02J80B2

ZZE131..NAP

DK.GRAY,TRIM1#

 1
71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-02031

ZZE131..NAP

 1
71110-02030

ZZE131..NAP

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-02240

ZZE131..NAP

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-02370

ZZE131..NAP

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-01140B0

ZZE131..NAP

DARK GRAY,TRIM1#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02080B1

ZZE131..NAP

W/O(LOCK),DK.GRAY,TRIM1#

 1
71930-02090B1

ZZE131..NAP

W(LOCK),DK.GRAY,TRIM1#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02080B1

ZZE131..NAP

W/O(LOCK),DK.GRAY,TRIM1#

 1
71930-02090B1

ZZE131..NAP

W(LOCK),DK.GRAY,TRIM1#

 1
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-02080

ZZE130,131..NAP

 1
72137K - COVER, FRONT SEAT TRACK, RH REAR INNER
72157-02060

ZZE130,131..NAP

 1
Common parts
71769-33020
90080-11103
90080-46007
90084-16010
90119-A0112
90467-10203
94185-60600
Linked diagrams
7104

(0405- )ZZE130,131..NAP

Click highlighted areas on diagram

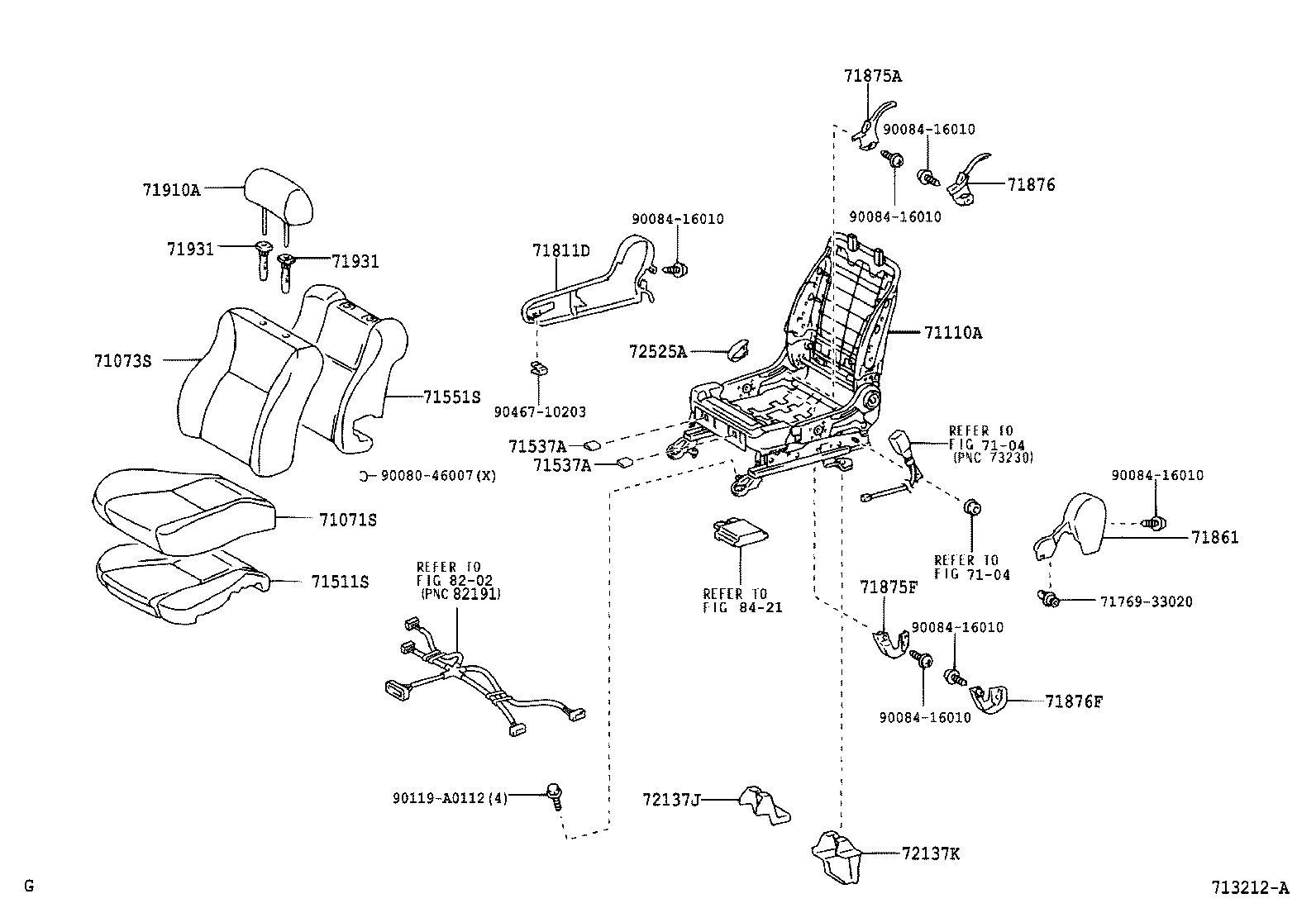

PASSENGER SIDE

diagram 7104 7104 71071S 71073S 71110A 71511S 71537A 71537A 71551S 7176933020 71811D 71861 71875A 71875F 71876 71876F 71910A 71931 71931 72137J 72137K 72525A 8202 8421 9008046007 9008416010 9008416010 9008416010 9008416010 9008416010 9008416010 90119A0112 9046710203
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0Z060J0

ZZE131..NAP

DARK BLUE,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0Z090J0

ZZE131..NAP

W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#

 1
71073-0Z080J0

ZZE131..NAP

DARK BLUE,TRIM1#

 1
71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-02031

ZZE131..NAP

 1
71110-02030

ZZE131..NAP

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-02240

ZZE131..NAP

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-02370

ZZE131..NAP

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-01140B0

ZZE131..NAP

DARK GRAY,TRIM1#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02080B1

ZZE131..NAP

W/O(LOCK),DK.GRAY,TRIM1#

 1
71930-02090B1

ZZE131..NAP

W(LOCK),DK.GRAY,TRIM1#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02080B1

ZZE131..NAP

W/O(LOCK),DK.GRAY,TRIM1#

 1
71930-02090B1

ZZE131..NAP

W(LOCK),DK.GRAY,TRIM1#

 1
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-02080

ZZE130,131..NAP

 1
72137K - COVER, FRONT SEAT TRACK, RH REAR INNER
72157-02060

ZZE130,131..NAP

 1
Common parts
71769-33020
90080-46007
90084-16010
90119-A0112
90467-10203
Linked diagrams
7104
8202
8421

(0405- )ZZE130,131..NAP

Click highlighted areas on diagram

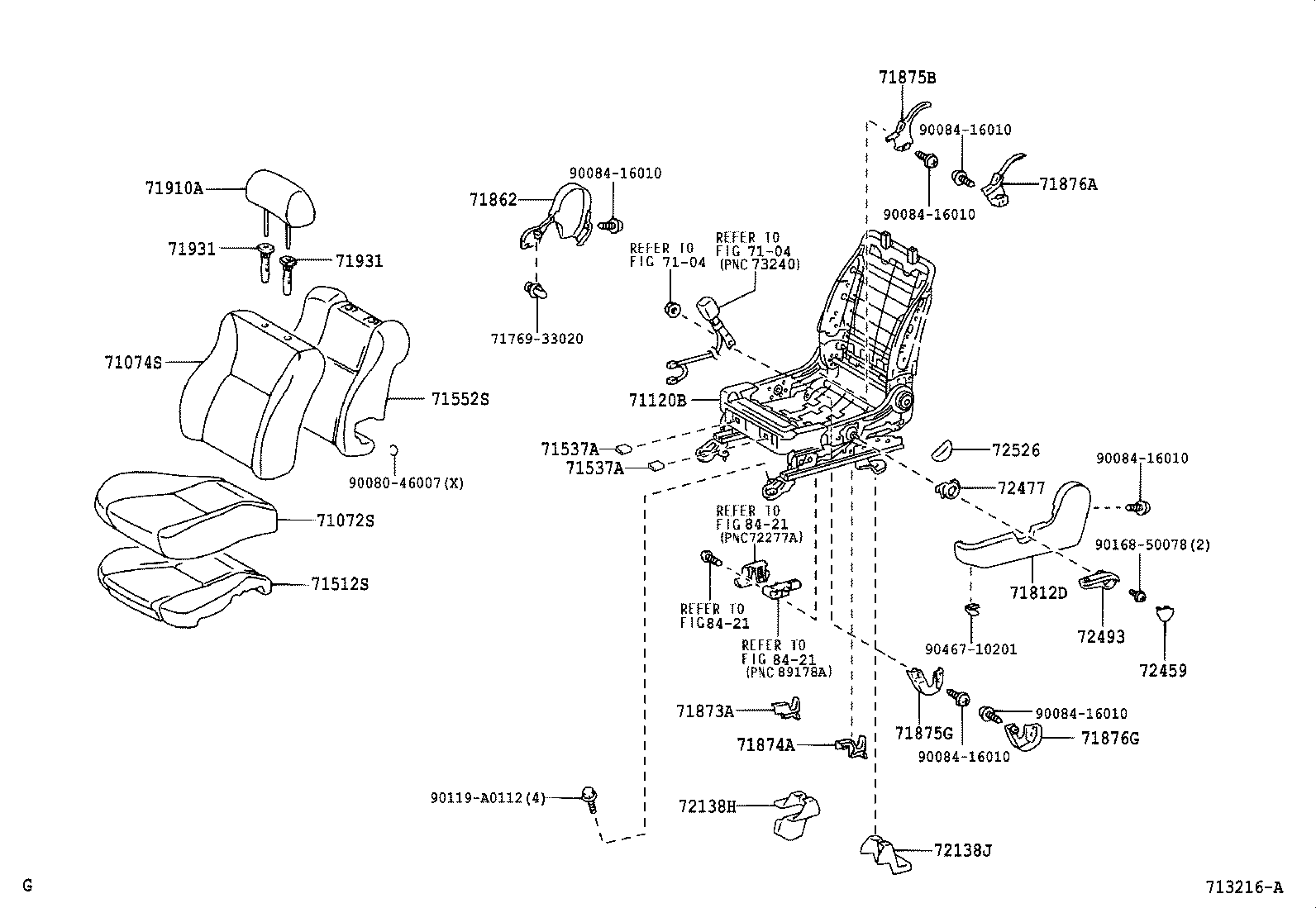

DRIVER SIDE

diagram 7104 7104 71072S 71074S 71120B 71512S 71537A 71537A 71552S 7176933020 71812D 71862 71873A 71874A 71875B 71875G 71876A 71876G 71910A 71931 71931 72138H 72138J 72459 72477 72493 72526 8421 8421 8421 9008046007 9008416010 9008416010 9008416010 9008416010 9008416010 9008416010 90119A0112 9016850078 9046710201
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-02670J0

ZZE131..NAP

DARK BLUE,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-0Z080J0

ZZE131..NAP

DARK BLUE,TRIM1#

 1
71074-02E90J0

ZZE131..NAP

W(SRS SIDE AIR BAG),DK.GRAY,TRIM1#

 1
71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH
71120-02030

ZZE131..NAP

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-02020

ZZE131..NAP

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-02370

ZZE131..NAP

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-01140B0

ZZE131..NAP

DARK GRAY,TRIM1#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02080B1

ZZE131..NAP

W/O(LOCK),DK.GRAY,TRIM1#

 1
71930-02090B1

ZZE131..NAP

W(LOCK),DK.GRAY,TRIM1#

 1
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02080B1

ZZE131..NAP

W/O(LOCK),DK.GRAY,TRIM1#

 1
71930-02090B1

ZZE131..NAP

W(LOCK),DK.GRAY,TRIM1#

 1
72138H - COVER, FRONT SEAT TRACK, LH REAR INNER
72158-02060

ZZE130,131..NAP

 1
72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER
72137-02080

ZZE130,131..NAP

 1
Common parts
71769-33020
90080-46007
90084-16010
90119-A0112
90168-50078
90467-10201
Linked diagrams
7104
8421
