ZZE130L-DEPSKK (2002)
Toyota Corolla/Matrix (Nap)

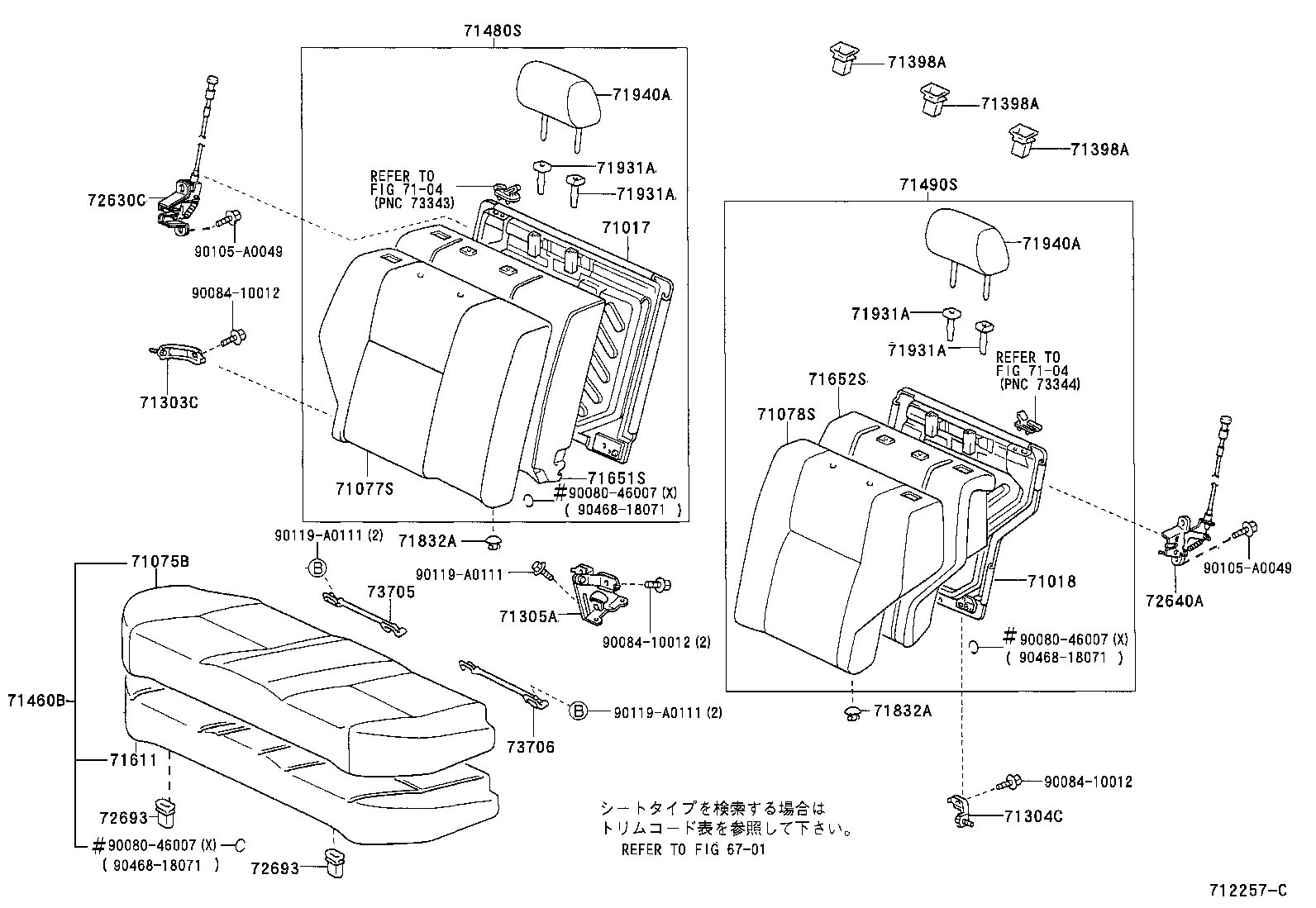

(0201-0405)ZZE130..NAP
SEPARATE TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-02231 |
ZZE130..NAP |
1 | ||
| 71017-02130 |
ZZE130..NAP |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-02120 |
ZZE130..NAP |
1 | ||
| 71018-02070 |
ZZE130..NAP |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-02520B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
1 | ||
| 71075-02A20B0 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 71075-02A21B0 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-02560B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
1 | ||
| 71077-02B40B1 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-02380B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
1 | ||
| 71078-02740B1 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-02050 |
ZZE130..NAP |
1 | ||
| 71303-02050 |
ZZE130..NAP |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71303-02050 |
ZZE130..NAP |
1 | ||
| 71303-02050 |
ZZE130..NAP |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-02050 |
ZZE130..NAP |
1 | ||
| 71305-02050 |
ZZE130..NAP |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-02480B1 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-02530B1 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-02340B1 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02090 |
ZZE130..NAP |
1 | ||
| 71503-02120 |
ZZE130,131..NAP |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02160 |
ZZE130..NAP |
1 | ||
| 71651-02110 |
ZZE130..NAP |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02100 |
ZZE130..NAP |
1 | ||
| 71652-02100 |
ZZE130..NAP |
1 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-09156C0 |
ZZE130..NAP BLACK |
4 | ||
| 90467-09156C0 |
ZZE130..NAP..S BLACK,TRIM1# |
4 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-09156C0 |
ZZE130..NAP BLACK |
4 | ||
| 90467-09156C0 |
ZZE130..NAP..S BLACK,TRIM1# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130,131..NAP..S W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71970-02040B1 |
ZZE130,131..NAP..S W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130,131..NAP..S W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71970-02040B1 |
ZZE130,131..NAP..S W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130,131..NAP..S W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71970-02040B1 |
ZZE130,131..NAP..S W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130,131..NAP..S W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71970-02040B1 |
ZZE130,131..NAP..S W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02360B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
2 | ||
| 71940-02670B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02360B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
2 | ||
| 71940-02670B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
2 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-02020 |
ZZE130..NAP |
1 | ||
| 72630-02020 |
ZZE130..NAP |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-02020 |
ZZE130..NAP |
1 | ||
| 72640-02020 |
ZZE130..NAP |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZZE130..NAP |
2 | ||
| 72693-12080 |
ZZE130..NAP |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZZE130..NAP |
2 | ||
| 72693-12080 |
ZZE130..NAP |
2 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-12040 |
ZZE130..NAP |
1 | ||
| 73705-12040 |
ZZE130..NAP |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-12040 |
ZZE130..NAP |
1 | ||
| 73706-12040 |
ZZE130..NAP |
1 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90084-10012 | ||||
| 90105-A0049 | ||||
| 90119-A0111 | ||||
| 90468-18071 | ||||
| Linked diagrams | ||||
| 6701 | ||||
| 7104 | ||||

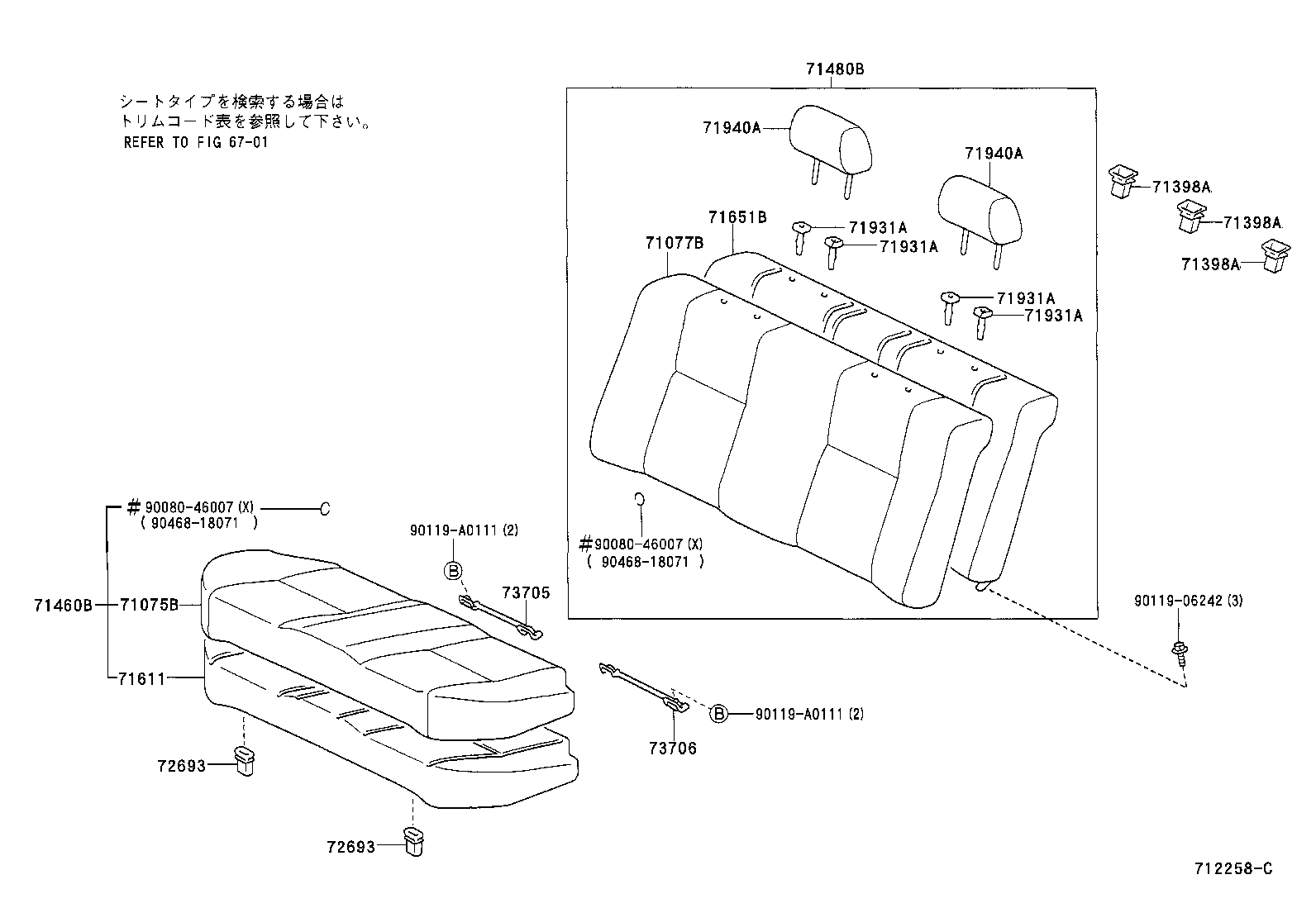

(0201-0405)ZZE130..NAP
BENCH TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-02520B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
1 | ||
| 71075-02A20B0 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 71075-02A21B0 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-02480B1 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02090 |
ZZE130..NAP |
1 | ||
| 71503-02120 |
ZZE130,131..NAP |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130,131..NAP..S W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71970-02040B1 |
ZZE130,131..NAP..S W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130,131..NAP..S W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71970-02040B1 |
ZZE130,131..NAP..S W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130,131..NAP..S W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71970-02040B1 |
ZZE130,131..NAP..S W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130,131..NAP..S W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71970-02040B1 |
ZZE130,131..NAP..S W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02360B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
2 | ||
| 71940-02670B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02360B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
2 | ||
| 71940-02670B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZZE130..NAP |
2 | ||
| 72693-12080 |
ZZE130..NAP |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZZE130..NAP |
2 | ||
| 72693-12080 |
ZZE130..NAP |
2 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-12040 |
ZZE130..NAP |
1 | ||
| 73705-12040 |
ZZE130..NAP |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-12040 |
ZZE130..NAP |
1 | ||
| 73706-12040 |
ZZE130..NAP |
1 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90119-06242 | ||||
| 90119-A0111 | ||||
| 90468-18071 | ||||
| Linked diagrams | ||||
| 6701 | ||||

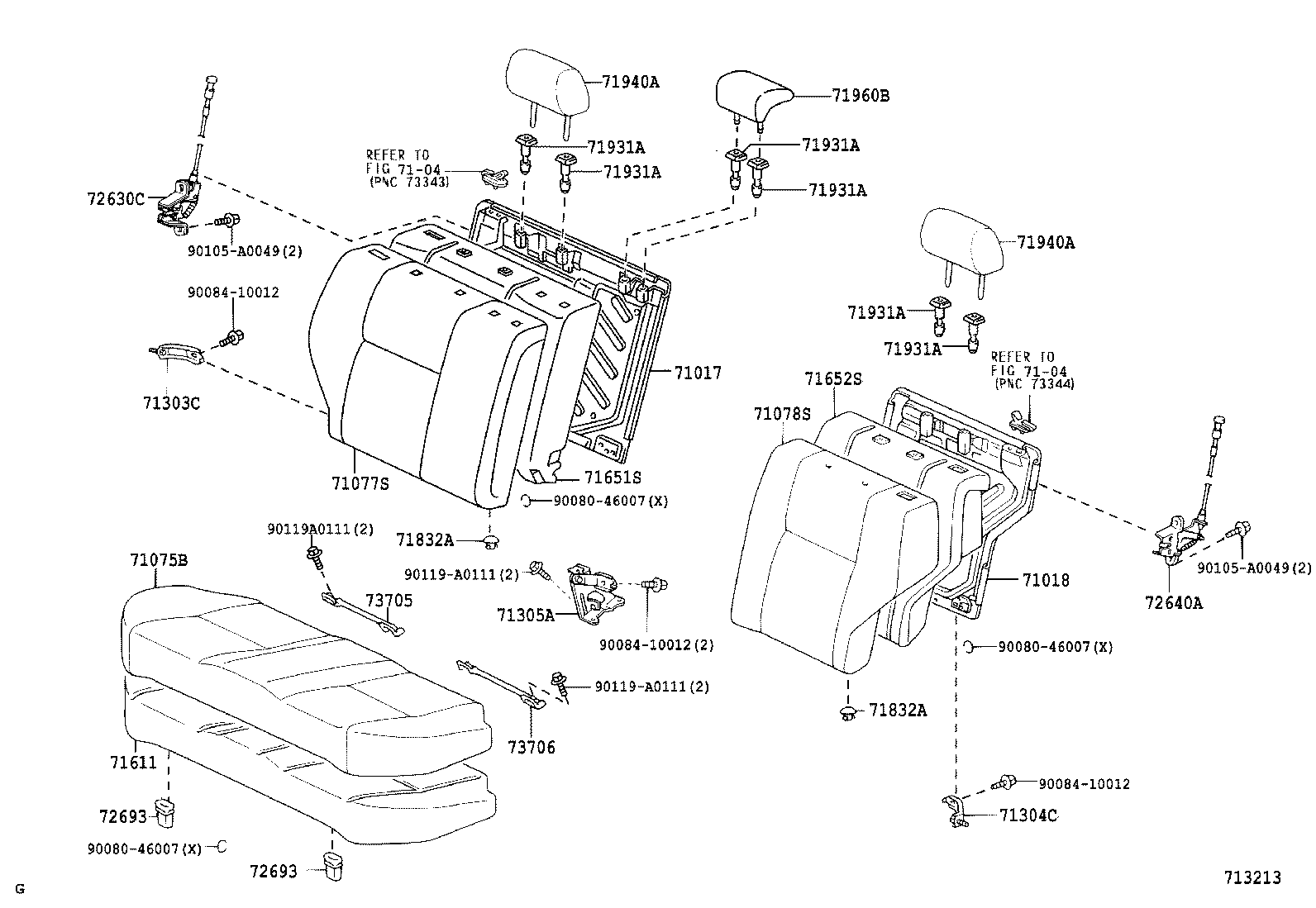

(0405- )ZZE130..NAP
SEPARATE TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-02231 |
ZZE130..NAP |
1 | ||
| 71017-02130 |
ZZE130..NAP |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-02120 |
ZZE130..NAP |
1 | ||
| 71018-02070 |
ZZE130..NAP |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-02520B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
1 | ||
| 71075-02A20B0 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 71075-02A21B0 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-02560B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
1 | ||
| 71077-02B40B1 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-02380B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
1 | ||
| 71078-02740B1 |
ZZE130..NAP..S DK.GRAY,TRIM1# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-02050 |
ZZE130..NAP |
1 | ||
| 71303-02050 |
ZZE130..NAP |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71303-02050 |
ZZE130..NAP |
1 | ||
| 71303-02050 |
ZZE130..NAP |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-02050 |
ZZE130..NAP |
1 | ||
| 71305-02050 |
ZZE130..NAP |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02090 |
ZZE130..NAP |
1 | ||
| 71503-02120 |
ZZE130,131..NAP |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02160 |
ZZE130..NAP |
1 | ||
| 71651-02110 |
ZZE130..NAP |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02100 |
ZZE130..NAP |
1 | ||
| 71652-02100 |
ZZE130..NAP |
1 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-09156C0 |
ZZE130..NAP BLACK |
4 | ||
| 90467-09156C0 |
ZZE130..NAP..S BLACK,TRIM1# |
4 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-09156C0 |
ZZE130..NAP BLACK |
4 | ||
| 90467-09156C0 |
ZZE130..NAP..S BLACK,TRIM1# |
4 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130,131..NAP..S W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71970-02040B1 |
ZZE130,131..NAP..S W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130,131..NAP..S W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71970-02040B1 |
ZZE130,131..NAP..S W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130,131..NAP..S W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71970-02040B1 |
ZZE130,131..NAP..S W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130,131..NAP..S W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71970-02040B1 |
ZZE130,131..NAP..S W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130,131..NAP..S W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71970-02040B1 |
ZZE130,131..NAP..S W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130,131..NAP..S W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71970-02040B1 |
ZZE130..NAP..S W(LOCK),DK.GRAY,TRIM1#,LH |
1 | ||
| 71956-02040B1 |
ZZE130..NAP..S W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71970-02040B1 |
ZZE130,131..NAP..S W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02360B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
2 | ||
| 71940-02670B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02360B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
2 | ||
| 71940-02670B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-02290B1 |
ZZE130..NAP..S DK. GRAY,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-02020 |
ZZE130..NAP |
1 | ||
| 72630-02020 |
ZZE130..NAP |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-02020 |
ZZE130..NAP |
1 | ||
| 72640-02020 |
ZZE130..NAP |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZZE130..NAP |
2 | ||
| 72693-12080 |
ZZE130..NAP |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZZE130..NAP |
2 | ||
| 72693-12080 |
ZZE130..NAP |
2 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-12040 |
ZZE130..NAP |
1 | ||
| 73705-12040 |
ZZE130..NAP |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-12040 |
ZZE130..NAP |
1 | ||
| 73706-12040 |
ZZE130..NAP |
1 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90084-10012 | ||||
| 90105-A0049 | ||||
| 90119-A0111 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
