Toyota Corolla/matrix (nap) ZZE130 LOCK CYLINDER SET

ZZE130L-DEPSKK (2002)

Toyota Corolla/Matrix (Nap)

Production Jan 2002 - Jan 2008

Engine 1ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

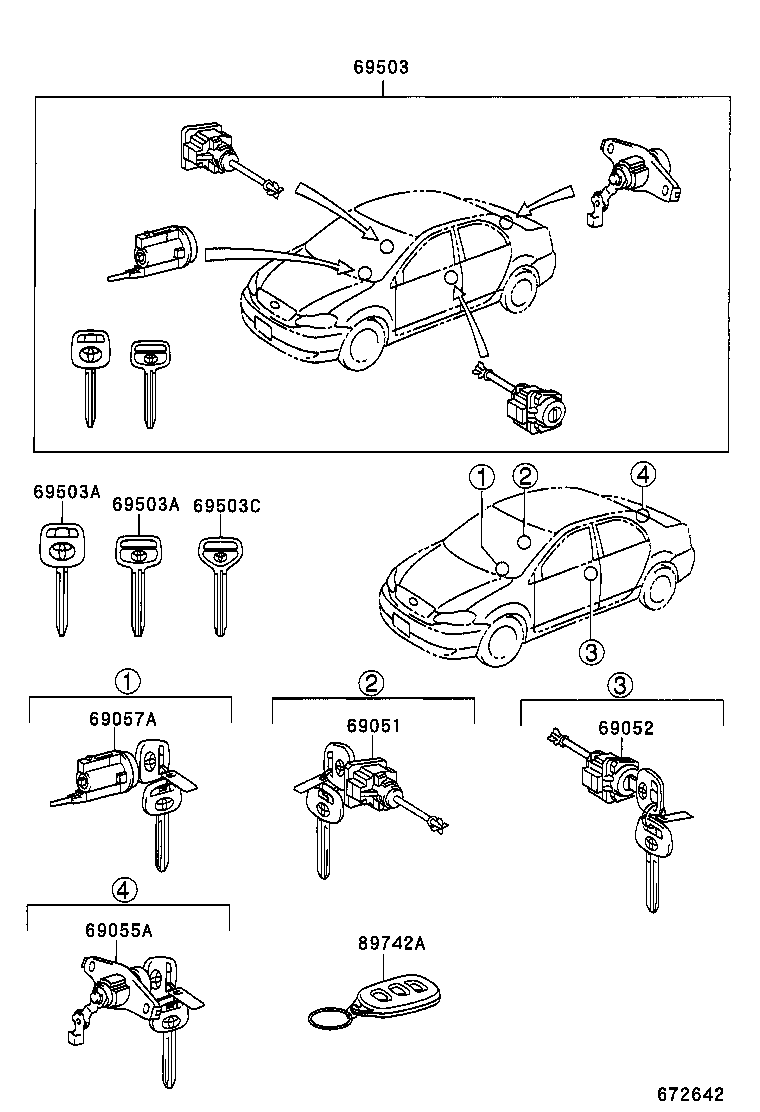

Click highlighted areas on diagram

Part #	Description	Period	Qty
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-02090	ZZE130..NAP	01/2002 - 05/2004	1
69051-02090	ZZE130..NAP	05/2004 - 12/2999	1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-02080	ZZE130..NAP	05/2004 - 12/2999	1
69052-02080	ZZE130..NAP	01/2002 - 05/2004	1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-02030	ZZE130..NAP	05/2004 - 12/2999	1
69055-02030	ZZE130..NAP	01/2002 - 05/2004	1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-02030	ZZE130..NAP	05/2003 - 05/2004	1
69057-02140	ZZE130..NAP	05/2004 - 12/2999	1
69057-02030	ZZE130..NAP	01/2002 - 05/2003	1
69503 - CYLINDER SET, LOCK
69005-02120	ZZE130..NAP	05/2004 - 12/2999	1
69005-02080	ZZE130..NAP	01/2002 - 05/2004	1
69503A - KEY, BLANK
90999-00199	ZZE130..NAP MASTER KEY,W(*68)	05/2003 - 05/2004	1
90999-00186	ZZE130..NAP MASTER KEY	01/2002 - 05/2004	1
90999-00199	ZZE130..NAP MASTER KEY,W(*68)	01/2002 - 05/2003	1
69503A - KEY, BLANK
90999-00199	ZZE130..NAP MASTER KEY,W(*68)	05/2003 - 05/2004	1
90999-00186	ZZE130..NAP MASTER KEY	01/2002 - 05/2004	1
90999-00199	ZZE130..NAP MASTER KEY,W(*68)	01/2002 - 05/2003	1
69503C - KEY, SUB
90999-00188	ZZE130..NAP	01/2002 - 05/2004	1
89742A - TRANSMITTER, DOOR CONTROL
89742-06010	ZZE130..NAP	01/2002 - 05/2004	2
89742-06010	ZZE130..NAP	05/2004 - 12/2999	2

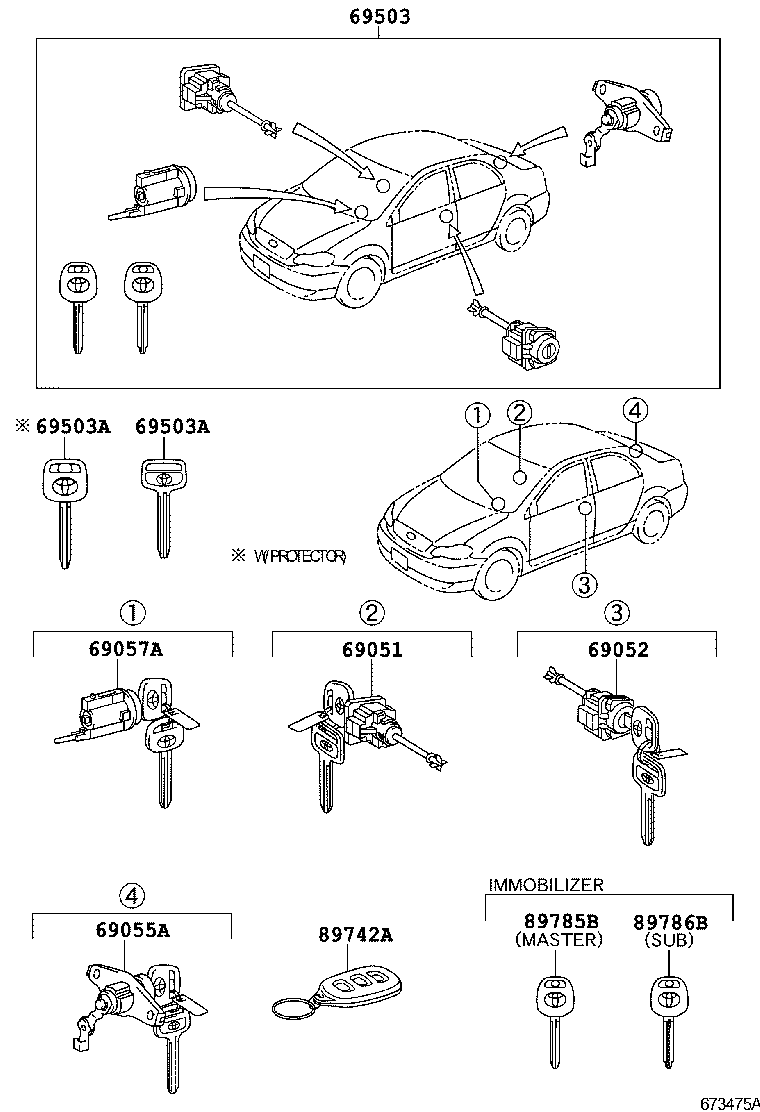

Click highlighted areas on diagram

Part #	Description	Period	Qty
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-02090	ZZE130..NAP	01/2002 - 05/2004	1
69051-02090	ZZE130..NAP	05/2004 - 12/2999	1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-02080	ZZE130..NAP	05/2004 - 12/2999	1
69052-02080	ZZE130..NAP	01/2002 - 05/2004	1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-02030	ZZE130..NAP	05/2004 - 12/2999	1
69055-02030	ZZE130..NAP	01/2002 - 05/2004	1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-02030	ZZE130..NAP	05/2003 - 05/2004	1
69057-02140	ZZE130..NAP	05/2004 - 12/2999	1
69057-02030	ZZE130..NAP	01/2002 - 05/2003	1
69503 - CYLINDER SET, LOCK
69005-02120	ZZE130..NAP	05/2004 - 12/2999	1
69005-02080	ZZE130..NAP	01/2002 - 05/2004	1
69503A - KEY, BLANK
90999-00199	ZZE130..NAP MASTER KEY,W(*68)	05/2003 - 05/2004	1
90999-00186	ZZE130..NAP MASTER KEY	01/2002 - 05/2004	1
90999-00199	ZZE130..NAP MASTER KEY,W(*68)	01/2002 - 05/2003	1
69503A - KEY, BLANK
90999-00199	ZZE130..NAP MASTER KEY,W(*68)	05/2003 - 05/2004	1
90999-00186	ZZE130..NAP MASTER KEY	01/2002 - 05/2004	1
90999-00199	ZZE130..NAP MASTER KEY,W(*68)	01/2002 - 05/2003	1
89742A - TRANSMITTER, DOOR CONTROL
89742-06010	ZZE130..NAP	01/2002 - 05/2004	2
89742-06010	ZZE130..NAP	05/2004 - 12/2999	2
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-08020	ZZE130..NAP	05/2004 - 12/2999	1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-08020	ZZE130..NAP BLANK KEY	05/2004 - 12/2999	1
